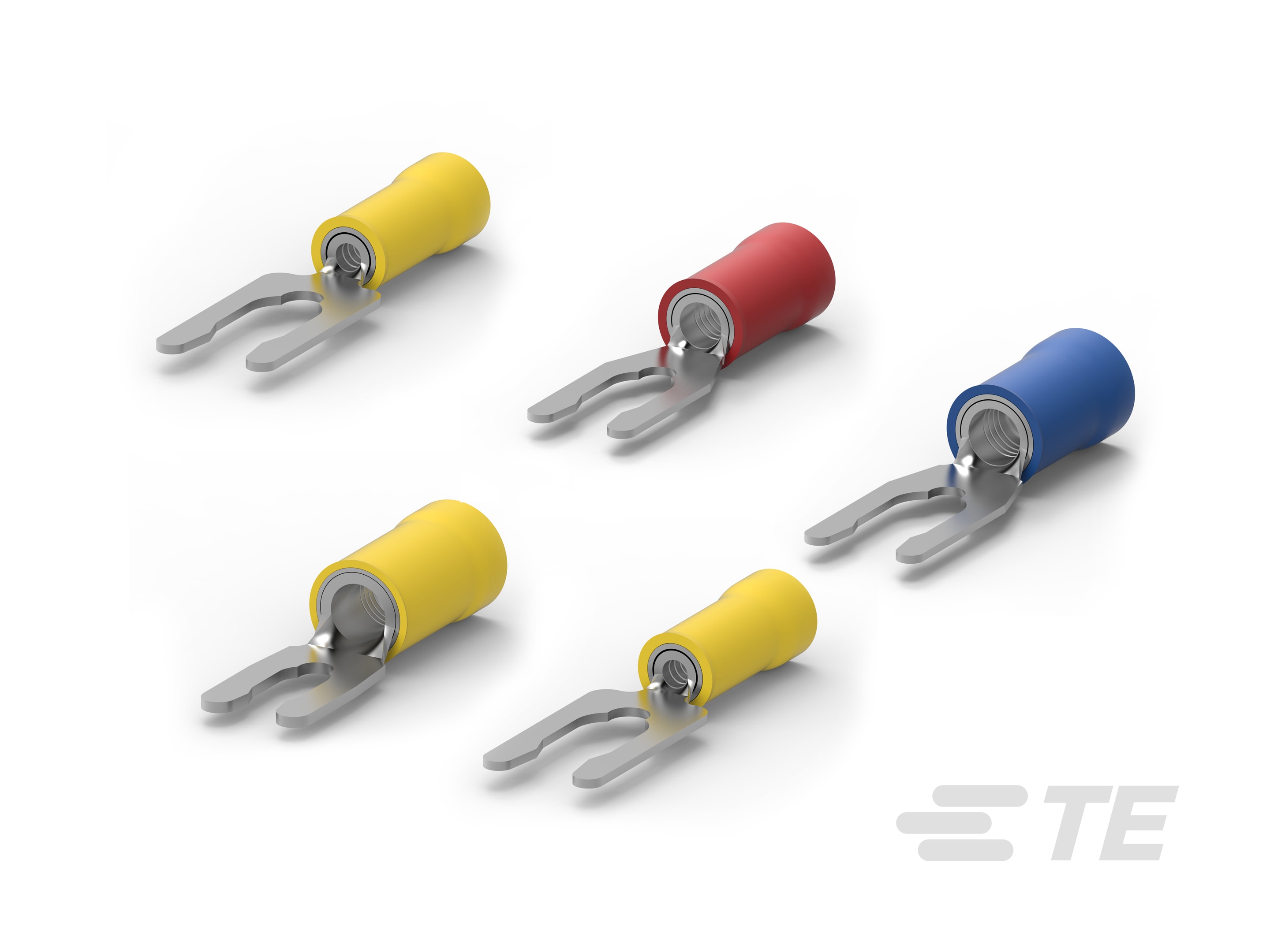

PIDG Long Spring Spade Tongue Terminals

PIDG

Pre-Insulated Diamond Grip Long Spring Spade Tongue Terminals

More Less

Datasheet |
Digital Datasheet|

Product Features

Spade Terminal Type : Spring Spade Terminal
Wire Size (AWG): 12 – 10, 22 – 16, 16 – 14, 26 – 22
Wire Size (mm²): 3 – 6, .3 – 1.42, 3 – 5.2, 1.25 – 2, .12 – .4
Wire Size (CMA): 5180 – 13100, 509 – 3260, 2050 – 5180, 202 – 810
Stud Size : M3.5, M3, 1/4,

Available from

Product	TE Part #	Documents	Wire Size	Wire Size	Wire Size	Stud Size	Stud Diameter	Tongue Thickness	Product Length	Compatible With Discrete Wire Type	Compatible Insulation Diameter (Max)	Compatible Insulation Diameter Range	Packaging Method
TERMINAL,PIDG SPR SPD 12-10 10 Buy on te.com	52432-1	Product Drawing 3D PDF	12 – 10 AWG	3 – 6 mm²	5180 – 13100 CMA	#10	4.82 mm	.79 mm	30.96 mm	-	6.35 mm	3.81 – 6.35 mm	Loose Piece
TERMINAL,PIDG SPR SPD 22-16 10 Buy on te.com	52411-1	Product Drawing 3D PDF	22 – 16 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#10	4.82 mm	.79 mm	25.53 mm	-	3.18 mm	2.03 – 3.18 mm	Tape Mounted
TERMINAL,PIDG SPR SPD 16-14 8 Buy on te.com	52421-3	Product Drawing 3D PDF	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#8, M4	4.17 mm	.79 mm	24.87 mm	-	3.81 mm	2.67 – 3.81 mm	Tape Mounted
TERMINAL,PIDG SPR SPD 12-10 6 Buy on te.com	52430-2	Product Drawing 3D PDF	12 – 10 AWG	3 – 6 mm²	5180 – 13100 CMA	#6, M3.5	3.51 mm	.79 mm	28.73 mm	-	5.84 mm	3.81 – 5.84 mm	Tape Mounted
TERMINAL,PIDG SPR SPD 12-10 8 Buy on te.com	52431-1	Product Drawing 3D PDF	12 – 10 AWG	3 – 6 mm²	5180 – 13100 CMA	#8, M4	4.17 mm	.79 mm	29.82 mm	-	3.81 mm	2.67 – 3.81 mm	Loose Piece
TERMINAL,PIDG SPR SPD 16-14 8	52421	Product Drawing 3D PDF	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#8, M4	4.17 mm	.84 mm	24.9 mm	-	3.81 mm	2.67 – 3.81 mm	Loose Piece
TERM,PIDG, SPR SPD, 16-14, #10, T&R Buy on te.com	52422-3	Product Drawing 3D PDF	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#10	4.82 mm	.79 mm	25.5 mm	-	4.32 mm	2.92 – 4.31 mm	Tape Mounted
TERMINAL,PIDG SPR SPD 26-22 4 Buy on te.com	52922	Product Drawing 3D PDF	26 – 22 AWG	.12 – .4 mm²	202 – 810 CMA	M2.5, #4	2.84 mm	.5 mm	17.7 mm	-	6.35 mm	3.81 – 6.35 mm	Loose Piece
PIDG SP SPD 22-16COM22-18MIL 4 Buy on te.com	8-52927-1	Product Drawing 3D PDF	22 – 16 AWG	.3 – 1.42 mm²	509 – 3260 CMA	M2.5, #4	2.84 mm	.79 mm	20.2 mm	-	3.18 mm	2.03 – 3.18 mm	Loose Piece
TERMINAL, PIDG SPR SPD 22-16 6	52409-3	Product Drawing 3D PDF	22 – 16 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#6, M3.5	3.51 mm	.79 mm	23.7 mm	-	3.56 mm	2.67 – 3.56 mm	Tape Mounted
TERMINAL,PIDG SPR SPD 26-22 6 Buy on te.com	52403-1	Product Drawing 3D PDF	26 – 22 AWG	.12 – .4 mm²	202 – 810 CMA	#6, M3.5	3.51 mm	.79 mm	21.5 mm	-	2.08 mm	1.27 – 2.08 mm	Tape Mounted
PIDG SP SPD 22-16COMM22-18MIL8 Buy on te.com	52410	Product Drawing 3D PDF	22 – 16 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#8, M4	4.17 mm	.84 mm	24.9 mm	-	3.18 mm	2.03 – 3.18 mm	Loose Piece
TERMINAL,PIDG SPR SPD 22-16 10 Buy on te.com	52411	Product Drawing 3D PDF	22 – 16 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#10	4.82 mm	.84 mm	25.5 mm	-	3.18 mm	2.03 – 3.18 mm	Loose Piece
TERMINAL,PIDG SPR SPD 16-14 10 Buy on te.com	9-52937-1	Product Drawing 3D PDF	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#10	4.82 mm	.79 mm	23.06 mm	-	4.62 mm	2.92 – 4.62 mm	Loose Piece
TERMINAL,PIDG SPR SPD 12-10 8	696072-1	Product Drawing 3D PDF	12 – 10 AWG	3 – 5.2 mm²	-	#8, M4	3.51 mm	.98 mm	26.7 mm	-	6.35 mm	3.81 – 6.35 mm	Loose Piece
PIDG SP SPD 22-16COM22-18MIL 5 Buy on te.com	8-52928-1	Product Drawing 3D PDF	22 – 16 AWG	.3 – 1.42 mm²	509 – 3260 CMA	M3, #5	3.18 mm	.84 mm	20.3 mm	-	3.18 mm	2.03 – 3.18 mm	Loose Piece
TERMINAL,PIDG SPR SPD 16-14 8	52936-2	Product Drawing 3D PDF	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#8, M4	4.17 mm	.79 mm	21.84 mm	-	4.62 mm	2.92 – 4.62 mm	Loose Piece
TERMINAL,PIDG SPR SPD 16-14 6 Buy on te.com	7-52935-1	Product Drawing 3D PDF	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#6, M3.5	3.56 mm	.79 mm	20.3 mm	-	4.32 mm	2.92 – 4.31 mm	Loose Piece
TERMINAL,PIDG SPR SPD 16-14 8	8-52936-1	Product Drawing 3D PDF	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#8, M4	4.17 mm	.79 mm	21.84 mm	-	4.32 mm	2.92 – 4.31 mm	Loose Piece
TERMINAL,PIDG SPR SPD 12-10 6 Buy on te.com	52430-1	Product Drawing 3D PDF	12 – 10 AWG	3 – 6 mm²	5180 – 13100 CMA	#6, M3.5	3.51 mm	.79 mm	28.7 mm	-	6.35 mm	3.81 – 6.35 mm	Loose Piece
TERMINAL,PIDG SPR SPD 12-10 6 Buy on te.com	52430-3	Product Drawing 3D PDF	12 – 10 AWG	3 – 6 mm²	5180 – 13100 CMA	#6, M3.5	3.51 mm	.79 mm	28.7 mm	-	6.35 mm	3.81 – 6.35 mm	Tape Mounted
TERMINAL,PIDG SPR SPD 16-14 6 Buy on te.com	52420-1	Product Drawing 3D PDF	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#6, M3.5	3.51 mm	.79 mm	23.6 mm	-	4.32 mm	2.92 – 4.31 mm	Loose Piece
PIDG SP SPD 22-16COM22-18MIL 6 Buy on te.com	52409-1	Product Drawing 3D PDF	22 – 16 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#6, M3.5	3.51 mm	.79 mm	23.7 mm	-	3.18 mm	2.03 – 3.18 mm	Tape Mounted
TERMINAL,PIDG SPR SPD 12-10 Buy on te.com	52433-1	Product Drawing 3D PDF	12 – 10 AWG	3 – 6 mm²	5180 – 13100 CMA	1/4, M6	6.35 mm	.79 mm	32.74 mm	-	6.35 mm	3.81 – 6.35 mm	Loose Piece
TERMINAL,PIDG SPR SPD 16-14 6 Buy on te.com	52935-2	Product Drawing 3D PDF	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#6, M3.5	3.56 mm	.79 mm	20.3 mm	-	4.62 mm	2.92 – 4.62 mm	Loose Piece
TERMINAL,PIDG SPR SPD 26-22 6 Buy on te.com	8-52924-1	Product Drawing 3D PDF	26 – 22 AWG	.12 – .4 mm²	202 – 810 CMA	#6, M3.5	3.51 mm	.46 mm	17.25 mm	-	2.08 mm	1.27 – 2.08 mm	Loose Piece
PIDG SP SPD 22-16COMM22-18MIL8 Buy on te.com	8-52410-1	Product Drawing 3D PDF	22 – 16 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#8, M4	4.17 mm	.84 mm	24.9 mm	-	3.18 mm	2.03 – 3.18 mm	Loose Piece
TERMINAL,PIDG SPR SPD 12-10 6	52430	Product Drawing 3D PDF	12 – 10 AWG	3 – 6 mm²	5180 – 13100 CMA	#6, M3.5	3.51 mm	1.07 mm	28.7 mm	-	5.84 mm	3.81 – 5.84 mm	Loose Piece
PIDG SP SPD 22-16COMM22-18MIL6 Buy on te.com	8-52929-1	Product Drawing 3D PDF	22 – 16 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#6, M3.5	3.56 mm	.79 mm	20.29 mm	-	3.18 mm	2.03 – 3.18 mm	Loose Piece
PIDG SP SPD 22-16COM22-18MIL10 Buy on te.com	8-52931-1	Product Drawing 3D PDF	22 – 16 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#10	4.82 mm	.79 mm	23.1 mm	-	3.18 mm	2.03 – 3.18 mm	Loose Piece
PIDG SP SPD 22-16COMM22-18MIL8 Buy on te.com	52410-1	Product Drawing 3D PDF	22 – 16 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#8, M4	4.17 mm	.79 mm	24.87 mm	-	3.18 mm	2.03 – 3.18 mm	Tape Mounted
TERMINAL,PIDG SPR SPD 16-14 6 Buy on te.com	52420-3	Product Drawing 3D PDF	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#6, M3.5	3.51 mm	.79 mm	23.6 mm	-	4.32 mm	2.92 – 4.31 mm	Tape Mounted
TERMINAL,PIDG SPR SPD 12-10 5	52940	Product Drawing 3D PDF	12 – 10 AWG	3 – 6 mm²	5180 – 13100 CMA	M3, #5	3.18 mm	1.07 mm	24.3 mm	-	6.35 mm	3.81 – 6.35 mm	Loose Piece
TERM, PIDG, SPR SPD, 16-14, #10	52937-2	Product Drawing 3D PDF	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#10	4.82 mm	.79 mm	23.1 mm	Solid, Stranded	4.62 mm	2.92 – 4.62 mm	Loose Piece
PIDG SP SPD 22-16COMM22-18MIL8 Buy on te.com	8-52930-1	Product Drawing 3D PDF	22 – 16 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#8, M4	4.17 mm	.79 mm	21.8 mm	-	3.18 mm	2.03 – 3.18 mm	Loose Piece
TERMINAL,PIDG SPR SPD 22-16 6	52409	Product Drawing 3D PDF	22 – 16 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#6, M3.5	3.51 mm	.79 mm	23.7 mm	-	3.18 mm	2.03 – 3.18 mm	Loose Piece
TERMINAL,PIDG SPR SPD 16-14 6 Buy on te.com	52420-2	Product Drawing 3D PDF	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#6, M3.5	3.51 mm	.79 mm	23.7 mm	-	3.81 mm	2.67 – 3.81 mm	Tape Mounted
TERMINAL,PIDG SPR SPD 16-14 10 Buy on te.com	52422-1	Product Drawing 3D PDF	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#10	4.82 mm	.79 mm	25.5 mm	-	3.81 mm	2.67 – 3.81 mm	Loose Piece
TERMINAL,PIDG SPR SPD 12-10 8 Buy on te.com	8-52942-1	Product Drawing 3D PDF	12 – 10 AWG	3 – 6 mm²	5180 – 13100 CMA	#8, M4	4.17 mm	.99 mm	26.7 mm	-	6.35 mm	3.81 – 6.35 mm	Loose Piece
TERMINAL,PIDG SPR SPD 26-22 2 Buy on te.com	52921	Product Drawing 3D PDF	26 – 22 AWG	.12 – .4 mm²	202 – 810 CMA	M2, #2	2.18 mm	.5 mm	16.5 mm	-	2.03 mm	1.27 – 2.03 mm	Loose Piece
TERMINAL,PIDG SPR SPD 26-22 6	52403	Product Drawing 3D PDF	26 – 22 AWG	.12 – .4 mm²	202 – 810 CMA	#6, M3.5	3.51 mm	.5 mm	21.5 mm	-	2.08 mm	1.27 – 2.08 mm	Loose Piece
TERMINAL,PIDG SPR SPD 16-14 6	52420	Product Drawing 3D PDF	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	M3.5	3.51 mm	.84 mm	23.6 mm	-	3.81 mm	2.67 – 3.81 mm	Loose Piece
TERMINAL,PIDG SPR SPD 12-10 8 Buy on te.com	52431-3	Product Drawing 3D PDF	12 – 10 AWG	3 – 6 mm²	5180 – 13100 CMA	#8, M4	4.17 mm	.79 mm	29.8 mm	-	3.81 mm	2.67 – 3.81 mm	Tape Mounted
TERMINAL,PIDG SPR SPD 26-22 8	52925	Product Drawing 3D PDF	26 – 22 AWG	.12 – .4 mm²	202 – 810 CMA	#8, M4	4.17 mm	.5 mm	16.5 mm	-	2.08 mm	1.27 – 2.08 mm	Loose Piece
TERMINAL,PIDG SPR SPD 16-14 8 Buy on te.com	52936-3	Product Drawing 3D PDF	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#8, M4	4.17 mm	.79 mm	21.84 mm	-	4.62 mm	2.92 – 4.62 mm	Tape Mounted
PIDG 22-16 SPG SPD 8,NAT Buy on te.com	1-52410-0	Product Drawing 3D PDF	22 – 16 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#8, M4	4.17 mm	.79 mm	24.87 mm	-	3.18 mm	2.03 – 3.18 mm	Loose Piece
TERMINAL,PIDG SPR SPD 16-14 8 Buy on te.com	52421-1	Product Drawing 3D PDF	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#8, M4	4.17 mm	.79 mm	24.9 mm	-	4.32 mm	2.92 – 4.31 mm	Loose Piece
TERMINAL,PIDG SPR SPD 26-22 5	52923	Product Drawing 3D PDF	26 – 22 AWG	.12 – .4 mm²	202 – 810 CMA	M3, #5	3.18 mm	.5 mm	17.2 mm	-	2.08 mm	1.27 – 2.08 mm	Loose Piece
PIDG SP SPD 22-16COM22-18MIL 4	52408	Product Drawing 3D PDF	22 – 16 AWG	.3 – 1.42 mm²	509 – 3260 CMA	M2.5, #4	2.84 mm	.84 mm	22.8 mm	-	3.18 mm	2.03 – 3.18 mm	Loose Piece
PIDG SP SPD 22-16COM22-18MIL 6	52409-2	Product Drawing 3D PDF	22 – 16 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#6, M3.5	3.51 mm	.79 mm	23.7 mm	-	3.56 mm	2.67 – 3.56 mm	Loose Piece

Features

Please review product documents or contact us for the latest agency approval information.

Electrical Characteristics

Voltage Rating (V) 300

Mechanical Attachment

Wire Insulation Support With

Product Type Features

Terminal Features Sheared
Stud Size M3.5, M3, 1/4,
Sealable No
Compatible With Discrete Wire Type Solid, Stranded
Wire Insulation Support Retention Type Insulation Support

Industry Standards

Government Qualified Terminal No

Body Features

Product Weight (g) 2.4
Insulation Sleeve Color Blue, Red, Yellow
Stripe Color Blue, Yellow, Red

Packaging Features

Packaging Quantity 100, 1000, 5000, 12000, 500, 2500
Packaging Method Tape Mounted, Loose Piece

Contact Features

Spade Terminal Type Spring Spade Terminal
Barrel Type Closed
Terminal Orientation Straight
Terminal Plating Material Tin

Dimensions

Wire Size (AWG) 12 – 10, 22 – 16, 16 – 14, 26 – 22
Wire Size (mm²) 3 – 6, .3 – 1.42, 3 – 5.2, 1.25 – 2, .12 – .4
Wire Size (CMA) 5180 – 13100, 509 – 3260, 2050 – 5180, 202 – 810
Stud Diameter (mm) 3.56, 4.82, 3.18, 2.18, 2.84, 6.35, 3.51, 4.17
Stud Diameter (in) .138, .112, .164, .125, .19, .25, .14, .086
Tongue Thickness (mm) .99, .84, .79, 1.07, .5, .46, .98
Tongue Thickness (in) .02, .033, .042, .031, .039, .018
Product Length (mm) 29.82, 17.25, 22.8, 28.73, 25.5, 21.5, 29.8, 28.7, 23.06, 20.2, 21.8, 23.1, 26.7, 21.84, 32.74, 23.7, 24.9, 25.53, 17.2, 20.29, 30.96, 16.5, 24.3, 23.6, 24.87, 17.7, 20.3
Product Length (in) 1.289, .679, .933, 1.174, 1.005, 1.219, .799, 1.131, .86, 1.052, .93, .847, .651, .896, .957, .908, .695, .979
Compatible Insulation Diameter (Max) (mm) 2.08, 6.35, 2.03, 3.18, 3.81, 4.62, 5.84, 3.56, 4.32
Compatible Insulation Diameter (Max) (in) .17, .14, .125, .082, .25, .23, .08, .182, .15
Compatible Insulation Diameter Range (mm) 1.27 – 2.03, 2.67 – 3.56, 1.27 – 2.08, 2.67 – 3.81, 3.81 – 6.35, 2.92 – 4.31, 2.92 – 4.62, 3.81 – 5.84, 2.03 – 3.18
Compatible Insulation Diameter Range (in) .105 – .15, .08 – .125, .05 – .08, .15 – .23, .05 – .082, .15 – .25, .115 – .17, .105 – .14, .115 – .182

Usage Conditions

Insulation Option Partially Insulated

Operation/Application

Compatible With Wire Base Material Copper
Compatible With Wire Plating Material Tin

Other

EU RoHS Compliance Compliant
EU ELV Compliance Compliant

Reference Number

TE Internal Number CAT-P592-L853
