View products below to see detailed pricing

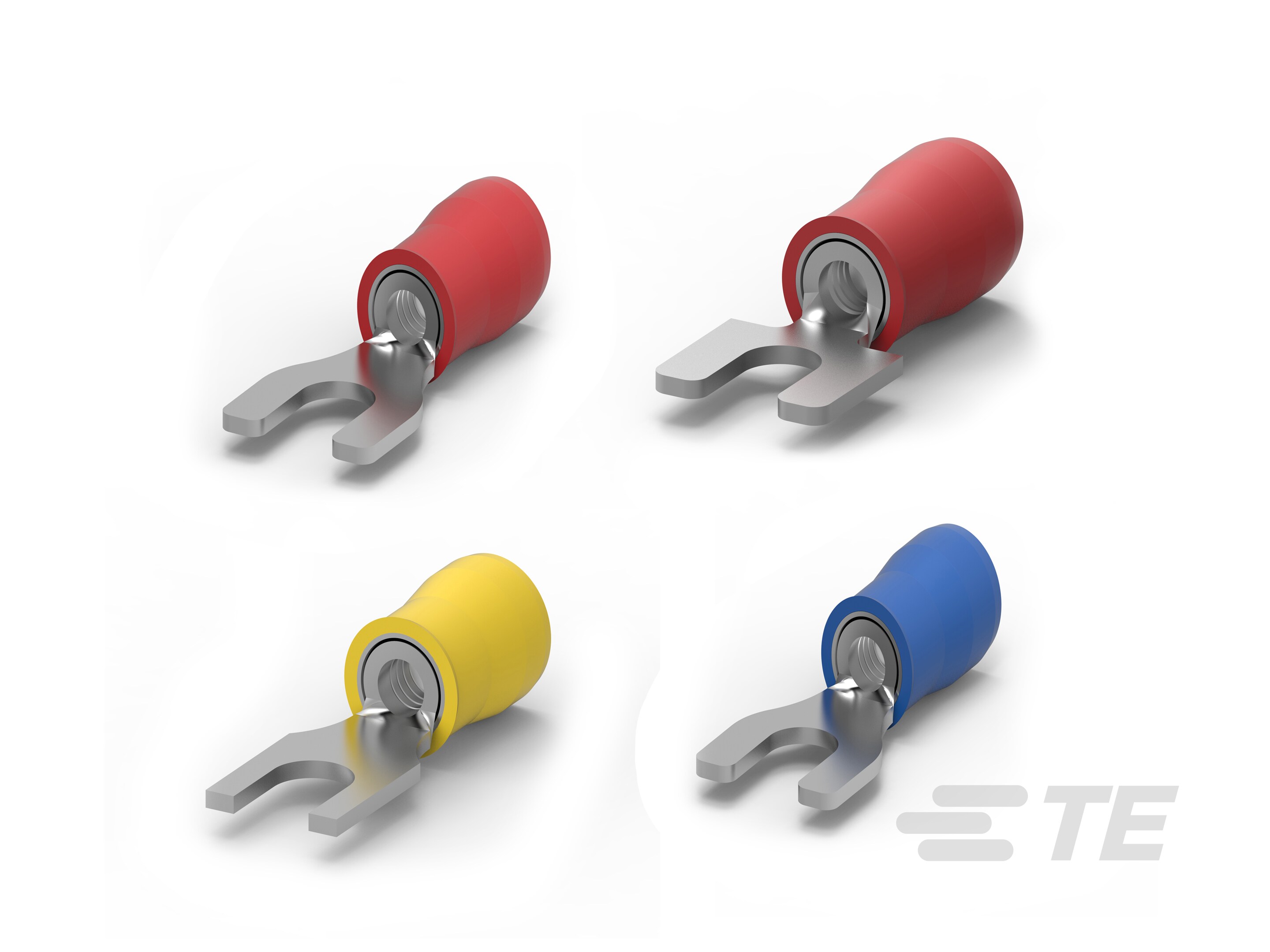

PIDG Spade Tongue Terminals

PIDG

Pre-Insulated Diamond Grip Spade Tongue Terminals

More Less

Datasheet |
Digital Datasheet|

Product Features

Spade Terminal Type : Spade Tongue Terminal
Wire Size (AWG): 22, 12 – 10, 16, 26 – 24, 22 – 16, 16 – 14, 26 – 22
Wire Size (mm²): 3 – 6, .3 – 1.42, 2.62 – 6.64, 1.04 – 2.62, .12 – .24, 1.04 – 2.68, .26 – 1.65, .326 – 1.31, 1.25 – 2, 2.62 – 6.62, .12 – .4
Wire Size (CMA): 5180 – 13100, 509 – 3260, 2050 – 5180, 238 – 475, 202 – 810
Stud Size : M3.5,

Available from

Product	TE Part #	Documents	Wire Size	Wire Size	Wire Size	Stud Size	Stud Diameter	Tongue Thickness	Product Length	Operating Temperature Range	Wire Insulation Support Retention Type	Compatible Insulation Diameter (Max)	Compatible Insulation Diameter Range	Packaging Method
TERMINAL,PIDG SPD 16-14 6	32058	Product Drawing 3D PDF	16 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#6, M3.5	3.51 mm	.84 mm	23.06 mm	-	Non-Insulation Support	4.32 mm	2.92 – 4.31 mm	Loose Piece
TERMINAL,PIDG SPD 12-10 8 Buy on te.com	32588	Product Drawing 3D PDF	12 – 10 AWG	3 – 6 mm²	5180 – 13100 CMA	#8, M4	4.34 mm	1.02 mm	18.71 mm	-	Non-Insulation Support	5.84 mm	3.81 – 5.84 mm	Loose Piece
PIDG SPD 22-16COMM 22-18MIL 2 Buy on te.com	328394	Product Drawing 3D PDF	22 – 16 AWG	.326 – 1.31 mm²	509 – 3260 CMA	M2, #2	2.36 mm	.79 mm	18.47 mm	-	Insulation Support	3.56 mm	2.67 – 3.56 mm	Loose Piece
TERMINAL,PIDG SPD 12-10 6 Buy on te.com	1-322985-0	Product Drawing 3D PDF	12 – 10 AWG	2.62 – 6.64 mm²	5180 – 13100 CMA	#6, M3.5	3.68 mm	.79 mm	24.23 mm	-	Insulation Support	5.84 mm	3.81 – 5.84 mm	Tape Mounted
PIDG SPD 22-16 COMM 22-18MIL 4 Buy on te.com	1-327717-2	Product Drawing 3D PDF	22 – 16 AWG	.26 – 1.65 mm²	509 – 3260 CMA	M2.5, #4	3.02 mm	.79 mm	17.12 mm	-	Insulation Support	3.56 mm	2.67 – 3.56 mm	Tape Mounted
PIDG SPADE	130625	Product Drawing 3D PDF	12 – 10 AWG	2.62 – 6.64 mm²	5180 – 13100 CMA	M6	6.35 mm	.79 mm	33 mm	-	Non-Insulation Support	6.4 mm	3.8 – 6.4 mm	Loose Piece
PIDG SPD 22-16 COMM 22-18MIL 4 Buy on te.com	1-327717-0	Product Drawing 3D PDF	22 – 16 AWG	.326 – 1.31 mm²	509 – 3260 CMA	M2.5, #4	3.02 mm	.79 mm	17.12 mm	-	Insulation Support	3.18 mm	2.03 – 3.18 mm	Loose Piece
TERMINAL,PIDG SPD 16-14 6 Buy on te.com	1-328281-1	Product Drawing 3D PDF	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#6, M3.5	3.68 mm	.79 mm	21.49 mm	-	Insulation Support	4.32 mm	2.92 – 4.31 mm	Tape & Reel
TERMINAL,PIDG SPD 16-14 8 Buy on te.com	2-32056-1	Product Drawing 3D PDF	16 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#8, M4	4.17 mm	.79 mm	23.06 mm	-	Insulation Support	3.81 mm	2.67 – 3.81 mm	Tape Mounted
TERMINAL,PIDG SPD 12-10 10	2-32589-1	Product Drawing 3D PDF	12 – 10 AWG	3 – 6 mm²	5180 – 13100 CMA	#10	5 mm	1.02 mm	18.71 mm	-	Non-Insulation Support	5.84 mm	3.81 – 5.84 mm	Tape Mounted
PIDG SPADE 16-14	130537	Product Drawing 3D PDF	16 – 14 AWG	1.04 – 2.62 mm²	2050 – 5180 CMA	M6	6.3 mm	.79 mm	28.01 mm	-	Non-Insulation Support	4.32 mm	2.92 – 4.31 mm	Loose Piece
TERMINAL,PIDG SPD 12-10 10 Buy on te.com	32589	Product Drawing 3D PDF	12 – 10 AWG	3 – 6 mm²	5180 – 13100 CMA	#10	5 mm	1.02 mm	18.71 mm	-	Non-Insulation Support	5.84 mm	3.81 – 5.84 mm	Loose Piece
TERMINAL,PIDG SPD 12-10 6 Buy on te.com	326859	Product Drawing 3D PDF	12 – 10 AWG	2.62 – 6.64 mm²	5180 – 13100 CMA	#6, M3.5	3.68 mm	.79 mm	27.81 mm	-	Insulation Support	5.84 mm	3.81 – 5.84 mm	Loose Piece
TERMINAL,PIDG SPD 16-14 10 Buy on te.com	2-32060-1	Product Drawing 3D PDF	16 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#10	5 mm	.79 mm	23.06 mm	-	Insulation Support	4.32 mm	2.92 – 4.31 mm	Tape Mounted
TERMINAL,PIDG SPD 16-14 8	2-321233-1	Product Drawing 3D PDF	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#8, M4	4.34 mm	.79 mm	19.13 mm	-	Insulation Support	4.32 mm	2.92 – 4.31 mm	Tape Mounted
TERMINAL,PIDG SPD 26-24 6 Buy on te.com	53115-2	Product Drawing 3D PDF	26 – 24 AWG	.12 – .24 mm²	238 – 475 CMA	#6, M3.5	3.51 mm	.69 mm	16.05 mm	-	Insulation Support	2.41 mm	1.27 – 2.41 mm	Tape Mounted
PIDG SPD 22-16 COMM 22-18MIL 6 Buy on te.com	34080	Product Drawing 3D PDF	22 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#6, M3.5	3.51 mm	.84 mm	19.13 mm	-	Non-Insulation Support	3.18 mm	2.03 – 3.18 mm	Box
TERMINAL,PIDG SPD 12-10 8 Buy on te.com	2-32588-1	Product Drawing 3D PDF	12 – 10 AWG	3 – 6 mm²	5180 – 13100 CMA	#8, M4	4.34 mm	1.02 mm	18.71 mm	-	Non-Insulation Support	5.84 mm	3.81 – 5.84 mm	Tape Mounted
TERMINAL,PIDG SPD 12-10 8 Buy on te.com	2-35152-1	Product Drawing 3D PDF	12 – 10 AWG	2.62 – 6.62 mm²	5180 – 13100 CMA	#8, M4	4.34 mm	.79 mm	27.81 mm	-	Insulation Support	6.35 mm	3.81 – 6.35 mm	Tape Mounted
PIDG SPD 22-16COMM 22-18MIL 10 Buy on te.com	2-32054-1	Product Drawing 3D PDF	22 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#10	5 mm	.79 mm	23.06 mm	-	Insulation Support	3.56 mm	2.67 – 3.56 mm	Tape Mounted
TERMINAL,PIDG SPD 12-10 6 Buy on te.com	2-326859-1	Product Drawing 3D PDF	12 – 10 AWG	2.62 – 6.64 mm²	5180 – 13100 CMA	#6, M3.5	3.68 mm	.79 mm	27.81 mm	-	Insulation Support	5.84 mm	3.81 – 5.84 mm	Tape Mounted
TERMINAL,PIDG SPD 22-16 6 Buy on te.com	2-326861-1	Product Drawing 3D PDF	22 – 16 AWG	1.04 – 2.68 mm²	509 – 3260 CMA	#6, M3.5	3.68 mm	.79 mm	19.13 mm	-	Insulation Support	3.56 mm	2.67 – 3.56 mm	Tape Mounted
TERMINAL,PIDG SPD 16-14 10 Buy on te.com	32060	Product Drawing 3D PDF	16 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#10	5 mm	.79 mm	23.06 mm	-	Non-Insulation Support	4.32 mm	2.92 – 4.31 mm	Loose Piece
TERMINAL,PIDG SPD 12-10 8 Buy on te.com	35152	Product Drawing 3D PDF	12 – 10 AWG	2.62 – 6.62 mm²	5180 – 13100 CMA	#8, M4	4.34 mm	1.07 mm	27.81 mm	-	Insulation Support	6.35 mm	3.81 – 6.35 mm	Loose Piece
PIDG SPD 22-16 COMM 22-18MIL 8 Buy on te.com	32050	Product Drawing 3D PDF	22 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#8, M4	4.17 mm	.84 mm	23.06 mm	-	Non-Insulation Support	3.18 mm	2.03 – 3.18 mm	Loose Piece
PIDG SPD 22-16COMM 22-18MIL 10 Buy on te.com	32054	Product Drawing 3D PDF	22 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#10	5 mm	.79 mm	23.06 mm	-	Non-Insulation Support	3.56 mm	2.67 – 3.56 mm	Loose Piece
TERMINAL,PIDG SPD 16-14 8 Buy on te.com	32059	Product Drawing 3D PDF	16 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#8, M4	4.17 mm	.84 mm	23.06 mm	-	Non-Insulation Support	4.32 mm	2.92 – 4.31 mm	Loose Piece
PIDG 26-22 SPADE #4 STUD Buy on te.com	321035	Product Drawing 3D PDF	26 – 22 AWG	.12 – .4 mm²	202 – 810 CMA	M2.5, #4	3.02 mm	.5 mm	15.93 mm	-	Non-Insulation Support	2.08 mm	1.27 – 2.08 mm	Loose Piece
TERMINAL,PIDG SPD 12-10 8 Buy on te.com	8-32588-2	Product Drawing 3D PDF	12 – 10 AWG	3 – 6 mm²	5180 – 13100 CMA	#8, M4	4.34 mm	1.02 mm	18.71 mm	-	Non-Insulation Support	5.84 mm	3.81 – 5.84 mm	Loose Piece
TERMINAL,PIDG SPD 12-10 10 Buy on te.com	8-32589-2	Product Drawing 3D PDF	12 – 10 AWG	3 – 6 mm²	5180 – 13100 CMA	#10	5 mm	1.02 mm	18.71 mm	-	Non-Insulation Support	5.84 mm	3.81 – 5.84 mm	Loose Piece
PIDG SPD 22-16COMM 22-18MIL 2 Buy on te.com	8-328394-1	Product Drawing 3D PDF	22 – 16 AWG	.326 – 1.31 mm²	509 – 3260 CMA	M2, #2	2.36 mm	.79 mm	18.47 mm	-	Insulation Support	3.56 mm	2.67 – 3.56 mm	Loose Piece
TERMINAL,PIDG SPD 16-14 6 Buy on te.com	8-35559-1	Product Drawing 3D PDF	16 – 14 AWG	1.04 – 2.62 mm²	2050 – 5180 CMA	#6, M3.5	3.68 mm	.79 mm	19.13 mm	-	Insulation Support	4.32 mm	2.92 – 4.31 mm	Loose Piece
TERMINAL,PIDG SPD 16-14 8	32056	Product Drawing 3D PDF	16 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#8, M4	4.17 mm	.84 mm	23.06 mm	-	Non-Insulation Support	3.81 mm	2.67 – 3.81 mm	Loose Piece
TERMINAL,PIDG SPD 16-14 10	32057	Product Drawing 3D PDF	16 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#10	4.82 mm	.84 mm	23.06 mm	-	Non-Insulation Support	3.81 mm	2.67 – 3.81 mm	Box
TERMINAL,PIDG SPD 12-10 8 Buy on te.com	325197	Product Drawing 3D PDF	12 – 10 AWG	2.62 – 6.64 mm²	5180 – 13100 CMA	#8, M4	4.34 mm	.79 mm	33.38 mm	-	Insulation Support	5.84 mm	3.81 – 5.84 mm	Loose Piece
TERMINAL,PIDG SPD 16-14 8 Buy on te.com	325199	Product Drawing 3D PDF	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#8, M4	4.34 mm	.79 mm	26.26 mm	-	Insulation Support	4.32 mm	2.92 – 4.31 mm	Loose Piece
PIDG SPD 22-16 COMM 22-18MIL 8 Buy on te.com	8-32053-1	Product Drawing 3D PDF	22 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#8, M4	4.34 mm	.79 mm	23.06 mm	-	Non-Insulation Support	3.56 mm	2.67 – 3.56 mm	Loose Piece
TERMINAL,PIDG SPD 16-14 8 Buy on te.com	8-32059-1	Product Drawing 3D PDF	16 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#8, M4	4.17 mm	.84 mm	23.06 mm	-	Non-Insulation Support	4.32 mm	2.92 – 4.31 mm	Loose Piece
PIDG SPD 22-16 COMM 22-18MIL 4 Buy on te.com	8-327717-1	Product Drawing 3D PDF	22 – 16 AWG	.326 – 1.31 mm²	509 – 3260 CMA	M2.5, #4	3.02 mm	.79 mm	17.12 mm	-	Insulation Support	3.56 mm	2.67 – 3.56 mm	Loose Piece
TERMINAL,PIDG SPD 16-14 6 Buy on te.com	8-328281-1	Product Drawing 3D PDF	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#6, M3.5	3.68 mm	.79 mm	21.49 mm	-	Insulation Support	4.32 mm	2.92 – 4.31 mm	Loose Piece
TERMINAL,PIDG SPD 12-10 8 Buy on te.com	8-35152-2	Product Drawing 3D PDF	12 – 10 AWG	2.62 – 6.62 mm²	5180 – 13100 CMA	#8, M4	4.34 mm	1.07 mm	27.81 mm	-	Insulation Support	6.35 mm	3.81 – 6.35 mm	Loose Piece
PIDG SPD 22-16COMM 22-18MIL 10 Buy on te.com	8-32054-1	Product Drawing 3D PDF	22 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#10	5 mm	.79 mm	23.06 mm	-	Insulation Support	3.56 mm	2.67 – 3.56 mm	Loose Piece
TERMINAL,PIDG SPD 16-14 10 Buy on te.com	8-32060-1	Product Drawing 3D PDF	16 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#10	5 mm	.79 mm	23.06 mm	-	Insulation Support	4.32 mm	2.92 – 4.31 mm	Loose Piece
PIDG SPD 22-16 COMM 22-18MIL6 Buy on te.com	8-34080-1	Product Drawing 3D PDF	22 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#6, M3.5	3.51 mm	.79 mm	19.13 mm	-	Insulation Support	3.18 mm	2.03 – 3.18 mm	Reel
PIDG SPADE	130527	Product Drawing 3D PDF	16 – 14 AWG	1.04 – 2.62 mm²	2050 – 5180 CMA	M2.5	3.02 mm	.79 mm	20.65 mm	-	Insulation Support	4.32 mm	2.92 – 4.31 mm	Loose Piece
PIDG SPD 22-16 COMM 22-18MIL 6 Buy on te.com	2-34541-1	Product Drawing 3D PDF	22 – 16 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#6, M3.5	3.68 mm	.79 mm	21.48 mm	-	Insulation Support	3.56 mm	2.67 – 3.56 mm	Tape Mounted
TERMINAL,PIDG SPD 16-14 6 Buy on te.com	2-35559-1	Product Drawing 3D PDF	16 – 14 AWG	1.04 – 2.62 mm²	2050 – 5180 CMA	#6, M3.5	3.68 mm	.79 mm	19.13 mm	-	Insulation Support	4.32 mm	2.92 – 4.31 mm	Tape Mounted
PIDG SPD 22-16COMM 22-18MIL 10	32051	Product Drawing 3D PDF	22 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#10	4.82 mm	.79 mm	23.06 mm	-	Non-Insulation Support	3.56 mm	2.67 – 3.56 mm	Loose Piece
PIDG SPD 22-16 COMM 22-18MIL 8 Buy on te.com	32053	Product Drawing 3D PDF	22 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#8, M4	4.34 mm	.79 mm	23.06 mm	-	Non-Insulation Support	3.56 mm	2.67 – 3.56 mm	Loose Piece
TERMINAL,PIDG SPD 16-14 8 Buy on te.com	321233	Product Drawing 3D PDF	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#8, M4	4.34 mm	.79 mm	19.13 mm	-40 – 105 °C	Non-Insulation Support	4.32 mm	2.92 – 4.31 mm	Box

Features

Please review product documents or contact us for the latest agency approval information.

Electrical Characteristics

Voltage Rating (V) 300

Mechanical Attachment

Wire Insulation Support With

Body Features

Product Weight (g) .255, 3.48, 3.538, 2.401, .1, .85, .898, .948, .953, .703, 2.46, 2.535, 1.105, .8, .9, .91, .821, .842, 2.353, 1.073, 1.061, .964, 2.916, 1.102, .957, .981, .928, 1.133, .13, .81, 2.373, .969, 1.236, 1.029, .614
Insulation Sleeve Color Blue, Red, Yellow
Stripe Color Blue, Yellow, Red

Industry Standards

Government Qualified Terminal No

Packaging Features

Packaging Quantity 100, 1000, 5000, 1, 500, 2500, 50
Packaging Method Tape & Reel, Box, Tape Mounted, Loose Piece, Reel

Configuration Features

Number of Holes 1

Product Type Features

Stud Size M3.5,
Sealable No
Wire Insulation Support Retention Type Non-Insulation Support, Insulation Support

Contact Features

Spade Terminal Type Spade Tongue Terminal
Barrel Type Closed
Terminal Orientation Straight
Terminal Plating Material Tin

Dimensions

Wire Size (AWG) 22, 12 – 10, 16, 26 – 24, 22 – 16, 16 – 14, 26 – 22
Wire Size (mm²) 3 – 6, .3 – 1.42, 2.62 – 6.64, 1.04 – 2.62, .12 – .24, 1.04 – 2.68, .26 – 1.65, .326 – 1.31, 1.25 – 2, 2.62 – 6.62, .12 – .4
Wire Size (CMA) 5180 – 13100, 509 – 3260, 2050 – 5180, 238 – 475, 202 – 810
Stud Diameter (mm) 2.36, 3.02, 4.82, 4.34, 6.3, 6.35, 3.68, 3.51, 5, 4.17
Stud Diameter (in) .118, .171, .138, .119, .164, .197, .19, .248, .145, .093
Tongue Thickness (mm) 1.02, .84, .69, .79, 1.07, .5
Tongue Thickness (in) .04, .02, .027, .033, .042, .031
Product Length (mm) 18.71, 33, 19.88, 23.06, 33.38, 19.13, 21.49, 15.93, 24.23, 17.12, 26.26, 27.81, 18.47, 16.05, 19.89, 20.65, 28.01, 21.48
Product Length (in) 1.314, .632, .627, .75, 1.1, .954, .813, .674, .727, .846, 1.299, .85, .908, .753, 1.095, 1.034, .783, 1.103
Compatible Insulation Diameter (Max) (mm) 2.08, 6.35, 6.4, 3.18, 2.41, 3.81, 5.84, 3.56, 4.32
Compatible Insulation Diameter (Max) (in) .17, .14, .125, .252, .082, .095, .25, .23, .15
Compatible Insulation Diameter Range (mm) 1.27 – 2.41, 2.67 – 3.56, 1.27 – 2.08, 2.67 – 3.81, 3.8 – 6.4, 3.81 – 6.35, 2.92 – 4.31, 3.81 – 5.84, 2.03 – 3.18
Compatible Insulation Diameter Range (in) .05 – .095, .105 – .15, .08 – .125, .149 – .252, .15 – .23, .05 – .082, .15 – .25, .115 – .17, .105 – .14

Usage Conditions

Insulation Option Partially Insulated
Operating Temperature Range -40 – 105 °C [ -40 – 221 °F ]

Operation/Application

Compatible With Wire Base Material Copper
Compatible With Wire Plating Material Tin

Other

EU RoHS Compliance Compliant
EU ELV Compliance Compliant

Reference Number

TE Internal Number CAT-P592-SP118
