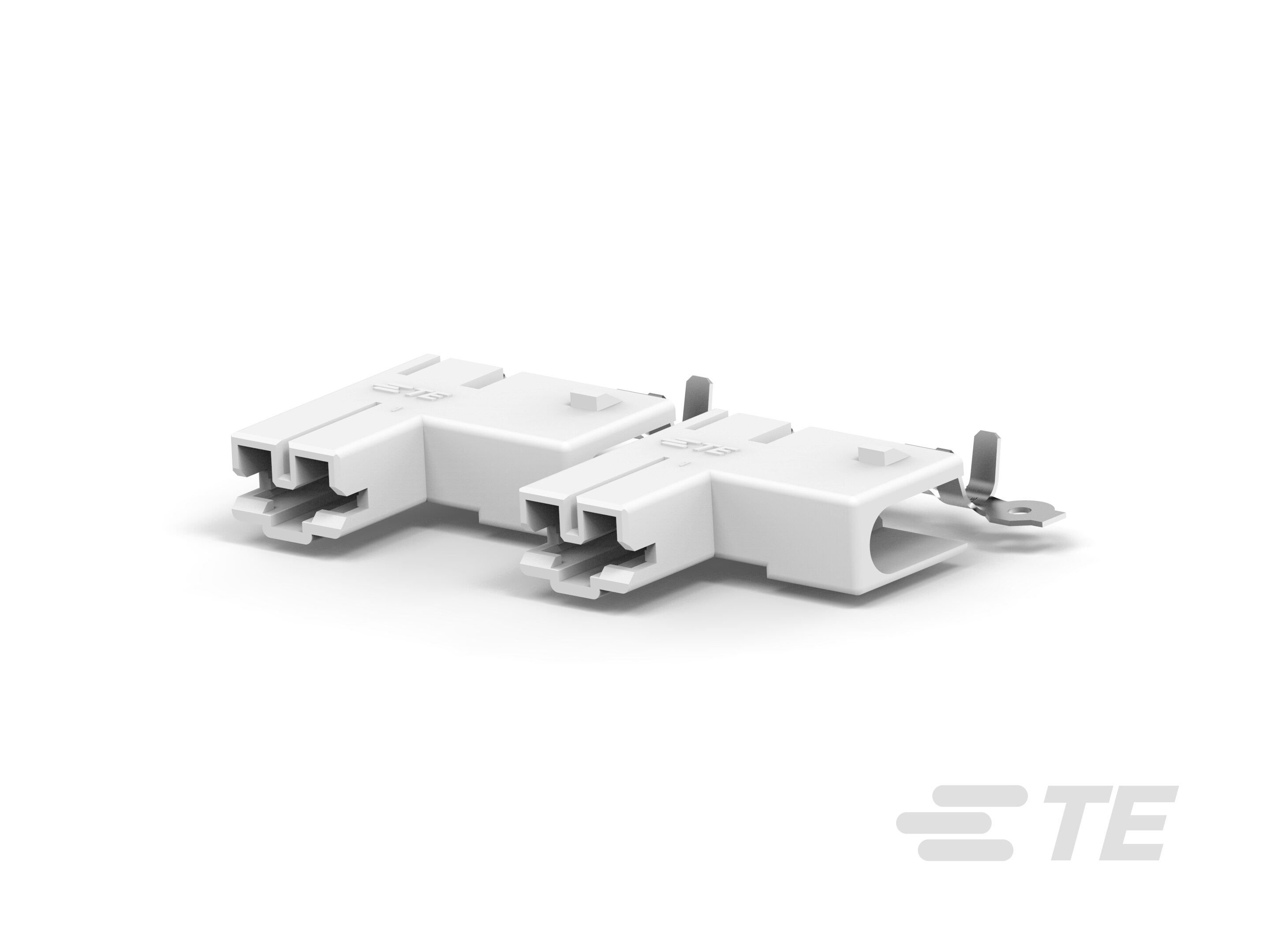

POD LOK: Flag, Receptacle Assembly, Tin Plated, 0.187 inch

POD LOK: Flag, Receptacle Assembly, Tin Plated, 0.187 inch-CAT-P842-187045
POD LOK quick disconnect receptacle assembly mates with a tab of .187 inch width and contacts are made of tin plated brass. These parts have flag terminal orientations and available in wire size ranges of 24 – 16 AWG.
More Less

Product Features

  • Quick Disconnect Terminal Type : Receptacle, Tab & Receptacle

  • Wire Size (AWG): 20 – 16, 24 – 20

  • Wire Size (mm²): .6 – 1.4, .2 – .6

  • Mating Tab Width (mm): 4.8, 4.75

  • Mating Tab Width (in): .187

  • Mating Tab Thickness : .51 mm [ .02 in ]

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Termination Features

  • Product Terminates To  Wire & Cable

Electrical Characteristics

  • Voltage Rating (V) 600

Dimensions

  • Terminal Material Thickness (mm) .3

  • Terminal Material Thickness (in) .011, .012

  • Compatible Insulation Diameter Range (mm) 2.29 – 3.3, 1.52 – 2.79

  • Compatible Insulation Diameter Range (in) .09 – .13, .06 – .11

  • Wire Size (AWG) 20 – 16, 24 – 20

  • Wire Size (mm²) .6 – 1.4, .2 – .6

Mechanical Attachment

  • Wire Insulation Support  With

Packaging Features

  • Packaging Quantity  2400, 1300

  • Packaging Method  Strip/Reel, Reel

Configuration Features

  • Connection Capacity  Single

  • Compatible With Wire & Cable Type  Discrete Wire

Industry Standards

  • UL Flammability Rating  UL 94V-0

  • Compatible With Agency/Standards Products  UL

Product Type Features

  • Insertion Force  Low

Contact Features

  • Quick Disconnect Terminal Type  Receptacle, Tab & Receptacle

  • Mating Tab Width (mm) 4.8, 4.75

  • Mating Tab Width (in) .187

  • Mating Tab Thickness  .51 mm [ .02 in ]

  • Terminal Orientation  Flag

  • Contact Base Material  Brass

  • Terminal Plating Material  Pre-Tin

  • Crimp Type  F-Crimp

  • Barrel Type  Open

Usage Conditions

  • Insulation Option  Fully Insulated

  • Operating Temperature Range (°C) -40 – 105, -40 – 110

  • Operating Temperature Range (°F) -40 – 230, -40 – 221

Other

  • EU RoHS Compliance  Compliant

  • EU ELV Compliance  Compliant

Reference Number

  • TE Internal Number CAT-P842-187045
