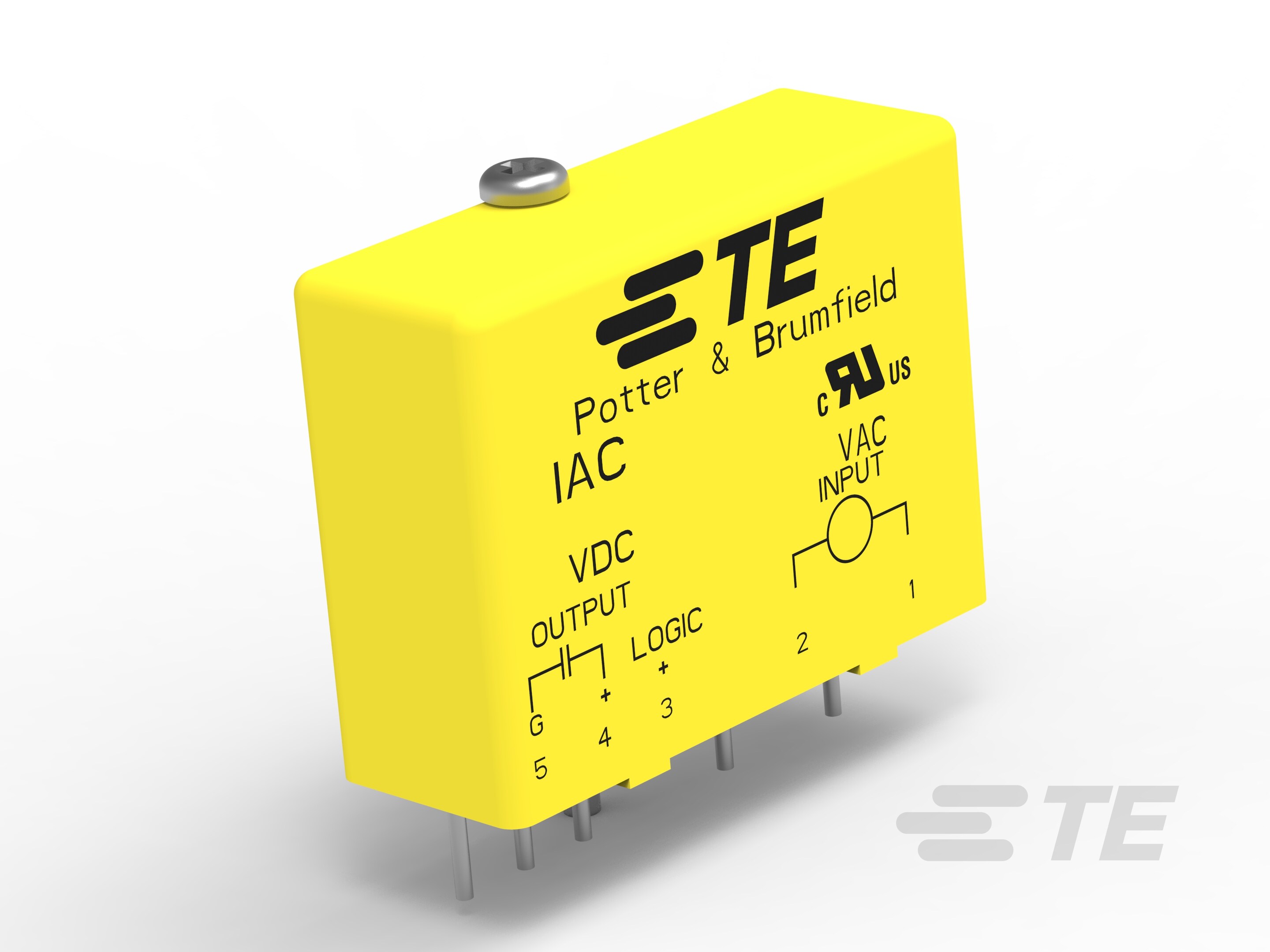

SSR Slim Input AC Modules, Potter & Brumfield

SSR Slim Input AC Modules, Potter & Brumfield-CAT-P851-IA1A
  • Potter & Brumfield
|
  • Potter & Brumfield IAC AC Input Module
P&B SSR Slim input AC modules have a slim line .4” (10.16mm) thick package with 4000V rms optical isolation. Color coded by function and high immunity to false operation. Compatible with 2IOM series mounting boards.
More Less

Product Features

  • Relay Type: Solid State Relay

  • Contact Arrangement: 1 Form A (SPST-NO)

  • Product Mount Type: Printed Circuit Board

  • Relay Connection Type: PCB Termination

  • Terminal Configuration: Solder Pins

Available from

LADD Inc

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Relay Type  Solid State Relay

Configuration Features

  • Contact Arrangement  1 Form A (SPST-NO)

Electrical Characteristics

  • Input Voltage (VAC) 18 – 36, 90 – 140, 180 – 280

  • Input Voltage (VDC) 18 – 36, 90 – 140, 180 – 280

  • Insulation Initial Dielectric Between Contacts & Coil (Vrms) 4000

  • Logic Voltage (VDC) 15, 5

  • Output Current (Min) (A) 0

  • Output Voltage Rating (DC Relays) (VDC) 30

  • Output Voltage (Max) (V) 30

  • Output Current Rating (A) .05

Body Features

  • Product Weight  22.1 g [ .87 oz ]

  • Primary Product Color  Yellow

Termination Features

  • Relay Connection Type  PCB Termination

  • Terminal Configuration  Solder Pins

Mechanical Attachment

  • Product Mount Type  Printed Circuit Board

Dimensions

  • Product Height  25.5 mm [ 1 in ]

  • Product Length  43.5 mm [ 1.71 in ]

  • Product Width  10.3 mm [ .405 in ]

Usage Conditions

  • Operating Temperature Range (°C) -30 – 80

Operation/Application

  • Output Current Type  DC

  • Output Switching  Zero

Reference Number

  • TE Internal Number CAT-P851-IA1A
