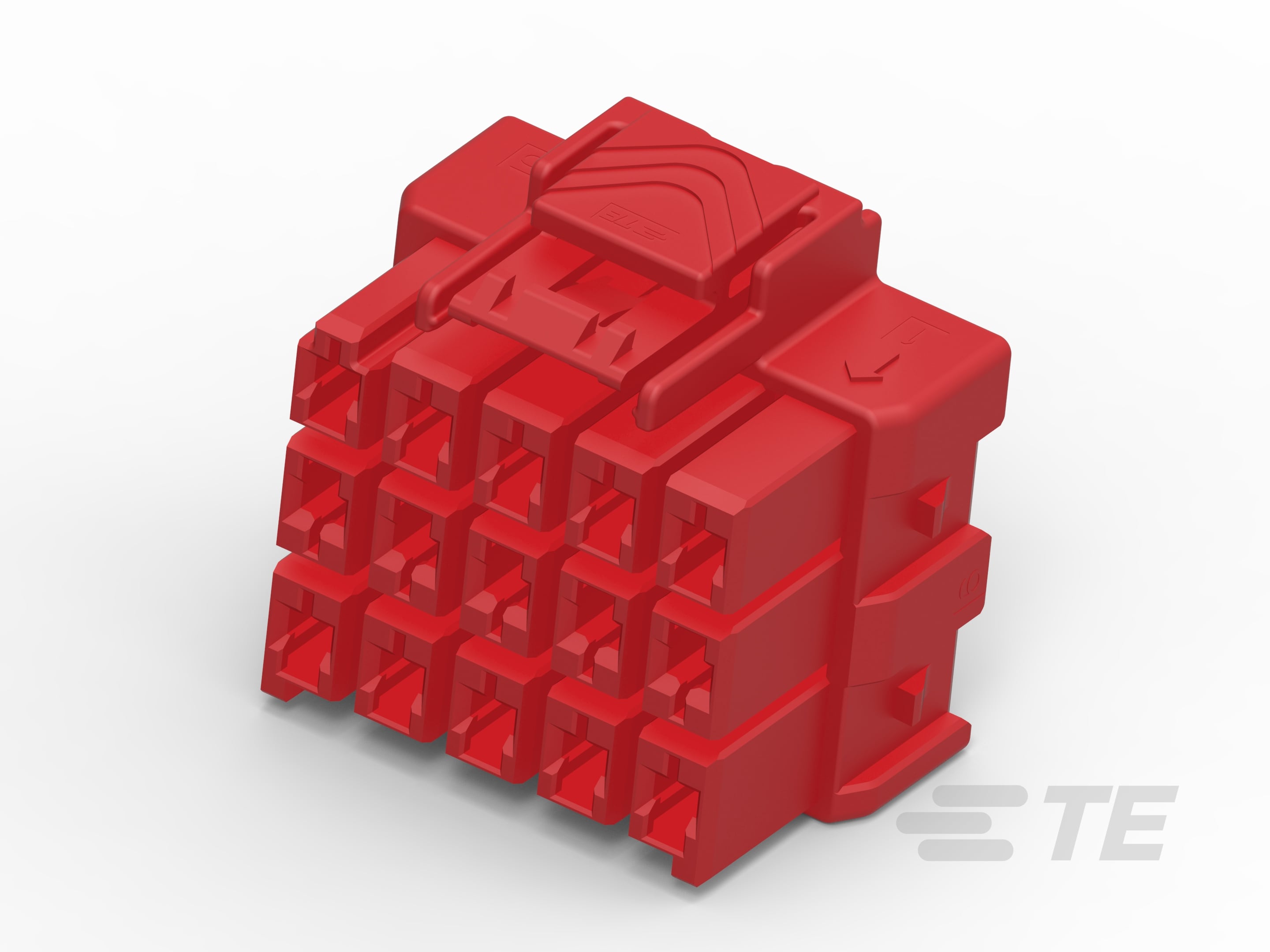

High Temperature Plug — POWER TRIPLE LOCK
Product Features
-
Rectangular Power Connector Type : Housing
-
Connector & Housing Type : Plug
-
Connector System : Wire-to-Wire
-
Number of Positions : 12, 10, 5, 15, 4, 3, 6, 8, 2, 9
-
Centerline (Pitch) : 6 mm [ .236 in ]
Product Features
- Versatile and easy to use, the connector locks in three reliable ways. The plug is able to latch together with either the cap or header. The CPA – connector position assurance – device locks the cap (or header) and plug together. The TPA – terminal position assurance – device helps assure terminals are fully seated to ensure its dependability.
- The High Temperature plug supports up to 150°C.
- The plug mates with the cap (or header) to form an audible 'click', which reassures users the connectors are secure.
- Each connector offers four keying options, multiple colors, and snagless design, which will promote efficient connections on the assembly line.
- Up to 15 positions are offered on 6mm spacing.
Learn more about POWER TRIPLE LOCK connector system. This overview explains the assembly sequence of this connector system, the contact crimping sequence, and the OCEAN applicator system.
Frequently Asked Questions
Q: What are the operating temperature requirements?
A: The new POWER TRIPLE LOCK connector system offers all V-0 materials, with standard product made from a PBT material, rated at 105°C. For high temperature applications, like cooking, materials are available for 150°C.
Q: What is the benefit of choosing glow wire housings?
A: The POWER TRIPLE LOCK connector system offers glow wire housings that allow manufacturers of home appliances to comply with the IEC 60335-1 standard.
Please review product documents or contact us for the latest agency approval information.
Body Features
-
Connector & Keying Code C, B, A, D
-
Cable Exit Angle 180°
Industry Standards
-
UL Rating Recognized
-
Compatible With Agency/Standards Products UL, VDE
-
Compatible With Approved Standards Products UL E28476
-
Glow Wire Material Rating Material with GWIT ≥ 775°C
-
UL Flammability Rating UL 94V-0
-
Glow Wire Rating GWT 850°C (Flame ≤ 30 sec), High Temperature Part - Not Glow Wire
Mechanical Attachment
-
Panel Mount Feature Without
-
Connector Mounting Type Cable Mount (Free-Hanging)
Dimensions
-
Connector Height (mm) 14.95
-
Row-to-Row Spacing 8.1 mm [ .319 in ]
Identification Marking
-
Circuit Identification Feature With
Contact Features
-
Contact Layout Inline, Matrix
-
Contact Retention Within Housing Without
-
Contact Type Receptacle
Product Type Features
-
Rectangular Power Connector Type Housing
-
Connector & Housing Type Plug
-
Connector System Wire-to-Wire
-
Sealable No
-
Connector & Contact Terminates To Wire & Cable
Configuration Features
-
Number of Positions 12, 10, 5, 15, 4, 3, 6, 8, 2, 9
-
Number of Power Positions 3, 15, 12, 4, 10, 5, 8, 6, 2, 9
-
Number of Rows 2, 1, 3
Electrical Characteristics
-
Operating Voltage (VAC) 600
-
Operating Voltage (VDC) 600
Termination Features
-
Termination Method to Wire & Cable Crimp
Housing Features
-
Centerline (Pitch) 6 mm [ .236 in ]
-
Housing Color Red, Natural, Black, Gray
-
Housing Material Nylon
Usage Conditions
-
Operating Temperature Range -55 – 150 °C [ -67 – 302 °F ]
Operation/Application
-
Circuit Application Power
Packaging Features
-
Packaging Method Carton
Other
-
EU RoHS Compliance Compliant
-
EU ELV Compliance Compliant
Reference Number
-
TE Internal Number CAT-P87074-P729A
