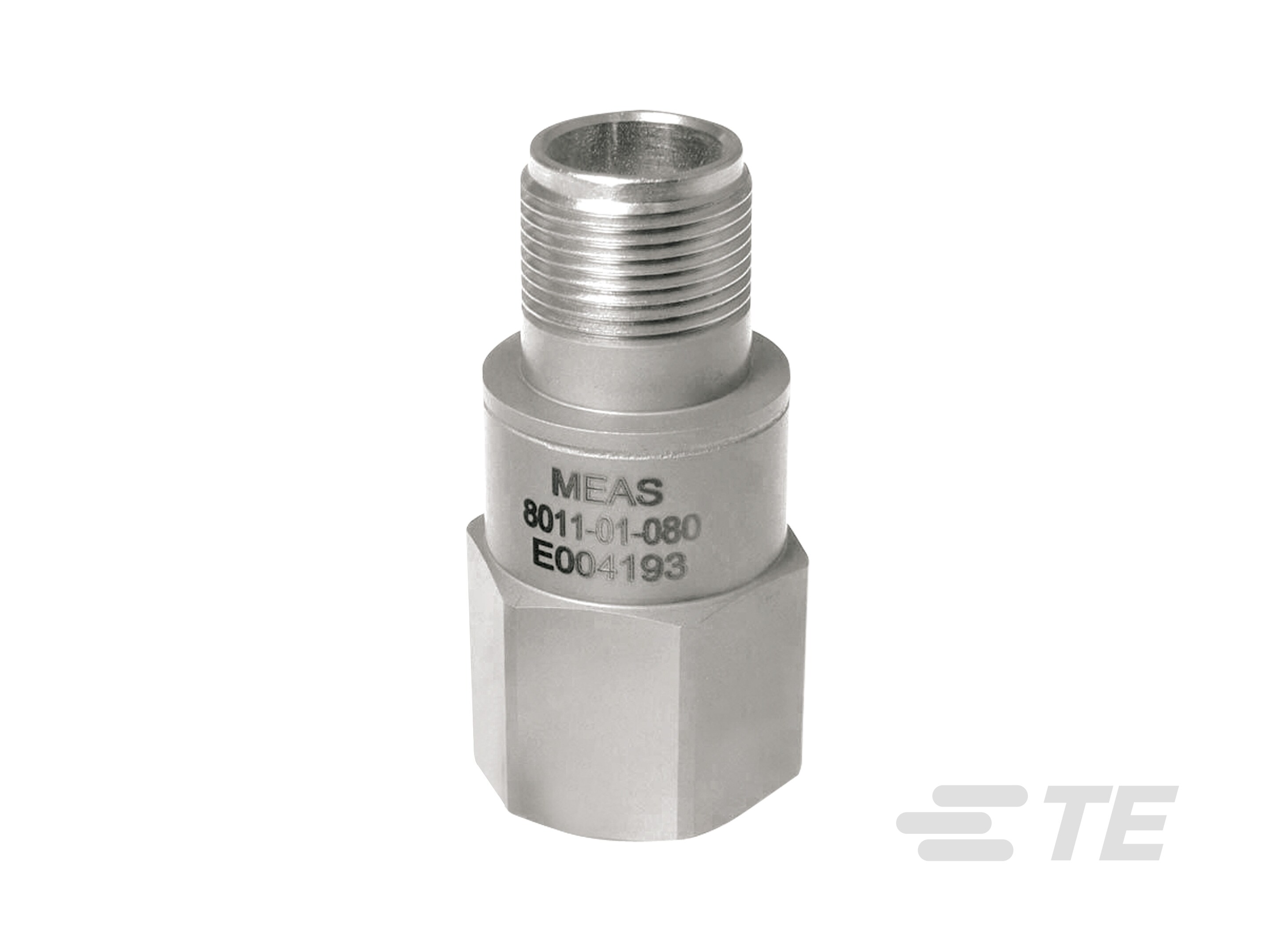

Hermetically Sealed Velocity Transducer

Hermetically Sealed Velocity Transducer-CAT-PPA0103
  • MEAS
The Model 8011-06 is an internally shielded piezo velocity transducer designed for condition monitoring of low frequency rotating machinery.
More Less

Product Features

  • Accelerometer Type : IEPE Velocity

  • Vibration Sensor Product Type : Piezoelectric Accelerometer

  • Number of Sensing Axes : Uniaxial

  • Frequency Response (Hz): 2-7000

  • Full Scale Output Voltage (VDC): ±5

Available from

LADD Inc

Build and price the product now

Overview

The transducer is available in ranges from 10.0 to 50.0 in/sec and interfaces with the standard IEPE constant current supply. The model 8011-06 features a top exit MIL-C-5015 connector and is designed to operating in temperature ranges from -50°C to +120°C. The unit is hermetically sealed and features the popular stud mount installation.

BENEFITS

  • 10.0 to 50.0 in/sec Dynamic Range
  • 2-7000Hz Bandwidth
  • -50°C to +120°C Temperature Range
  • Hermetically Sealed, Welded
  • Reverse Wiring Protection
  • Stable Temperature Response
  • 2-Pin MIL-C-5015 Connector
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Accelerometer Type  IEPE Velocity

  • Vibration Sensor Product Type  Piezoelectric Accelerometer

  • Sensor Package  Plug & Play

Body Features

  • Number of Sensing Axes  Uniaxial

  • Primary Product Material  Stainless Steel

  • Product Weight  145 g [ 5.075 oz ]

Signal Characteristics

  • Frequency Response (Hz) 2-7000

Electrical Characteristics

  • Full Scale Output Voltage (VDC) ±5

  • Excitation Current (mA) 2 – 10

  • Excitation Voltage Range (VDC) 18 – 30

Mechanical Attachment

  • Sensor Mount Type  Stud

Other

  • EU RoHS Compliance  Compliant

  • Non-Linearity (FSO) (%) ±2

Configuration Features

  • Electrical Connection  2-Pin Connector

Usage Conditions

  • Operating Temperature Range  -50 – 120 °C [ -58 – 248 °F ]

Operation/Application

  • Output Current Type  AC

Reference Number

  • TE Internal Number CAT-PPA0103
