SMT Photo Optic Detector
- MEAS
Product Features
-
Operating Temperature Range : -20 – 80 °C [ -4 – 176 °F ]
-
Photo Optic Sensor Type : Photo Optic Detector
-
Product Length (mm): 4
-
Sensor Package : SMT
-
Product Width (mm): 1.3

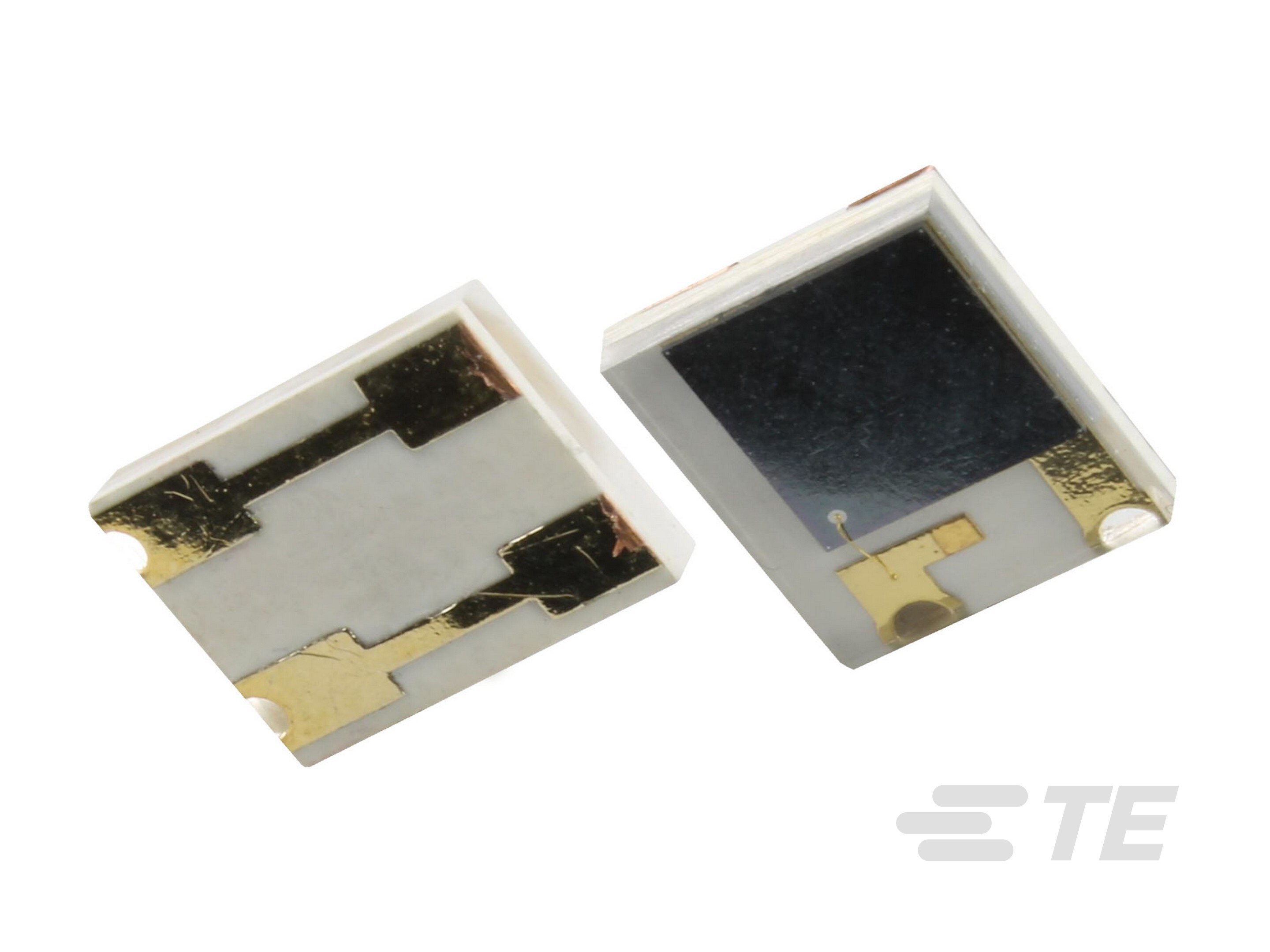

The EPM-5000 detector assembly uses a silicon planar diffused photodiode specially designed for medical applications. It features high efficiency and fast response.

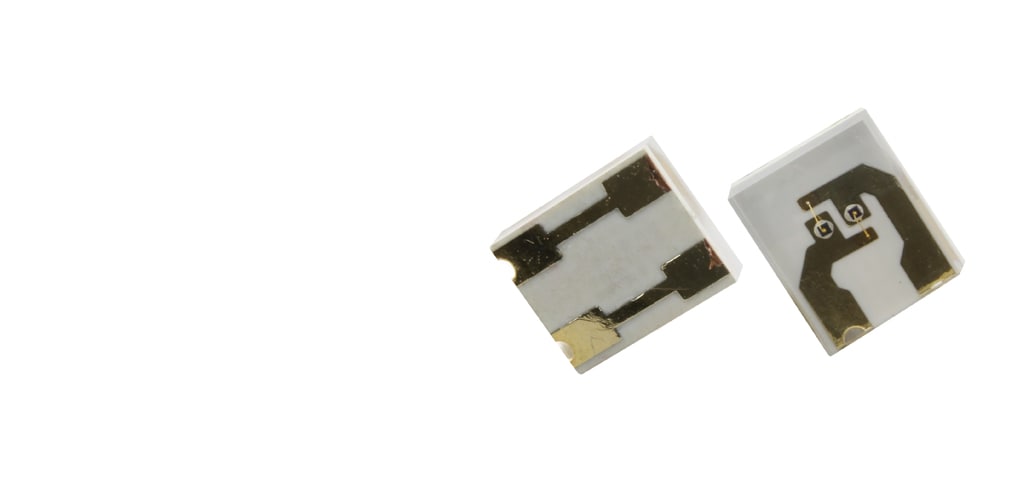

With more than 27 years of proven reliability and expertise, TE has designed SMT sensors with best-in-class flexibility to accommodate multiple wavelength options. Our ability to provide both components and complete sensor packages makes us a leading choice for pulse oximetry applications that require high degrees of precision, durability and performance. The EPM-5000 detector assembly uses a silicon planar diffused photodiode specially designed for medical applications. It features high efficiency and fast response. The EPM-5001 detector assembly is spectrally matched to emitter assemblies ELM-5001, and ELM-5002.
Benefits
- Fast Response
- Matched to 660nm Emitter
- High Efficiency
- Clear Epoxy Lens
- Compact Package
- Active Area: 8.07mm2
Applications
- Pulse Oximetry
- SpO2 Finger/Ear Reusable Probes
- SpO2 Disposable Strip or Butterfly Probes
Please review product documents or contact us for the latest agency approval information.
Product Type Features
-
Photo Optic Sensor Type Photo Optic Detector
-
Sensor Package SMT
Dimensions
-
Product Length (mm) 4
-
Product Width (mm) 1.3
-
Product Height (mm) 4.8
Usage Conditions
-
Operating Temperature Range -20 – 80 °C [ -4 – 176 °F ]
Reference Number
-
TE Internal Number CAT-PTO0005
