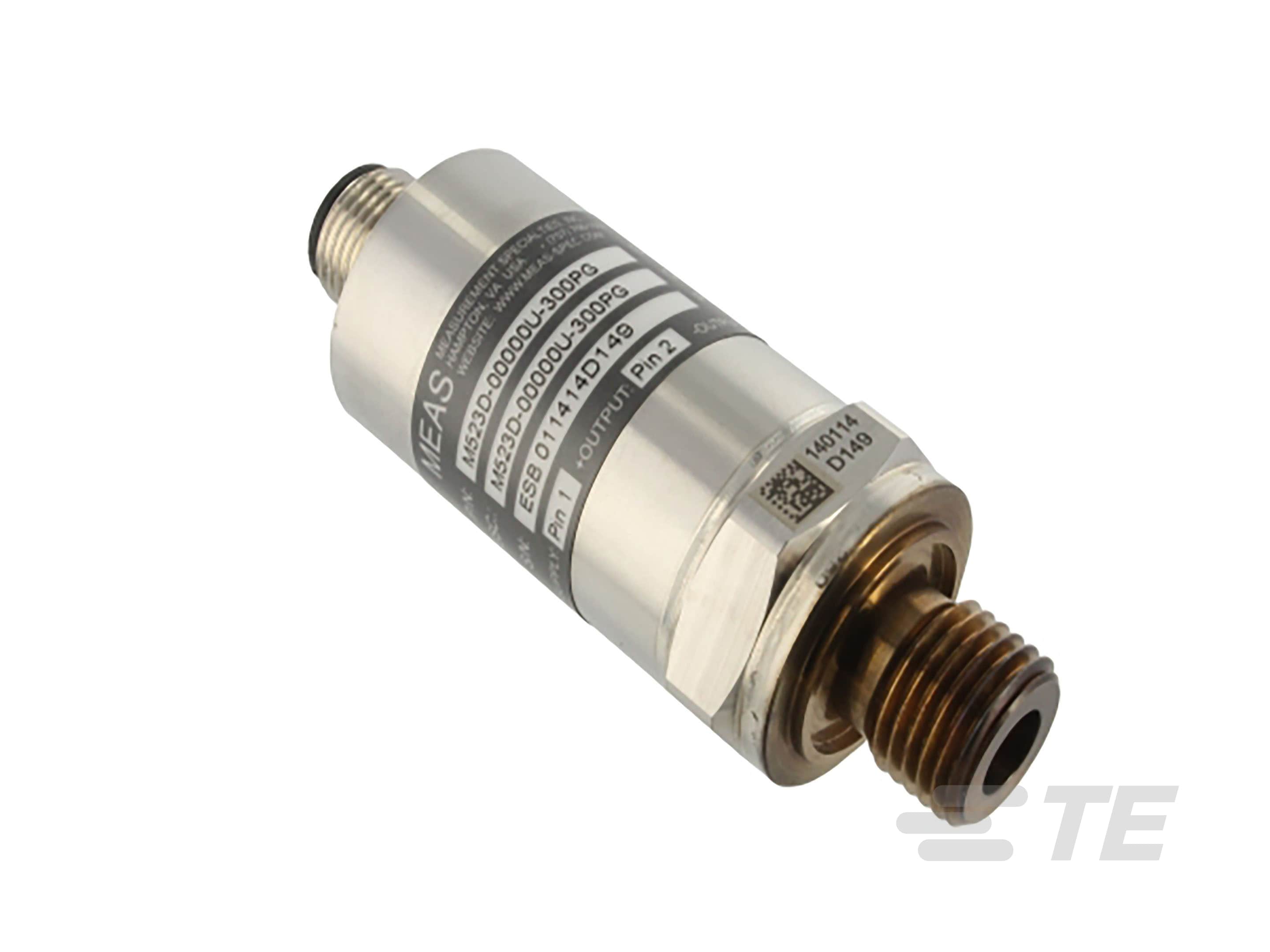

Compact Industrial Pressure Transducer
- MEAS M5200
Product Features
-
Pressure Sensor Type : Industrial Pressure Transducer
-
Pressure (bar): 70, 350, 68.94, 344.73, 16, 6, 20, 20.68
-
Pressure (psi): 1015.24, 5000, 300, 5076.32, 1000, 290.07
-
Pressure Type : Gauge
-
Supply Voltage Range (V): 8 – 30, 9 – 30
-
Output Signal Type : 4 – 20 mA, .5 – 4.5 V, .5 – 4.5 V Ratiometric, 1 – 5 V, 0 – 10 V, 1 – 6 V, 0 – 5 V
The M5200 series compact industrial pressure transducer features a modular design and offers maximum flexibility for different configurations.
This industrial pressure transducer sets a new price performance standard for demanding commercial and heavy industrial applications. The M5200 series compact industrial pressure transducer is suitable for measurement of liquid or gas pressure, even for difficult media such as contaminated water, steam, and mildly corrosive fluids. The wetted material is made of either 17-4 PH or 316L stainless steel and the transducer’s durability is excellent with no O-rings, welds or organics exposed to the pressure media. The M5200 pressure transducer is weatherproof and exceeds the latest heavy industrial CE requirements including surge protection. The circuit is protected from reverse wiring at input and short circuit at output. This pressure transducer is geared to the OEM customer for low to mid volumes. TE stands ready to provide a custom design of the M5200 where the volume and application warrants. Additional configurations not listed are either available or possible. Please inquire for further information.
Benefits
- Heavy Industrial CE Approval
- 10 V/m EMI Protection
- Reverse Polarity Protection on Input
- Short Circuit Protection on Output
- ±0.25% Accuracy
- ±1.0% Total Error Band
- Compact Outline
- -40°C to +125°C Operating Temperature
- Weatherproof
- Variety of Pressure Ports and Electrical Configurations
- Optional Stainless Steel Snubber
- Gage, Sealed, Compound
Applications
- Industrial Process Control and Monitoring
- Advanced HVAC Systems
- Refrigeration Systems
- Automotive Test Stands
- Off-Road Vehicles
- Pumps and Compressors
- Hydraulic/Pneumatic Systems
- Agriculture Equipment
- Energy Generation and Management
TE Connectivity Sensors Senior Product Development Engineer Hai Mei discusses the various benefits and applications of Microfused technology in this webinar.
Please review product documents or contact us for the latest agency approval information.
Body Features
-
Port Material 17-4PH
Other
-
Sensor Options No Snubber, No Option, Adhesive Label
-
Port Fitting 1/4-19 BSPT, 1/8 MNPT, 1/4 MNPT, 1/4 MBSPP
-
EU RoHS Compliance Compliant with Exemptions
-
EU ELV Compliance Compliant with Exemptions
Dimensions
-
Product Height (mm) 57.15, 49.53
-
Product Height (in) 2.25, 1.95
-
Hex Width Across Flats 24 mm [ .944 in ]
Product Type Features
-
Pressure Sensor Type Industrial Pressure Transducer
-
Pressure Type Gauge
Configuration Features
-
Electrical Connection Form C without Mating Connector, Packard
Electrical Characteristics
-
Supply Voltage Range (V) 8 – 30, 9 – 30
Usage Conditions
-
Pressure (bar) 70, 350, 68.94, 344.73, 16, 6, 20, 20.68
-
Pressure (psi) 1015.24, 5000, 300, 5076.32, 1000, 290.07
-
Operating Temperature Range -40 – 125 °C [ -40 – 257 °F ]
Operation/Application
-
Output Signal Type 4 – 20 mA, .5 – 4.5 V, .5 – 4.5 V Ratiometric, 1 – 5 V, 0 – 10 V, 1 – 6 V, 0 – 5 V
-
Proof Pressure Range 2X Rated
-
Pressure Accuracy ±0.25% FSO
Reference Number
-
TE Internal Number CAT-PTT0013
