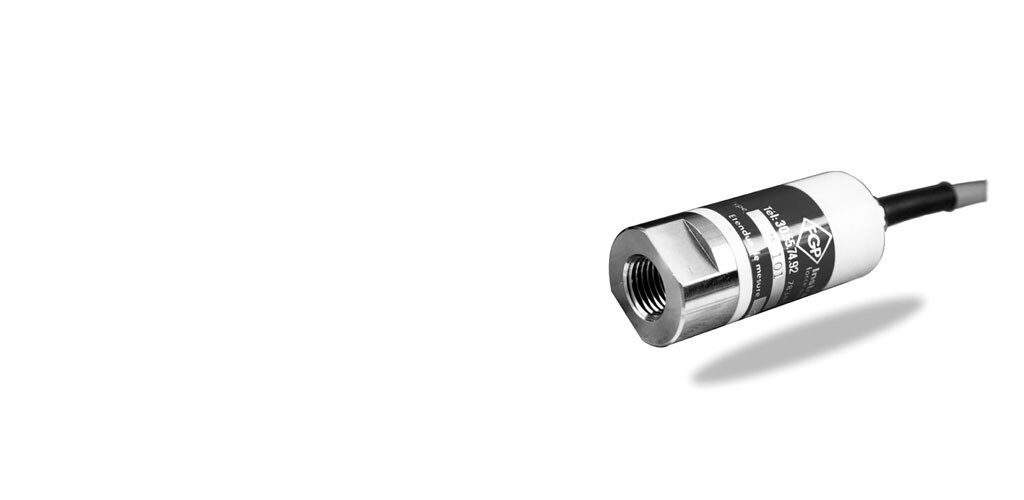

Gage Pressure Transducer To 1000 Bars
- MEAS P101
Product Features
-
Pressure Sensor Type : Industrial Pressure Transducer
-
Pressure (bar): 100, 350, 1000, 600, 500, 20, 200, 50
-
Pressure (psi): 14503.7, 1450.3, 5076.3, 7251.88, 8702.2, 2900.7, 725.18, 290.07
-
Pressure Type : Gauge
-
Supply Voltage Range (V): -15 – 15, 10, 10 – 30
-
Output Signal Type : 5 V±5%FS, 4 V±5%FS, 1 mV/V
The P101 series gage pressure transducer is designed to measure pressure under a wide variety of conditions, including hostile environments and temperatures up to 150 °C.
Its stainless steel body and sealing options render the P101 gage pressure transducer is ideal for use in chemically aggressive environments, such as Skydrol® aviation hydraulic fluid. The sensing element is fitted with a temperature compensated Wheatstone bridge equipped with thin strain gauges. The P101-A1/A2 Series include a high level output. With many years of experience as a designer and manufacturer of sensors, we have the expertise to customize and/or design sensors for specific uses and testing environments. To meet your needs we also offer complete turnkey systems. Our conditioning electronics can power the sensor, amplify the electronic signal, and display the data digitally. A turnkey measurement system arrives with matched components, formatted, calibrated and ready for your immediate use.
Benefits
- Ranges from 10 to 1000 bars
- Gage pressure reference
- Harsh environment
- Stainless Steel Diaphragm
- High Level Output Available
- High temperature range up to 150°C
Applications
- General Industries
- Regulation measurement
- Hydraulic Pressures
- Harsh environment
Please review product documents or contact us for the latest agency approval information.
Body Features
-
Port Material Stainless Steel
Other
-
Sensor Options Unipolar Power Supply, Cable Length, No Option, High Accuracy, Bipolar Power Supply, Sensitivity Shift
-
Port Fitting 1/4 FNPT
-
EU RoHS Compliance Compliant
-
EU ELV Compliance Compliant
Dimensions
-
Product Diameter 25.4 mm [ 1 in ]
-
Product Height 32 mm [ 1.25 in ]
Product Type Features
-
Pressure Sensor Type Industrial Pressure Transducer
-
Pressure Type Gauge
Configuration Features
-
Electrical Connection Cable 3 m, Cable 4 m, No Connector, Cable 10 m, Cable 5 m
Electrical Characteristics
-
Supply Voltage Range (V) -15 – 15, 10, 10 – 30
Usage Conditions
-
Pressure (bar) 100, 350, 1000, 600, 500, 20, 200, 50
-
Pressure (psi) 14503.7, 1450.3, 5076.3, 7251.88, 8702.2, 2900.7, 725.18, 290.07
-
Operating Temperature Range -20 – 80 °C [ -4 – 176 °F ]
Operation/Application
-
Output Signal Type 5 V±5%FS, 4 V±5%FS, 1 mV/V
-
Proof Pressure Range 1.5X FS
-
Pressure Accuracy ≤±0.3% FSO
Reference Number
-
TE Internal Number CAT-PTT0018
Datasheets & Catalog Pages
- P101 English
