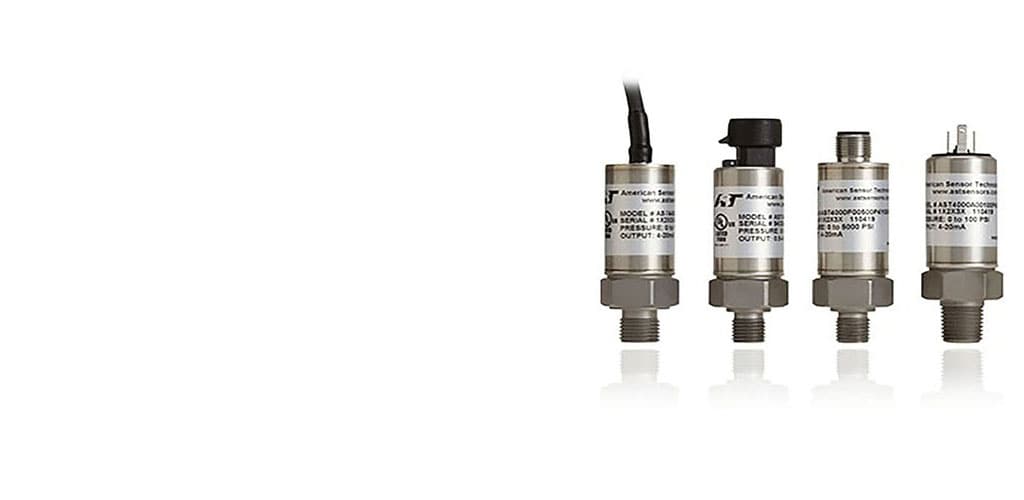

4-20mA / Voltage Pressure Transducer
- AST4000
The AST4000 series 4-20mA / voltage pressure transducer is an OEM pressure transmitter that includes a welded stainless steel housing and many electrical connections to make it suitable for many industrial applications.
Product Features
-
Pressure Sensor Type : Industrial Pressure Transducer
-
Pressure (bar): 413.68, 6.89, 8.27, 17.23, 172.3, 413.6, 10.34, 137.89, 1.723, 206.84, 68.94, 689.47, 30, 20, 13.78, 1.72, 34.47, 344.73, 1378.9, 10, 441.26, 25.16, 3.44, 27.57, 2.06, 11
-
Pressure (psi): 400, 145.03, 10000, 365, 435.11, 2000, 1000, 500, 120, 100, 200, 250, 20000, 159.54, 6000, 25, 2500, 5000, 50, 150, 30, 3000, 6400, 290.07
-
Pressure Type : Sealed, Compound, Gauge
-
Supply Voltage Range (V): 10 – 28, 5
-
Output Signal Type : 10 mV/V, .5 – 4.5 V, 1 – 5 V, 4 – 20 mA, 1 – 6 V, .5 – 4.5 V Ratiometric
Overview
The AST4000 series 4-20mA / voltage pressure transducer, with its welded stainless steel housing and many electrical connections, can be packaged for virtually any OEM pressure transducer application.
The AST4000 series 4-20mA / voltage pressure transducer remains the most popular pressure transmitter configuration and can be used in virtually any OEM industrial application. Voltage and current output signals are available in all producta.
Benefits
- High Strength Stainless Steel Construction
- No Oil, Welds or Internal O-rings
- Wide Operating Temperature
- Pressures up to 10,000 PSI
- Low Static and Thermal Errors
- Unparalleled Price and Performance
- Compatible with Wide Variety of Liquids and Gases
- EMI/RFI Protection
- UL/cUL 508 Approved (with housing)
Applications
- Industrial OEM Equipment
- Water Management
- Pneumatics
- Hydrogen Storage
- Sub Sea Pressure
- HVAC/R Equipment
- Control Panels
- Hydraulic Systems
- Data Loggers
Features
Please review product documents or contact us for the latest agency approval information.
Body Features
-
Port Material Alloy 718, 316L, 17-4PH
Other
-
Sensor Options None, No Option
-
Port Fitting 1/2 MNPT, 1/4 MNPT, M18x1.5, 1/4 MBSPP, 3/8-24 UNF Male, 7/16-20 UNF Male, 1/8 MNPT, G1/4 Male
-
EU RoHS Compliance Compliant, Compliant with Exemptions
-
EU ELV Compliance Compliant with Exemptions
Dimensions
-
Product Diameter 22.22 mm [ .875 in ]
-
Product Length (mm) 664.9, 90.42, 92.45, 88.39, 76.96, 3060.7, 103.1, 94.74, 84.32, 88.13, 76.2, 90.67, 88.9, 78.48, 1864.8, 3065.5, 75.9, 667.7
-
Product Length (in) 3.03, 120.5, 3.57, 3.5, 3.09, 3.73, 2.99, 26.18, 3, 73.42, 4.06, 3.32, 3.64, 120.69, 3.48, 26.29, 3.47, 3.56
Industry Standards
-
Compatible With Agency/Standards Products UL
Product Type Features
-
Pressure Sensor Type Industrial Pressure Transducer
-
Pressure Type Sealed, Compound, Gauge
Configuration Features
-
Electrical Connection DIN 43650A, Cable 10 ft, M12x1, Mini-DIN 43650C, Cable 6 ft, Packard Metripack 150, Deutsch DT04-4P, No Connector, Deutsch DT04-3P, Cable 2 ft
Electrical Characteristics
-
Supply Voltage Range (V) 10 – 28, 5
Usage Conditions
-
Pressure (bar) 413.68, 6.89, 8.27, 17.23, 172.3, 413.6, 10.34, 137.89, 1.723, 206.84, 68.94, 689.47, 30, 20, 13.78, 1.72, 34.47, 344.73, 1378.9, 10, 441.26, 25.16, 3.44, 27.57, 2.06, 11
-
Pressure (psi) 400, 145.03, 10000, 365, 435.11, 2000, 1000, 500, 120, 100, 200, 250, 20000, 159.54, 6000, 25, 2500, 5000, 50, 150, 30, 3000, 6400, 290.07
-
Operating Temperature Range -40 – 85 °C [ -40 – 185 °F ]
Operation/Application
-
Output Signal Type 10 mV/V, .5 – 4.5 V, 1 – 5 V, 4 – 20 mA, 1 – 6 V, .5 – 4.5 V Ratiometric
-
Proof Pressure Range 2X, Min, 2X Rated
-
Pressure Accuracy ±0.5% FSO
Reference Number
-
TE Internal Number CAT-PTT0040
Related Materials
Datasheets & Catalog Pages
- AST4000 Datasheet English
