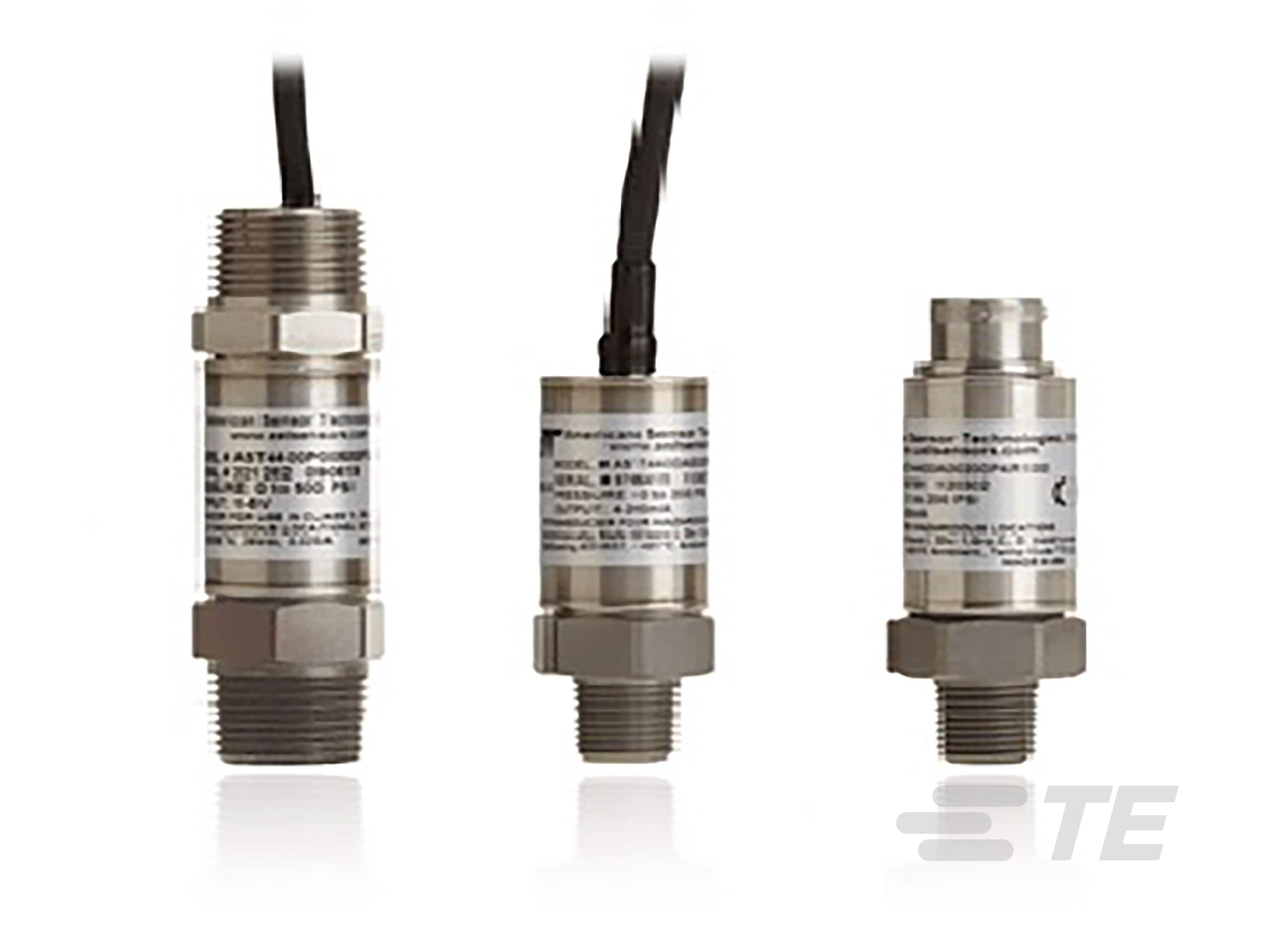

Intrinsically Safe Pressure Transducer

AST4400

The AST4400 series intrinsically safe (Ex ia IIB T4 Ga) pressure transducer is stainless steel and has a variety of options for pressure measurement in hazardous locations. This product is configurable, please refer to the datasheet for available options.

More Less

Datasheet |
Digital Datasheet|

Product Features

Pressure Sensor Type : Industrial Pressure Transducer
Pressure (bar): 1.72, 2.068, 3.44, 6.89, 10, 10.34, 11.03, 13.78, 20, 34.47, 68.94, 100, 160, 172.3, 250, 344.73, 350, 400, 689.47, 1034.21
Pressure (psi): 25, 30, 50, 100, 145.03, 150, 160, 200, 290.07, 500, 1000, 1450.3, 2320.6, 2500, 3625, 3625.94, 5000, 5076.3, 5801.51, 10000, 15000
Pressure Type : Compound, Gauge
Hazardous Area Approval : Intrinsically Safe
Supply Voltage Range (V): 5, 10 – 28

Available from

Product	TE Part #	Documents	Pressure	Pressure Type	Supply Voltage Range	Output Signal Type	Proof Pressure Range	Electrical Connection	Port Fitting
AST4400A00500P1C0000-SS: CTO-13000000-03	20025333-00		34.47 bar	Gauge	5 V	.5 – 4.5 V	2X, Min	Cable 6 ft	1/4 MNPT
AST4400I05000P3B1000-SS: CTO-13000000-03	20026343-00		-	-	10 – 28 V	1 – 5 V	2X, Min	Cable 4 ft	1/4 FNPT
AST4400P00010B4I1000-SS: CTO-13000000-03	20023603-00		10 bar	Gauge	10 – 28 V	4 – 20 mA	2X Rated	DIN 43650A	Cable 10 ft
AST4400A00010B4I1000-SS: CTO-13000000-03	20023600-00		10 bar	Gauge	10 – 28 V	4 – 20 mA	2X Rated	DIN 43650A	1/4 MNPT
AST4400A00050P4F1000: CTO-13000000-03	20024499-00		3.44 bar	Gauge	10 – 28 V	4 – 20 mA	2X, Min	Packard Metripack 150	1/4 MNPT
AST4400I05000P3B1000-SS: CTO-13000000-03	20026344-00		-	-	10 – 28 V	1 – 5 V	2X, Min	Cable 4 ft	1/4 FNPT
AST4400A00025P4R0000-SS: CTO-13000000-03	20025589-00		-	-	10 – 28 V	4 – 20 mA	2X, Min	6 Pin Bendix PT06A	1/4 MNPT
AST4400A00100B4I1000-SS: CTO-13000000-03	20023601-00		100 bar	Gauge	10 – 28 V	4 – 20 mA	2X Rated	DIN 43650A	1/4 MNPT
AST4400P00100B4I1000-SS: CTO-13000000-03	20023604-00		100 bar	Gauge	10 – 28 V	4 – 20 mA	2X Rated	DIN 43650A	Cable 10 ft
AST4400P00500P4I1000: CTO-13000000-03	20026913-00		34.47 bar	-	10 – 28 V	4 – 20 mA	2X, Min	DIN 43650A	1/2 MNPT
AST4400A00250B4I1000-SS: CTO-13000000-03	20023602-00		250 bar	Gauge	10 – 28 V	4 – 20 mA	2X, Min	DIN 43650A	1/4 MNPT
AST4400A00100P4P0000:CTO-13000000-03	11192003-00	3D PDF	6.89 bar	Gauge	10 – 28 V	4 – 20 mA	2X, Min	Conduit 10 ft	1/4 MNPT
-14.7 to 200 PSI, 1/4FNPT, 4-20mA, 6-Pin	11192547-00	3D PDF	13.78 bar	Compound	10 – 28 V	4 – 20 mA	2X, Min	6 Pin Bendix PT06A	1/4 FNPT
AST4400A00050P4C0000:CTO-13000000-03	11107018-00	3D PDF	3.44 bar	Gauge	10 – 28 V	4 – 20 mA	2X, Min	Cable 6 ft	1/4 MNPT
AST4400A00500P4Y0000:CTO-13000000-03	11191650-00	3D PDF	34.47 bar	Gauge	10 – 28 V	4 – 20 mA	2X, Min	M12x1	1/4 MNPT
AST4400A00100P4N1000:CTO-13000000-03	11107068-00	3D PDF	6.89 bar	Gauge	10 – 28 V	4 – 20 mA	2X, Min	Conduit 6 ft	1/4 MNPT
AST4400A00150P4C0000:CTO-13000000-03	11107078-00	3D PDF	10.34 bar	Gauge	10 – 28 V	4 – 20 mA	2X, Min	Cable 6 ft	1/4 MNPT
AST4400A00200P4N0000:CTO-13000000-03	11107110-00	3D PDF	13.78 bar	Gauge	10 – 28 V	4 – 20 mA	2X, Min	Conduit 6 ft	1/4 MNPT
AST4400A00500P4P1000:CTO-13000000-03	11107180-00	3D PDF	34.47 bar	Gauge	10 – 28 V	4 – 20 mA	2X, Min	Conduit 10 ft	1/4 MNPT
AST4400A01000P1E0000:CTO-13000000-03	11107198-00	3D PDF	68.94 bar	Gauge	5 V	.5 – 4.5 V	2X, Min	Mini-DIN 43650C	1/4 MNPT
AST4400C00100B4I1000:CTO-13000000-03	11107451-00	3D PDF	100 bar	Gauge	10 – 28 V	4 – 20 mA	2X, Min	DIN 43650A	1/4 MBSPP
AST4400A00200P4L0000:CTO-13000000-03	11190137-00	3D PDF	13.78 bar	Gauge	10 – 28 V	4 – 20 mA	2X, Min	Conduit 2 ft	1/4 MNPT
15000 PSI, F250C FEMALE, 0.5-4.5V RATIOM	11190798-00	3D PDF	1034.21 bar	Gauge	10 – 28 V	.5 – 4.5 V	2X, Min	Cable 2 ft	F250C Female
AST4400A00100P4Y0000:CTO-13000000-03	11191649-00	3D PDF	6.89 bar	Gauge	10 – 28 V	4 – 20 mA	2X, Min	M12x1	1/4 MNPT
AST4400A00050P4L0000:CTO-13000000-03	11191926-00	3D PDF	3.44 bar	Gauge	10 – 28 V	4 – 20 mA	2X, Min	Conduit 2 ft	1/4 MNPT
AST4400C00350B3B0000:CTO-13000000-03	11192522-00	3D PDF	350 bar	Gauge	10 – 28 V	1 – 5 V	2X, Min	Cable 4 ft	1/4 MBSPP
AST4400A01000P4A1000-SS:CTO-13000000-03	11192536-00	3D PDF	68.94 bar	Gauge	10 – 28 V	4 – 20 mA	2X, Min	Cable 2 ft	1/4 MNPT
AST4400A05000P4A1000-SS:CTO-13000000-03	11192537-00	3D PDF	344.73 bar	Gauge	10 – 28 V	4 – 20 mA	2X, Min	Cable 2 ft	1/4 MNPT
400 bar, 1/4MNPT, 4-20mA, M12x1,	11192606-00	3D PDF	400 bar	Gauge	10 – 28 V	4 – 20 mA	2X, Min	M12x1	1/4 MNPT
AST4400A00025P4Y0000: CTO-13000000-03	20014659-00	3D PDF	1.72 bar	Gauge	10 – 28 V	4 – 20 mA	2X, Min	M12x1	1/4 MNPT
AST4400I00100P4P1000-SS: CTO-13000000-03	20023981-00		6.89 bar	Gauge	10 – 28 V	4 – 20 mA	2X, Min	Conduit 10 ft	1/4 FNPT
AST4400P10000P4R1000-SS: CTO-13000000-03	20024392-00		689.47 bar	Gauge	10 – 28 V	4 – 20 mA	2X, Min	6 Pin Bendix PT06A	1/2 MNPT
AST4400A00025P4L0000:CTO-13000000-03	11190135-00	3D PDF	1.72 bar	Gauge	10 – 28 V	4 – 20 mA	2X, Min	Conduit 2 ft	1/4 MNPT
160 BAR, 1/4BSP MALE, 4-20MA, M12X1,	11191379-00	3D PDF	11.03 bar	Gauge	10 – 28 V	4 – 20 mA	2X, Min	M12x1	1/4 MBSPP
AST4400I00500P4N1000:CTO-13000000-03	11191646-00	3D PDF	34.47 bar	Gauge	10 – 28 V	4 – 20 mA	2X, Min	Conduit 6 ft	1/4 FNPT
AST4400A00500P1D1000-SS:CTO-13000000-03	11192252-00	3D PDF	34.47 bar	Gauge	5 V	.5 – 4.5 V	2X, Min	Cable 10 ft	1/4 MNPT
AST4400A00500P4A1000-SS:CTO-13000000-03	11192535-00	3D PDF	34.47 bar	Gauge	10 – 28 V	4 – 20 mA	2X, Min	Cable 2 ft	1/4 MNPT
30 PSI, 1/4MNPT, 4-20mA, Cable, 6ft., 17	11106999-00	3D PDF	2.068 bar	Gauge	10 – 28 V	4 – 20 mA	2X, Min	Cable 6 ft	1/4 MNPT
AST4400A00100P4L0000:CTO-13000000-03	11107066-00	3D PDF	6.89 bar	Gauge	10 – 28 V	4 – 20 mA	2X, Min	Conduit 2 ft	1/4 MNPT
AST4400C00020B1D1000-SS: CTO-13000000-03	20013994-00	3D PDF	20 bar	Gauge	5 V	.5 – 4.5 V	2X, Min	Cable 10 ft	1/4 MBSPP
AST4400A00250B4I4000-SS: CTO-13000000-03	20027448-00		250 bar	-	10 – 28 V	4 – 20 mA	2X, Min	DIN 43650A	1/4 MNPT
AST4400AV0025P3D1000:CTO-13000000-03	11190005-00	3D PDF	1.72 bar	Compound	10 – 28 V	1 – 5 V	2X, Min	Cable 10 ft	1/4 MNPT
AST4400A00025P1A0000:CTO-13000000-03	11191476-00	3D PDF	1.72 bar	Gauge	5 V	.5 – 4.5 V	2X, Min	Cable 2 ft	1/4 MNPT
AST4400P00025P4L1000:CTO-13000000-03	11107523-00	3D PDF	1.72 bar	Gauge	10 – 28 V	4 – 20 mA	2X, Min	Conduit 2 ft	1/2 MNPT
AST4400A00100P4E1000:CTO-13000000-03	11107061-00	3D PDF	6.89 bar	Gauge	10 – 28 V	4 – 20 mA	2X, Min	Mini-DIN 43650C	1/4 MNPT
AST4400A00200P4D1000:CTO-13000000-03	11107101-00	3D PDF	13.78 bar	Gauge	10 – 28 V	4 – 20 mA	2X, Min	Cable 10 ft	1/4 MNPT
AST4400I02500P4E1000:CTO-13000000-03	11107489-00	3D PDF	172.3 bar	Gauge	10 – 28 V	4 – 20 mA	2X, Min	Mini-DIN 43650C	1/4 FNPT
160 bar, 1/4MNPT, 4-20mA, M12x1,	11192607-00	3D PDF	160 bar	Gauge	10 – 28 V	4 – 20 mA	2X, Min	M12x1	1/4 MNPT

Overview

Features

Class I Div 1 Intrinsically Safe Groups C, D when installed with an approved barrier
ATEX / IECEx: Ex ia IIB T4 Ga (Ta = -40°C to +80°C)
High strength stainless steel construction
No oil, welds or internal O-rings
Wide operating temperature
Pressures up to 20,000 PSI
Low static and thermal errors
Compatible with wide variety of liquids and gases
Unparalleled price and performance

Applications

Industrial OEM Equipment
HVAC/R Equipment
Water Management
Control Panels
Pneumatics
Hydraulic Systems
Data Loggers

Resources

Compound Pressure Transducers
Learn how to measure positive and negative pressure with pressure transducers.
Voltage Output Pressure Transducer Comparison
Learn about various voltage output signals and how they are suitable for pressure transducers.

SELECTION GUIDE

HazLoc Pressure Transducers

BROCHURE

TE Connectivity Sensors Oil and Gas (English)

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Pressure Sensor Type Industrial Pressure Transducer
Pressure Type Compound, Gauge

Configuration Features

Electrical Connection 6 Pin Bendix PT06A, Cable 10 ft, Cable 2 ft, Cable 4 ft, Cable 6 ft, Conduit 10 ft, Conduit 2 ft, Conduit 6 ft, DIN 43650A, M12x1, Mini-DIN 43650C, Packard Metripack 150

Electrical Characteristics

Supply Voltage Range (V) 5, 10 – 28

Body Features

Port Material 17-4PH, 316L, Hastelloy C276

Dimensions

Product Diameter 22.22 mm [ .875 in ]
Product Length (mm) 68.32, 76.96, 78.48, 79.5, 84.32, 88.39, 90.42, 92.96, 664.9, 667.7, 1254.7, 1262.3, 1854.7, 1864.8, 3053, 3060.7, 3309.3
Product Length (in) 2.69, 3.03, 3.09, 3.13, 3.32, 3.48, 3.56, 3.66, 26.18, 26.29, 49.4, 49.7, 73.02, 73.42, 120.2, 120.5, 130.29

Usage Conditions

Pressure (bar) 1.72, 2.068, 3.44, 6.89, 10, 10.34, 11.03, 13.78, 20, 34.47, 68.94, 100, 160, 172.3, 250, 344.73, 350, 400, 689.47, 1034.21
Pressure (psi) 25, 30, 50, 100, 145.03, 150, 160, 200, 290.07, 500, 1000, 1450.3, 2320.6, 2500, 3625, 3625.94, 5000, 5076.3, 5801.51, 10000, 15000
Operating Temperature Range -40 – 80 °C [ -40 – 176 °F ]

Operation/Application

Output Signal Type .5 – 4.5 V, 1 – 5 V, 4 – 20 mA
Proof Pressure Range 2X, Min, 2X Rated
Pressure Accuracy ±0.25% FSO

Industry Standards

Compatible With Agency/Standards Products UL
Hazardous Area Approval Intrinsically Safe

Other

Sensor Options Increased Proof Pressure, None, No Option
Port Fitting 1/2 MNPT, 1/4 FNPT, 1/4 MBSPP, 1/4 MNPT, Cable 10 ft, F250C Female

Reference Number

TE Internal Number CAT-PTT0045

Related Materials

Datasheets & Catalog Pages

AST4400 Datasheet pdf English

Product Specifications

Installation/Wiring Document for AST Pressure Sensors pdf English
Customer View Model zip English

Instruction Sheets

Operating Instruction

Operating Instructions Intrinsically Safe pdf English

Agency Approvals

Intrinsically Safe Pressure Transducer

Product Features

Pressure Sensor Type : Industrial Pressure Transducer

Pressure (bar): 1.72, 2.068, 3.44, 6.89, 10, 10.34, 11.03, 13.78, 20, 34.47, 68.94, 100, 160, 172.3, 250, 344.73, 350, 400, 689.47, 1034.21

Pressure (psi): 25, 30, 50, 100, 145.03, 150, 160, 200, 290.07, 500, 1000, 1450.3, 2320.6, 2500, 3625, 3625.94, 5000, 5076.3, 5801.51, 10000, 15000

Pressure Type : Compound, Gauge

Hazardous Area Approval : Intrinsically Safe

Supply Voltage Range (V): 5, 10 – 28

Features

Applications

Resources

Product Type Features

Pressure Sensor Type Industrial Pressure Transducer

Pressure Type Compound, Gauge

Configuration Features

Electrical Connection 6 Pin Bendix PT06A, Cable 10 ft, Cable 2 ft, Cable 4 ft, Cable 6 ft, Conduit 10 ft, Conduit 2 ft, Conduit 6 ft, DIN 43650A, M12x1, Mini-DIN 43650C, Packard Metripack 150

Electrical Characteristics

Supply Voltage Range (V) 5, 10 – 28

Body Features

Port Material 17-4PH, 316L, Hastelloy C276

Dimensions

Product Diameter 22.22 mm [ .875 in ]

Product Length (mm) 68.32, 76.96, 78.48, 79.5, 84.32, 88.39, 90.42, 92.96, 664.9, 667.7, 1254.7, 1262.3, 1854.7, 1864.8, 3053, 3060.7, 3309.3

Product Length (in) 2.69, 3.03, 3.09, 3.13, 3.32, 3.48, 3.56, 3.66, 26.18, 26.29, 49.4, 49.7, 73.02, 73.42, 120.2, 120.5, 130.29

Usage Conditions

Pressure (bar) 1.72, 2.068, 3.44, 6.89, 10, 10.34, 11.03, 13.78, 20, 34.47, 68.94, 100, 160, 172.3, 250, 344.73, 350, 400, 689.47, 1034.21

Pressure (psi) 25, 30, 50, 100, 145.03, 150, 160, 200, 290.07, 500, 1000, 1450.3, 2320.6, 2500, 3625, 3625.94, 5000, 5076.3, 5801.51, 10000, 15000

Operating Temperature Range -40 – 80 °C [ -40 – 176 °F ]

Operation/Application

Output Signal Type .5 – 4.5 V, 1 – 5 V, 4 – 20 mA

Proof Pressure Range 2X, Min, 2X Rated

Pressure Accuracy ±0.25% FSO

Industry Standards

Compatible With Agency/Standards Products UL

Hazardous Area Approval Intrinsically Safe

Other

Sensor Options Increased Proof Pressure, None, No Option

Port Fitting 1/2 MNPT, 1/4 FNPT, 1/4 MBSPP, 1/4 MNPT, Cable 10 ft, F250C Female

Reference Number

TE Internal Number CAT-PTT0045

Datasheets & Catalog Pages

Product Specifications

Instruction Sheets

Operating Instruction

Agency Approvals

Agency Approval Document

ABS Certificate

ATEX Certificate

IECEx Certificate

CSA Certificate
