Overview

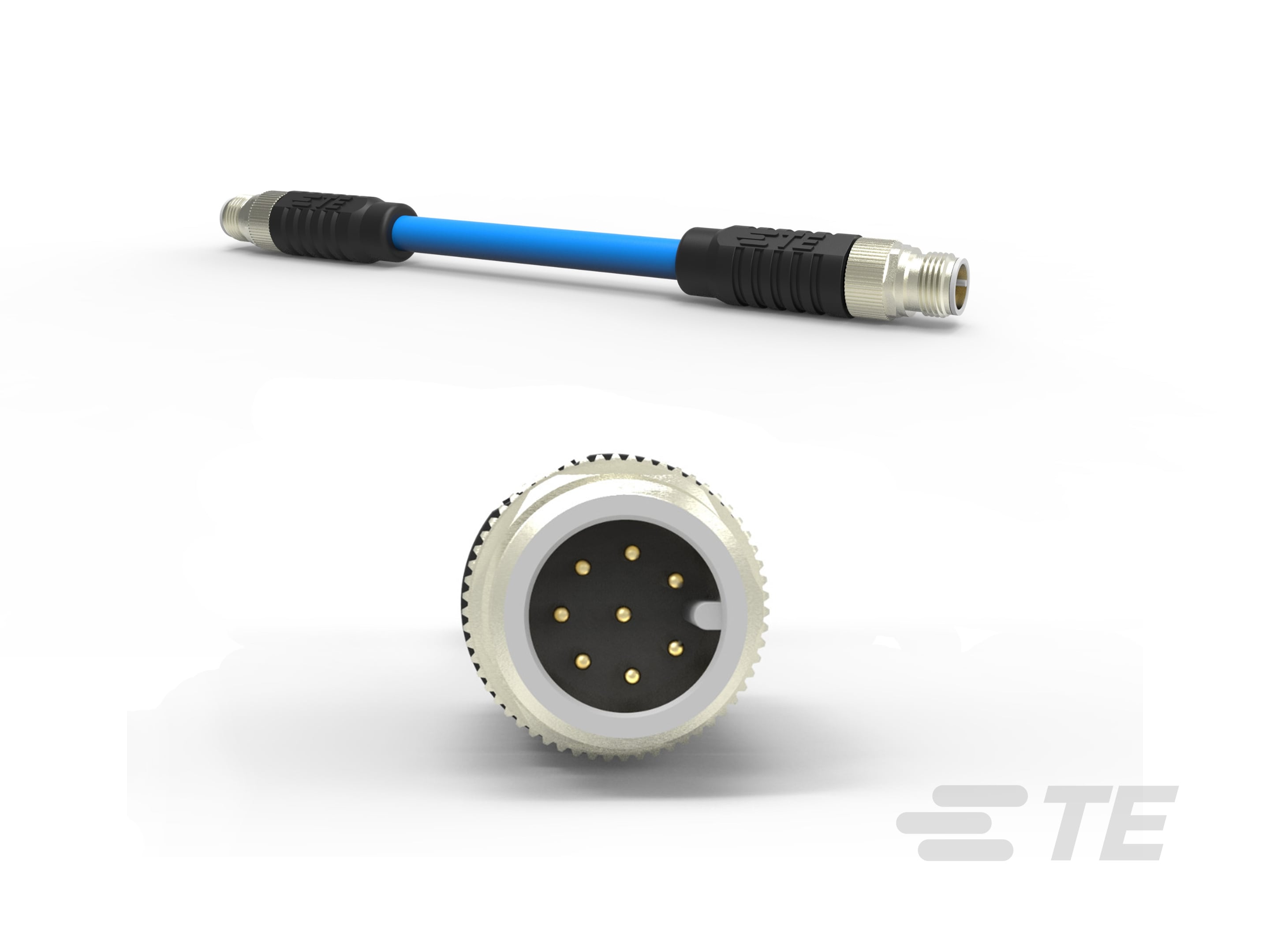

Cat7 Cable A8 Straight-A8 Straight
Product Features
-
Operating Temperature Range : -40 – 85 °C [ -40 – 185 °F ]
-
Performance Category : Cat 7
-
Cable Assembly Length (m): 10.5, 18.5, 11.5, 1, 11, 16.5, 7.5, 4, 4.5, 14, 6.5, 3, 19.5, 2.5, 19, 12.5, 1.5, 15.5, 18, 10, 14.5, 17, 17.5, 5, 7, 8.5, 13.5, 2, 5.5, 3.5, 9, 9.5, 20, 15, 13, 16, 6, 12, 8
-
Cable Assembly Length (ft): 45.93, 4.92, 31.16, 52.49, 21.32, 3.28, 50.85, 62.33, 34.44, 47.57, 44.29, 59.05, 42.65, 24.6, 29.52, 32.8, 36.08, 13.12, 41, 49.21, 27.88, 65.61, 60.69, 57.41, 9.84, 55.77, 54.13, 11.48, 39.4, 18.04, 6.56, 22.96, 8.2, 37.72, 26.24, 16.4, 14.76, 19.68, 63.97
-
Cable Color : Blue
-
Shielded : Yes
TE's A8-M Straight rail cable assemblies uses compact, straight, leftangled and rightangled connectors allowing the cable to be used in confined areas. The full metal shell in combination with secure cable shield termination makes the system EN50155 compliant. The unique crimped cable strain relief enables the best data speed possible (up to 100Mbit/s) while it eliminates conductor breakage and ultimately system failure. At the same time the crimping system creates a tamper proof installation, eliminating accidental unlocking of the strain relief. With its fire and smoke characteristics conforming to EN45545 HL3 this cable assembly can be used in public transportation applications as well as other industries where fire and smoke compliance is required.
1
Gb/s Data transmission speed
IP67
IP rating
30V
Operational voltage
EN50155 COMPLIANT
The cables are pre-assembled so customers can reduce installation time. With its ruggedized design and contacts, the cable can withstand severe shocks and vibrations according to EN 61373 Cat1 ClassB. They deliver the best data speed possible, up to 10 Gb/s, and are highly robust to enable the best passenger experience combined with safe and reliable transport.
APPLICATIONS
- Public transportation
- Railway
- Tram
- Metro
- Heavy industrial applications
KNOW MORE
-
M12 Rail Cable Assemblies
Product Group Page
-
A8-M Right Angle
Model Page
-
D4-M Right Angle
Model Page
-
D4-M Straight
Model Page
-
X8-M Straight
Model Page
How to assemble M12 Cable Connectors for field assembly.
Please review product documents or contact us for the latest agency approval information.
Usage Conditions
-
Operating Temperature Range -40 – 85 °C [ -40 – 185 °F ]
-
Storage Temperature Range -40 – 85 °C [ -40 – 185 °F ]
Industry Standards
-
IP Rating IP67
-
Performance Category Cat 7
Other
-
Cable Assembly Configuration Double Ended
-
Cable Assembly Length (m) 10.5, 18.5, 11.5, 1, 11, 16.5, 7.5, 4, 4.5, 14, 6.5, 3, 19.5, 2.5, 19, 12.5, 1.5, 15.5, 18, 10, 14.5, 17, 17.5, 5, 7, 8.5, 13.5, 2, 5.5, 3.5, 9, 9.5, 20, 15, 13, 16, 6, 12, 8
-
Cable Assembly Length (ft) 45.93, 4.92, 31.16, 52.49, 21.32, 3.28, 50.85, 62.33, 34.44, 47.57, 44.29, 59.05, 42.65, 24.6, 29.52, 32.8, 36.08, 13.12, 41, 49.21, 27.88, 65.61, 60.69, 57.41, 9.84, 55.77, 54.13, 11.48, 39.4, 18.04, 6.56, 22.96, 8.2, 37.72, 26.24, 16.4, 14.76, 19.68, 63.97
Body Features
-
Strain Relief Type Boot
-
Conductor Material Tinned Copper
-
Cable Flammability Rating LSFRZH
-
Cable Color Blue
Operation/Application
-
Durability Rating (Cycles) 250
-
Shielded Yes
Dimensions
-
Cable Construction S/FTP Stranded
-
Wire Size (AWG) 24
-
Outside Cable Diameter 8.4 mm [ .33 in ]
Packaging Features
-
Packaging Method Box
Product Type Features
-
Cable Assembly Category Industry Standard
Mechanical Attachment
-
Mating Alignment With
Product Availability
-
Applicable Region Latin America, Australia/New Zealand, EMEA, Asia, North America
Reference Number
-
TE Internal Number CAT-R131-M1
