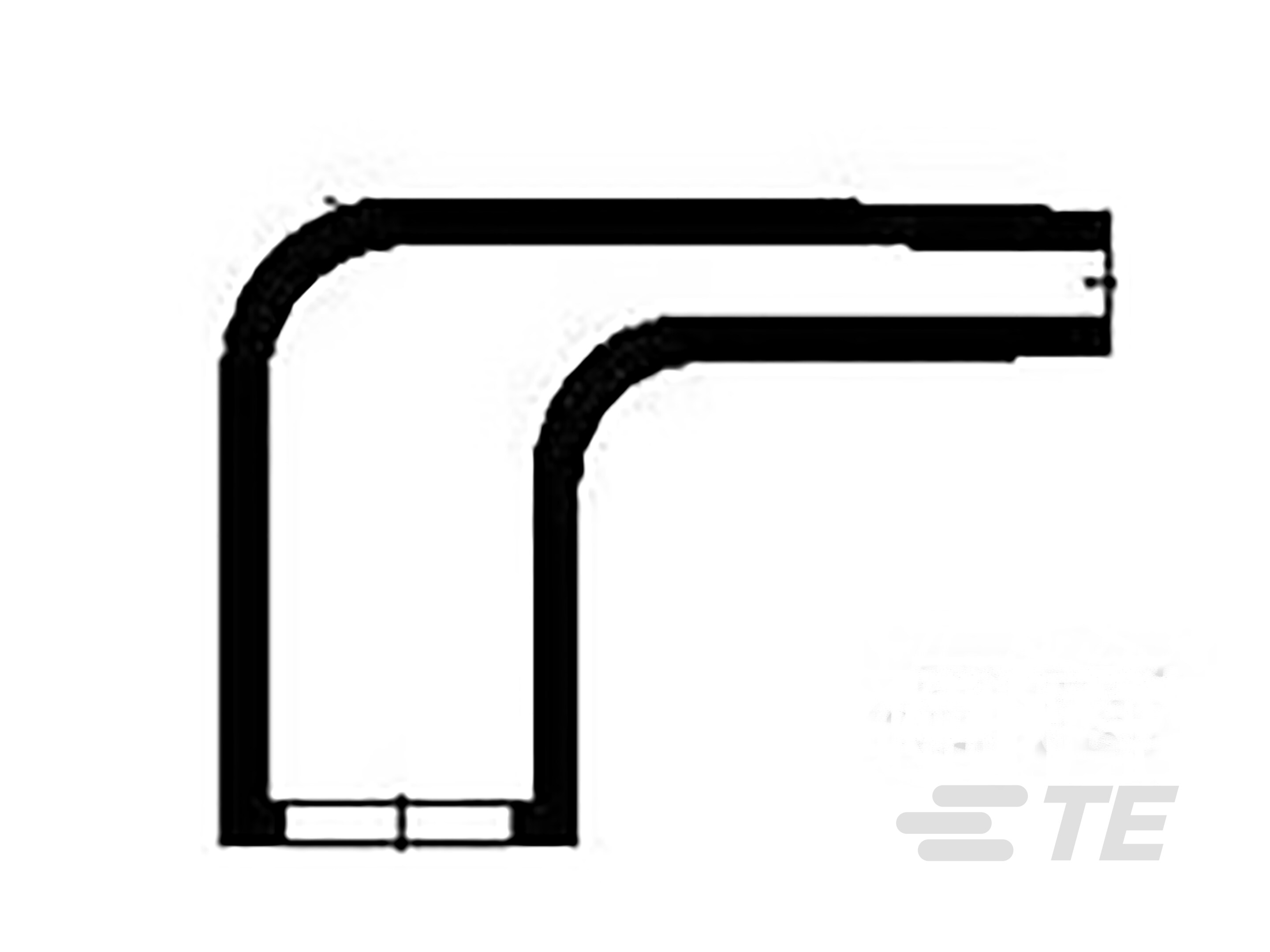

Heat Shrink Boots: Micro Molded, Lipped, Right Angle
Heat shrink boots with a right angle transition. Lipped boots with compressible design for use with a circular adapter and these parts are micro molded.
Product Features
-
Body Orientation : Right Angle
-
Molded Part Shape Code : 224
-
Lipped : Yes
-
Material Code : 12, 25
-
Material Systems Code : 200, 25
Overview
Features
Please review product documents or contact us for the latest agency approval information.
Dimensions
-
Expanded Inside Diameter (Min) 11 mm [ .43 in ]
-
Compatible Cable Diameter Range (mm) 9.4 – 19, 9.4 – 11, 5.2 – 11, 7.8 – 11
-
Compatible Cable Diameter Range (in) 9.4 – 12, 9.4 – 20, 7.8 – 12, 5.2 – 12
Body Features
-
Primary Product Material Fluid Resistant Modified Elastomer, Modified Fluoro-Elastomer
-
Material Code 12, 25
-
Material Systems Code 200, 25
Usage Conditions
-
Flammability Performance Flame-Retardant
-
Operating Temperature Range (°C) -75 – 150
-
Operating Temperature Range -75 – 150 °C [ -103 – 302 °F ]
-
Resistance Protection Long-Term Fluid Exposure at High Temperatures, Long-Term Fluid Immersion at High Temperatures
Industry Standards
-
Compatible With Approved Standards Products VG95343 Parts 6,7,8 and 9, SAE AS81765/4
Configuration Features
-
Lipped Yes
-
Adhesive Requirement Adhesive Purchased Separately, Adhesive Precoat
Housing Features
-
Body Orientation Right Angle
Other
-
Molded Part Shape Code 224
-
Adhesive Code 225
-
EU RoHS Compliance Compliant
-
EU ELV Compliance Compliant
Reference Number
-
TE Internal Number CAT-R21-73105
