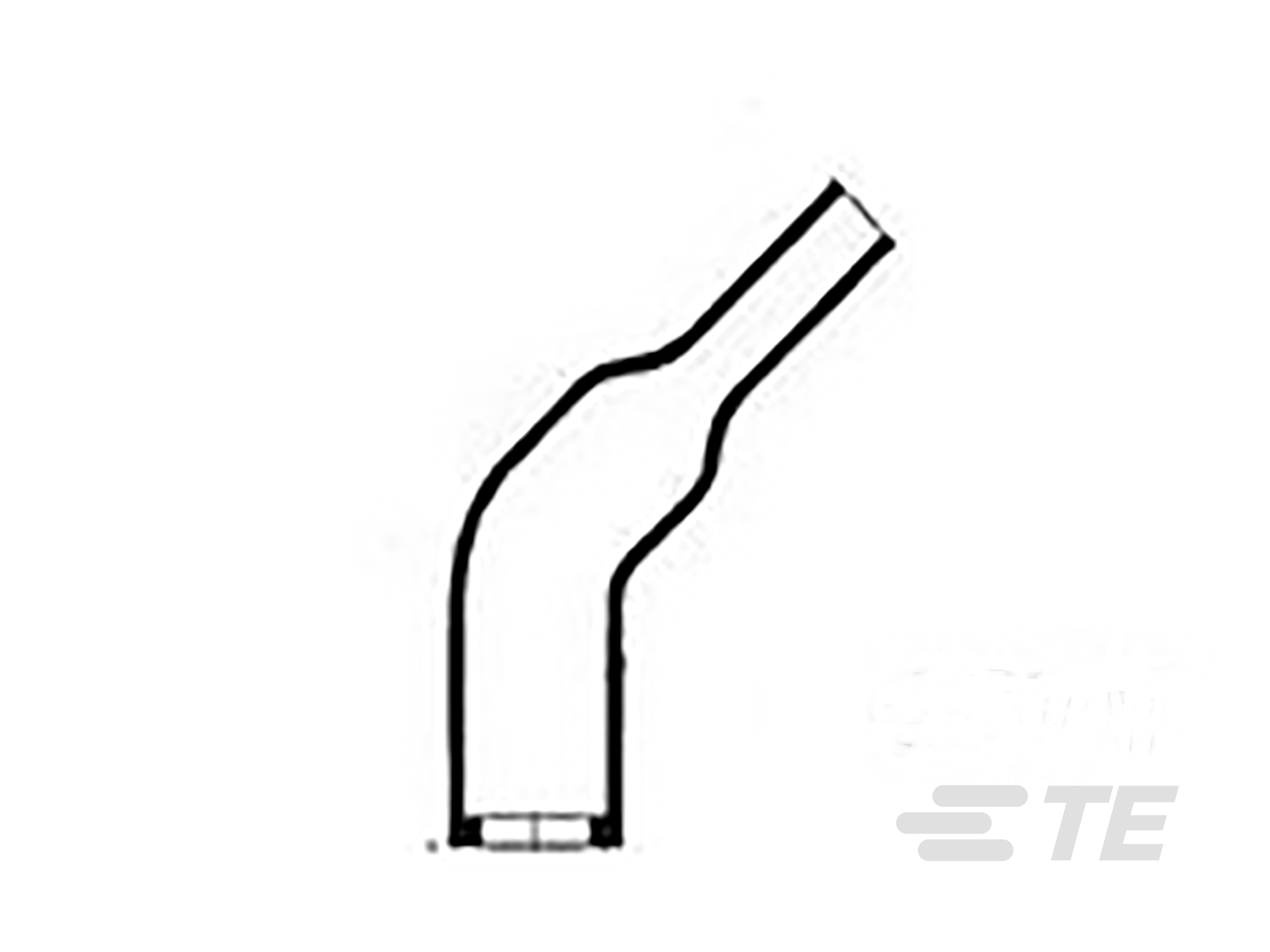

Heat Shrink Boots: Poly Mold, Non Lipped, 45°
Heat shrink poly molded boots with a 45° transition and has no lipped features. It is used for direct attachment on connectors.
Product Features
-
Body Orientation : 45°
-
Molded Part Shape Code : 243
-
Lipped : No
-
Material Code : 3, 25
-
Material Systems Code : 10, 25
Overview
Features
Please review product documents or contact us for the latest agency approval information.
Dimensions
-
Compatible Cable Diameter (Max) (mm) 6, 5, 4.5
-
Compatible Cable Diameter (Max) (in) .196, .23, .177
-
Expanded Inside Diameter (Min) (mm) 19.3, 24
-
Expanded Inside Diameter (Min) (in) .945, .76
-
Connector or Backshell Outside Diameter (mm) 16, 18
-
Connector or Backshell Outside Diameter (in) .63, .71
-
Compatible Cable Diameter Range (mm) 17.8 – 23.9, 14.2 – 19.3
-
Compatible Cable Diameter Range (in) .7 – .94, .56 – .76
Body Features
-
Primary Product Material Fluid Resistant Modified Elastomer, Semi-Rigid Modified Polyolefin
-
Material Code 3, 25
-
Material Systems Code 10, 25
Industry Standards
-
Compatible With Approved Standards Products BS-G-198-5-DE, SAE AS81765/1 Type I, MIS-34867, VG95343 Parts 6,7,8 and 9, DEF Std 59-97 Issue 3 Type DE, IEC 62329-3-102
Configuration Features
-
Lipped No
-
Adhesive Requirement Adhesive Purchased Separately
Housing Features
-
Body Orientation 45°
Usage Conditions
-
Operating Temperature Range (°C) -75 – 150, -55 – 135
-
Operating Temperature Range (°F) -103 – 302, -67 – 275
-
Resistance Protection Occasional Fluid Exposure, Long-Term Fluid Exposure at High Temperatures
Other
-
Molded Part Shape Code 243
-
EU RoHS Compliance Compliant
-
EU ELV Compliance Compliant
Reference Number
-
TE Internal Number CAT-R21-7310554222
