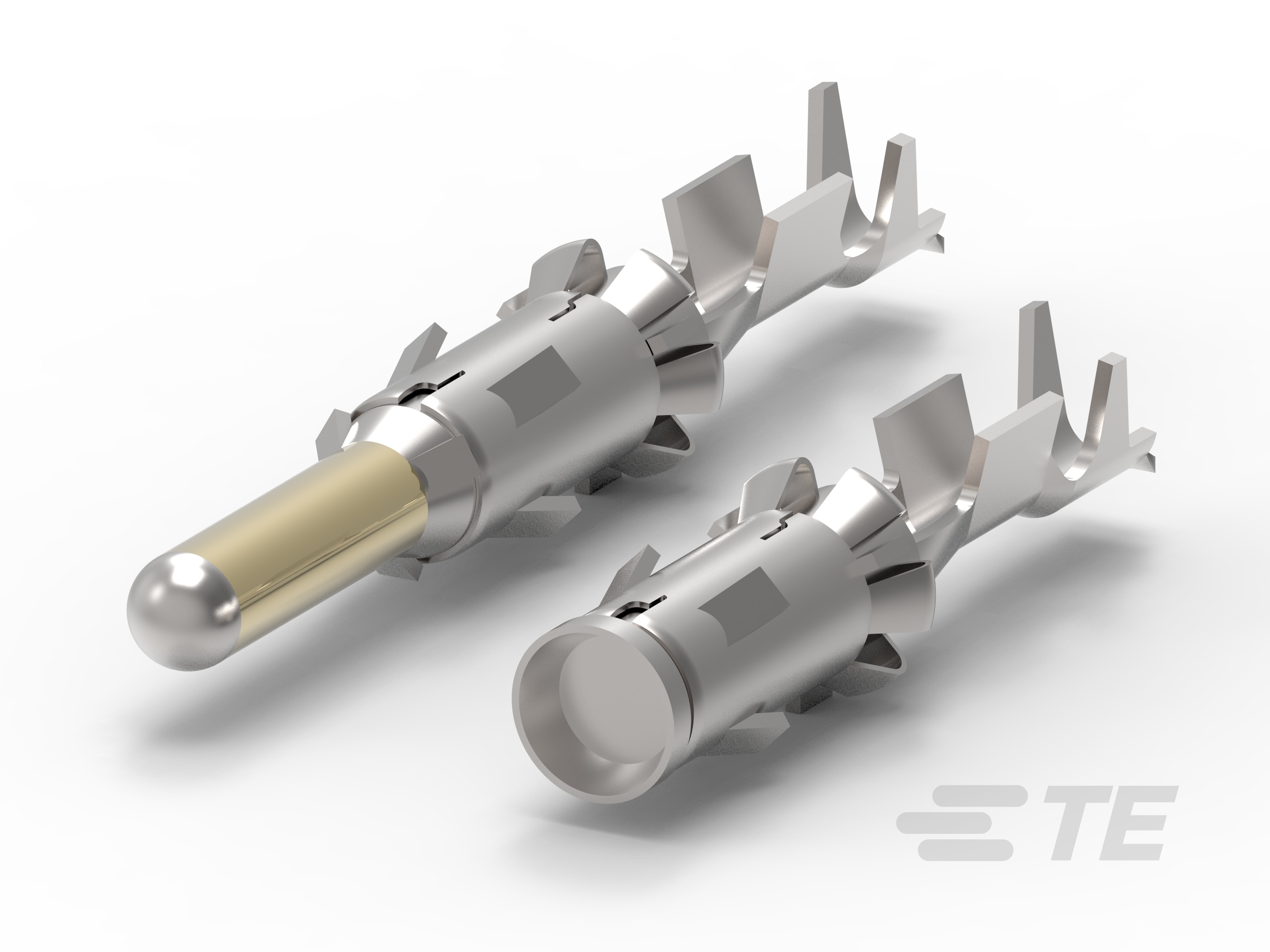

ROUND CONNECTOR SYSTEM, PIN AND SOCKET

Digital Datasheet|

Product Features

Packaging Method : Reel, Strip, Carton, Roll
Operating Temperature Range (°C): -40 – 130, -40 – 100
Operating Temperature Range (°F): -40 – 266, -40 – 212
Termination Method to Wire & Cable : Crimp, Weld
Operating Temperature (Max) (°C): 120, 100, 110, 90, 80, 125, 130, 105, 85
Operating Temperature (Max) (°F): 212, 248, 185, 221, 230, 257, 266, 194, 176
Primary Locking Feature : Locking Lance, Clean Body

Available from

Product	TE Part #	Documents	Terminal Type	Mating Pin Diameter	Terminal Transmits	Wire Size	Wire Size	Sealable	Terminal Seal Type	Wire Size Search	Wire Size Search	Primary Locking Feature	Interface Plating	Product Terminates To	Operating Temperature (Max)	Tab Length	Operating Temperature Range
1,5MM SOCK CONTACT	929987-1	Product Drawing 3D PDF	Socket	1.5 mm	0 – 24 A (Low Power)	17 – 13 AWG	1 – 2.5 mm²	No	-	2.5 mm², 1.25 mm², 2 mm², 1 mm², 1.5 mm²	14 AWG, 15 AWG, 17 AWG, 16 AWG, 13 AWG	Locking Lance	Tin (Sn)	Wire	125 °C, 100 °C, 110 °C, 120 °C, 130 °C, 90 °C, 80 °C, 105 °C, 85 °C	-	-40 – 130 °C
HIGH PRESSURE SOCKET 4MM	1718188-1	Product Drawing 3D PDF	Socket	4 mm	25 – 40 A (Power)	17 – 13 AWG	1 – 2.5 mm²	No	-	2.5 mm², 1.5 mm², 1 mm², 2 mm², 1.25 mm²	13 AWG, 14 AWG, 17 AWG, 16 AWG, 15 AWG	Clean Body	Tin (Sn)	Wire	120 °C, 125 °C, 100 °C, 110 °C, 130 °C, 90 °C, 80 °C, 105 °C, 85 °C	-	-40 – 130 °C
RECEPTACLE CONTACT 1,5MM DIA	929985-1	Product Drawing 3D PDF	Socket	1.5 mm	0 – 24 A (Low Power)	24 – 21 AWG	.2 – .4 mm²	No	-	.2 mm², .25 mm², .4 mm², .3 mm²	24 AWG, 21 AWG, 23 AWG, 22 AWG	Locking Lance	Tin (Sn)	Wire	125 °C, 120 °C, 110 °C, 100 °C, 105 °C, 85 °C, 130 °C, 90 °C, 80 °C	-	-40 – 130 °C
1,5MM SOCK CONTACT	929989-1	Product Drawing 3D PDF	Socket	1.5 mm	0 – 24 A (Low Power)	20 – 17 AWG	.5 – 1 mm²	Yes	Single Wire Seal (SWS)	1 mm², .75 mm², .6 mm², .5 mm²	20 AWG, 18 AWG, 17 AWG, 19 AWG	Locking Lance	Tin (Sn)	Wire	85 °C, 105 °C, 90 °C, 100 °C, 125 °C, 110 °C, 80 °C, 130 °C, 120 °C	-	-40 – 130 °C
BU-KONTAKT 2,5MMD	929969-1	Product Drawing 3D PDF	Socket	2.5 mm	25 – 40 A (Power)	24 – 21 AWG	.2 – .4 mm²	No	-	.25 mm², .2 mm², .3 mm², .4 mm²	24 AWG, 23 AWG, 22 AWG, 21 AWG	Locking Lance	Tin (Sn)	Wire	105 °C, 85 °C, 125 °C, 110 °C, 100 °C, 120 °C, 130 °C, 90 °C, 80 °C	-	-40 – 130 °C
4MM SOCKET CONTACT	962952-1	Product Drawing 3D PDF	Socket	4 mm	25 – 40 A (Power)	20 – 17 AWG	.5 – 1 mm²	Yes	Single Wire Seal (SWS)	1 mm², .5 mm², .6 mm², .75 mm²	20 AWG, 18 AWG, 17 AWG, 19 AWG	Locking Lance	Tin (Sn)	Wire	-	-	-
1,5MM SOCK CONTACT SWS	1-929990-0	Product Drawing 3D PDF	Socket	1.5 mm	25 – 40 A (Power)	17 – 13 AWG	1 – 2.5 mm²	Yes	Single Wire Seal (SWS)	1 mm², 2 mm², 2.5 mm², 1.25 mm², 1.5 mm²	13 AWG, 15 AWG, 14 AWG, 16 AWG, 17 AWG	Locking Lance	-	Wire	110 °C, 120 °C, 125 °C, 105 °C, 130 °C, 90 °C, 80 °C, 100 °C, 85 °C	-	-40 – 130 °C
2,5MM SYS PIN CONTACT (0,5-1,0MM?)	929963-8	Product Drawing 3D PDF	Pin	2.5 mm	25 – 40 A (Power)	20 – 17 AWG	.5 – 1 mm²	No	-	1 mm², .75 mm², .5 mm², .6 mm²	19 AWG, 17 AWG, 18 AWG, 20 AWG	Locking Lance	Gold (Au)	Wire	110 °C, 100 °C, 125 °C, 120 °C, 80 °C, 90 °C, 130 °C, 105 °C, 85 °C	-	-40 – 130 °C
2,5MM EDS BU-KONT	929975-7	Product Drawing 3D PDF	Socket	2.5 mm	25 – 40 A (Power)	17 – 13 AWG	1 – 2.5 mm²	Yes	Single Wire Seal (SWS)	1 mm², 2.5 mm², 1.5 mm², 2 mm², 1.25 mm²	14 AWG, 13 AWG, 15 AWG, 16 AWG, 17 AWG	Locking Lance	Silver (Ag)	Wire	120 °C, 110 °C, 100 °C, 105 °C, 85 °C, 130 °C, 90 °C, 80 °C, 125 °C	-	-40 – 130 °C
BU-KONTAKT 1,5MMD	929988-2	Product Drawing 3D PDF	Socket	1.5 mm	0 – 24 A (Low Power)	24 – 21 AWG	.2 – .4 mm²	Yes	Single Wire Seal (SWS)	.25 mm², .4 mm², .2 mm², .3 mm²	23 AWG, 21 AWG, 22 AWG, 24 AWG	Locking Lance	Silver (Ag)	Wire	100 °C, 120 °C, 125 °C, 110 °C, 85 °C, 105 °C, 80 °C, 130 °C, 90 °C	-	-40 – 130 °C
BU-KONTAKT 2,5MMD	929975-1	Product Drawing 3D PDF	Socket	2.5 mm	25 – 40 A (Power)	17 – 13 AWG	1 – 2.5 mm²	Yes	Single Wire Seal (SWS)	1.5 mm², 1 mm², 2 mm², 2.5 mm², 1.25 mm²	17 AWG, 16 AWG, 13 AWG, 14 AWG, 15 AWG	Locking Lance	Tin (Sn)	Wire	90 °C, 130 °C, 110 °C, 80 °C, 85 °C, 120 °C, 125 °C, 100 °C, 105 °C	-	-40 – 130 °C
2,5MM SWS PIN CONT.(0,5-1,0)	929967-8	Product Drawing 3D PDF	Pin	2.5 mm	25 – 40 A (Power)	20 – 17 AWG	.5 – 1 mm²	Yes	Single Wire Seal (SWS)	.75 mm², .6 mm², .5 mm², 1 mm²	17 AWG, 20 AWG, 18 AWG, 19 AWG	Locking Lance	Gold (Au)	Wire	105 °C, 120 °C, 110 °C, 100 °C, 85 °C, 130 °C, 90 °C, 80 °C, 125 °C	-	-40 – 130 °C
STIFTKONTAKT 2,5MMD	929967-1	Product Drawing 3D PDF	Pin	2.5 mm	25 – 40 A (Power)	20 – 17 AWG	.5 – 1 mm²	Yes	Single Wire Seal (SWS)	1 mm², .6 mm², .5 mm², .75 mm²	20 AWG, 19 AWG, 17 AWG, 18 AWG	Locking Lance	Tin (Sn)	Wire	120 °C, 110 °C, 100 °C, 125 °C, 130 °C, 90 °C, 80 °C, 105 °C, 85 °C	-	-40 – 130 °C
STIFTKONTAKT 4MM	962862-1	Product Drawing 3D PDF	Pin	4 mm	25 – 40 A (Power)	17 – 13 AWG	1 – 2.5 mm²	No	-	1.25 mm², 1.5 mm², 2.5 mm², 2 mm², 1 mm²	13 AWG, 14 AWG, 17 AWG, 16 AWG, 15 AWG	Clean Body	Tin (Sn)	Wire	125 °C, 110 °C, 130 °C, 80 °C, 120 °C, 105 °C, 100 °C, 85 °C, 90 °C	-	-40 – 130 °C
1,5MM SOCK CONTACT	929990-7	Product Drawing 3D PDF	Socket	1.5 mm	25 – 40 A (Power)	17 – 13 AWG	1 – 2.5 mm²	Yes	Single Wire Seal (SWS)	2 mm², 1 mm², 2.5 mm², 1.25 mm², 1.5 mm²	13 AWG, 15 AWG, 14 AWG, 16 AWG, 17 AWG	Locking Lance	Silver (Ag)	Wire	80 °C, 130 °C, 90 °C, 125 °C, 120 °C, 110 °C, 100 °C, 105 °C, 85 °C	-	-40 – 130 °C
DIA 1.5MM CONTACT PIN,ASSY	1703013-4	Product Drawing 3D PDF	Pin	1.5 mm	0 – 24 A (Low Power)	20 – 17 AWG	.5 – 1 mm²	Yes	Single Wire Seal (SWS)	.6 mm², 1 mm², .75 mm², .5 mm²	17 AWG, 20 AWG, 19 AWG, 18 AWG	Locking Lance	Tin (Sn)	Wire	105 °C, 130 °C, 90 °C, 110 °C, 100 °C, 125 °C, 120 °C, 80 °C, 85 °C	-	-40 – 130 °C
DIA 2.5MM CONTACT WITH WELDING FLAG	1703021-1	Product Drawing 3D PDF	Socket	2.5 mm	25 – 40 A (Power)	-	-	No	-	-	-	Locking Lance	Tin (Sn)	Busbar	85 °C, 105 °C, 130 °C, 120 °C, 125 °C, 100 °C, 110 °C, 90 °C, 80 °C	-	-40 – 130 °C
4MM BUCHS-KONTAKT	962952-2	Product Drawing 3D PDF	Socket	4 mm	25 – 40 A (Power)	20 – 17 AWG	.5 – 1 mm²	Yes	Single Wire Seal (SWS)	1 mm², .5 mm², .75 mm², .6 mm²	17 AWG, 20 AWG, 18 AWG, 19 AWG	Locking Lance	Silver (Ag)	Wire	-	-	-
2,5MM SOCKET CONTACT(1,0-2,5)	929971-8	Product Drawing 3D PDF	Socket	2.5 mm	25 – 40 A (Power)	17 – 13 AWG	1 – 2.5 mm²	No	-	2 mm², 1.25 mm², 2.5 mm², 1.5 mm², 1 mm²	14 AWG, 13 AWG, 15 AWG, 16 AWG, 17 AWG	Locking Lance	Gold (Au)	Wire	130 °C, 90 °C, 80 °C, 105 °C, 85 °C, 125 °C, 120 °C, 110 °C, 100 °C	-	-40 – 130 °C
DIA 1.5MM CONTACT PIN,ASSY	1703012-1	Product Drawing 3D PDF	Pin	1.5 mm	0 – 24 A (Low Power)	24 – 21 AWG	.2 – .4 mm²	Yes	Single Wire Seal (SWS)	.4 mm², .3 mm², .2 mm², .25 mm²	21 AWG, 22 AWG, 23 AWG, 24 AWG	Locking Lance	Tin (Sn)	Wire	130 °C, 80 °C, 90 °C, 85 °C, 105 °C, 125 °C, 100 °C, 110 °C, 120 °C	-	-40 – 130 °C
2,5MM BU-KONTAKT	929970-8	Product Drawing 3D PDF	Socket	2.5 mm	25 – 40 A (Power)	20 – 17 AWG	.5 – 1 mm²	No	-	.5 mm², .75 mm², .6 mm², 1 mm²	17 AWG, 18 AWG, 20 AWG, 19 AWG	Locking Lance	Gold (Au)	Wire	80 °C, 90 °C, 120 °C, 110 °C, 100 °C, 125 °C, 85 °C, 105 °C, 130 °C	-	-40 – 130 °C
2,5MM SOCKET CONTACT	929970-7	Product Drawing 3D PDF	Socket	2.5 mm	0 – 24 A (Low Power)	20 – 17 AWG	.5 – 1 mm²	No	-	.5 mm², 1 mm², .6 mm², .75 mm²	18 AWG, 17 AWG, 20 AWG, 19 AWG	Locking Lance	Silver (Ag)	Wire	85 °C, 110 °C, 120 °C, 130 °C, 90 °C, 80 °C, 105 °C, 125 °C, 100 °C	-	-40 – 130 °C
1,5MM CONT.SOCK SWS	929989-7	Product Drawing 3D PDF	Socket	1.5 mm	0 – 24 A (Low Power)	20 – 17 AWG	.5 – 1 mm²	Yes	Single Wire Seal (SWS)	.5 mm², 1 mm², .6 mm², .75 mm²	19 AWG, 20 AWG, 17 AWG, 18 AWG	Locking Lance	Silver (Ag)	Wire	80 °C, 105 °C, 85 °C, 90 °C, 130 °C, 100 °C, 110 °C, 125 °C, 120 °C	-	-40 – 130 °C
DIA 1.5MM CONTACT PIN,ASSY	1703014-1	Product Drawing 3D PDF	Pin	1.5 mm	25 – 40 A (Power)	17 – 13 AWG	1 – 2.5 mm²	Yes	Single Wire Seal (SWS)	2 mm², 1.25 mm², 1 mm², 2.5 mm², 1.5 mm²	17 AWG, 16 AWG, 15 AWG, 13 AWG, 14 AWG	Locking Lance	Tin (Sn)	Wire	105 °C, 100 °C, 85 °C, 130 °C, 125 °C, 110 °C, 120 °C, 90 °C, 80 °C	-	-40 – 130 °C
2,5MM SWS REC.CONT.	1-929974-4	3D PDF	Socket	2.5 mm	25 – 40 A (Power)	20 – 17 AWG	.5 – 1 mm²	Yes	Single Wire Seal (SWS)	.75 mm², 1 mm², .5 mm², .6 mm²	17 AWG, 19 AWG, 20 AWG, 18 AWG	Locking Lance	Silver (Ag)	Wire	80 °C, 105 °C, 130 °C, 125 °C, 120 °C, 110 °C, 100 °C, 90 °C, 85 °C	-	-40 – 130 °C
DIA1.5 SOCK CONTACT	1-929989-0	Product Drawing 3D PDF	Socket	1.5 mm	0 – 24 A (Low Power)	20 – 17 AWG	.5 – 1 mm²	Yes	Single Wire Seal (SWS)	.75 mm², 1 mm², .5 mm², .6 mm²	18 AWG, 17 AWG, 20 AWG, 19 AWG	Locking Lance	-	Wire	120 °C, 100 °C, 110 °C, 90 °C, 125 °C, 105 °C, 85 °C, 80 °C, 130 °C	-	-40 – 130 °C
DIA 1.5MM CONTACT PIN	1703013-2	Product Drawing 3D PDF	Pin	1.5 mm	0 – 24 A (Low Power)	20 – 17 AWG	.5 – 1 mm²	Yes	Single Wire Seal (SWS)	.75 mm², 1 mm², .5 mm², .6 mm²	18 AWG, 19 AWG, 17 AWG, 20 AWG	Locking Lance	Silver (Ag)	Wire	85 °C, 125 °C, 120 °C, 110 °C, 100 °C, 130 °C, 90 °C, 80 °C, 105 °C	-	-40 – 130 °C
STIFTKONTAKT 2,5MMD	929964-1	Product Drawing 3D PDF	Pin	2.5 mm	25 – 40 A (Power)	17 – 13 AWG	1 – 2.5 mm²	No	-	1.25 mm², 2 mm², 1 mm², 2.5 mm², 1.5 mm²	14 AWG, 17 AWG, 16 AWG, 13 AWG, 15 AWG	Locking Lance	Tin (Sn)	Wire	125 °C, 120 °C, 130 °C, 105 °C, 85 °C, 80 °C, 90 °C, 110 °C, 100 °C	-	-40 – 130 °C
STIFTKONTAKT 2,5MMD	929966-1	Product Drawing 3D PDF	Pin	2.5 mm	25 – 40 A (Power)	24 – 21 AWG	.2 – .4 mm²	Yes	Single Wire Seal (SWS)	.25 mm², .2 mm², .3 mm², .4 mm²	23 AWG, 24 AWG, 21 AWG, 22 AWG	Locking Lance	Tin (Sn)	Wire	125 °C, 120 °C, 130 °C, 90 °C, 80 °C, 105 °C, 85 °C, 110 °C, 100 °C	-	-40 – 130 °C
BU-KONTAKT 2,5MMD	929972-1	Product Drawing 3D PDF	Socket	2.5 mm	25 – 40 A (Power)	13 – 11 AWG	2.5 – 4 mm²	No	-	3 mm², 4 mm², 2.5 mm²	12 AWG, 11 AWG, 13 AWG	Locking Lance	Tin (Sn)	Wire	80 °C, 90 °C, 130 °C, 105 °C, 85 °C, 110 °C, 120 °C, 125 °C, 100 °C	-	-40 – 130 °C
BU-KONTAKT 2,5MMD	929974-1	Product Drawing 3D PDF	Socket	2.5 mm	25 – 40 A (Power)	20 – 17 AWG	.5 – 1 mm²	Yes	Single Wire Seal (SWS)	1 mm², .75 mm², .6 mm², .5 mm²	17 AWG, 19 AWG, 18 AWG, 20 AWG	Locking Lance	Tin (Sn)	Wire	105 °C, 85 °C, 100 °C, 130 °C, 80 °C, 90 °C, 120 °C, 125 °C, 110 °C	-	-40 – 130 °C
2,5MM ST-KONT EDS	929974-8	Product Drawing 3D PDF	Socket	2.5 mm	25 – 40 A (Power)	20 – 17 AWG	.5 – 1 mm²	Yes	Single Wire Seal (SWS)	.75 mm², 1 mm², .5 mm², .6 mm²	17 AWG, 19 AWG, 20 AWG, 18 AWG	Locking Lance	Gold (Au)	Wire	80 °C, 130 °C, 105 °C, 120 °C, 90 °C, 85 °C, 100 °C, 125 °C, 110 °C	-	-40 – 130 °C
1,5MM SOCK CONTACT	929986-1	Product Drawing 3D PDF	Socket	1.5 mm	0 – 24 A (Low Power)	20 – 17 AWG	.5 – 1 mm²	No	-	.75 mm², .6 mm², .5 mm², 1 mm²	18 AWG, 19 AWG, 20 AWG, 17 AWG	Locking Lance	Tin (Sn)	Wire	120 °C, 90 °C, 130 °C, 110 °C, 100 °C, 80 °C, 85 °C, 105 °C, 125 °C	-	-40 – 130 °C
4MM BUCHS-KONTAKT	962956-1	Product Drawing 3D PDF	Socket	4 mm	25 – 40 A (Power)	13 – 11 AWG	2.5 – 4 mm²	Yes	Single Wire Seal (SWS)	2.5 mm², 4 mm², 3 mm²	12 AWG, 11 AWG, 13 AWG	Locking Lance	Tin (Sn)	Wire	80 °C, 90 °C, 85 °C, 100 °C	-	-40 – 100 °C
STIFTKONTAKT 2,5MMD	929963-1	Product Drawing 3D PDF	Pin	2.5 mm	25 – 40 A (Power)	20 – 17 AWG	.5 – 1 mm²	No	-	.5 mm², .75 mm², 1 mm², .6 mm²	18 AWG, 19 AWG, 17 AWG, 20 AWG	Locking Lance	Tin (Sn)	Wire	125 °C, 100 °C, 130 °C, 90 °C, 80 °C, 105 °C, 85 °C, 120 °C, 110 °C	-	-40 – 130 °C
STIFTKONTAKT 2,5MMD	929965-1	Product Drawing 3D PDF	Pin	2.5 mm	0 – 24 A (Low Power)	13 – 11 AWG	2.5 – 4 mm²	No	-	2.5 mm², 4 mm², 3 mm²	13 AWG, 11 AWG, 12 AWG	Locking Lance	Tin (Sn)	Wire	130 °C	29.8 mm	-40 – 130 °C
SOCKET CONTACT 2,5MMD	929970-1	Product Drawing 3D PDF	Socket	2.5 mm	25 – 40 A (Power)	20 – 17 AWG	.5 – 1 mm²	No	-	1 mm², .5 mm², .75 mm², .6 mm²	19 AWG, 18 AWG, 20 AWG, 17 AWG	Locking Lance	Tin (Sn)	Wire	125 °C, 120 °C, 85 °C, 105 °C, 80 °C, 130 °C, 90 °C, 110 °C, 100 °C	-	-40 – 130 °C
BU-KONTAKT 2,5MMD	929971-1	Product Drawing 3D PDF	Socket	2.5 mm	25 – 40 A (Power)	17 – 13 AWG	1 – 2.5 mm²	No	-	2 mm², 1.5 mm², 2.5 mm², 1.25 mm², 1 mm²	14 AWG, 15 AWG, 17 AWG, 13 AWG, 16 AWG	Locking Lance	Tin (Sn)	Wire	100 °C, 125 °C, 110 °C, 85 °C, 105 °C, 80 °C, 130 °C, 90 °C, 120 °C	-	-40 – 130 °C
BU-KONTAKT 2,5MMD	929973-1	Product Drawing 3D PDF	Socket	2.5 mm	25 – 40 A (Power)	24 – 21 AWG	.2 – .4 mm²	Yes	Single Wire Seal (SWS)	.4 mm², .3 mm², .2 mm², .25 mm²	22 AWG, 21 AWG, 24 AWG, 23 AWG	Locking Lance	Tin (Sn)	Wire	85 °C, 100 °C, 80 °C, 90 °C, 130 °C, 125 °C, 120 °C, 105 °C, 110 °C	-	-40 – 130 °C
4MM BUCHS-KONTAKT	962954-1	Product Drawing 3D PDF	Socket	4 mm	25 – 40 A (Power)	17 – 13 AWG	1 – 2.5 mm²	Yes	Single Wire Seal (SWS)	1.25 mm², 1 mm², 2 mm², 1.5 mm², 2.5 mm²	15 AWG, 13 AWG, 17 AWG, 14 AWG, 16 AWG	Locking Lance	Tin (Sn)	Wire	85 °C, 80 °C, 100 °C, 90 °C	-	-40 – 100 °C
4MM BUCHS-KONTAKT	962954-2	Product Drawing 3D PDF	Socket	4 mm	25 – 40 A (Power)	17 – 13 AWG	1 – 2.5 mm²	Yes	Single Wire Seal (SWS)	1 mm², 1.5 mm², 2.5 mm², 1.25 mm², 2 mm²	16 AWG, 17 AWG, 14 AWG, 15 AWG, 13 AWG	Locking Lance	Silver (Ag)	Wire	80 °C, 90 °C, 100 °C, 85 °C	-	-40 – 100 °C
2,5MM SOCKET CONTACT SWS	929974-7	Product Drawing 3D PDF	Socket	2.5 mm	25 – 40 A (Power)	20 – 17 AWG	.5 – 1 mm²	Yes	Single Wire Seal (SWS)	1 mm², .75 mm², .5 mm², .6 mm²	17 AWG, 19 AWG, 20 AWG, 18 AWG	Locking Lance	Silver (Ag)	Wire	105 °C, 130 °C, 80 °C, 100 °C, 85 °C, 90 °C, 120 °C, 125 °C, 110 °C	-	-40 – 130 °C
STIFTKONTAKT 2,5MMD	929962-1	Product Drawing 3D PDF	Pin	2.5 mm	25 – 40 A (Power)	24 – 21 AWG	.2 – .4 mm²	No	-	.2 mm², .3 mm², .4 mm², .25 mm²	21 AWG, 22 AWG, 24 AWG, 23 AWG	Locking Lance	Tin (Sn)	Wire	80 °C, 130 °C, 125 °C, 85 °C, 100 °C, 105 °C, 120 °C, 90 °C, 110 °C	-	-40 – 130 °C
DIA 1.5MM CONTACT PIN,ASSY	1703013-1	Product Drawing 3D PDF	Pin	1.5 mm	0 – 24 A (Low Power)	20 – 17 AWG	.5 – 1 mm²	Yes	Single Wire Seal (SWS)	.5 mm², .75 mm², 1 mm², .6 mm²	18 AWG, 19 AWG, 20 AWG, 17 AWG	Locking Lance	Tin (Sn)	Wire	80 °C, 90 °C, 125 °C, 110 °C, 105 °C, 100 °C, 85 °C, 120 °C, 130 °C	-	-40 – 130 °C
2,5MM PIN CONTACT	929968-1	Product Drawing 3D PDF	Pin	2.5 mm	25 – 40 A (Power)	17 – 13 AWG	1 – 2.5 mm²	Yes	Single Wire Seal (SWS)	1 mm², 2 mm², 2.5 mm², 1.25 mm², 1.5 mm²	17 AWG, 14 AWG, 13 AWG, 16 AWG, 15 AWG	Locking Lance	Tin (Sn)	Wire	125 °C, 105 °C, 130 °C, 120 °C, 110 °C, 100 °C, 85 °C, 90 °C, 80 °C	-	-40 – 130 °C
2,5MM SOCKET CONTACT SWS	929975-8	Product Drawing 3D PDF	Socket	2.5 mm	25 – 40 A (Power)	17 – 13 AWG	1 – 2.5 mm²	Yes	Single Wire Seal (SWS)	2 mm², 2.5 mm², 1 mm², 1.25 mm², 1.5 mm²	13 AWG, 14 AWG, 15 AWG, 16 AWG, 17 AWG	Locking Lance	Gold (Au)	Wire	110 °C, 100 °C, 90 °C, 125 °C, 120 °C, 80 °C, 130 °C, 105 °C, 85 °C	-	-40 – 130 °C
1,5MM SOCK CONTACT	929990-1	Product Drawing 3D PDF	Socket	1.5 mm	25 – 40 A (Power)	17 – 13 AWG	1 – 2.5 mm²	Yes	Single Wire Seal (SWS)	2 mm², 1 mm², 1.5 mm², 1.25 mm², 2.5 mm²	15 AWG, 14 AWG, 17 AWG, 16 AWG, 13 AWG	Locking Lance	Tin (Sn)	Wire	90 °C, 125 °C, 100 °C, 85 °C, 130 °C, 110 °C, 120 °C, 80 °C, 105 °C	-	-40 – 130 °C
4MM BUCHS-KONTAKT	962956-2	Product Drawing 3D PDF	Socket	4 mm	25 – 40 A (Power)	13 – 11 AWG	2.5 – 4 mm²	Yes	Single Wire Seal (SWS)	3 mm², 4 mm², 2.5 mm²	12 AWG, 11 AWG, 13 AWG	Locking Lance	Silver (Ag)	Wire	-	-	-

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Primary Locking Feature Locking Lance, Clean Body
Sealable Yes, No
Receptacle Style 180°

Body Features

Terminal Seal Type Single Wire Seal (SWS)

Contact Features

Wire Contact Termination Area Plating Material Tin, Silver
Typical Current Rating (A) 8, 10, 20, 34, 40
Terminal Type Pin, Socket
Interface Plating Tin (Sn), Gold (Au), Silver (Ag)
Mating Pin Diameter (mm) 1.5, 2.5, 4
Mating Pin Diameter (in) .059, .098, .157
Contact Fabrication Stamped & Formed
Contact Size 2.5mm, 1.5mm, 4mm
Crimp Type F-Crimp

Termination Features

Termination Method to Wire & Cable Crimp, Weld
Product Terminates To Wire, Busbar

Dimensions

Wire Size (mm²) .2 – .4, .5 – 1.1, .5 – 1, 1 – 2.5, 2.5 – 4
Compatible Insulation Diameter Range (mm) 1.15 – 1.6, 1.2 – 2.1, 1.4 – 2.1, 1.9 – 3, 2.2 – 2.4, 2.2 – 3, 2.7 – 3.6, 6
Compatible Insulation Diameter Range (in) .045 – .062, .047 – .082, .055 – .082, .055 – .083, .074 – .118, .075 – .118, .086 – .118, .087 – .118, .106 – .141, .106 – .142, .236
Wire Size (AWG) 13 – 11, 17 – 13, 20 – 17, 24 – 21
Wire Size Search (mm²) .2, .25, .3, .4, .5, .6, .75, 1, 1.25, 1.5, 2, 2.5, 3, 4
Tab Length 29.8 mm [ 1.173 in ]
Wire Size Search (AWG) 12, 19, 23, 15, 11, 22, 13, 24, 16, 21, 17, 14, 20, 18

Usage Conditions

Operating Temperature Range (°C) -40 – 130, -40 – 100
Operating Temperature Range (°F) -40 – 266, -40 – 212
Operating Temperature (Max) (°C) 80, 85, 90, 100, 105, 110, 120, 125, 130
Operating Temperature (Max) (°F) 176, 185, 194, 212, 221, 230, 248, 257, 266
Insulation Option Uninsulated

Operation/Application

Compatible With Wire Base Material Copper

Industry Standards

Compatible With Agency/Standards Products LV214, AK

Packaging Features

Packaging Method Reel, Strip, Carton, Roll
Packaging Quantity 1500, 2500, 3000, 3200, 3500, 3800, 4000, 4500, 5000

Other

Terminal Transmits 25 – 40 A (Power), 0 – 24 A (Low Power)

Reference Number

TE Internal Number CAT-R7602-T273

Related Materials

No documentation available.

ROUND CONNECTOR SYSTEM, PIN AND SOCKET

Product Features

Packaging Method : Reel, Strip, Carton, Roll

Operating Temperature Range (°C): -40 – 130, -40 – 100

Operating Temperature Range (°F): -40 – 266, -40 – 212

Termination Method to Wire & Cable : Crimp, Weld

Operating Temperature (Max) (°C): 120, 100, 110, 90, 80, 125, 130, 105, 85

Operating Temperature (Max) (°F): 212, 248, 185, 221, 230, 257, 266, 194, 176

Primary Locking Feature : Locking Lance, Clean Body

Product Type Features

Primary Locking Feature Locking Lance, Clean Body

Sealable Yes, No

Receptacle Style 180°

Body Features

Terminal Seal Type Single Wire Seal (SWS)

Contact Features

Wire Contact Termination Area Plating Material Tin, Silver

Typical Current Rating (A) 8, 10, 20, 34, 40

Terminal Type Pin, Socket

Interface Plating Tin (Sn), Gold (Au), Silver (Ag)

Mating Pin Diameter (mm) 1.5, 2.5, 4

Mating Pin Diameter (in) .059, .098, .157

Contact Fabrication Stamped & Formed

Contact Size 2.5mm, 1.5mm, 4mm

Crimp Type F-Crimp

Termination Features

Termination Method to Wire & Cable Crimp, Weld

Product Terminates To Wire, Busbar

Dimensions

Wire Size (mm²) .2 – .4, .5 – 1.1, .5 – 1, 1 – 2.5, 2.5 – 4

Compatible Insulation Diameter Range (mm) 1.15 – 1.6, 1.2 – 2.1, 1.4 – 2.1, 1.9 – 3, 2.2 – 2.4, 2.2 – 3, 2.7 – 3.6, 6

Compatible Insulation Diameter Range (in) .045 – .062, .047 – .082, .055 – .082, .055 – .083, .074 – .118, .075 – .118, .086 – .118, .087 – .118, .106 – .141, .106 – .142, .236

Wire Size (AWG) 13 – 11, 17 – 13, 20 – 17, 24 – 21

Wire Size Search (mm²) .2, .25, .3, .4, .5, .6, .75, 1, 1.25, 1.5, 2, 2.5, 3, 4

Tab Length 29.8 mm [ 1.173 in ]

Wire Size Search (AWG) 12, 19, 23, 15, 11, 22, 13, 24, 16, 21, 17, 14, 20, 18

Usage Conditions

Operating Temperature Range (°C) -40 – 130, -40 – 100

Operating Temperature Range (°F) -40 – 266, -40 – 212

Operating Temperature (Max) (°C) 80, 85, 90, 100, 105, 110, 120, 125, 130

Operating Temperature (Max) (°F) 176, 185, 194, 212, 221, 230, 248, 257, 266

Insulation Option Uninsulated

Operation/Application

Compatible With Wire Base Material Copper

Industry Standards

Compatible With Agency/Standards Products LV214, AK

Packaging Features

Packaging Method Reel, Strip, Carton, Roll

Packaging Quantity 1500, 2500, 3000, 3200, 3500, 3800, 4000, 4500, 5000

Other

Terminal Transmits 25 – 40 A (Power), 0 – 24 A (Low Power)

Reference Number

TE Internal Number CAT-R7602-T273
