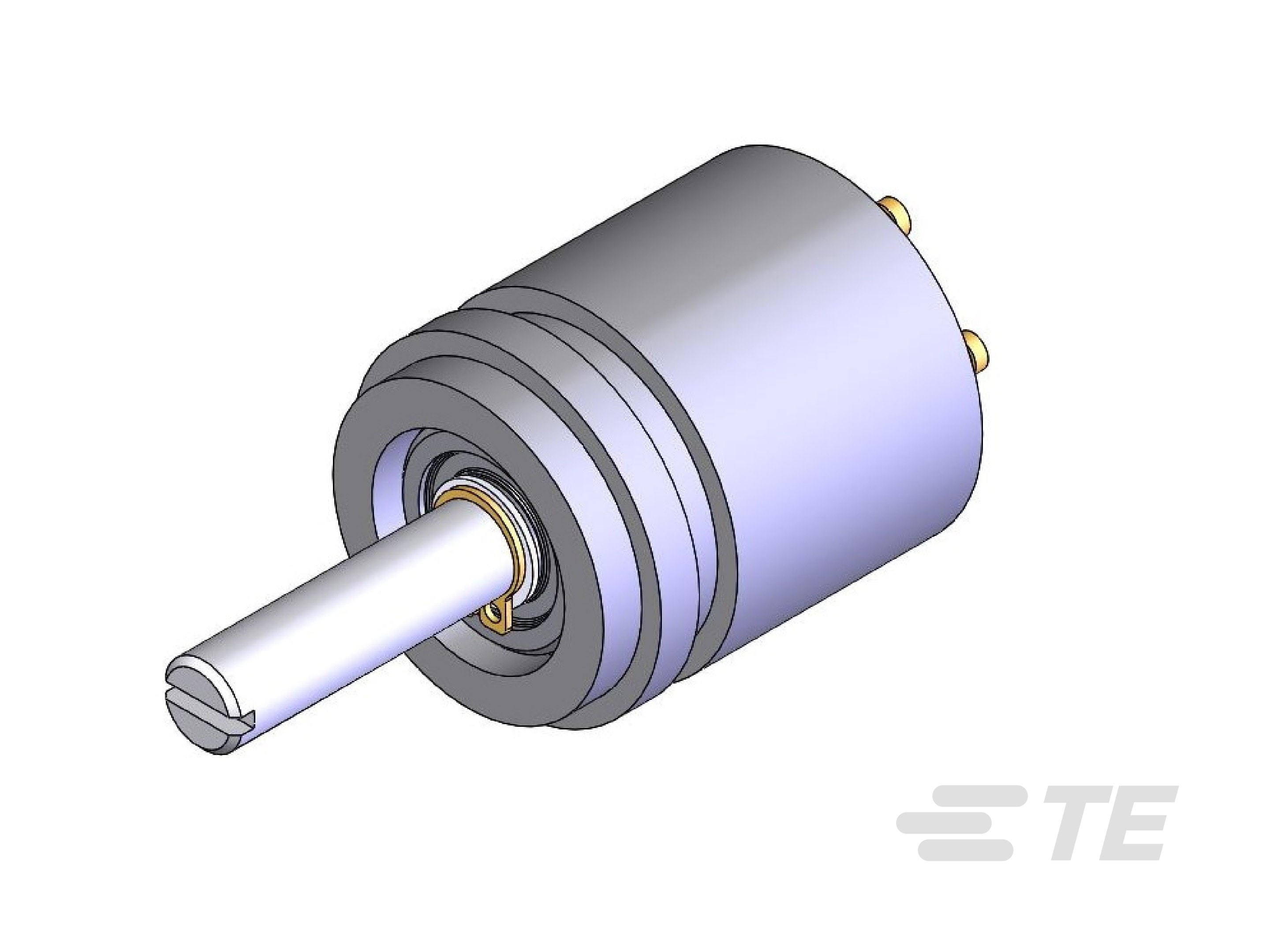

RATIOMETRIC ROTARY POTENTIOMETER

RATIOMETRIC ROTARY POTENTIOMETER-CAT-RDP0011
  • MEAS
|
  • MEAS 6005
The 6005 rotary series ratiometric rotary potentiometer's design provides various non-linear tapers, taps, multi-sections, and electrical angles, while maintaining great reliability.
More Less

Product Features

  • Position Sensor Product Type : 6005 - Potentiometer

  • Housing Diameter (in): .5

  • Active Electrical Angle (°): 325

  • Supply Voltage Range (VDC): 3.3 – 48

  • Non-Linearity (%): ±.5

Available from

LADD Inc
Overview

Benefits

  • Less Space (1/2” Dia. Sizes)
  • Greater Reliability
  • Resolution
  • Output Smoothness
  • Long Life
  • Taps, Multi-sections, Electrical Angles, Special Total Resistance
  • Industrial / Military Grade Rotary Position Sensor
  • Rotational Operating Life 100 x 106 Revolutions Min.
  • Anodized Aluminum Housing
  • Stainless Steel Shaft & Ball Bearings
  • General Requirements IAW MIL-PRF-39023
Features

Please review product documents or contact us for the latest agency approval information.

Other

  • Bearing Type  ABEC 3 Precision

  • Non-Linearity (%) ±.5

  • Non Repeatability and Hysterisis  Mechanical Backlash < .1°

  • Torque (in-lbs) .2, 2

  • EU RoHS Compliance  Compliant

  • EU ELV Compliance  Compliant

Usage Conditions

  • Temperature Coefficient of Output (ppm/°C) 400

  • Operating Temperature Range  -85 – 257 °C [ -85 – 257 °F ]

Electrical Characteristics

  • Resistance Value (Ω) 20, 5, 1, 10

  • Power Rating (W) .5

  • Supply Voltage Range (VDC) 3.3 – 48

Body Features

  • Product Weight (oz) .7

  • Active Electrical Angle (°) 325

Configuration Features

  • Electrical Connection  Gold Plated Brass Terminals

Product Type Features

  • Position Sensor Product Type  6005 - Potentiometer

Housing Features

  • Housing Diameter (in) .5

Operation/Application

  • Output Signal Type  Ratiometric (0-Vsupply)

Dimensions

  • Shaft Diameter  3.18 mm [ .125 in ]

Reference Number

  • TE Internal Number CAT-RDP0011
