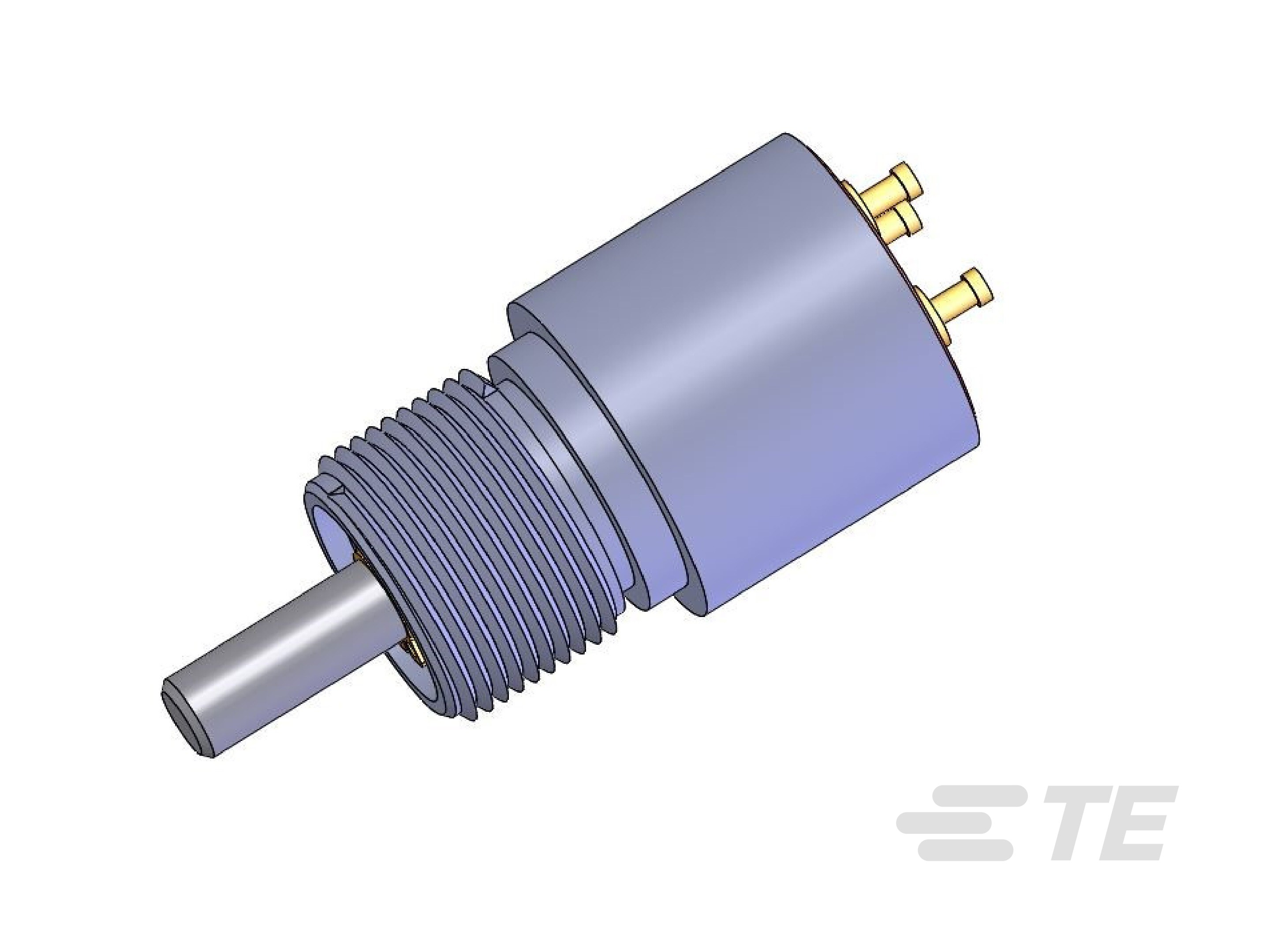

1/2" BUSHING MOUNT POTENTIOMETER

1/2
  • MEAS
The 6205 Series 1/2" diameter bushing mount rotary potentiometer designs provide various non-linear tapers, taps, multi-sections, and electrical angles while maintaining great reliability.
More Less

Product Features

  • Position Sensor Product Type : 6205 - Potentiometer

  • Housing Diameter (in): .5

  • Active Electrical Angle (°): 330

  • Supply Voltage Range (VDC): 3.3 – 48

  • Non-Linearity (%): ±.5

Available from

LADD Inc

Build and price the product now

Overview

Benefits

  • Less Space (1/2” Dia. Sizes)
  • Greater Reliability
  • Resolution
  • Output Smoothness
  • Long Life
  • Taps, Multi-sections, Electrical Angles, Special Total Resistance

Specifications

  • Industrial / Military Grade Rotary Position Sensor
  • Rotational Operating Life 100 x 106 Revolutions Min.
  • Anodized Aluminum Housing
  • Stainless Steel Shaft & Ball Bearings
  • General Requirements IAW MIL-PRF-39023
Features

Please review product documents or contact us for the latest agency approval information.

Other

  • Bearing Type  ABEC 3 Precision

  • Non-Linearity (%) ±.5

  • Non Repeatability and Hysterisis  Mechanical Backlash < .1°

  • Torque (in-lbs) .2

Usage Conditions

  • Temperature Coefficient of Output (ppm/°C) 400

Electrical Characteristics

  • Resistance Value (Ω) 5, 1, 10

  • Power Rating (W) .5

  • Supply Voltage Range (VDC) 3.3 – 48

Body Features

  • Product Weight (oz) .7

  • Active Electrical Angle (°) 330

Configuration Features

  • Electrical Connection  Gold Plated Brass Terminals

Product Type Features

  • Position Sensor Product Type  6205 - Potentiometer

Housing Features

  • Housing Diameter (in) .5

Operation/Application

  • Output Signal Type  Ratiometric (0-Vsupply)

Dimensions

  • Shaft Diameter  3.18 mm [ .125 in ]

Reference Number

  • TE Internal Number CAT-RDP0016
