View products below to see detailed pricing

Screened Separable Connectors 250A

RAYCHEM

RAYCHEM RSES
RAYCHEM RSSS

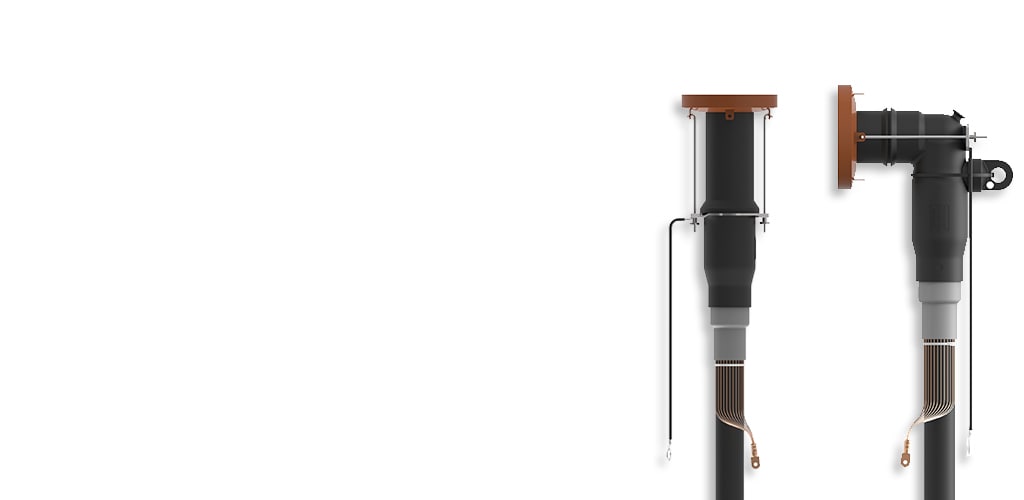

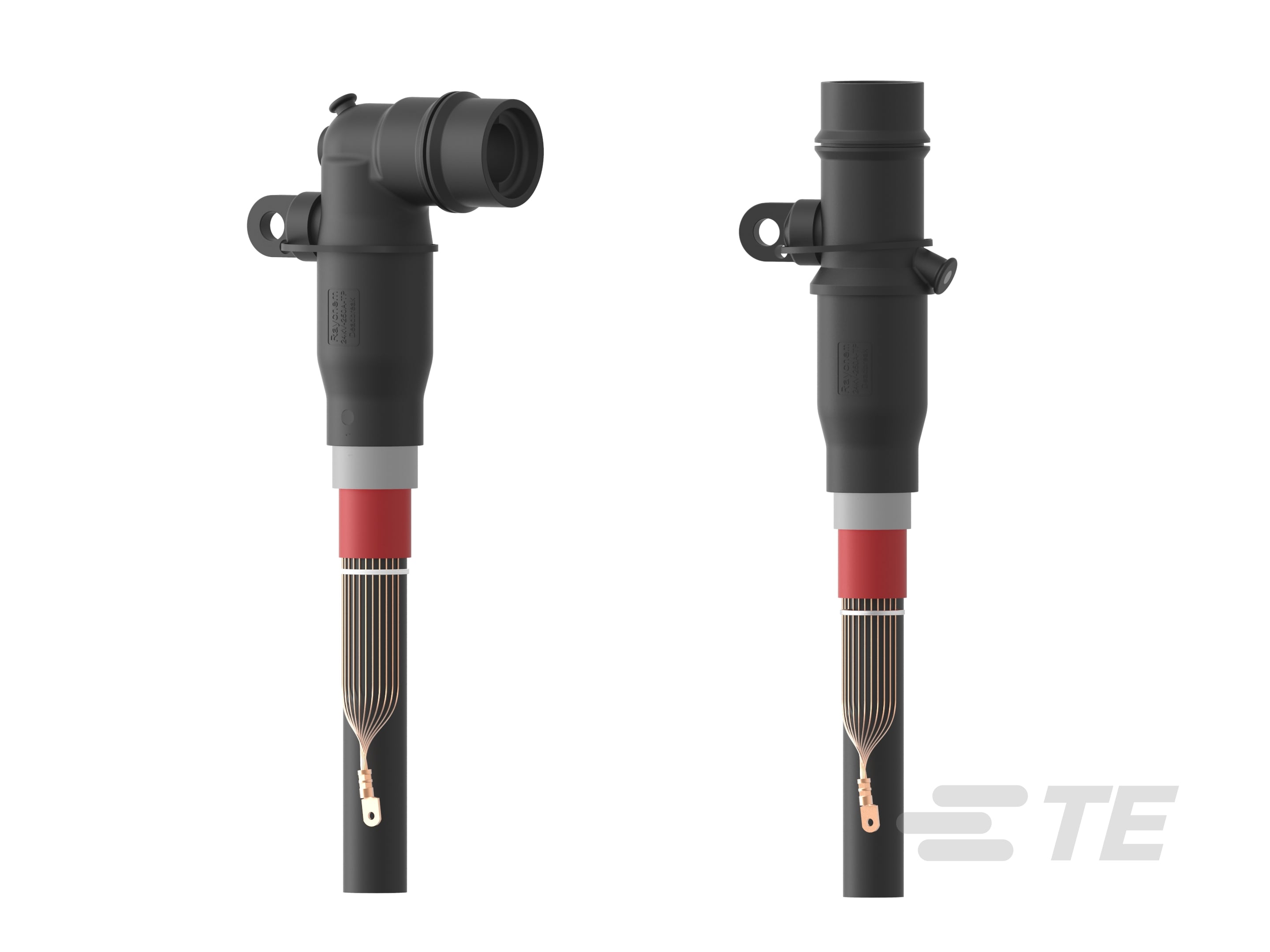

Our Raychem RSES/RSSS Screened Separable Connectors Elbow or Straight are for interface type A bushing up to 24 kV, 250A. This separable connector series is designed to connect underground cables to electrical equipment such as RMU, switchgear, transformer.

More Less

Product Features

Compatible Conductor Cross-Section Range (mm²): 70 – 120, 50 – 95, 16 – 70, 25 – 95, 70 – 150
Dead Break Connection Product Type : Elbow Connector with Testpoint, Elbow Connector, Straight Connector with Testpoint, Straight Connector
Compatible Conductor Diameter Range (mm): 4.6 – 12.5, 5.6 – 12.5, 3.5 – 13.8, 7.7 – 12, 4.1 – 11, 3.5 – 11, 9.5 – 15, 8.7 – 13.8, 4.6 – 15
Compatible Conductor Diameter Range (in): .181 – .492, .342 – .543, .303 – .472, .161 – .433, .181 – .59, .22 – .492, .137 – .433, .374 – .59, .137 – .543
Product Availability : Australia, New Zealand & Pacific Islands, Asia, France, Americas, Europe, Middle East & Africa
Installation Instruction : English, German, French

Available from

Product	TE Part #	Documents	Product Availability	Installation Instruction	Cable Shield Style	Compatible Conductor Material	Compatible Conductor Diameter Range	Compatible Insulation Diameter Range	EU RoHS Compliance	EU ELV Compliance
RSES-VD-525D-01	EN3838-011	Product Drawing	Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Asia, Americas	English	Copper Tape	Copper, Aluminum	3.5 – 13.8 mm, 4.6 – 15 mm	21.9 – 28.5 mm	-	-
RSES-VD-525A-E	EN3697-005	Product Drawing	Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Asia, Americas	German	Copper Wire	Copper, Aluminum	3.5 – 13.8 mm, 4.6 – 15 mm	12.7 – 19.2 mm	-	-
RSES-525D-01	EN3845-011	Product Drawing	Asia, Americas, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands	English	Copper Tape	Copper, Aluminum	4.6 – 15 mm, 3.5 – 13.8 mm	21.9 – 28.5 mm	-	-
RSES-VD-525B	EN3691-011	Product Drawing	Asia, Americas, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands	English	Copper Wire	Copper, Aluminum	3.5 – 13.8 mm, 4.6 – 15 mm	17.9 – 25 mm	-	-
RSSS-VD-525B	EN3720-011	Product Drawing	Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Asia, Americas	English	Copper Wire	Copper, Aluminum	4.1 – 11 mm, 4.6 – 12.5 mm, 5.6 – 12.5 mm, 3.5 – 11 mm	17.9 – 25 mm	-	-
RSSS-525C-01	EN3847-011	Product Drawing	Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas, Asia	English	Copper Tape	Copper, Aluminum	3.5 – 13.8 mm, 4.6 – 15 mm	17.9 – 25 mm	-	-
RSES-525A-E	EN3698-005	Product Drawing	Asia, Americas, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands	German	Copper Wire	Copper, Aluminum	3.5 – 13.8 mm, 4.6 – 15 mm	12.7 – 19.2 mm	-	-
RSES-525A-01	EN3842-011	Product Drawing	Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas, Asia	English	Copper Tape	Copper, Aluminum	4.6 – 15 mm, 3.5 – 13.8 mm	12.7 – 19.2 mm	-	-
RSSS-VD-525A-E	EN3714-011	Product Drawing	Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Asia, Americas	English	Copper Wire	Copper, Aluminum	4.1 – 11 mm, 4.6 – 12.5 mm, 5.6 – 12.5 mm, 3.5 – 11 mm	12.7 – 19.2 mm	-	-
RSSS-VD-525C	EN3719-011	Product Drawing	Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Asia, Americas	English	Copper Wire	Copper, Aluminum	8.7 – 13.8 mm, 9.5 – 15 mm	17.9 – 25 mm	-	-
RSES-525B-01	EN3843-011	Product Drawing	Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Asia, Americas	English	Copper Tape	Copper, Aluminum	3.5 – 13.8 mm, 4.6 – 15 mm	17.9 – 25 mm	-	-
RSSS-VD-525D-E	EN3717-011	Product Drawing	Asia, Americas, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands	English	Copper Wire	Copper, Aluminum	8.7 – 13.8 mm, 9.5 – 15 mm	21.9 – 28.5 mm	-	-
RSES-VD-525C-01	EN3839-011	Product Drawing	Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Asia, Americas	English	Copper Tape	Copper, Aluminum	3.5 – 13.8 mm, 4.6 – 15 mm	17.9 – 25 mm	-	-
RSES-525C-E	EN3700-011	Product Drawing	Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Asia, Americas	English	Copper Wire	Copper, Aluminum	3.5 – 13.8 mm, 4.6 – 15 mm	17.9 – 25 mm	-	-
RSES-525D-E	EN3701-005	Product Drawing	Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Asia, Americas	German	Copper Wire	Copper, Aluminum	4.6 – 15 mm, 3.5 – 13.8 mm	21.9 – 28.5 mm	-	-
RSES-VD-525D-E	EN3694-011	Product Drawing	Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Asia, Americas	English	Copper Wire	Copper, Aluminum	4.6 – 15 mm, 3.5 – 13.8 mm	21.9 – 28.5 mm	-	-
RSES-VD-525B-E	EN3696-011	Product Drawing	Asia, Americas, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands	English	Copper Wire	Copper, Aluminum	3.5 – 13.8 mm, 4.6 – 15 mm	17.9 – 25 mm	-	-
RSES-525A	EN3705-011	Product Drawing	Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Asia, Americas	English	Copper Wire	Copper, Aluminum	3.5 – 13.8 mm, 4.6 – 15 mm	12.7 – 19.2 mm	-	-
RSSS-525B	EN3707-011	Product Drawing	Asia, Americas, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands	English	Copper Wire	Copper, Aluminum	3.5 – 13.8 mm, 4.6 – 15 mm	17.9 – 25 mm	-	-
RSSS-VD-525A-E	EN3714-005	Product Drawing	Asia, Americas, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands	German	Copper Wire	Copper, Aluminum	4.1 – 11 mm, 4.6 – 12.5 mm, 5.6 – 12.5 mm, 3.5 – 11 mm	12.7 – 19.2 mm	-	-
RSSS-525A-E	EN3713-005	Product Drawing	Asia, Americas, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands	German	Copper Wire	Copper, Aluminum	3.5 – 13.8 mm, 4.6 – 15 mm	12.7 – 19.2 mm	-	-
RSES-525B	EN3704-005	Product Drawing	Asia, Americas, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands	German	Copper Wire	Copper, Aluminum	3.5 – 13.8 mm, 4.6 – 15 mm	17.9 – 25 mm	-	-
RSES-VD-525B-01	EN3840-011	Product Drawing	Asia, Americas, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands	English	Copper Tape	Copper, Aluminum	3.5 – 13.8 mm, 4.6 – 15 mm	17.9 – 25 mm	-	-
RSSS-525B-E	EN3712-005	Product Drawing	Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Asia, Americas	German	Copper Wire	Copper, Aluminum	3.5 – 13.8 mm, 4.6 – 15 mm	17.9 – 25 mm	-	-
RSES-VD-525C-E	EN3695-005	Product Drawing	Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Asia, Americas	German	Copper Wire	Copper, Aluminum	3.5 – 13.8 mm, 4.6 – 15 mm	17.9 – 25 mm	-	-
RSSS-525A	EN3706-011	Product Drawing	Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Asia, Americas	English	Copper Wire	Copper, Aluminum	4.6 – 15 mm, 3.5 – 13.8 mm	12.7 – 19.2 mm	-	-
RSSS-525A-01	EN3849-011	Product Drawing	Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Asia, Americas	English	Copper Tape	Copper, Aluminum	3.5 – 13.8 mm, 4.6 – 15 mm	12.7 – 19.2 mm	-	-
RSES-VD-525D-E	EN3694-005	Product Drawing	Asia, Americas, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands	German	Copper Wire	Copper, Aluminum	4.6 – 15 mm, 3.5 – 13.8 mm	21.9 – 28.5 mm	-	-
RSES-525B-E	EN3699-005	Product Drawing	Asia, Americas, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands	German	Copper Wire	Copper, Aluminum	3.5 – 13.8 mm, 4.6 – 15 mm	17.9 – 25 mm	-	-
RSES-525D	EN3702-011	Product Drawing	Asia, Americas, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands	English	Copper Wire	Copper, Aluminum	4.6 – 15 mm, 3.5 – 13.8 mm	21.9 – 28.5 mm	-	-
RSSS-VD-525B-E	EN3715-005	Product Drawing	Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Asia, Americas	German	Copper Wire	Copper, Aluminum	4.1 – 11 mm, 4.6 – 12.5 mm, 5.6 – 12.5 mm, 3.5 – 11 mm	17.9 – 25 mm	-	-
RSSS-VD-525B-01	EN3851-011	Product Drawing	Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Asia, Americas	English	Copper Tape	Copper, Aluminum	4.1 – 11 mm, 4.6 – 12.5 mm, 5.6 – 12.5 mm, 3.5 – 11 mm	17.9 – 25 mm	-	-
RSES-525A	EN3705-005	Product Drawing	Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Asia, Americas	German	Copper Wire	Copper, Aluminum	3.5 – 13.8 mm, 4.6 – 15 mm	12.7 – 19.2 mm	-	-
RSSS-525B-01	EN3848-011	Product Drawing	Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Asia, Americas	English	Copper Tape	Copper, Aluminum	3.5 – 13.8 mm, 4.6 – 15 mm	17.9 – 25 mm	-	-
RSSS-525B-E	EN3712-011	Product Drawing	Asia, Americas, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands	English	Copper Wire	Copper, Aluminum	4.6 – 15 mm, 3.5 – 13.8 mm	17.9 – 25 mm	-	-
RSES-525C	EN3703-011	Product Drawing	Asia, Americas, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands	English	Copper Wire	Copper, Aluminum	3.5 – 13.8 mm, 4.6 – 15 mm	17.9 – 25 mm	-	-
RSSS-VD-525B	EN3720-005	Product Drawing	Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Asia, Americas	German	Copper Wire	Copper, Aluminum	4.1 – 11 mm, 4.6 – 12.5 mm, 5.6 – 12.5 mm, 3.5 – 11 mm	17.9 – 25 mm	-	-
RSES-VD-525C	EN3692-011	Product Drawing	Asia, Americas, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands	English	Copper Wire	Copper, Aluminum	3.5 – 13.8 mm, 4.6 – 15 mm	17.9 – 25 mm	-	-
RSES-VD-525C-E	EN3695-011	Product Drawing	Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Asia, Americas	English	Copper Wire	Copper, Aluminum	3.5 – 13.8 mm, 4.6 – 15 mm	17.9 – 25 mm	-	-
RSES-VD-525B-E	EN3696-005	Product Drawing	Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Asia, Americas	German	Copper Wire	Copper, Aluminum	3.5 – 13.8 mm, 4.6 – 15 mm	17.9 – 25 mm	-	-
RSSS-525C	EN3708-011	Product Drawing	Asia, Americas, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands	English	Copper Wire	Copper, Aluminum	3.5 – 13.8 mm, 4.6 – 15 mm	17.9 – 25 mm	-	-
RSSS-VD-525B-E	EN3715-011	Product Drawing	Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Asia, Americas	English	Copper Wire	Copper, Aluminum	4.1 – 11 mm, 4.6 – 12.5 mm, 5.6 – 12.5 mm, 3.5 – 11 mm	17.9 – 25 mm	-	-
RSSS-VD-525D-E	EN3717-005	Product Drawing	Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Asia, Americas	German	Copper Wire	Copper, Aluminum	8.7 – 13.8 mm, 9.5 – 15 mm	21.9 – 28.5 mm	-	-
RSES-525B-E	EN3699-011	Product Drawing	Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Asia, Americas	English	Copper Wire	Copper, Aluminum	4.6 – 15 mm, 3.5 – 13.8 mm	17.9 – 25 mm	-	-
RSES-525C-E	EN3700-005	Product Drawing	Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Asia, Americas	German	Copper Wire	Copper, Aluminum	3.5 – 13.8 mm, 4.6 – 15 mm	17.9 – 25 mm	-	-
RSSS-VD-525D	EN3718-011	Product Drawing	Asia, Americas, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands	English	Copper Wire	Copper, Aluminum	8.7 – 13.8 mm, 9.5 – 15 mm	21.9 – 28.5 mm	-	-
RSES-VD-525A-E	EN3697-011	Product Drawing	Asia, Americas, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands	English	Copper Wire	Copper, Aluminum	4.6 – 15 mm, 3.5 – 13.8 mm	12.7 – 19.2 mm	-	-
RSSS-VD-525C-E	EN3716-011	Product Drawing	Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Asia, Americas	English	Copper Wire	Copper, Aluminum	8.7 – 13.8 mm, 9.5 – 15 mm	17.9 – 25 mm	-	-
RSSS-525B	EN3707-005	Product Drawing	Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Asia, Americas	German	Copper Wire	Copper, Aluminum	3.5 – 13.8 mm, 4.6 – 15 mm	17.9 – 25 mm	-	-
RSSS-VD-525A	EN3721-011	Product Drawing	Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Asia, Americas	English	Copper Wire	Copper, Aluminum	4.1 – 11 mm, 4.6 – 12.5 mm, 5.6 – 12.5 mm, 3.5 – 11 mm	12.7 – 19.2 mm	-	-
RSES-525C-01	EN3844-011	Product Drawing	Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Asia, Americas	English	Copper Tape	Copper, Aluminum	4.6 – 15 mm, 3.5 – 13.8 mm	17.9 – 25 mm	-	-
RSES-525B	EN3704-011	Product Drawing	Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Asia, Americas	English	Copper Wire	Copper, Aluminum	3.5 – 13.8 mm, 4.6 – 15 mm	17.9 – 25 mm	-	-
RSSS-525C-E	EN3711-005	Product Drawing	Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Asia, Americas	German	Copper Wire	Copper, Aluminum	3.5 – 13.8 mm, 4.6 – 15 mm	17.9 – 25 mm	-	-
RSSS-VD-525D-01	EN3853-011	Product Drawing	Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Asia, Americas	English	Copper Tape	Copper, Aluminum	8.7 – 13.8 mm, 9.5 – 15 mm	21.9 – 28.5 mm	-	-
RSES-525D-E	EN3701-011	Product Drawing	Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Asia, Americas	English	Copper Wire	Copper, Aluminum	3.5 – 13.8 mm, 4.6 – 15 mm	21.9 – 28.5 mm	-	-
RSES-VD-525D	EN3693-005	Product Drawing	Asia, Americas, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands	German	Copper Wire	Copper, Aluminum	4.6 – 15 mm, 3.5 – 13.8 mm	21.9 – 28.5 mm	-	-
RSSS-VD-525C-E	EN3716-005	Product Drawing	Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Asia, Americas	German	Copper Wire	Copper, Aluminum	8.7 – 13.8 mm, 9.5 – 15 mm	17.9 – 25 mm	-	-
RSES-VD-5251-FR01	EL8273-000	Product Drawing	France	French	Laminated Aluminum Tape	Copper, Aluminum	7.7 – 12 mm	20.2 – 25.4 mm	-	-
RSES-VD-525A	EN3690-011	Product Drawing	Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Asia, Americas	English	Copper Wire	Copper, Aluminum	4.6 – 15 mm, 3.5 – 13.8 mm	12.7 – 19.2 mm	-	-
RSSS-525A	EN3706-005	Product Drawing	Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Asia, Americas	German	Copper Wire	Copper, Aluminum	3.5 – 13.8 mm, 4.6 – 15 mm	12.7 – 19.2 mm	-	-
RSSS-525D-E	EN3710-005	Product Drawing	Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Asia, Americas	German	Copper Wire	Copper, Aluminum	3.5 – 13.8 mm, 4.6 – 15 mm	21.9 – 28.5 mm	-	-
RSES-VD-525B	EN3691-005	Product Drawing	Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Asia, Americas	German	Copper Wire	Copper, Aluminum	3.5 – 13.8 mm, 4.6 – 15 mm	17.9 – 25 mm	-	-
RSSS-525D	EN3709-011	Product Drawing	Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Asia, Americas	English	Copper Wire	Copper, Aluminum	4.6 – 15 mm, 3.5 – 13.8 mm	21.9 – 28.5 mm	-	-
RSSS-VD-5251-FR01	EL8272-000	Product Drawing	France	French	Laminated Aluminum Tape	Copper, Aluminum	-	20.2 – 25.4 mm	-	-
RSES-VD-525D	EN3693-011	Product Drawing	Asia, Americas, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands	English	Copper Wire	Copper, Aluminum	3.5 – 13.8 mm, 4.6 – 15 mm	21.9 – 28.5 mm	-	-

Overview

Our Raychem RSES/RSSS Screened Separable Connectors 250A Elbow or Straight are compliant with CENELEC HD 629.1 S2 02/2006+A1:2008

Our Raychem RSES/RSSS Screened Separable Connectors Elbow or Straight are designed to connect single-core polymeric cables to medium voltage gas insulated switchgears and other equipment using bushings type A (according to EN 50180/EN 50181) specified for 250A continuous current and tested for a system voltage up to 24 kV. Made of a combination of durable EPDM rubber for the outer body and highly modified silicone rubber for the inner insulation, RSES and RSSS are equally suited for indoor and outdoor installations even in harshest environments while offering outstanding electrical performance. The separable connectors are screened by an earthed outer conductive layer that ensures safe and reliable operation. Furthermore, the improved cable adapter with integrated sealing enables a fast and easy installation.

Using mechanical shear bolt cable lugs, RSES and RSSS are easy and quick to install while supporting a wide range of different cable cross sections (16-150 mm²). Our Raychem RSES and RSSS connectors can be equipped with a capacitive Voltage Detection (VD) point to determine the presence of voltage in the cable network or with a Metal Housing (MH) for an extra level of safety to protect against electric shock.

Key Features

Range taking mechanical shear bolt cable lugs
Hybrid material design for outstanding mechanical and electrical performance
Reliable operation even under harsh environmental conditions
Screened connector body for improved safety
Molded cable adapter with integrated sealing for easier installation
Optional Voltage Detection (VD) point
Optional Metal Housing (MH)

Screened Separable Connectors

Improving Grid Reliability

TE's Raychem Separable Connectors Range

VIEW ALL TE's RAYCHEM SEPARABLE CONNECTORS
Our Separable Connectors are engineered to optimize performance and solve your switchgear and transformer connection challenges in IEC, IEEE and GB/T power grids.

FAQ

Frequently Asked Questions

Question: What is the application range of TE’s Raychem RSES/RSSS Screened Separable Connectors Elbow and Straight 250A?

Answer: Our Raychem Screened Separable Connectors 250A cover a wide range of different cable cross-sections from 16 mm² to 150 mm².

Question: Do Screened Separable Connectors come with a metal housing?

Answer: Yes, our Screened Separable Connectors comes with optional metal housing for an extra level of protection against electric shocks.

Question: How can I detect voltage presence using Screened Separable Connectors?

Answer: Our Raychem Screened Separable Connectors can be equipped with a capacitive Voltage Detection (VD) point to determine the presence of voltage in the cable network, to increase grid reliability.

Question: How have Screened Separable Connectors been tested?

Answer: Our RSES/RSSS Screened Separable Connectors are tested and compliant with CENELEC HD 629.1.

Question: What material are Screened Separable Connectors made of?

Answer: Our Screened Separable Connectors are made of a combination of durable EPDM rubber for the main insulation body and highly modified silicone rubber (LSR) for the inner insulation (cable adapter).

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Bushing Type 250A
Screened Screened
Installation Technology Mechanical
Cable Shield Style Copper Tape, Copper Wire, Laminated Aluminum Tape

Configuration Features

Number of Cores 1

Electrical Characteristics

Voltage Class (kV) ≤ 24

Body Features

Insulation Material Polymeric
Compatible Conductor Material Copper, Aluminum

Dimensions

Compatible Conductor Cross-Section Range (mm²) 16 – 70, 25 – 95, 50 – 95, 70 – 120, 70 – 150
Compatible Conductor Diameter Range (mm) 3.5 – 13.8, 3.5 – 11, 4.1 – 11, 4.6 – 12.5, 4.6 – 15, 5.6 – 12.5, 7.7 – 12, 8.7 – 13.8, 9.5 – 15
Compatible Conductor Diameter Range (in) .137 – .433, .137 – .543, .161 – .433, .181 – .492, .181 – .59, .22 – .492, .303 – .472, .342 – .543, .374 – .59
Compatible Insulation Diameter Range (mm) 12.7 – 19.2, 17.9 – 25, 20.2 – 25.4, 21.9 – 28.5

Operation/Application

Dead Break Connection Product Type Elbow Connector with Testpoint, Elbow Connector, Straight Connector with Testpoint, Straight Connector

Industry Standards

Compatible With Approved Standards Products HD629.1-S2, HD629.1-S3

Product Availability

Product Availability Australia, New Zealand & Pacific Islands, Asia, France, Americas, Europe, Middle East & Africa

Other

Installation Instruction English, German, French

Reference Number

TE Internal Number CAT-RSES-RSSS

Related Materials

Datasheets & Catalog Pages

TE'S RAYCHEM SCREENED ELBOW/STRAIGHT SEPARABLE CONNECTORS RSES/RSSS pdf English
TE'S RAYCHEM SCREENED ELBOW/STRAIGHT SEPARABLE CONNECTORS RSES/RSSS pdf German

Screened Separable Connectors 250A

Product Features

Compatible Conductor Cross-Section Range (mm²): 70 – 120, 50 – 95, 16 – 70, 25 – 95, 70 – 150

Dead Break Connection Product Type : Elbow Connector with Testpoint, Elbow Connector, Straight Connector with Testpoint, Straight Connector

Compatible Conductor Diameter Range (mm): 4.6 – 12.5, 5.6 – 12.5, 3.5 – 13.8, 7.7 – 12, 4.1 – 11, 3.5 – 11, 9.5 – 15, 8.7 – 13.8, 4.6 – 15

Compatible Conductor Diameter Range (in): .181 – .492, .342 – .543, .303 – .472, .161 – .433, .181 – .59, .22 – .492, .137 – .433, .374 – .59, .137 – .543

Product Availability : Australia, New Zealand & Pacific Islands, Asia, France, Americas, Europe, Middle East & Africa

Installation Instruction : English, German, French

Key Features

Screened Separable Connectors

Improving Grid Reliability

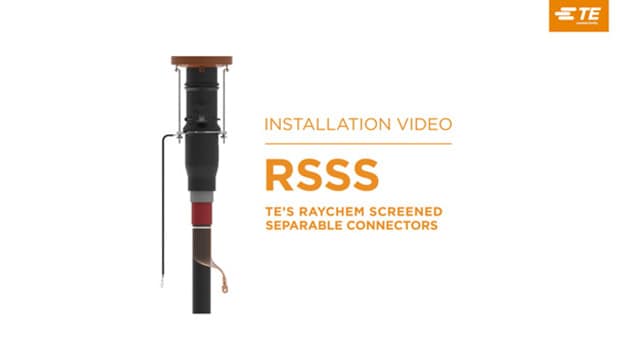

Screened Separable Connector RSSS 250 A Installation Video (English)

TE's Raychem Separable Connectors Range

Frequently Asked Questions

Product Type Features

Bushing Type 250A

Screened Screened

Installation Technology Mechanical

Cable Shield Style Copper Tape, Copper Wire, Laminated Aluminum Tape

Configuration Features

Number of Cores 1

Electrical Characteristics

Voltage Class (kV) ≤ 24

Body Features

Insulation Material Polymeric

Compatible Conductor Material Copper, Aluminum

Dimensions

Compatible Conductor Cross-Section Range (mm²) 16 – 70, 25 – 95, 50 – 95, 70 – 120, 70 – 150

Compatible Conductor Diameter Range (mm) 3.5 – 13.8, 3.5 – 11, 4.1 – 11, 4.6 – 12.5, 4.6 – 15, 5.6 – 12.5, 7.7 – 12, 8.7 – 13.8, 9.5 – 15

Compatible Conductor Diameter Range (in) .137 – .433, .137 – .543, .161 – .433, .181 – .492, .181 – .59, .22 – .492, .303 – .472, .342 – .543, .374 – .59

Compatible Insulation Diameter Range (mm) 12.7 – 19.2, 17.9 – 25, 20.2 – 25.4, 21.9 – 28.5

Operation/Application

Dead Break Connection Product Type Elbow Connector with Testpoint, Elbow Connector, Straight Connector with Testpoint, Straight Connector

Industry Standards

Compatible With Approved Standards Products HD629.1-S2, HD629.1-S3

Product Availability

Product Availability Australia, New Zealand & Pacific Islands, Asia, France, Americas, Europe, Middle East & Africa

Other

Installation Instruction English, German, French

Reference Number

TE Internal Number CAT-RSES-RSSS

Datasheets & Catalog Pages
