Overview

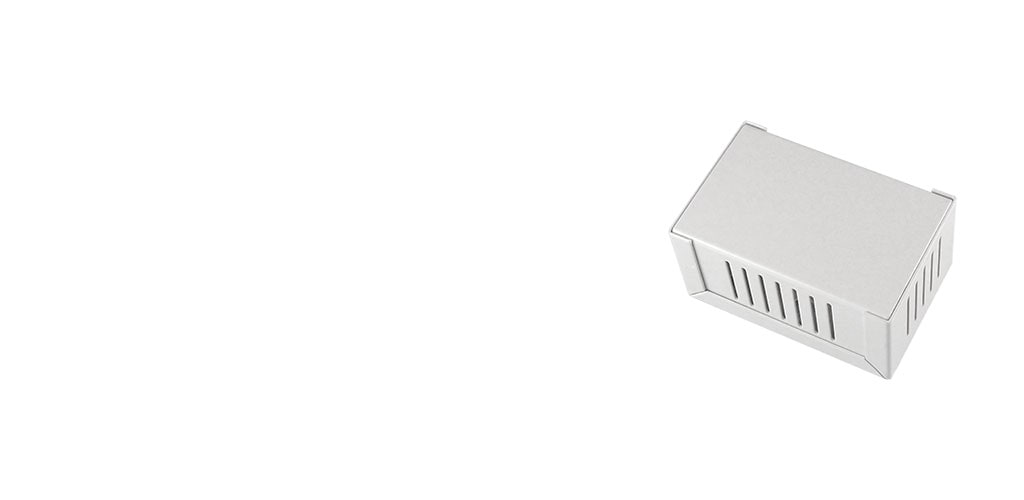

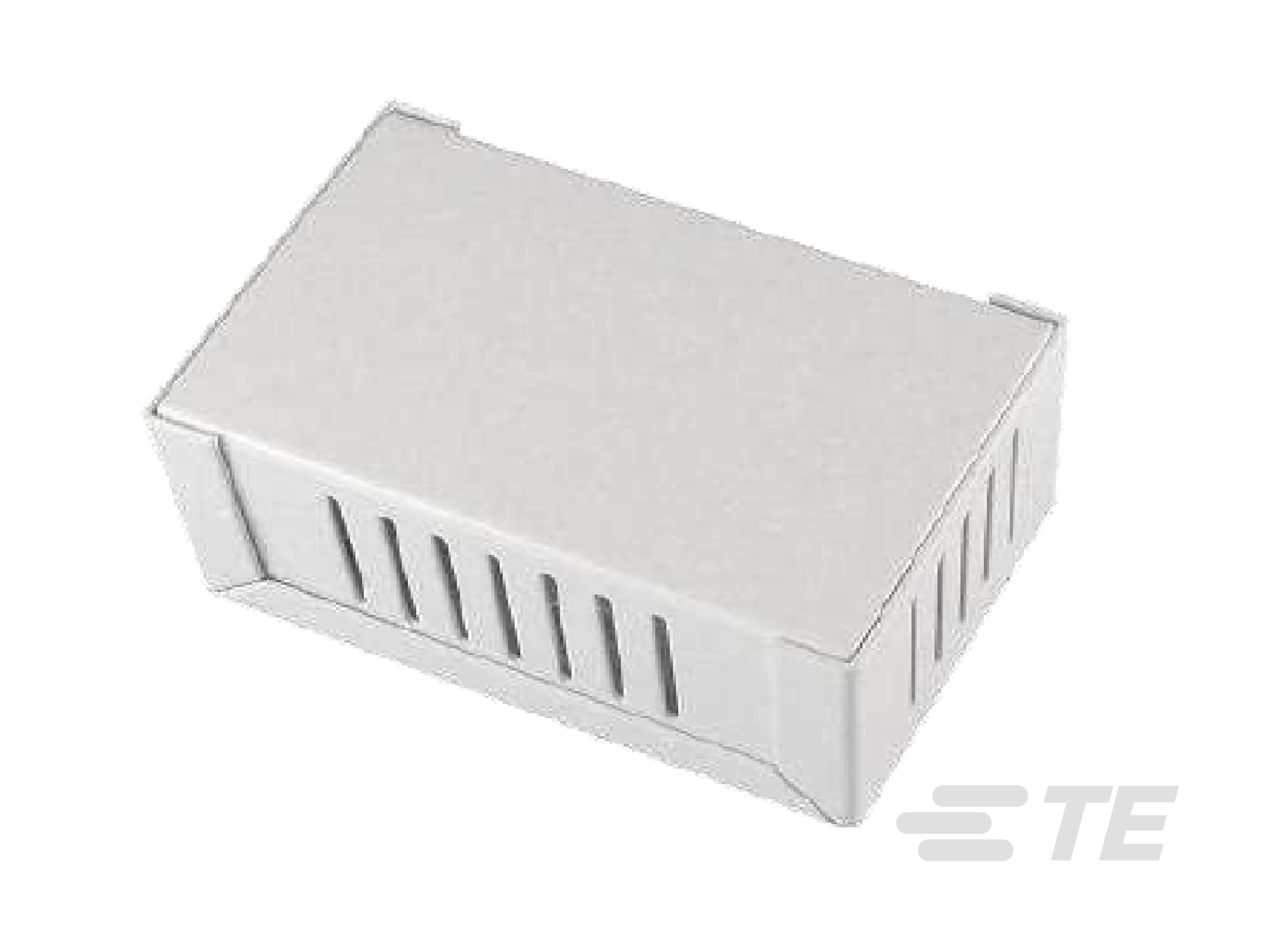

Wall Mount RTD Temperature Sensor
Product Features
-
RTD Sensor Type : Air Sensing Probe
-
Element Type : Aluminum
-
Element Material : Platinum
-
Lead Wire Style : PTFE
-
Operating Temperature (Max) : 135 °C [ 275 °F ]
The 516M series wall mount air sensing RTD probe sensor is typically used for indoor room and outdoor air temperature monitoring.
The wall mount box sensor housing can be directly mounted to any wall or surface. The air sensing RTD probe sensors have a small rugged sheath for quick time response. They are available with transmitters.
Benefits
- Powder Coated Aluminum Housing
- Elements, Single: Platinum
- Quick Time Response
- Direct Wall Mount
- Available with Transmitters
- Indoor and Outdoor Use
Applications
- HVACR
Frequently Asked Questions
Q: What is an RTD?
A: An RTD (Resistance Temperature Detector) is a sensor whose resistance changes as its temperature changes. The resistance increases as the temperature of the sensor increases. The resistance versus temperature relationship is well known and is repeatable over time. An RTD is a passive device. It does not produce an output on its own. External electronic devices are used to measure the resistance of the sensor by passing a small electrical current through the sensor to generate a voltage.
Read More: Understanding RTDs
Q: What is the standard resistance of a platinum RTD?
A: Download the PDF: RTD Resistance Temperature Table Application Note
Please review product documents or contact us for the latest agency approval information.
Product Type Features
-
RTD Sensor Type Air Sensing Probe
-
Element Type Aluminum
-
Element Material Platinum
-
Lead Wire Style PTFE
Usage Conditions
-
Operating Temperature (Max) 135 °C [ 275 °F ]
Reference Number
-
TE Internal Number CAT-RTD0015
Datasheets & Catalog Pages
- TESS-ANDO-408-0000066 English
