Overview
Outdoor Air Sensing RTD Probe Sensor
Product Features
-
RTD Sensor Type : Air Sensing Probe
-
Element Type : Stainless Steel
-
Element Material : Platinum
-
Lead Wire Style : PTFE
-
Operating Temperature (Max) : 250 °C [ 482 °F ]

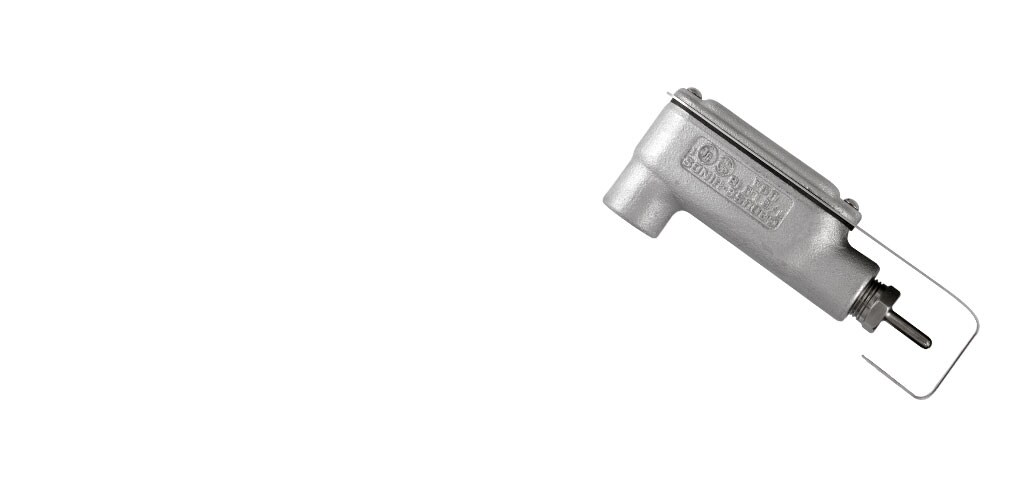

The 517M series outdoor air sensing RTD probe sensor is typically used for outdoor air temperature monitoring.

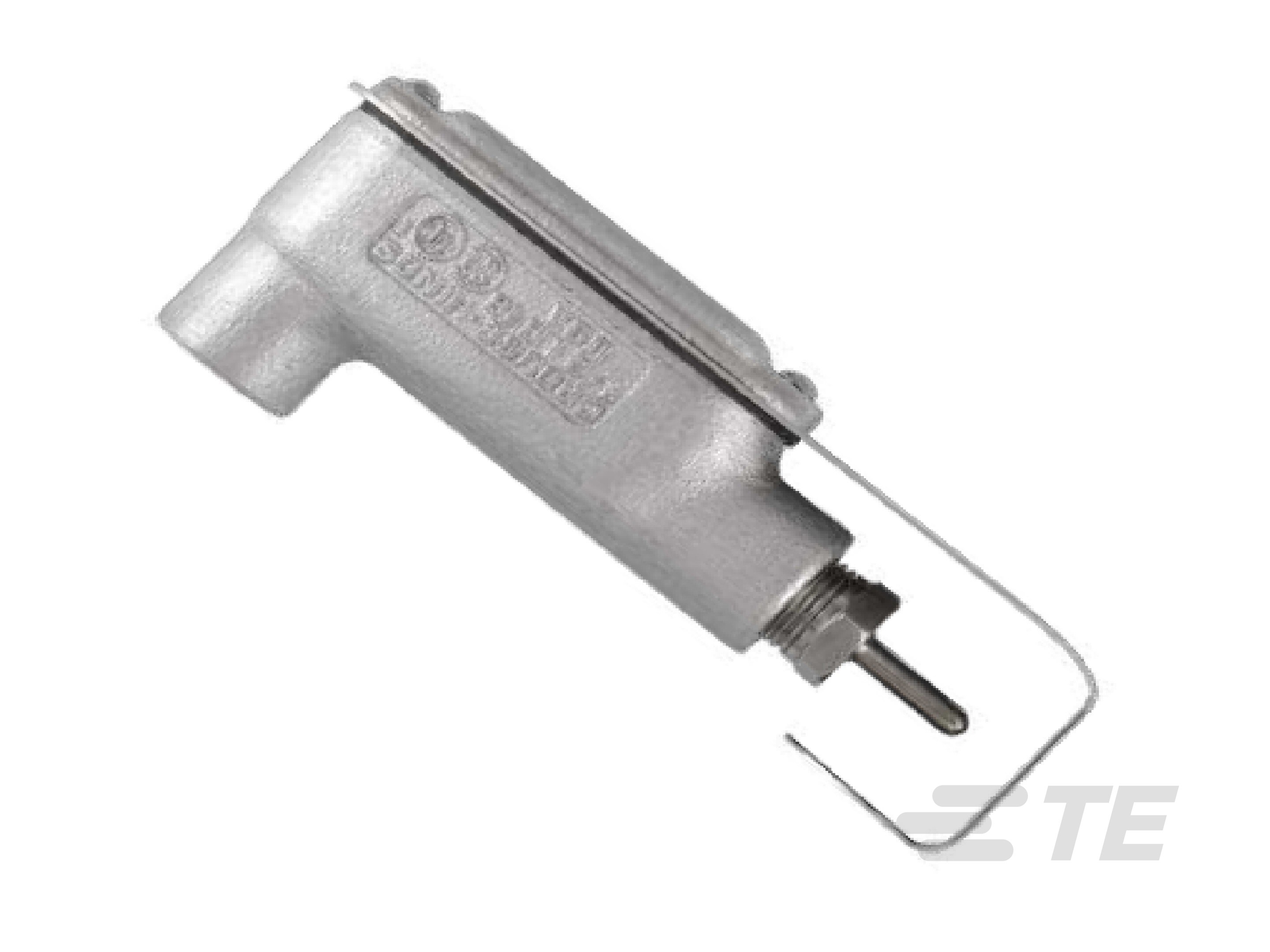

This RTD probe sensor has a rugged design with a cast aluminum housing and a guard plate to protect the sensor from impact damage. The sensor features a quick time response and is ideal for use outdoors or in wash-down applications.
Benefits
- Cast Aluminum Conduit Housing
- Aluminum Guard Plate
- Stainless Steel Sheath
- Elements, Single: Platinum
- Quick Time Response
- Rugged Design
- Outdoor Use
Applications
- HVACR
Frequently Asked Questions
Q: What is an RTD?
A: An RTD (Resistance Temperature Detector) is a sensor whose resistance changes as its temperature changes. The resistance increases as the temperature of the sensor increases. The resistance versus temperature relationship is well known and is repeatable over time. An RTD is a passive device. It does not produce an output on its own. External electronic devices are used to measure the resistance of the sensor by passing a small electrical current through the sensor to generate a voltage.
Read More: Understanding RTDs
Q: What is the standard resistance of a platinum RTD?
A: Download the PDF: RTD Resistance Temperature Table Application Note
Please review product documents or contact us for the latest agency approval information.
Product Type Features
-
RTD Sensor Type Air Sensing Probe
-
Element Type Stainless Steel
-
Element Material Platinum
-
Lead Wire Style PTFE
Usage Conditions
-
Operating Temperature (Max) 250 °C [ 482 °F ]
Reference Number
-
TE Internal Number CAT-RTD0016
Datasheets & Catalog Pages
- TESS-ANDO-408-0000067 English
