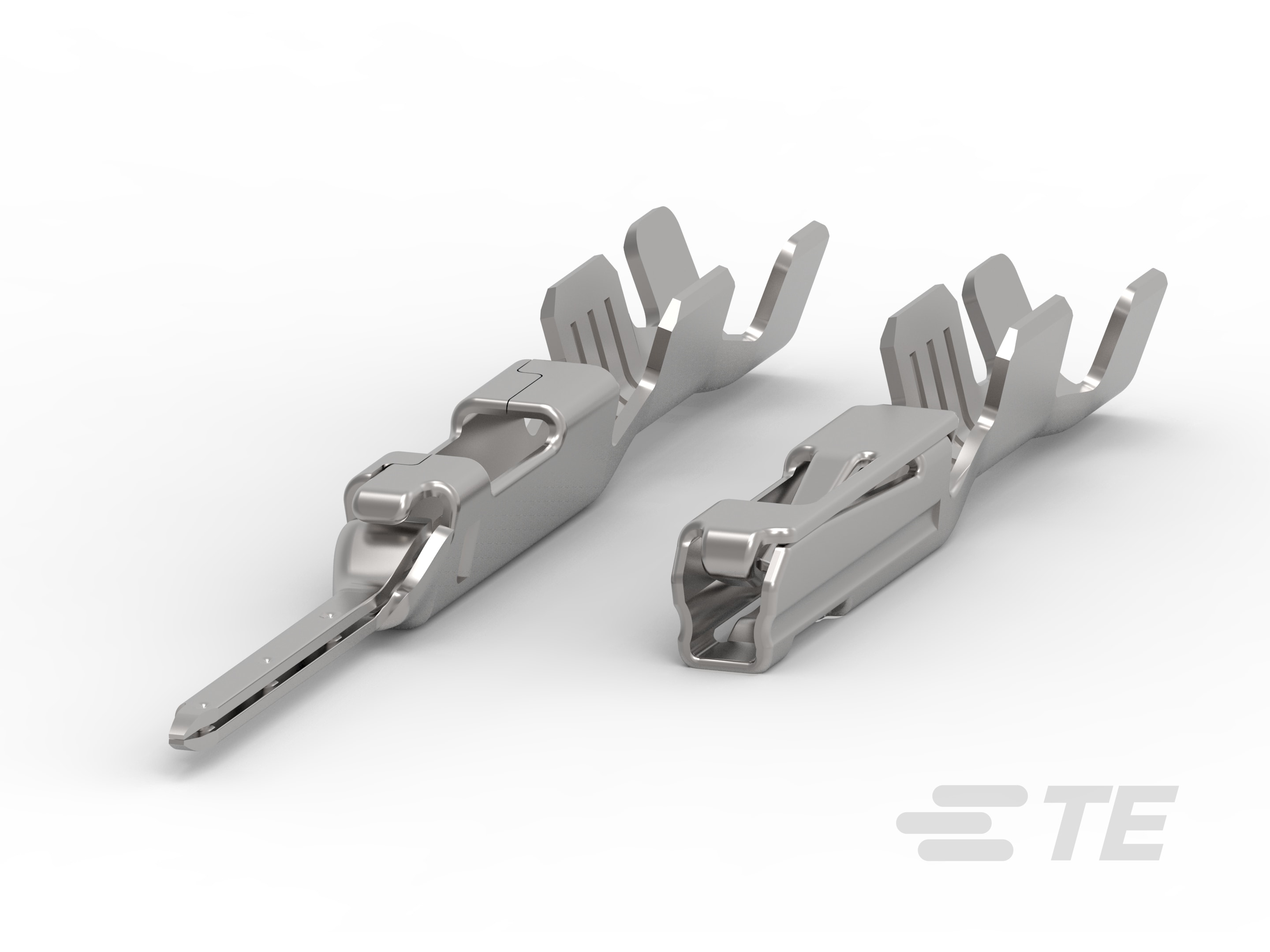

TH/.025 CONNECTOR SYSTEM, RECPT AND TAB

Digital Datasheet|

Product Features

Terminal Type : Pin, Receptacle, Tab
Mating Tab Width (mm): .8, 3, .64
Mating Tab Width (in): .118, .02, .025, .031
Mating Tab Thickness (mm): .65, .64
Mating Tab Thickness (in): .025, .02
Terminal Transmits : 0 – 24 A (Low Power)
Wire Size (AWG): 22 – 20, 22, 24 – 20, 26 – 24, 20 – 18, 20, 24 – 22

Available from

Product	TE Part #	Documents	Terminal Type	Mating Tab Width	Mating Tab Thickness	Wire Size	Wire Size	Sealable	Terminal Seal Type	Wire Size Search	Wire Size Search	Primary Locking Feature	Interface Plating	Product Terminates To	Operating Temperature (Max)	Tab Length	Operating Temperature Range
MALE TERM. 22AWG, SN	1488220-4	Product Drawing 3D PDF	Tab	.8 mm	.64 mm	22 AWG	.32 mm²	No	-	.3 mm²	22 AWG	-	Tin (Sn)	Wire	125 °C	-	-40 – 125 °C
025 RECEPTACLE CONTACT	1801248-2	Product Drawing 3D PDF	Receptacle	.64 mm	.64 mm	20 – 18 AWG	.5 – .75 mm²	No	-	.5 mm², .75 mm², .6 mm²	20 AWG, 18 AWG, 19 AWG	Locking Lance	Gold (Au)	Wire	125 °C	-	-40 – 140 °C
025 TAB CONT AU	1376109-2	Product Drawing 3D PDF	Tab	.64 mm	.64 mm	24 – 20 AWG	.22 – .56 mm²	No	-	.3 mm², .25 mm², .5 mm², .4 mm², .2 mm²	20 AWG, 21 AWG, 22 AWG, 23 AWG, 24 AWG	Locking Lance	Gold (Au)	Wire	80 °C, 105 °C, 90 °C, 100 °C, 85 °C	-	-30 – 105 °C
.025 SEALED REC CONT	1318329-1	Product Drawing 3D PDF	Receptacle	.64 mm	.64 mm	20 – 18 AWG	.5 – .85 mm²	No	-	.5 mm², .75 mm², .6 mm²	20 AWG, 18 AWG, 19 AWG	Clean Body	Tin (Sn)	Wire	80 °C, 105 °C, 100 °C, 90 °C, 85 °C, 110 °C, 120 °C	-	-40 – 120 °C
025 REC CONTACT	1123343-1	Product Drawing 3D PDF	Receptacle	.64 mm	.64 mm	24 – 20 AWG	.22 – .56 mm²	No	-	.3 mm², .25 mm², .5 mm², .4 mm², .2 mm²	20 AWG, 21 AWG, 22 AWG, 23 AWG, 24 AWG	Locking Lance	Tin (Sn)	Wire	120 °C	15.5 mm	-40 – 120 °C
025 RECEPTACLE CONTACT	2005097-1	Product Drawing 3D PDF	Receptacle	.64 mm	.64 mm	26 – 24 AWG	.13 – .22 mm²	No	-	.13 mm², .15 mm², .2 mm²	24 AWG, 25 AWG, 26 AWG	Locking Lance	Tin (Sn)	Wire	80 °C, 105 °C, 90 °C, 100 °C, 85 °C, 110 °C, 120 °C	-	-40 – 120 °C
0.64 RCPT SEALED TIN STRIP(L SIZE)	2040168-1	Product Drawing 3D PDF	Receptacle	.64 mm	.64 mm	20 AWG	.5 mm²	Yes	Family Seal	.5 mm²	20 AWG	Clean Body	Tin (Sn)	Wire	125 °C	-	-40 – 125 °C
025 TAB CONT	1376109-1	Product Drawing 3D PDF	Tab	.64 mm	.64 mm	24 – 20 AWG	.22 – .56 mm²	No	-	.3 mm², .25 mm², .5 mm², .4 mm², .2 mm²	20 AWG, 21 AWG, 22 AWG, 23 AWG, 24 AWG	Locking Lance	Tin (Sn)	Wire	105 °C	21.3 mm	-30 – 105 °C
025 TAB CONTACT(S)	2005154-1	Product Drawing 3D PDF	Tab	.64 mm	.64 mm	22 – 20 AWG	.37 – .56 mm²	No	-	.35 mm², .5 mm², .4 mm²	20 AWG, 21 AWG, 22 AWG	Locking Lance	Tin (Sn)	Wire	80 °C, 75 °C, 70 °C	-	-40 – 80 °C
025 REC CONTACT PRETIN L/P CUT	1318143-1	Product Drawing 3D PDF	Receptacle	.64 mm	.64 mm	22 – 20 AWG	.37 – .56 mm²	No	-	.35 mm², .5 mm², .4 mm²	20 AWG, 21 AWG, 22 AWG	Locking Lance	Tin (Sn)	Wire	80 °C, 105 °C, 100 °C, 90 °C, 85 °C	-	-30 – 105 °C
CONTACT, MALE 0.64, 0.35SQMM	1924968-8	Product Drawing 3D PDF	Pin	.64 mm	.64 mm	22 AWG	.35 mm²	No	-	-	-	Clean Body	Tin (Sn)	Wire & Cable	100 °C	22.95 mm	-40 – 100 °C
025 REC CONTACT GOLD FORMING	1123343-2	Product Drawing 3D PDF	Receptacle	.64 mm	.64 mm	24 – 20 AWG	.22 – .56 mm²	No	-	.3 mm², .25 mm², .5 mm², .4 mm², .2 mm²	20 AWG, 21 AWG, 22 AWG, 23 AWG, 24 AWG	Locking Lance	Gold (Au)	Wire	140 °C	15.5 mm	-40 – 140 °C
0.64 RCPT SEALED AU STRIP	1612290-2	Product Drawing 3D PDF	Receptacle	.64 mm	.64 mm	24 – 22 AWG	.22 – .35 mm²	Yes	Single Wire Seal (SWS)	.3 mm², .25 mm², .2 mm²	22 AWG, 23 AWG, 24 AWG	Clean Body	Gold (Au)	Wire	125 °C	-	-40 – 125 °C
MALE TERM. 22AWG, SN, RE-REELE	1488220-2	Product Drawing 3D PDF	Tab	.64 mm	.64 mm	22 AWG	.33 mm²	No	-	.3 mm²	22 AWG	Clean Body	Tin (Sn)	Wire	125 °C	-	-40 – 125 °C
REC CONT ASSY S RANGE 025 CLEA	1717148-1	Product Drawing 3D PDF	Receptacle	.64 mm	.64 mm	22 – 20 AWG	.3 – .5 mm²	Yes	Family Seal	.3 mm², .5 mm², .4 mm²	20 AWG, 21 AWG, 22 AWG	Clean Body	Tin (Sn)	Wire	80 °C, 105 °C, 100 °C, 90 °C, 85 °C, 110 °C, 120 °C	-	-40 – 120 °C
025 RECEPTACLE CONTACT	1801069-2	Product Drawing 3D PDF	Receptacle	.64 mm	.64 mm	22 – 20 AWG	.37 – .56 mm²	No	-	.35 mm², .5 mm², .4 mm²	20 AWG, 21 AWG, 22 AWG	Locking Lance	Gold (Au)	Wire	80 °C, 105 °C, 90 °C, 100 °C, 85 °C, 110 °C, 120 °C	-	-40 – 120 °C
025 TH TAB CONTACT	1674742-1	Product Drawing 3D PDF	Tab	.64 mm	.64 mm	22 – 20 AWG	.37 – .56 mm²	No	-	.35 mm², .5 mm², .4 mm²	20 AWG, 21 AWG, 22 AWG	Locking Lance	Tin (Sn)	Wire	80 °C, 105 °C, 100 °C, 90 °C, 85 °C	-	-40 – 105 °C
0.64 RCPT SEALED TIN STRIP	1612290-1	Product Drawing 3D PDF	Receptacle	.64 mm	.64 mm	24 – 22 AWG	.22 – .35 mm²	Yes	Single Wire Seal (SWS)	.3 mm², .25 mm², .2 mm²	22 AWG, 23 AWG, 24 AWG	Clean Body	Tin (Sn)	Wire	125 °C	-	-40 – 125 °C
MALE TERM. 18-20AWG, SN	1488220-3	Product Drawing 3D PDF	Tab	.8 mm	.64 mm	20 – 18 AWG	.5 – .8 mm²	No	-	.5 mm², .75 mm², .6 mm²	20 AWG, 18 AWG, 19 AWG	-	Tin (Sn)	Wire	125 °C	-	-40 – 125 °C
CONTACT SNAP-IN	1-170321-4	Product Drawing 3D PDF	Receptacle	3 mm	.65 mm	22 – 20 AWG	.3 – .5 mm²	No	-	.3 mm², .5 mm², .4 mm²	20 AWG, 21 AWG, 22 AWG	Locking Lance	Tin (Sn)	Wire	80 °C, 105 °C, 100 °C, 90 °C, 85 °C	-	-30 – 105 °C

Features

Please review product documents or contact us for the latest agency approval information.

Packaging Features

Packaging Method Package, Bag, Reel
Packaging Quantity 9000, 7000, 1000, 7500, 10000

Contact Features

Wire Contact Termination Area Plating Material Tin, Gold
Typical Current Rating (A) 4, 3, 5, 7.7
Crimp Type F-Crimp
Contact Size .63mm, .64mm
Contact Fabrication Stamped & Formed
Terminal Type Pin, Receptacle, Tab
Mating Tab Width (mm) .8, 3, .64
Mating Tab Width (in) .118, .02, .025, .031
Mating Tab Thickness (mm) .65, .64
Mating Tab Thickness (in) .025, .02
Interface Plating Tin (Sn), Gold (Au)

Dimensions

Compatible Insulation Diameter Range (mm) 1.62, .95 – 1.6, 1.1 – 1.7, 2.4, 1.1 – 1.3, .95 – 1.72, .85 – 1.2, 1.2 – 1.9
Compatible Insulation Diameter Range (mm) 1.62, .95 – 1.6, 1.1 – 1.7, 2.4, 1.1 – 1.3, .95 – 1.72, .85 – 1.2, 1.2 – 1.9
Compatible Insulation Diameter Range (in) .043 – .067, .047 – .074, .094, .033 – .047, .037 – .067, .043 – .051, .063
Wire Size (AWG) 22 – 20, 22, 24 – 20, 26 – 24, 20 – 18, 20, 24 – 22
Wire Size (mm²) .5 – .75, .33, .37 – .56, .3 – .5, .5, .32, .22 – .56, .5 – .85, .5 – .8, .22 – .35, .13 – .22, .35
Wire Size Search (mm²) .6, .13, .5, .3, .25, .75, .15, .2, .35, .4
Wire Size Search (AWG) 26, 23, 20, 22, 18, 21, 25, 24, 19
Tab Length (mm) 15.5, 21.3, 22.95
Tab Length (in) .61, .9, .838

Other

Customer Preferred Contact No
Terminal Transmits 0 – 24 A (Low Power)
EU RoHS Compliance Compliant
EU ELV Compliance Compliant

Product Type Features

Receptacle Style 180°
Sealable Yes, No
Primary Locking Feature Clean Body, Locking Lance

Usage Conditions

Insulation Option Uninsulated
Operating Temperature (Max) (°C) 140, 125, 120, 105, 80, 85, 110, 70, 90, 100, 75
Operating Temperature (Max) (°F) 284, 248, 158, 221, 212, 167, 176
Operating Temperature Range (°C) -40 – 140, -40 – 125, -40 – 80, -40 – 100, -30 – 105, -40 – 105, -40 – 120
Operating Temperature Range (°F) -40 – 212, -40 – 257, -22 – 221, -40 – 284, -40 – 221, -40 – 176, -40 – 248

Industry Standards

Compatible With Agency/Standards Products USCAR-21

Termination Features

Termination Method to Wire & Cable Crimp
Product Terminates To Wire & Cable, Wire

Operation/Application

Conforms to Automation Guideline Yes, KOMAX Automatic Component Insertion per Version 5.0 (March 2018)
Compatible With Wire Base Material Copper

Body Features

Terminal Seal Type Single Wire Seal (SWS), Family Seal

Reference Number

TE Internal Number CAT-T319-T273

Related Materials

No documentation available.
