D-SCE Fluid Resistant Sleeves

Markers designed to operate in elevated temperatures for extended periods of time and where exposure to organic fluids, especially oils, is required.

More Less

Datasheet |
Digital Datasheet|

Product Features

Operating Temperature Range : -75 – 135 °C [ -103 – 275 °F ]
Primary Product Color : Yellow, White, Green, Blue
Expanded Inside Diameter (Min) (mm): 19.1, 4.8, 38.1, 6.4, 9.5, 25.4, 3.18, 12.7, 9.53, 2.4, 2.39, 4.75
Expanded Inside Diameter (Min) (in): .5, .094, 1.5, 1, .375, .125, .75, .187, .25
Recovered Inside Diameter (Max) (mm): 4.22, 3.17, 4.2, 19.1, .8, 8.46, 8.5, 6.4, 1.1, 1.6, 2.1, 1.07, 3.2, 2.11, .79, 1.57
Recovered Inside Diameter (Max) (in): .33, .031, .042, .083, .062, .333, .13, .17, .06, .166, .08, .125, .03, .04, .75, .25
Shrink Ratio : 3:1

Available from

Product	TE Part #	Primary Product Color	Number of Prescores	Markers per Sleeve	Product Length	Expanded Inside Diameter (Min)	Recovered Inside Diameter (Max)	Compatible Cable Diameter Range
D-SCE-2.5K-4.8-50-S1-4 Buy on te.com	772259-000	Yellow	1	2	50 mm	4.8 mm	1.6 mm	1.75 – 4.06 mm
D-SCE-1K-3.2-50-5	EC1903-000	Green	-	1	12.7 mm	3.18 mm	1.07 mm	1.11 – 2.66 mm
D-SCE-1K-6.4-50-5	EC1913-000	Green	-	1	16.94 mm	6.4 mm	2.11 mm	2.31 – 5.46 mm
D-SCE-1K-6.4-50-6	166642-000	Blue	-	1	16.94 mm	6.4 mm	2.1 mm	2.31 – 5.46 mm
D-SCE-5K-3.2-50-S1-9	517445-000	White	1	2	50 mm	3.18 mm	1.1 mm	1.11 – 2.66 mm
D-SCE-2.5K-4.8-50-4	9498050001	Yellow	-	1	50 mm	4.8 mm	1.6 mm	1.75 – 4.06 mm
D-SCE-9.5-50-S1-4	5492670001	Yellow	1	2	25.4 mm	9.5 mm	3.2 mm	3.47 – 8.12 mm
D-SCE-1K-2.4-50-S1-4	650913-000	Yellow	1	2	25 mm	2.4 mm	.8 mm	.81 – 1.9 mm
D-SCE-1K-9.5-50-5	EC1917-000	Green	-	1	25.4 mm	9.53 mm	3.17 mm	3.47 – 8.12 mm
D-SCE-1K-3.2-50-S3-4	4129070001	Yellow	3	4	12.7 mm	3.18 mm	1.1 mm	1.11 – 2.66 mm
D-SCE-1K-4.8-50-S2-4	7582210001	Yellow	2	3	12.7 mm	4.8 mm	1.6 mm	1.75 – 4.06 mm
D-SCE-1K-12-50-5	EC1920-000	Green	-	1	29.64 mm	12.7 mm	4.22 mm	4.64 – 10.79 mm
D-SCE-1K-3.2-50-S2-4	4419990001	Yellow	2	3	12.7 mm	3.18 mm	1.1 mm	1.11 – 2.66 mm
D-SCE-2.5K-6.4-50-S1-4	073937-000	Yellow	1	2	50 mm	6.4 mm	2.1 mm	2.31 – 5.46 mm
D-SCE-25-50-S1-4	902767-000	Yellow	1	2	50.8 mm	25.4 mm	8.5 mm	9.2 – 21.5 mm
D-SCE-1K-6.4-50-S1-4	9791650001	Yellow	1	2	25 mm	6.4 mm	2.1 mm	2.31 – 5.46 mm
D-SCE-2.4-50-S1-9	D14966-000	White	1	2	12.7 mm	2.39 mm	.8 mm	.81 – 1.9 mm
D-SCE-1K-4.8-50-5	EC1906-000	Green	-	1	12.7 mm	4.75 mm	1.57 mm	1.75 – 4.06 mm
D-SCE-1K-6.4-50-S1-9	707112-000	White	1	2	25 mm	6.4 mm	2.1 mm	2.31 – 5.46 mm
D-SCE-1K-4.8-50-S3-4	7520990001	Yellow	3	4	12.7 mm	4.8 mm	1.6 mm	1.75 – 4.06 mm
D-SCE-2.5K-6.4-50-4	201469-000	Yellow	-	1	16.94 mm	6.4 mm	2.1 mm	2.31 – 5.46 mm
D-SCE-1K-9.5-50-4	919385-000	Yellow	-	1	50 mm	9.5 mm	3.2 mm	3.4 – 8.1 mm
D-SCE-5K-3.2-50-4	7243890001	Yellow	-	1	50 mm	3.18 mm	1.1 mm	1.11 – 2.66 mm
D-SCE-1K-38-50-4	949459-000	Yellow	-	1	50 mm	38.1 mm	19.1 mm	20.9 – 33 mm
D-SCE-1K-9.5-50-9	663453-000	White	-	1	50 mm	9.5 mm	3.2 mm	3.4 – 8.1 mm
D-SCE-1K-9.5-50-S1-4 Buy on te.com	3340610001	Yellow	1	2	25 mm	9.5 mm	3.2 mm	3.4 – 8.1 mm
D-SCE-1K-25-50-S1-9	816090-000	White	1	2	25 mm	25.4 mm	8.5 mm	9.2 – 21.5 mm
D-SCE-1K-25-50-S1-4	9809850001	Yellow	1	2	25 mm	25.4 mm	8.5 mm	9.2 – 21.5 mm
D-SCE-1K-9.5-50-S1-9	412575-000	White	1	2	25 mm	9.5 mm	3.2 mm	3.4 – 8.1 mm
D-SCE-1K-18-50-4 Buy on te.com	762261-000	Yellow	-	1	50 mm	19.1 mm	6.4 mm	6.9 – 16.2 mm
D-SCE-1K-12-50-S1-4	646331-000	Yellow	1	2	25 mm	12.7 mm	4.2 mm	4.6 – 10.7 mm
D-SCE-1K-18-50-9	105715-000	White	-	1	50 mm	19.1 mm	6.4 mm	6.9 – 16.2 mm
D-SCE-1K-38-50-S1-4	129501-000	Yellow	1	2	25 mm	38.1 mm	19.1 mm	20.9 – 33 mm
D-SCE-1K-2.4-50-4	147547-000	Yellow	-	1	50 mm	2.4 mm	.8 mm	.81 – 1.9 mm
D-SCE-1K-6.4-50-S2-4	1671350001	Yellow	2	3	16.94 mm	6.4 mm	2.1 mm	2.31 – 5.46 mm
D-SCE-5K-2.4-50-S1-4	213293-000	Yellow	1	2	50 mm	2.4 mm	.8 mm	.81 – 1.9 mm
D-SCE-1K-12-50-S1-9	405309-000	White	1	2	25 mm	12.7 mm	4.2 mm	4.6 – 10.7 mm
D-SCE-1K-38-50-9	475683-000	White	-	1	50 mm	38.1 mm	19.1 mm	20.9 – 33 mm
D-SCE-1K-25-50-4	872083-000	Yellow	-	1	50 mm	25.4 mm	8.5 mm	9.2 – 21.5 mm
D-SCE-1K-6.4-50-4	5572350001	Yellow	-	1	50 mm	6.4 mm	2.1 mm	2.31 – 5.46 mm
D-SCE-5K-3.2-50-S1-4 Buy on te.com	588371-000	Yellow	1	2	50 mm	3.18 mm	1.1 mm	1.11 – 2.66 mm
D-SCE-1K-2.4-50-S2-4	CC0042-000	Yellow	2	3	16.7 mm	2.39 mm	.79 mm	.81 – 1.9 mm
D-SCE-1K-3.2-50-S1-9	A35215-000	White	1	2	25 mm	3.18 mm	1.1 mm	1.1 – 2.6 mm
D-SCE-18-50-4	8153950001	Yellow	-	1	12.7 mm	19.1 mm	6.4 mm	6.9 – 1.62 mm
D-SCE-1K-38-50-S1-9	E52724-000	White	1	2	25 mm	38.1 mm	19.1 mm	20.9 – 33 mm
D-SCE-1K-4.8-50-S1-9	E62181-000	White	1	2	25 mm	4.8 mm	1.6 mm	1.7 – 4 mm
D-SCE-1K-12-50-9	317639-000	White	-	1	50 mm	12.7 mm	4.2 mm	4.6 – 10.7 mm
D-SCE-1K-3.2-50-9	A36937-000	White	-	1	50 mm	3.18 mm	1.1 mm	1.1 – 2.6 mm
D-SCE-4.8-50-S1-9	E44758-000	White	1	2	12.7 mm	4.8 mm	1.6 mm	1.75 – 4.06 mm
D-SCE-1K-18-50-S1-4	7827770001	Yellow	1	2	25 mm	19.1 mm	6.4 mm	6.9 – 16.2 mm
D-SCE-1K-18-50-S1-9	740569-000	White	1	2	25 mm	19.1 mm	6.4 mm	6.9 – 16.2 mm
D-SCE-1K-2.4-50-9	F21848-000	White	-	1	50 mm	2.4 mm	.8 mm	.81 – 1.9 mm
D-SCE-1K-2.4-50-S1-9	F53327-000	White	1	2	25 mm	2.4 mm	.8 mm	.81 – 1.9 mm
D-SCE-1K-2.4-50-5	EC1723-000	Green	-	1	12.7 mm	2.39 mm	.79 mm	.81 – 1.9 mm
D-SCE-1K-25-50-5	EC1950-000	Green	-	1	50.8 mm	25.4 mm	8.46 mm	9.29 – 21.59 mm
D-SCE-18-50-S1-4	0589390001	Yellow	1	2	50 mm	19.1 mm	6.4 mm	6.9 – 16.2 mm
D-SCE-1K-4.8-50-9	132365-000	White	-	1	50 mm	4.8 mm	1.6 mm	1.7 – 4. mm
D-SCE-1K-3.2-50-4	5266190001	Yellow	-	1	50 mm	3.18 mm	1.1 mm	1.1 – 2.6 mm
D-SCE-1K-3.2-50-S1-4	1056030001	Yellow	1	2	25 mm	3.18 mm	1.1 mm	1.1 – 2.6 mm
D-SCE-1K-4.8-50-4	3490750001	Yellow	-	1	50 mm	4.8 mm	1.6 mm	1.7 – 4. mm
D-SCE-1K-12-50-4	372389-000	Yellow	-	1	50 mm	12.7 mm	4.2 mm	4.6 – 10.7 mm
D-SCE-1K-25-50-9	449993-000	White	-	1	50 mm	25.4 mm	8.5 mm	9.2 – 21.5 mm
D-SCE-1K-4.8-50-S1-4	6310810001	Yellow	1	2	25 mm	4.8 mm	1.6 mm	1.7 – 4 mm
D-SCE-9.5-50-4	7710110001	Yellow	-	1	25.4 mm	9.5 mm	3.2 mm	3.47 – 8.12 mm
D-SCE-1K-6.4-50-9 Buy on te.com	F94420-000	White	-	1	50 mm	6.4 mm	2.1 mm	2.31 – 5.46 mm

Overview

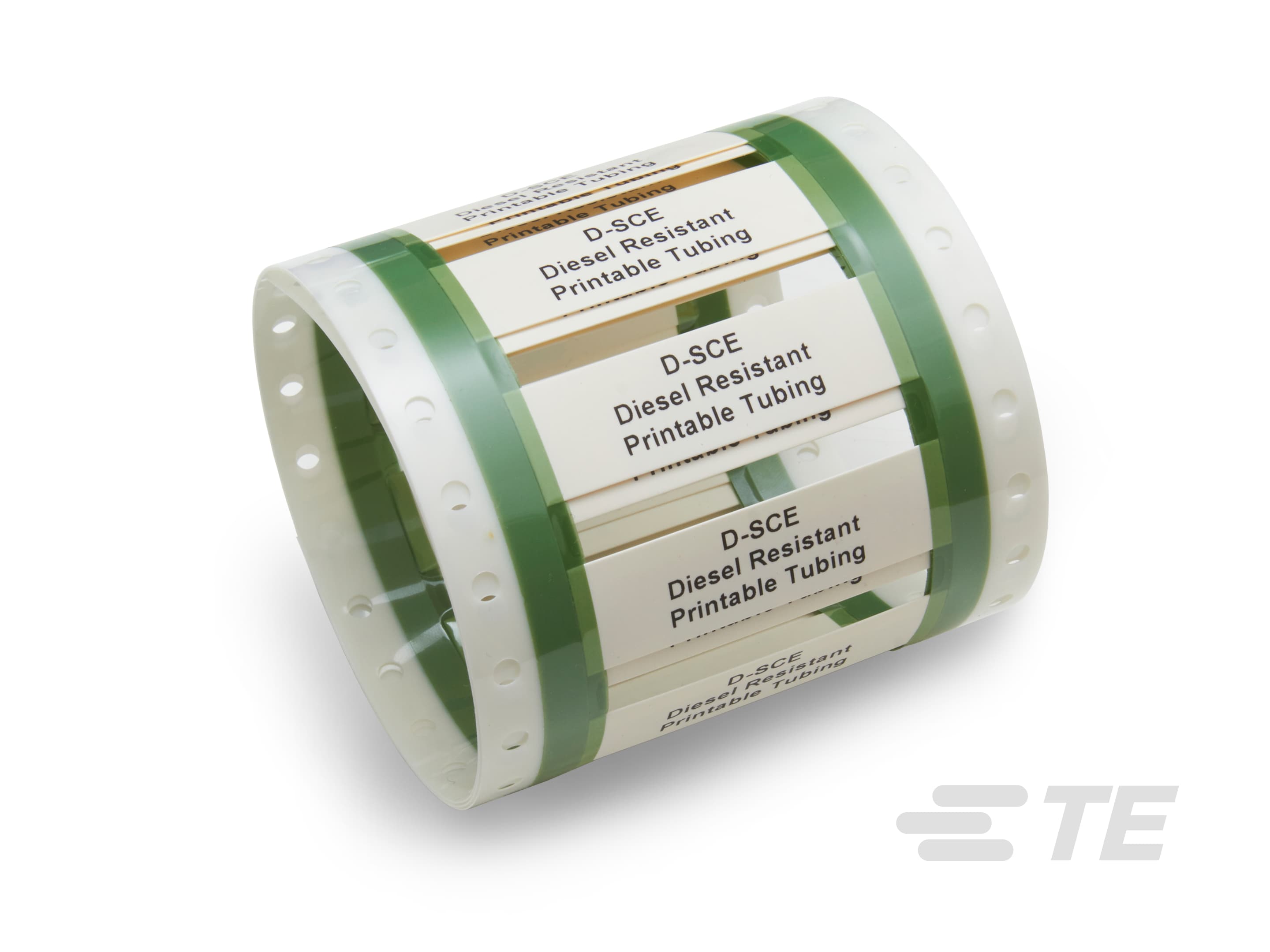

D-SCE markers are used to identify wires and cables where exposure to organic fluids, especially oils, is required. D-SCE markers are designed to operate in elevated temperatures for extended periods of time, making them ideal in Aerospace, Rail and Marine industries. D-SCE markers are suitable for use in environments with temperatures of – 75°C to +135°C (– 103°F to +275°F), and will provide strain relief, insulation and protection from mechanical abuse. Supplied in a “ladder format”, sleeves are held horizontally between two polyester strips and offers ease of printing and kitting. D-SCE markers come standard with side scoring for ease of removal after printed.

Features and benefits

Thermal transfer printable
Resistance to diesel, organic fluids, common fuels, lubricants and solvents
3:1 shrink ratio
Supplied with side scoring
Wide range of sizes for several wire and bundle diameters
Formulated for use in harsh environments

Operating temperature range

-75^oC to 135^oC (-103^oF to 275^oF)

Specifications and approvals

NF F 00 608 type H
EN45545-2 R23 HL1
EN45545-2 R24 HL3
NFPA130
SAE-AMS-DTL-23053/6
MIL-STD-202 Method 215

Recommended hardware and software

Printer: T200-IDENT / TE3112 / TE3124 / T6112DS
Ribbon: TMS-RJS-RIBBON-4DSCE (Optimal) 1966-RIBBON (Superior)
Software: WinTotal v6

For more information

Technical Datasheet: TTDS-017
Product Specification Sheet: RW-2519

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Printable Tubing Type Ladder
Printable Tubing Grade Fluid Resistant

Body Features

Primary Product Color Yellow, White, Green, Blue
Shrink Ratio 3:1
Markers per Sleeve 1, 2, 3, 4

Dimensions

Expanded Inside Diameter (Min) (mm) 2.39, 2.4, 3.18, 4.75, 4.8, 6.4, 9.5, 9.53, 12.7, 19.1, 25.4, 38.1
Expanded Inside Diameter (Min) (in) .094, .125, .187, .25, .375, .5, .75, 1, 1.5
Recovered Inside Diameter (Max) (mm) .79, .8, 1.07, 1.1, 1.57, 1.6, 2.1, 2.11, 3.17, 3.2, 4.2, 4.22, 6.4, 8.46, 8.5, 19.1
Recovered Inside Diameter (Max) (in) .03, .031, .04, .042, .06, .062, .08, .083, .125, .13, .166, .17, .25, .33, .333, .75
Compatible Cable Diameter Range (mm) .81 – 1.9, 1.1 – 2.6, 1.11 – 2.66, 1.7 – 4, 1.7 – 4., 1.75 – 4.06, 2.31 – 5.46, 3.4 – 8.1, 3.47 – 8.12, 4.6 – 10.7, 4.64 – 10.79, 6.9 – 1.62, 6.9 – 16.2, 9.2 – 21.5, 9.29 – 21.59, 20.9 – 33
Compatible Cable Diameter Range (in) .031 – .075, .044 – .105, .069 – .16, .091 – .215, .136 – .319, .137 – .32, .183 – .425, .271 – .64, .275 – .64, .366 – .85, .825 – 1.3
Product Length (mm) 12.7, 16.7, 16.94, 25, 25.4, 29.64, 50, 50.8
Product Length (in) .5, .66, .667, 1, 1.167, 2

Usage Conditions

Operating Temperature Range -75 – 135 °C [ -103 – 275 °F ]

Printer/Label Features

Printer Technology Thermal Transfer
Number of Prescores 1, 2, 3

Packaging Features

Packaging Quantity 250, 1000, 2500, 5000

Reference Number

TE Internal Number CAT-T3437-D1
