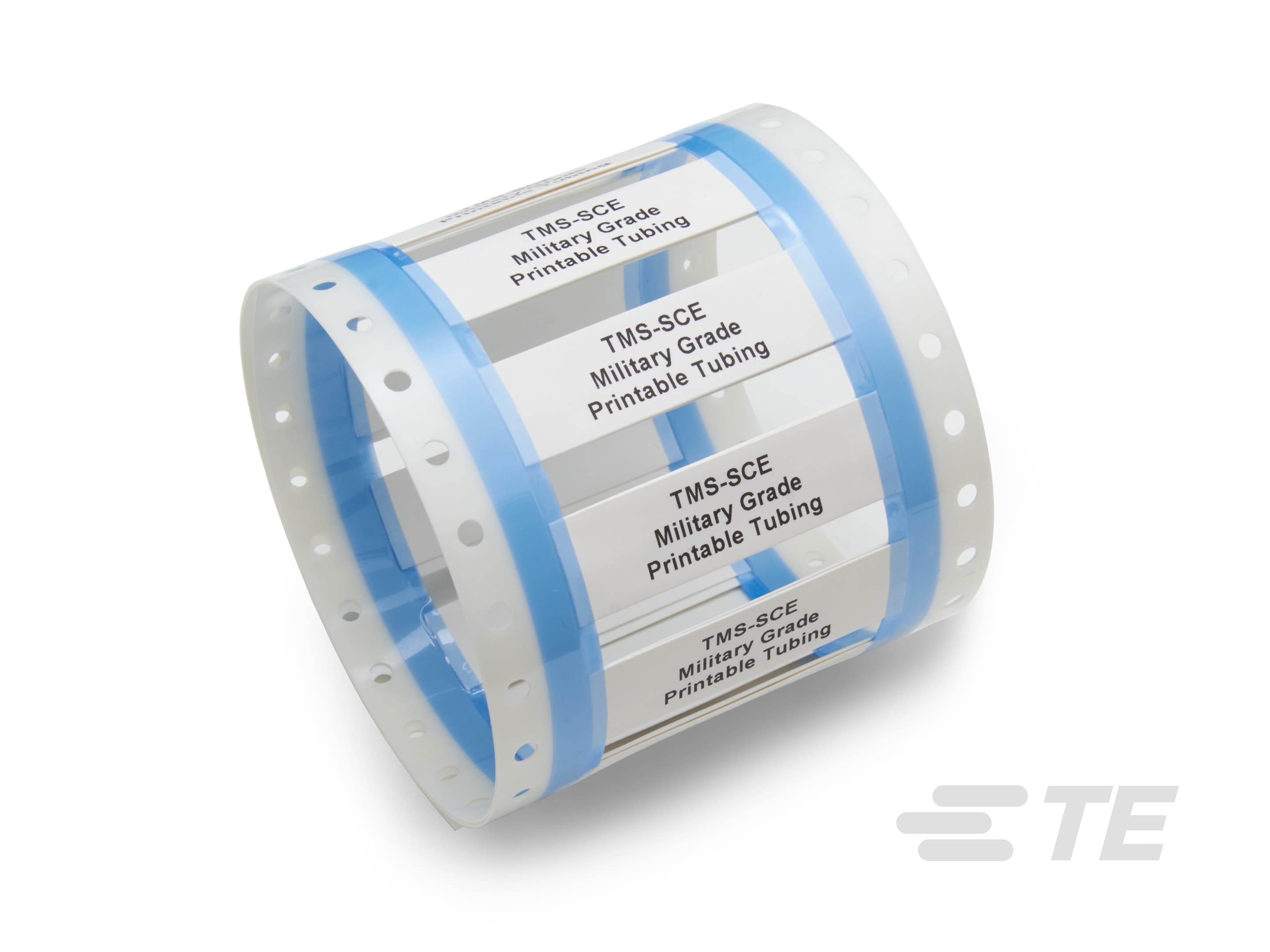

Military Grade Sleeves TMS-SCE-2X

TMS-SCE-2X

Made from durable, flame retardant, radiation cross linked heat shrinkable polyolefin. TMS-SCE2X™ marker sleeves meets all of the requirements of SAE-AMS-DTL-23053/5 classes 1 and 3.

More Less

Digital Datasheet|

Product Features

Operating Temperature Range : -55 – 135 °C [ -67 – 275 °F ]
Primary Product Color : White, Yellow
Expanded Inside Diameter (Min) (mm): 6.35, 19, 4.8, 6.4, 9.5, 25.4, 2.38, 3.18, 12.7, 9.53, 2.4, 3.2, 19.05, 4.76
Expanded Inside Diameter (Min) (in): .5, .093, 1, .375, .125, .75, .187, .25
Recovered Inside Diameter (Max) (mm): 6.35, 6.3, 2.3, 2.36, 3.1, 9.5, 3.18, 12.7, 9.53, 1.1, 1.5, 4.75, 1.17, 4.7
Recovered Inside Diameter (Max) (in): .5, .093, .062, .375, .125, .046, .187, .25
Shrink Ratio : 2:1

Available from

Product	TE Part #	Documents	Primary Product Color	Number of Prescores	Markers per Sleeve	Product Length	Expanded Inside Diameter (Min)	Recovered Inside Diameter (Max)	Compatible Cable Diameter Range
TMS-SCE-2X-1K-3/4-S1-4	CY6461-000	Product Drawing	Yellow	1	2	25 mm	19 mm	9.5 mm	6.9 – 16.2 mm
TMS-SCE-2X-1K-3/4-S1-9	EH8715-000	Product Drawing	White	1	2	25 mm	19 mm	9.5 mm	6.9 – 16.2 mm
TMS-SCE-2X-1K-3/32-S1-9	EF8489-000		White	1	2	25 mm	2.4 mm	1.1 mm	1.2 – 1.9 mm
TMS-SCE-2X-1K-3/32-S1-4	EH8720-000	Product Drawing	Yellow	1	2	25 mm	2.4 mm	1.1 mm	1.2 – 1.9 mm
TMS-SCE-2X-1K-1/8-S1-9	EH8713-000	Product Drawing	White	1	2	25 mm	3.2 mm	1.5 mm	1.1 – 2.6 mm
TMS-SCE-2X-1K-3/16-S1-4	EH8785-000	Product Drawing	Yellow	1	2	25 mm	4.8 mm	2.3 mm	1.7 – 4. mm
TMS-SCE-2X-1K-1/2-S1-4	EH8786-000	Product Drawing	Yellow	1	2	25 mm	12.7 mm	6.3 mm	4.6 – 10.7 mm
TMS-SCE-2X-1K-1/2-S1-9	EH8714-000	Product Drawing	White	1	2	25 mm	12.7 mm	6.3 mm	4.6 – 10.7 mm
TMS-SCE-2X-1K-1/8-S1-4	CC6890-000	Product Drawing	Yellow	1	2	25 mm	3.2 mm	1.5 mm	1.1 – 2.6 mm
TMS-SCE-2X-1K-3/4-4	CP0163-000		Yellow	-	1	50 mm	19 mm	9.5 mm	6.9 – 16.2 mm
TMS-SCE-2X-1K-1-S1-9	EH8716-000	Product Drawing	White	1	2	25 mm	25.4 mm	12.7 mm	13.3 – 23. mm
TMS-SCE-2X-1K-1-S1-4	EH8788-000	Product Drawing	Yellow	1	2	25 mm	25.4 mm	12.7 mm	13.3 – 23. mm
TMS-SCE-2X-1K-1/4-S1-9	F57432-000		White	1	2	25.4 mm	6.35 mm	3.18 mm	2.3 – 5.4 mm
TMS-SCE-2X-1K-3/16-4	A60000-000	Product Drawing	Yellow	-	1	50 mm	4.8 mm	2.3 mm	1.7 – 4. mm
TMS-SCE-2X-1K-1/4-S1-4	EF3678-000		Yellow	1	2	25 mm	6.4 mm	3.1 mm	2.3 – 5.4 mm
TMS-SCE-2X-1K-1/8-9	251895-000	Product Drawing	White	-	1	50 mm	3.18 mm	1.5 mm	1.1 – 2.6 mm
TMS-SCE-2X-1K-3/8-9	A58166-000	Product Drawing	White	-	1	50 mm	9.53 mm	4.75 mm	3.4 – 8.1 mm
TMS-SCE-2X-1K-3/32-4	E71365-000	Product Drawing	Yellow	-	1	50 mm	2.4 mm	1.1 mm	1.2 – 1.9 mm
TMS-SCE-2X-1K-1/4-9	617917-000	Product Drawing	White	-	1	50 mm	6.35 mm	3.18 mm	2.3 – 5.4 mm
TMS-SCE-2X-1K-3/8-S1-9	E09873-000		White	1	2	25.4 mm	9.53 mm	4.75 mm	3.4 – 8.1 mm
TMS-SCE-2X-1K-1-9	CR7762-000	Product Drawing	White	-	1	50 mm	25.4 mm	12.7 mm	13.3 – 23. mm
TMS-SCE-2X-1K-3/4-9	F04160-000	Product Drawing	White	-	1	50 mm	19.05 mm	9.53 mm	6.9 – 16.2 mm
TMS-SCE-2X-1K-1/2-9	F05938-000	Product Drawing	White	-	1	50 mm	12.7 mm	6.35 mm	4.6 – 10.7 mm
TMS-SCE-2X-1K-1/4-4	F35028-000		Yellow	-	1	50 mm	6.35 mm	3.18 mm	2.3 – 5.4 mm
TMS-SCE-2X-1K-3/16-S1-9	CC0072-000	Product Drawing	White	1	2	25 mm	4.8 mm	2.3 mm	1.7 – 4. mm
TMS-SCE-2X-1K-3/8-4	CC8522-000	Product Drawing	Yellow	-	1	50 mm	9.5 mm	4.7 mm	3.4 – 8.1 mm
TMS-SCE-2X-1K-3/8-S1-4	CY4756-000	Product Drawing	Yellow	1	2	25 mm	9.5 mm	4.7 mm	3.4 – 8.1 mm
TMS-SCE-2X-1K-1-4	EH8787-000	Product Drawing	Yellow	-	1	50 mm	25.4 mm	12.7 mm	13.3 – 23. mm
TMS-SCE-2X-1K-1/2-4	837277-000	Product Drawing	Yellow	-	1	50 mm	12.7 mm	6.35 mm	4.6 – 10.7 mm
TMS-SCE-2X-1K-1/8-4	A22489-000		Yellow	-	1	50 mm	3.2 mm	1.5 mm	1.1 – 2.6 mm
TMS-SCE-2X-1K-3/16-9 Buy on te.com	330433-000	Product Drawing	White	-	1	50 mm	4.76 mm	2.36 mm	1.7 – 4 mm
TMS-SCE-2X-1K-3/32-9	F15113-000	Product Drawing	White	-	1	50 mm	2.38 mm	1.17 mm	1.2 – 1.9 mm

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Printable Tubing Type Ladder
Printable Tubing Grade Military

Body Features

Primary Product Color White, Yellow
Shrink Ratio 2:1
Markers per Sleeve 1, 2

Dimensions

Expanded Inside Diameter (Min) (mm) 2.38, 2.4, 3.18, 3.2, 4.76, 4.8, 6.35, 6.4, 9.5, 9.53, 12.7, 19, 19.05, 25.4
Expanded Inside Diameter (Min) (in) .093, .125, .187, .25, .375, .5, .75, 1
Recovered Inside Diameter (Max) (mm) 1.1, 1.17, 1.5, 2.3, 2.36, 3.1, 3.18, 4.7, 4.75, 6.3, 6.35, 9.5, 9.53, 12.7
Recovered Inside Diameter (Max) (in) .046, .062, .093, .125, .187, .25, .375, .5
Compatible Cable Diameter Range (mm) 1.1 – 2.6, 1.2 – 1.9, 1.7 – 4, 1.7 – 4., 2.3 – 5.4, 3.4 – 8.1, 4.6 – 10.7, 6.9 – 16.2, 13.3 – 23.
Compatible Cable Diameter Range (in) .044 – .105, .05 – .075, .069 – .16, .091 – .215, .137 – .32, .183 – .425, .275 – .64, .524 – .906
Product Length (mm) 25, 25.4, 50
Product Length (in) 1, 2

Usage Conditions

Operating Temperature Range -55 – 135 °C [ -67 – 275 °F ]

Printer/Label Features

Printer Technology Thermal Transfer
Number of Prescores 1

Packaging Features

Packaging Quantity 1000

Reference Number

TE Internal Number CAT-T3437-T548A
