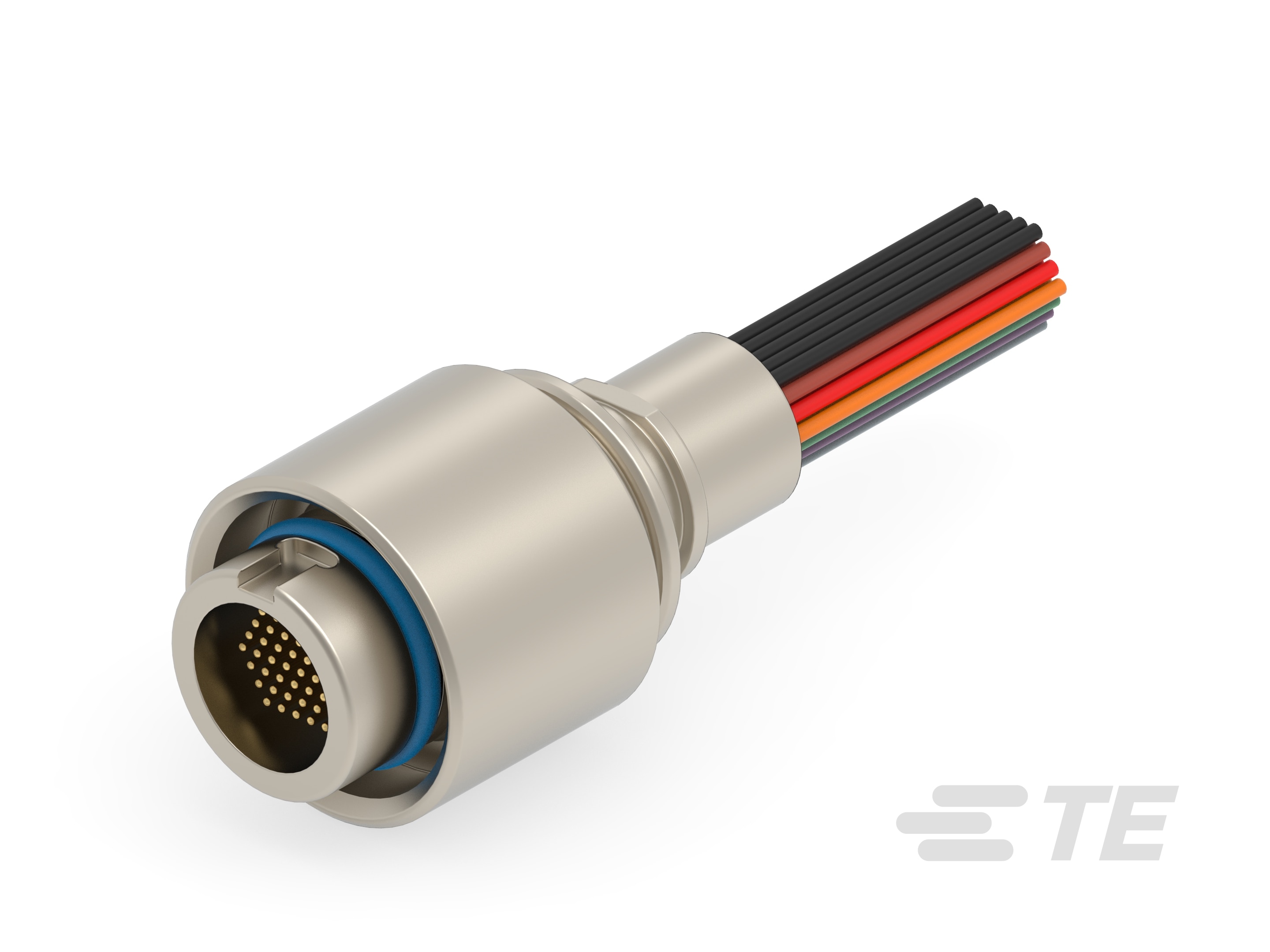

Circular Threaded Coupling Connectors: Plug, 44 Positions

Circular Threaded Coupling Connectors: Plug, 44 Positions-CAT-TCM-044PC
  • Nanonics
TE's NANONICS environmentally sealed circular plug connectors are small, reliable, and available in threaded coupling configurations & 44 pin positions.
More Less

Product Features

  • Connector System : Wire-to-Wire

  • Connector Mounting Type : Cable Mount (Free-Hanging)

  • Number of Positions : 44

  • Sealable : Yes

  • Connector & Contact Terminates To : Wire & Cable

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Connector System  Wire-to-Wire

  • Sealable  Yes

  • Connector & Contact Terminates To  Wire & Cable

  • Circular Connector Type  Plug

  • Shell Type  Metal

  • Circular Connector Shell Type  Metal-Shell

Mechanical Attachment

  • Connector Mounting Type  Cable Mount (Free-Hanging)

  • Mating Retention  With

  • Mating Retention Type  Threaded Coupling

Configuration Features

  • Number of Positions  44

  • Contacts Preloaded  Yes

  • Factory Installed Backshell  With

Contact Features

  • Contact Current Rating (Max) (A) 1

  • Circular Connector Contact Type  Pin

Operation/Application

  • Circuit Application  Signal

Body Features

  • Shell Plating Material  Electroless Nickel

  • Shell Base Material  Aluminum

  • Circular Connector Insulation Material Type  LCP (Liquid Crystal Polymer)

  • Hermetically Sealed  Yes

  • O-Ring Material  Fluorosilicone

Dimensions

  • Wire Size (AWG) 28, 30

  • Wire Size (mm²) .08, .05

  • Assembly Length (mm) 1537.34, 318.14, 927.74

  • Assembly Length (in) 60.525, 36.525, 12.525

Usage Conditions

  • Operating Temperature Range  -55 – 200 °C [ -67 – 392 °F ]

  • IP Water Sealing Level  IP68

Other

  • EU RoHS Compliance  Not Compliant, Compliant, Compliant with Exemptions

  • EU ELV Compliance  Compliant, Not Compliant, Compliant with Exemptions

Packaging Features

  • Packaging Quantity  1

Reference Number

  • TE Internal Number CAT-TCM-044PC
