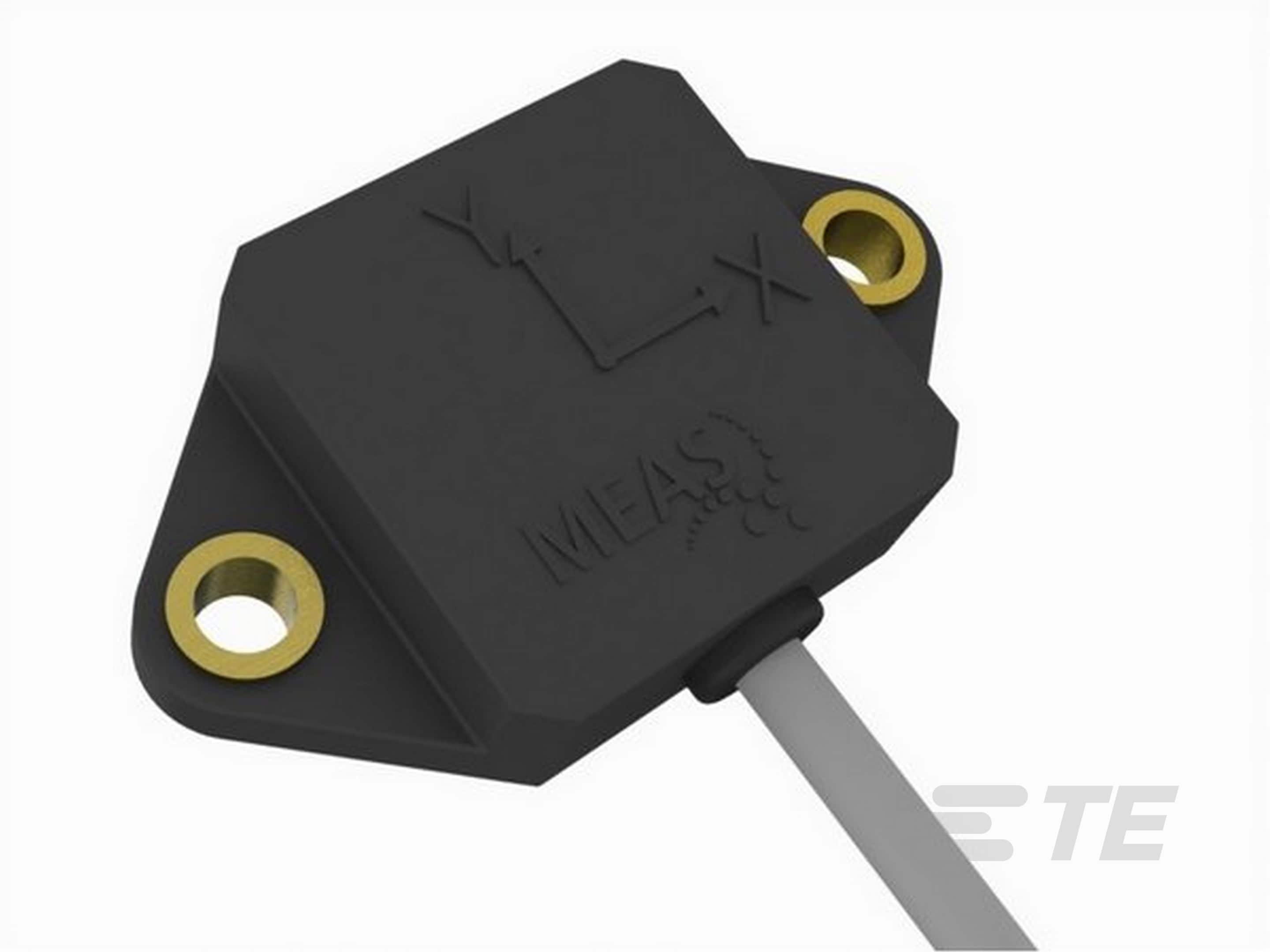

AXISENSE-2 V-OUT TILT SENSOR FLOOR MOUNT

AXISENSE-2 V-OUT TILT SENSOR FLOOR MOUNT-CAT-TSI0007
  • MEAS
|
  • MEAS AXISENSE-2
The AXISENSE-2 voltage floor mount tilt sensor is mainly developed with focus on platform leveling, dynamic engine management, tip-over protection and tilt alarm.
More Less

Product Features

  • Measurement Principle : MEMS

  • Sensor Package : Plastic Housing

  • Measurement Axes : Dual Axis

  • Measurement Ranges (°): up to +/- 90, up to +/- 25, up to +/- 45

  • Housing Width (mm): Up to 70

Available from

LADD Inc
Overview

A fast response time and good accuracy makes this device the ideal choice for mobile leveling applications.  It features digital signal processing including temperature compensation. The integrated filter improves performance and allows using the sensor in many noisy environments (e.g. vibrations). The inclinometer includes a powerful digital signal processing that offers various filteralgorithms and allows customer specific OEM solutions. It is possible to adjust the sensor to different environments yielding an optimized performance. Customization can also be made in terms of angular range and connectivity, i.e. cable and connector.

BENEFITS

  • 8 to 30 VDC supply voltage
  • Digital signal processing includes: filter (e.g. vibration damping), temperature compensation
  • 12 bit resolution
  • 100 Hz refresh rate
  • -40 °C to +85 °C temperature range
Features

Product Description

View All DT RECP ASM Products (18)

Please review product documents or contact us for the latest agency approval information.



Please Note: Use the Product Drawing for all design activity.

Dimensions

  • Resolution (°) up to +/- .01

  • Measurement Ranges (°) up to +/- 90, up to +/- 25, up to +/- 45

  • Housing Width (mm) Up to 70

  • Accuracy (°) up to +/- .3, up to +/- .5

Electrical Characteristics

  • Analog Interface Voltage (V) .5 – 4.5

  • Supply Voltage (VDC) 8 – 30

Body Features

  • Product Orientation  Horizontal

Usage Conditions

  • Operating Temperature Range  -40 – 85 °C [ -40 – 185 °F ]

  • Measurement Principle  MEMS

Product Type Features

  • Sensor Package  Plastic Housing

  • Interface Signal Type  Analog

Other

  • Measurement Axes  Dual Axis

  • EU RoHS Compliance  Compliant with Exemptions

  • EU ELV Compliance  Compliant with Exemptions, Compliant

Industry Standards

  • IP Rating  IP67

Configuration Features

  • Electrical Connection  Connector TE/AMP

Reference Number

  • TE Internal Number CAT-TSI0007
