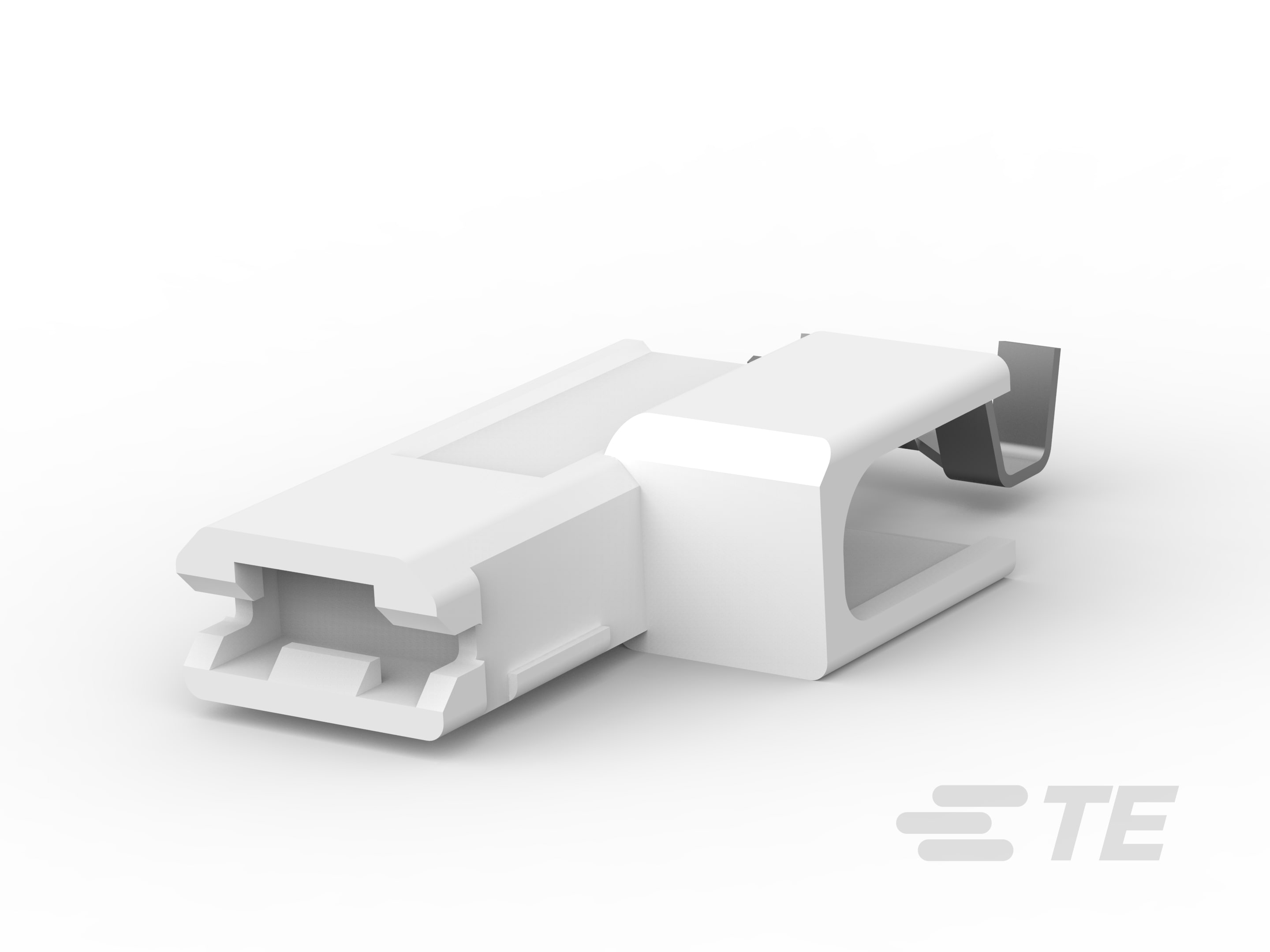

ULTRA POD: Flag, Receptacle Assembly, Tin Plated, .187 inch

ULTRA POD: Flag, Receptacle Assembly, Tin Plated, .187 inch-CAT-UL8-187
Ultra pod quick disconnect receptacle assembly mates with a tab of .187 inch width and contacts are made of tin plated Brass. These parts have flag terminal orientations and available in wire size ranges of 22 – 14 AWG.
More Less

Product Features

  • Quick Disconnect Terminal Type : Receptacle

  • Wire Size (AWG): 18 – 14, 22 – 18

  • Wire Size (mm²): .82 – 2.08, .32 – .82

  • Mating Tab Width : 4.75 mm [ .187 in ]

  • Mating Tab Thickness (mm): .51, .81

  • Mating Tab Thickness (in): .02, .032

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Insertion Force  Normal

Configuration Features

  • Compatible With Wire & Cable Type  Discrete Wire

  • Connection Capacity  Single

Electrical Characteristics

  • Voltage Rating (V) 600

Body Features

  • Insulation Material  Nylon

Contact Features

  • Quick Disconnect Terminal Type  Receptacle

  • Mating Tab Width  4.75 mm [ .187 in ]

  • Mating Tab Thickness (mm) .51, .81

  • Mating Tab Thickness (in) .02, .032

  • Terminal Orientation  Flag

  • Contact Base Material  Brass

  • Terminal Plating Material  Tin

  • Crimp Type  F-Crimp, Tab-Lok

  • Barrel Type  Open

Termination Features

  • Product Terminates To  Wire & Cable

Mechanical Attachment

  • Wire Insulation Support  With

  • Mating Retention Type  Dimple

Dimensions

  • Compatible Insulation Diameter Range (mm) 2.79 – 3.81, 1.52 – 2.8, 2.79 – 4.06

  • Compatible Insulation Diameter Range (in) .06 – .11, .11 – .16, .11 – .15

  • Terminal Material Thickness (mm) .33, .36

  • Terminal Material Thickness (in) .013, .014

  • Product Length (mm) 23.11, 23.16

  • Product Length (in) .909, .91

  • Wire Size (AWG) 18 – 14, 22 – 18

  • Wire Size (mm²) .82 – 2.08, .32 – .82

Usage Conditions

  • Insulation Option  Fully Insulated

  • Operating Temperature Range  -40 – 150 °C [ -40 – 302 °F ]

Industry Standards

  • UL Flammability Rating  UL 94V-0, UL 94V-2

  • Compatible With Agency/Standards Products  UL

Packaging Features

  • Packaging Quantity  2200, 2400

  • Packaging Method  Strip/Reel

Other

  • Barrel Color  Natural, White

Reference Number

  • TE Internal Number CAT-UL8-187
