Please review product documents or contact us for the latest agency approval information.

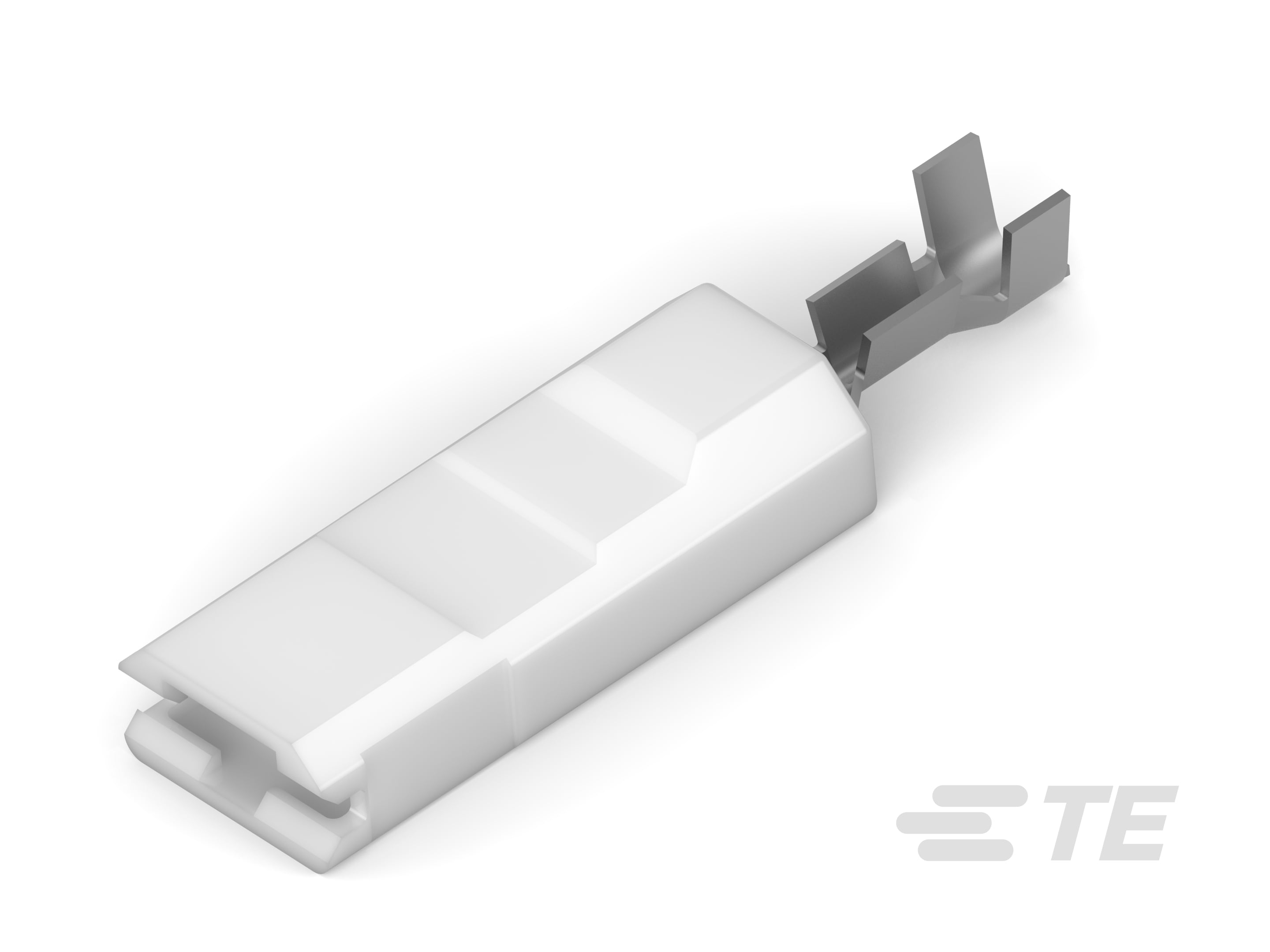

Electrical Characteristics
Dimensions
-
Product Length (mm)
34.7, 34.8, 34.86, 34.67, 33.53
-
Product Length (in)
1.37, 1.366, 1.365, 1.32
-
Compatible Insulation Diameter Range (mm)
3.3 – 4.57, 2.79 – 4.57, 2.29 – 3.3, 2.2 – 3.3, 2.79 – 4.32
-
Compatible Insulation Diameter Range (in)
.09 – .13, .11 – .17, .11 – .18, .13 – .18
-
Terminal Material Thickness (mm)
.41, .43, .25
-
Terminal Material Thickness (in)
.017, .01, .016
-
Wire Size (AWG)
18 – 14, 14 – 10, 22 – 18
-
Wire Size (mm²)
.82 – 2.08, 2.08 – 5.26, .32 – .82
-
Wire Size (CMA)
642.4 – 1624
Mechanical Attachment
-
Wire Insulation Support
With
Body Features
-
Insulation Material
Nylon
Packaging Features
-
Packaging Quantity
8000, 2000
-
Packaging Method
Strip/Reel
Other
-
Barrel Color
Black, White, Natural
-
EU RoHS Compliance
Compliant
-
EU ELV Compliance
Compliant
Configuration Features
-
Compatible With Wire & Cable Type
Discrete Wire
-
Connection Capacity
Single
Industry Standards
-
UL Flammability Rating
UL 94V-0, UL 94V-2
-
Compatible With Agency/Standards Products
UL, CSA
-
Compatible With Approved Standards Products
UL E66717
Termination Features
-
Product Terminates To
Wire & Cable
Contact Features
-
Quick Disconnect Terminal Type
Receptacle
-
Mating Tab Width
6.35 mm [ .25 in ]
-
Mating Tab Thickness
.81 mm [ .032 in ]
-
Terminal Orientation
Straight
-
Contact Base Material
Brass
-
Terminal Plating Material
Tin
-
Crimp Type
F-Crimp
-
Barrel Type
Open
Usage Conditions
-
Insulation Option
Fully Insulated
-
Operating Temperature Range (°C)
-40 – 150, -40 – 105
-
Operating Temperature Range (°F)
-40 – 302, -40 – 221
Reference Number
-
TE Internal Number
CAT-UL8-250
