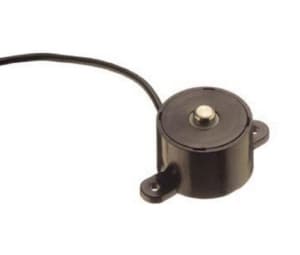

Non-Invasive Air Bubble Level Detector
- MEAS
- MEAS AD-101
Product Features
-
Ultrasonic Sensor Type : Air Bubble/Air-in-line Detectors
-
Ultrasonic Sensor Style : Non-Invasive
-
EU RoHS Compliance : Compliant with Exemptions
-
EU ELV Compliance : Not Compliant
Bubble detection is critical in applications such as infusion pumps, hemodialysis and blood flow monitoring. TE Connectivity (TE) has developed a new compact AD-101 Air Bubble Detector (ABD) for non-invasive continuous monitoring of fluid for air bubble detection. Using ultrasonic technology the AD-101 sensor is capable of positively identifying the presence of a break in flow of any type of liquid.
Benefits
- Detects bubble size as small as 70% of tubing inner diameter
- Sensor can be customized to fit tube or pipe
- Tubing size from 3 mm to 10 mm
- Non-invasive design eliminates sterility and fluid compatibility concerns
- High noise immunity to EMI/RFI
- Acoustic coupling agent not required
- Integral electronics
- Power-on and continuous self-diagnostic tests to confirm functionality
Applications
- Infusion Pump
- Apheresis / Auto-transfusion
- Biotech / DNA Analysis
- Blood Processing
- Immunoassay
- Chemical Analysis
- Hemodialysis
- IN-VIVO Detection of Gas
Discover how the AD-101 air bubble detector sensor offers easy integration and provides exceptional reliability, delivering confidence in overall system performance.
LEARN MORE
Related Material
| TOPIC | RESOURCES |
|---|---|
| Sensors For Dialysis Equipment | Solution Guide |
| Sensors For Medical Pump Solutions | Solution Guide |
| Sensors in Dialysis Equipment | Infographic |
| Trust and Reliability For In-Home Medical Sensors | White Paper |
| Sensors For Medical Pump Applications | White Paper |
Other Sensors for Medical Pump Applications
Frequently Asked Questions
Are air bubble detectors used in dialysis equipment applications?
Yes. Sensors such as the AD-101 series air bubble detector are used to detect bubbles in small diameter tubes in dialysis equipment. Learn more about sensors in dialysis equipment.
Are air bubble detectors used in medical pump applications?
Yes. TE Connectivity (TE) manufactures force and air bubble detection sensors for medical infusion pump applications.
Please review product documents or contact us for the latest agency approval information.
Electrical Characteristics
-
Input Voltage (VDC) 6 – 24
-
Output Type Open Collector
Dimensions
-
Cable Length .31 m [ 1 ft ]
Usage Conditions
-
Operating Temperature Range 0 – 65 °C [ 32 – 149 °F ]
Product Type Features
-
Ultrasonic Sensor Type Air Bubble/Air-in-line Detectors
-
Ultrasonic Sensor Style Non-Invasive
Other
-
EU RoHS Compliance Compliant with Exemptions
-
EU ELV Compliance Not Compliant
Reference Number
-
TE Internal Number CAT-ULT0010
Datasheets & Catalog Pages
- AD-101 Air Bubble Detector English
