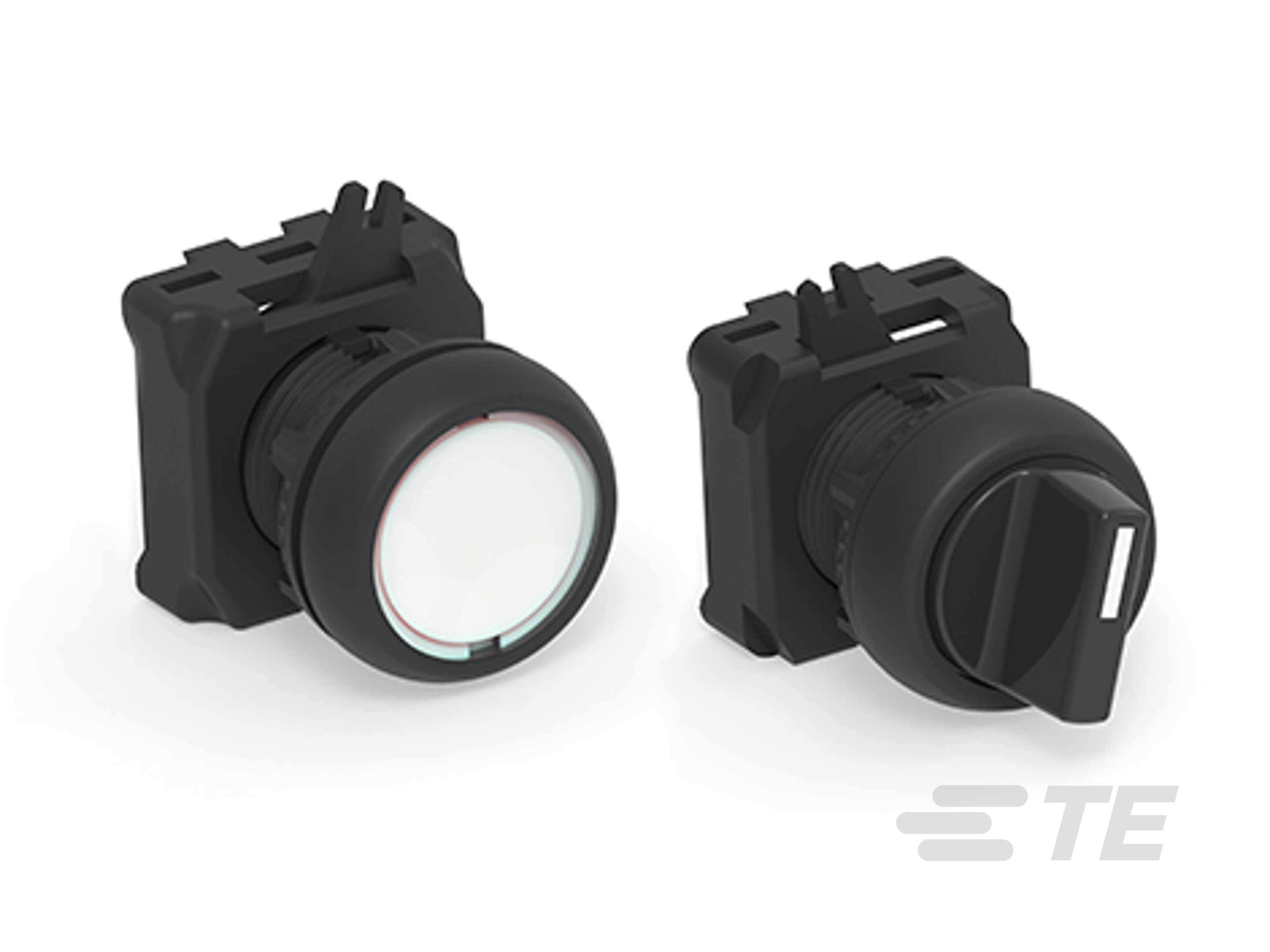

ALCOSWITCH Pushbutton and Selector Switch Series
ALCOSWITCH push button, selector and keylock switches in an industry-standard 22.5mm mounting diameter, available in many styles and configurations offer a versatile range of high-quality switches designed to meet the diverse needs of various industries.
Product Features
-
Push Button Switch Product Type : General Purpose Push Button Switch
-
Number of Actuators : Single
-
Actuator Profile : Extended, Flush
-
Bushing Style : Threaded
-
Bushing Thread Size : M20 x 1.5
Overview
Features
Please review product documents or contact us for the latest agency approval information.
Product Type Features
-
Push Button Switch Product Type General Purpose Push Button Switch
-
Illuminated With, Without
-
Actuator Style Extended Actuator, Flush Actuator
Configuration Features
-
Panel Cutout Size (mm) 22.5
-
Number of Actuators Single
-
Switch Feedback Type Non-Tactile
-
Operating Function Momentary
Body Features
-
Actuator Force (g) 350
-
Sealing Method Rubber O-Ring
-
Case Material Polyamide
-
Actuator Material Polycarbonate
-
Actuator Profile Extended, Flush
-
Bushing Style Threaded
-
Bushing Thread Size M20 x 1.5
-
Actuator Color Black, Blue, Green, Orange, Red, White, Yellow
Mechanical Attachment
-
Product Mount Type Panel Mount
-
Attachment Method Screw-On
Industry Standards
-
IP Rating IP65
Packaging Features
-
Packaging Method Carton
Reference Number
-
TE Internal Number CAT-W06-LHB
