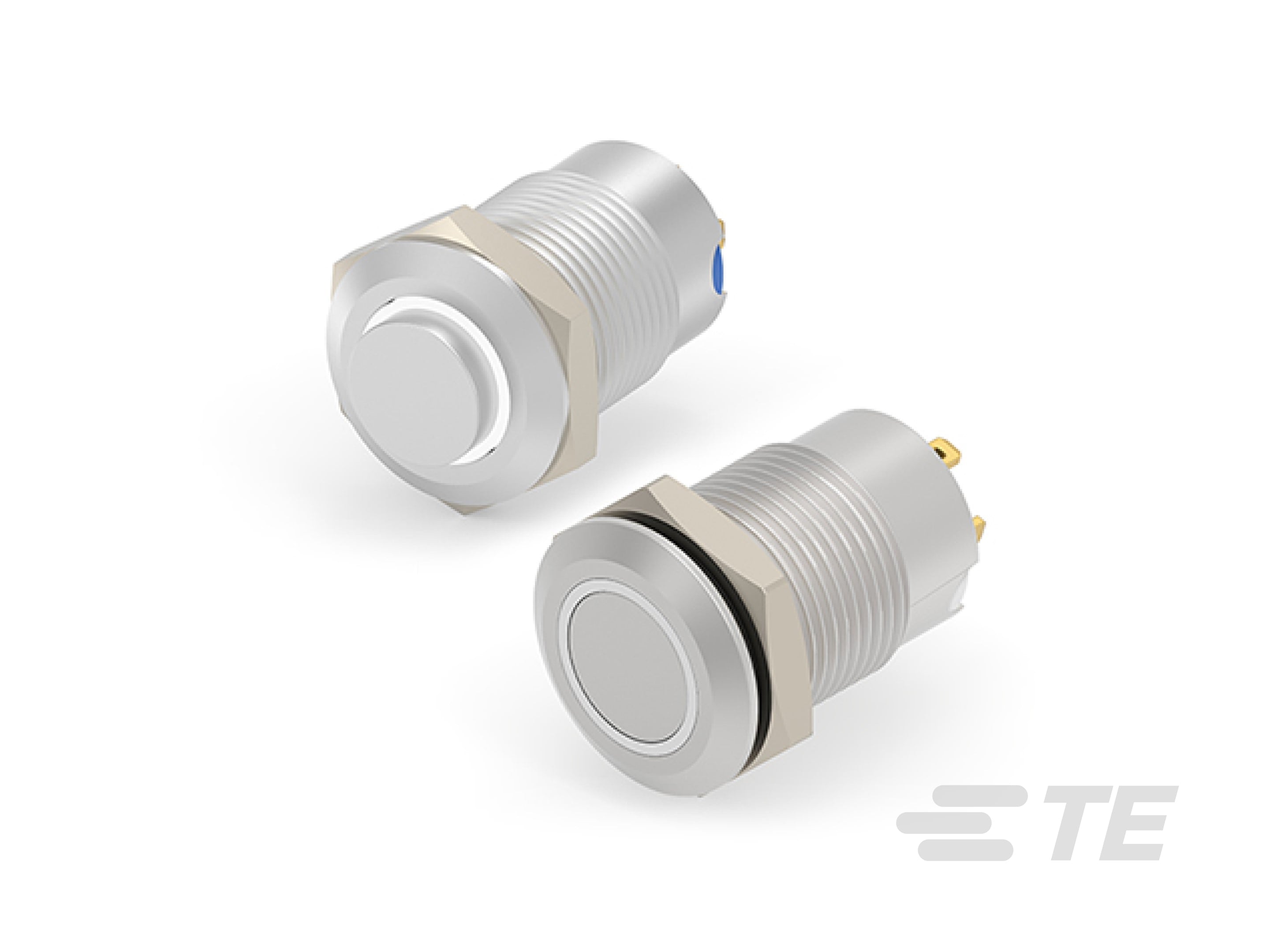

ALCOSWITCH Anti Vandal 12 mm Switch Series
Small sealed (IP67) push button ALCOSWITCH Anti-Vandal switch series is designed for security and reliability in a variety of panel mount industrial and building applications.
Product Features
-
Push Button Switch Product Type : Anti-Vandal Switch
-
Configuration (Pole-Throw) : Single Pole - Single Throw
-
Number of Actuators : Single
-
Actuator Profile : Extended, Flush
-
Bushing Style : Threaded
Overview
Features
Please review product documents or contact us for the latest agency approval information.
Product Type Features
-
Switch Connection Type Solder Lugs, Wire Lugs
-
Push Button Switch Product Type Anti-Vandal Switch
-
Illuminated With
-
Actuator Style Round Actuator
Configuration Features
-
Panel Cutout Size 12 (diameter) mm [ .47 (Diameter) in ]
-
Configuration (Pole-Throw) Single Pole - Single Throw
-
Number of Actuators Single
-
Snap Action Without
-
Switch Feedback Type Auditory
-
Operating Function Momentary, Off (On)
Electrical Characteristics
-
Contact Current Rating (A) .1
-
Operating Voltage Range (VDC) 24
Body Features
-
Actuator Force 305.9 g [ 10.7 oz ]
-
Product Orientation Vertical
-
Case Material Stainless Steel
-
Actuator Material Stainless Steel
-
Actuator Profile Extended, Flush
-
Bushing Style Threaded
-
Bushing Thread Size M12 x .75
-
Actuator Color Natural
Contact Features
-
Contact Base Material Brass
-
Switch Contact Plating Material Gold
Housing Features
-
Process Sealed Yes
Usage Conditions
-
Operating Temperature Range (°C) -20 – 55
Industry Standards
-
IP Rating IP67
Reference Number
-
TE Internal Number CAT-W08-AS120124
