ALCOSWITCH LIMIT SWITCH
The newest TLS Limit Switch Series is durable, lasting over 1 million cycles. It is also flexible, offering different actuator styles. Additionally, it is cost-effective, with housing options made of zinc and thermoplastic.
Product Features
-
Push Button Switch Product Type : Limit Switch
-
Configuration (Pole-Throw) : Single Pole - Single Throw
-
Number of Actuators : Single
-
Actuator Profile : Extended
-
Illuminated : Without
Overview

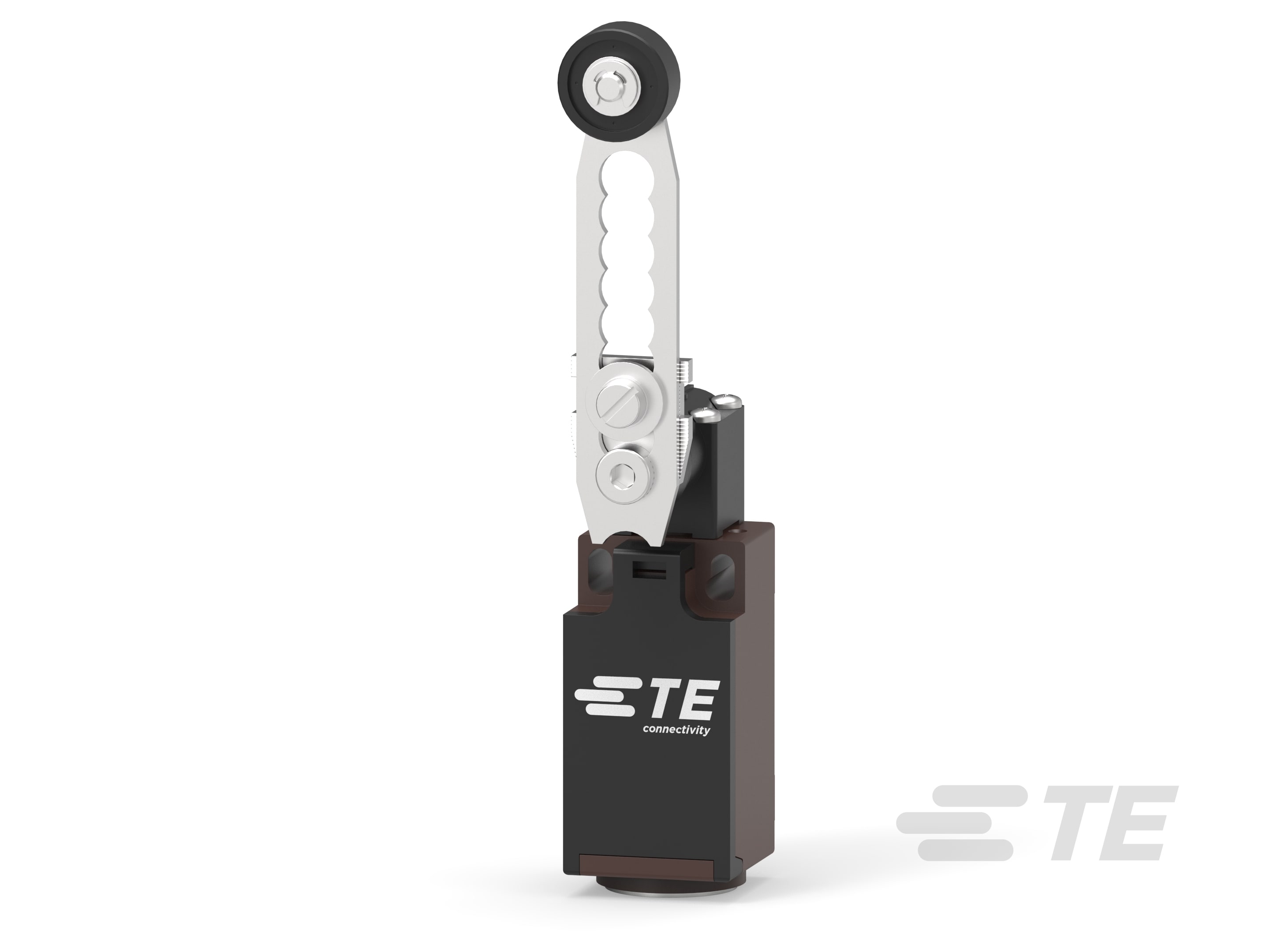

ALCOSWITCH TLS Limit Switch Series is a new family of position switches from TE Connectivity. The TLS series offers high durability with over 1 million cycles, flexibility with many styles of actuators and lower costs with both zinc and thermoplastic housings. The TLS series limit switches meet IEC 60947-5-1 and are UL-approved
Features
Please review product documents or contact us for the latest agency approval information.
Product Type Features
-
Switch Connection Type Screw Terminal
-
Push Button Switch Product Type Limit Switch
-
Illuminated Without
-
Actuator Style Plunger, Rod, Adjustable Actuator, Roller, Adjustable Actuator, Roller, Lever, Roller, Offset Actuator, Roller Actuator
Configuration Features
-
Configuration (Pole-Throw) Single Pole - Single Throw
-
Number of Actuators Single
-
Snap Action With, Without
-
Operating Function 1 NO & 1 NC, 2 NC
Electrical Characteristics
-
Contact Current Rating (A) 4
-
Operating Voltage Range (VAC) 230
-
Operating Voltage Range (VDC) 24
Body Features
-
Actuator Force (g) 20, 918
-
Case Material Thermoplastic, Zinc Alloy
-
Actuator Material PA 46, POM, Stainless Steel
-
Actuator Profile Extended
Contact Features
-
Contact Base Material Silver Alloy
-
Switch Contact Plating Material Silver
Mechanical Attachment
-
Attachment Method Screw-On
Usage Conditions
-
Operating Temperature Range (°C) -30 – 80
Industry Standards
-
IP Rating IP67
Packaging Features
-
Packaging Method Box
Reference Number
-
TE Internal Number CAT-W10-L
