Thick-Wall Heat Shrink Tubing

RAYCHEM

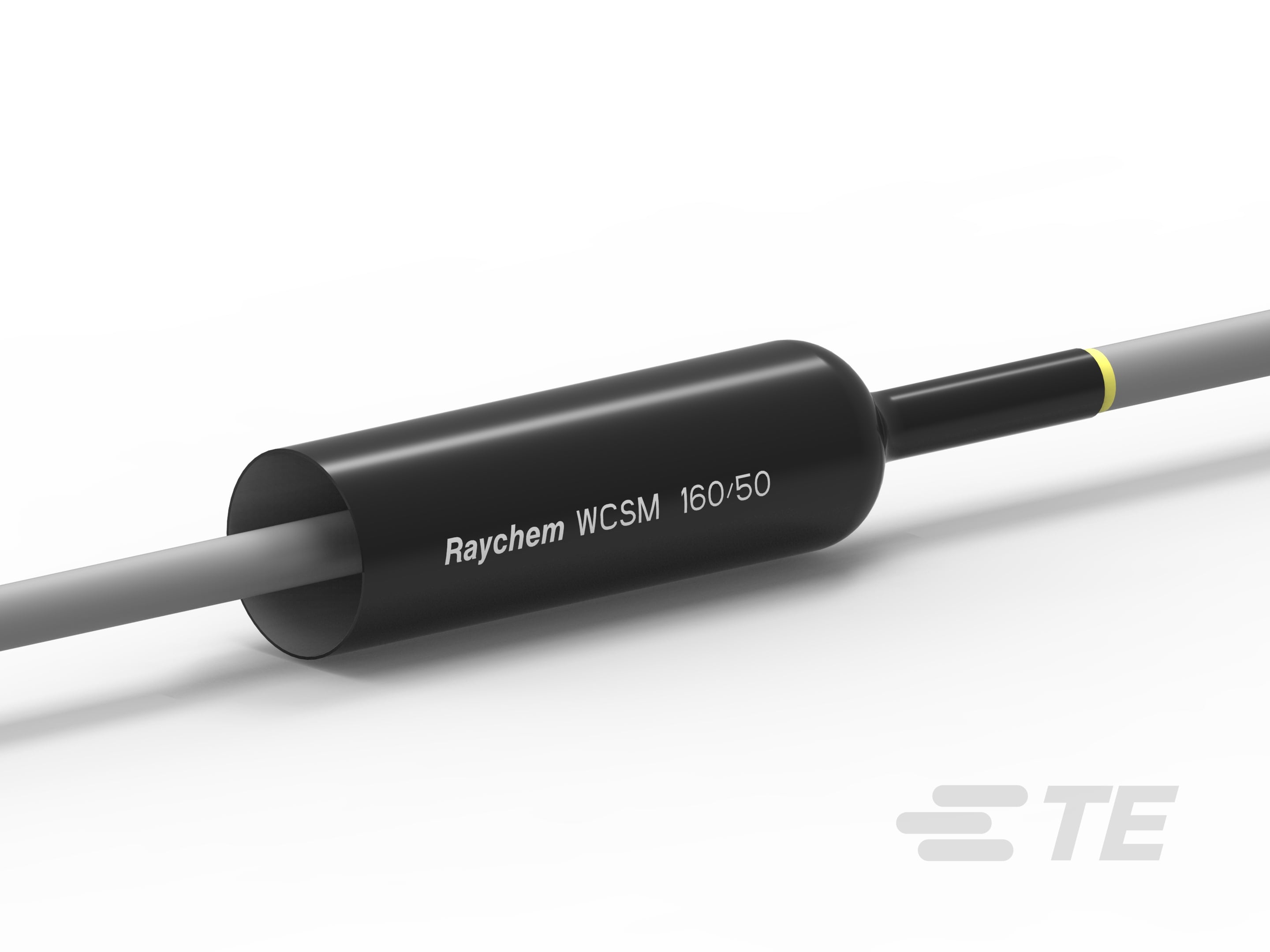

RAYCHEM WCSM

Our Raychem WCSM Thick-Wall Heat Shrink Tubing has a >3:1 shrink ratio and is designed for the insulation of low voltage cable accessories and for sealing, protection and jacketing on low, medium and high voltage cables.

More Less

Product Features

Product Availability : Europe, Middle East & Africa, Asia, Americas, Australia, New Zealand & Pacific Islands, China
Flammability Performance : Non-Flame-Retardant
Adhesive Coating : Without, With
Compatible Cable Diameter (Max) (mm): 22, 144, 162, 180, 31, 81, 50, 225, 100, 63, 10, 118, 350, 295, 44, 14
Compatible Cable Diameter (Max) (in): 3.937, 4.645, .393
Compatible Cable Diameter (Min) (mm): 6.5, 13, 17.5, 38, 4.5, 9, 33, 28, 22, 3.5, 125, 18, 72, 105, 55
Compatible Cable Diameter (Min) (in): 1.496, 1.299, .137

Available from

Product	TE Part #	Documents	Product Availability	Adhesive Coating	Compatible Cable Diameter (Max)	Compatible Cable Diameter (Min)	Expanded Inside Diameter (Min)	Recovered Inside Diameter (Max)	Product Length	Recovered Wall Thickness (Max)	Wall Thickness	EU ELV Compliance
WCSM-90/25-800/S(S5)	CU4600-000	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	With	81 mm	28 mm	90 mm	25 mm	800 mm	4.3 mm	Thick/Heavy	Compliant
WCSM-24/6-1500/S	CU9436-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	22 mm	6.5 mm	24 mm	6 mm	1500 mm	2.7 mm	Thick/Heavy	Compliant
WCSM-90/25-300/S(S10)	CU4615-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	81 mm	28 mm	90 mm	25 mm	300 mm	4.3 mm	Thick/Heavy	Compliant
WCSM-34/8-300-S-(B50)	EE0455-000	Product Drawing	Americas	With	31 mm	9 mm	34 mm	8 mm	300 mm	4 mm	Thick/Heavy	Compliant
WCSM-56/16-300-S-(B30)	EE0474-000	Product Drawing	Americas	With	50 mm	18 mm	56 mm	16 mm	300 mm	4.4 mm	Thick/Heavy	Compliant
WCSM-56/16-150-S(B25)	EE0476-000	Product Drawing	Americas	With	50 mm	18 mm	56 mm	16 mm	150 mm	4.4 mm	Thick/Heavy	Compliant
WCSM-130/35-750/S(S5)	CU4626-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	118 mm	38 mm	130 mm	35 mm	750 mm	4.3 mm	Thick/Heavy	Compliant
WCSM-110/30-700/S(S5)	CU6583-000	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	With	100 mm	33 mm	110 mm	30 mm	700 mm	4.3 mm	Thick/Heavy	Compliant
WCSM-34/8-200/S(S50)	CU7119-000	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	With	31 mm	9 mm	34 mm	8 mm	200 mm	4 mm	Thick/Heavy	Compliant
WCSM-56/16-400/S(S20)	CU7533-000	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	With	50 mm	18 mm	56 mm	16 mm	400 mm	4.4 mm	Thick/Heavy	Compliant
WCSM-16/4-80/S(S100)	CU9267-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	14 mm	4.5 mm	16 mm	4 mm	80 mm	2.4 mm	Thick/Heavy	Compliant
WCSM-250/65-600/S	CJ1683-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	225 mm	72 mm	250 mm	65 mm	600 mm	4.3 mm	Thick/Heavy	Compliant
WCSM-24/6-100/S(S50)	CU9282-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	180 mm	55 mm	200 mm	50 mm	100 mm	4.3 mm	Thick/Heavy	Compliant
WCSM-12/3-300-S(B50)	EE0433-000	Product Drawing	Americas	With	10 mm	3.5 mm	12 mm	3 mm	300 mm	2 mm	Thick/Heavy	-
WCSM-90/25-200/S(C120)	CU5278-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	81 mm	28 mm	90 mm	25 mm	200 mm	4.3 mm	Thick/Heavy	Compliant
WCSM-70/20-300-S-(B15)	EE0484-000	Product Drawing	Americas	With	63 mm	22 mm	70 mm	20 mm	300 mm	4.4 mm	Thick/Heavy	Compliant
WCSM-70/20-1500/S	CU5157-000	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	With	63 mm	22 mm	70 mm	20 mm	1500 mm	4.4 mm	Thick/Heavy	Compliant
WCSM-110/30-600/S(S5)	CU6582-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	100 mm	33 mm	110 mm	30 mm	600 mm	4.3 mm	Thick/Heavy	Compliant
WCSM-24/6-170/S(S50)	CU9279-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	22 mm	6.5 mm	24 mm	6 mm	170 mm	2.7 mm	Thick/Heavy	Compliant
WCSM-48/12-150-S-(B40)	EE0470-000	Product Drawing	Americas	With	44 mm	13 mm	48 mm	12 mm	150 mm	4.5 mm	Thick/Heavy	Compliant
WCSM-34/8-225-S-(B50)	EE0458-000	Product Drawing	Americas	With	31 mm	9 mm	34 mm	8 mm	225 mm	4 mm	Thick/Heavy	Compliant
WCSM-200/50-1000/S	194144-000	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	With	180 mm	55 mm	200 mm	50 mm	1000 mm	4.3 mm	Thick/Heavy	Compliant
WCSM-34/8-A/S-C(150)	CH5655-000	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	With	31 mm	9 mm	34 mm	8 mm	-	4 mm	Thick	Compliant
WCSM-90/25-1200/S(S5)	CU4609-000	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	With	81 mm	28 mm	90 mm	25 mm	1200 mm	4.3 mm	Thick/Heavy	Compliant
WCSM-130/35-1200/S(S5)	CU4622-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	118 mm	38 mm	130 mm	35 mm	1200 mm	4.3 mm	Thick/Heavy	Compliant
WCSM-56/16-650/S(S10)	CU7488-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	50 mm	18 mm	56 mm	16 mm	650 mm	4.4 mm	Thick/Heavy	Compliant
WCSM-48/12-250/S(S25)	CU8525-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	44 mm	13 mm	48 mm	12 mm	250 mm	4.5 mm	Thick/Heavy	Compliant
WCSM-16/4-1500/S(S20)	CU9272-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	14 mm	4.5 mm	16 mm	4 mm	1500 mm	2.4 mm	Thick/Heavy	Compliant
WCSM-24/6-125/S(S50)	CU9285-000	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	With	22 mm	6.5 mm	24 mm	6 mm	125 mm	2.7 mm	Thick/Heavy	Compliant
WCSM-70/20-450-S-(B15)	EE0482-000	Product Drawing	Americas	With	63 mm	22 mm	70 mm	20 mm	450 mm	4.4 mm	Thick/Heavy	Compliant
WCSM-250/65-400/S	F26709-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	225 mm	72 mm	250 mm	65 mm	400 mm	4.3 mm	Thick/Heavy	Compliant
WCSM-130/35-1000/S(S5)	CU4621-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	118 mm	38 mm	130 mm	35 mm	1000 mm	4.3 mm	Thick/Heavy	Compliant
WCSM-24/6-1000/S(S20)	CU9289-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	22 mm	6.5 mm	24 mm	6 mm	1000 mm	2.7 mm	Thick/Heavy	Compliant
WCSM-160/50-1100/S(S5)	061508-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	14 mm	4.5 mm	16 mm	4 mm	1100 mm	4.3 mm	Thick/Heavy	Compliant
WCSM-12/3-1000/S(S20)	135996-1	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	With	10 mm	3.5 mm	12 mm	3 mm	1000 mm	2 mm	Thick/Heavy	Compliant
WCSM-160/50-900/S(S5)	119900-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	144 mm	55 mm	160 mm	50 mm	900 mm	4.3 mm	Thick/Heavy	Compliant
WCSM-110/30-1000/S(S5)	136003-1	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	100 mm	33 mm	110 mm	30 mm	1000 mm	4.3 mm	Thick/Heavy	Compliant
WCSM-34/8-1000/S(S10)	135999-1	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	With	31 mm	9 mm	34 mm	8 mm	1000 mm	4 mm	Thick/Heavy	Compliant
WCSM-180/50-200/S(S10)	962300-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	162 mm	55 mm	180 mm	50 mm	200 mm	4.3 mm	Thick/Heavy	Compliant
WCSM-48/12-1000/S(S10)	136000-1	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	44 mm	13 mm	48 mm	12 mm	1000 mm	4.5 mm	Thick/Heavy	Compliant
WCSM-320/95-1200/S	CP4294-000	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	With	295 mm	105 mm	320 mm	95 mm	1200 mm	4.3 mm	Thick/Heavy	Compliant
WCSM-160/50-1000/S(S5)	145366-000	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	With	144 mm	55 mm	160 mm	50 mm	1000 mm	4.3 mm	Thick/Heavy	Compliant
WCSM-70/20-230/S(S20)	CU5153-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	63 mm	22 mm	70 mm	20 mm	230 mm	4.4 mm	Thick/Heavy	Compliant
WCSM-110/30-1200/S	CU6604-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	100 mm	33 mm	110 mm	30 mm	1200 mm	4.3 mm	Thick	Compliant
WCSM-34/8-200/S(C500)	CU7130-000	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	With	31 mm	9 mm	34 mm	8 mm	200 mm	4 mm	Thick/Heavy	Compliant
WCSM-34/8-300/S(S50)	CU7133-000	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	With	31 mm	9 mm	34 mm	8 mm	300 mm	4 mm	Thick/Heavy	Compliant
WCSM-48/12-1200/S(S10)	CU8543-000	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	With	44 mm	13 mm	48 mm	12 mm	1200 mm	4.5 mm	Thick/Heavy	Compliant
WCSM-48/12-100/S(S50)	CU8540-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	44 mm	13 mm	48 mm	12 mm	100 mm	4.5 mm	Thick/Heavy	Compliant
WCSM-90/25-250/S(S10)	CH6822-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	81 mm	28 mm	90 mm	25 mm	250 mm	4.3 mm	Thick/Heavy	Compliant
WCSM-56/16-1000/S	CU7536-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	50 mm	18 mm	56 mm	16 mm	1000 mm	4.4 mm	Thick/Heavy	Compliant
WCSM-90/25-500/S(S5)	CU4604-000	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	With	81 mm	28 mm	90 mm	25 mm	500 mm	4.3 mm	Thick/Heavy	Compliant
WCSM-90/25-200/S(S15)	CU4614-000	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	With	81 mm	28 mm	90 mm	25 mm	200 mm	4.3 mm	Thick/Heavy	Compliant
WCSM-130/35-1250/S	CU5607-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	118 mm	38 mm	130 mm	35 mm	1250 mm	4.3 mm	Thick/Heavy	Compliant
WCSM-34/8-100/S(S50)	CU7122-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	31 mm	9 mm	34 mm	8 mm	100 mm	4 mm	Thick/Heavy	Compliant
WCSM-56/16-600/S(S10)	CU7489-000	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	With	50 mm	18 mm	56 mm	16 mm	600 mm	4.4 mm	Thick/Heavy	Compliant
WCSM-48/12-225/S(C400)	CU8541-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	44 mm	13 mm	48 mm	12 mm	225 mm	4.5 mm	Thick/Heavy	Compliant
WCSM-48/12-1200/S	CU8546-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	44 mm	13 mm	48 mm	12 mm	1200 mm	4.5 mm	Thick/Heavy	Compliant
WCSM-24/6-1500/S(S10)	CU9434-000	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	With	22 mm	6.5 mm	24 mm	6 mm	1500 mm	2.7 mm	Thick/Heavy	Compliant
WCSM-70/20-800/S	CU5159-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	63 mm	22 mm	70 mm	20 mm	800 mm	4.4 mm	Thick/Heavy	Compliant
WCSM-34/8-225/S(C500)	CU7127-000	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	With	31 mm	9 mm	34 mm	8 mm	225 mm	4 mm	Thick/Heavy	Compliant
WCSM-48/12-400/S(S25)	CU8526-000	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	With	44 mm	13 mm	48 mm	12 mm	400 mm	4.5 mm	Thick/Heavy	Compliant
WCSM-16/4-A/S-C(250)	CU9276-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	14 mm	4.5 mm	16 mm	4 mm	-	2.4 mm	Thick	Compliant
WCSM-34/8-1200-S-(B25)	EE0461-000	Product Drawing	Americas	With	31 mm	9 mm	34 mm	8 mm	1200 mm	4 mm	Thick/Heavy	Compliant
WCSM-34/8-1000-23/S	CH5784-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	31 mm	9 mm	34 mm	8 mm	1000 mm	4 mm	Thick/Heavy	Compliant
WCSM-320/95-1500/S	CP4296-000	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	With	295 mm	105 mm	320 mm	95 mm	1500 mm	4.3 mm	Thick/Heavy	Compliant
WCSM-48/12-1500/S	CU9075-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	44 mm	13 mm	48 mm	12 mm	1500 mm	4.5 mm	Thick/Heavy	Compliant
WCSM-24/6-250/S(S50)	CU9438-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	22 mm	6.5 mm	24 mm	6 mm	250 mm	4.3 mm	Thick/Heavy	Compliant
WCSM-24/6-1000/S	CU9439-000	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	With	22 mm	6.5 mm	24 mm	6 mm	1000 mm	2.7 mm	Thick/Heavy	Compliant
WCSM-16/4-150-S-(B50)	EE0438-000	Product Drawing	Americas	With	14 mm	4.5 mm	16 mm	4 mm	150 mm	2.4 mm	Thick/Heavy	Compliant
WCSM-24/6-1200-S-(B25)	EE0450-000	Product Drawing	Americas	With	22 mm	6.5 mm	24 mm	6 mm	1200 mm	2.7 mm	Thick/Heavy	Compliant
WCSM-70/20-1200-S-(B10)	EE0488-000	Product Drawing	Americas	With	63 mm	22 mm	70 mm	20 mm	1200 mm	4.4 mm	Thick/Heavy	Compliant
WCSM-70/20-600/S(S10)	CU4489-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	63 mm	22 mm	70 mm	20 mm	600 mm	4.4 mm	Thick/Heavy	Compliant
WCSM-130/35-800/S(S5)	CU4623-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	118 mm	38 mm	130 mm	35 mm	800 mm	4.3 mm	Thick/Heavy	Compliant
WCSM-180/50-1250/S(S5)	171830-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	162 mm	55 mm	180 mm	50 mm	1250 mm	4.3 mm	Thick/Heavy	Compliant
WCSM-160/50-250/S(C75)	A95359-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	14 mm	4.5 mm	16 mm	4 mm	250 mm	4.3 mm	Thick/Heavy	Compliant
WCSM-250/65-1000/S	C36398-000	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	With	225 mm	72 mm	250 mm	65 mm	1000 mm	4.3 mm	Thick/Heavy	Compliant
WCSM-90/25-1000/S(S5)	CU4602-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	81 mm	28 mm	90 mm	25 mm	1000 mm	4.3 mm	Thick/Heavy	Compliant
WCSM-110/30-300/S(S10)	CH7796-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	100 mm	33 mm	110 mm	30 mm	300 mm	4.3 mm	Thick/Heavy	Compliant
WCSM-250/65-250/S	F56253-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	225 mm	72 mm	250 mm	65 mm	250 mm	4.3 mm	Thick/Heavy	Compliant
WCSM-160/50-1200/S(S5)	776366-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	14 mm	4.5 mm	16 mm	4 mm	1200 mm	4.3 mm	Thick/Heavy	Compliant
WCSM-160/50-1500/S(S5)	846444-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	144 mm	55 mm	160 mm	50 mm	1500 mm	4.3 mm	Thick/Heavy	Compliant
WCSM-34/8-225S/172(B250)	EE0457-000	Product Drawing	Americas	With	31 mm	9 mm	34 mm	8 mm	225 mm	4 mm	Thick/Heavy	Compliant
WCSM-24/6-75-S(B100)	EE0441-000	Product Drawing	Americas	With	22 mm	6.5 mm	24 mm	6 mm	75 mm	4.3 mm	Thick/Heavy	Compliant
WCSM-24/6-1200/S(S20)	CU9290-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	22 mm	6.5 mm	24 mm	6 mm	1200 mm	2.7 mm	Thick/Heavy	Compliant
WCSM-24/6-1000/S(S20)	135998-1	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	22 mm	6.5 mm	24 mm	6 mm	1000 mm	2.7 mm	Thick/Heavy	Compliant
WCSM-110/30-1000/S(S5)	CU6585-000	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	With	100 mm	33 mm	110 mm	30 mm	1000 mm	4.3 mm	Thick/Heavy	Compliant
WCSM-16/4-1000/S(S20)	CU9269-000	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	With	14 mm	4.5 mm	16 mm	4 mm	1000 mm	2.4 mm	Thick/Heavy	Compliant
WCSM-70/20-350/S(S10)	CU6066-000	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	With	63 mm	22 mm	70 mm	20 mm	350 mm	4.4 mm	Thick/Heavy	Compliant
WCSM-24/6-200/S(C750)	CU9429-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	22 mm	6.5 mm	24 mm	6 mm	200 mm	2.7 mm	Thick/Heavy	Compliant
WCSM-90/25-900/S(S5)	CU4607-000	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	With	81 mm	28 mm	90 mm	25 mm	900 mm	4.3 mm	Thick/Heavy	Compliant
WCSM-12/3-80/S(S100)	CU9239-000	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	With	10 mm	3.5 mm	12 mm	3 mm	80 mm	2 mm	Thick/Heavy	Compliant
WCSM-24/6-225/S(S50)	CU9430-000	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	With	22 mm	6.5 mm	24 mm	6 mm	225 mm	2.7 mm	Thick/Heavy	Compliant
WCSM-70/20-1200/S	CU5155-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	63 mm	22 mm	70 mm	20 mm	1200 mm	4.4 mm	Thick/Heavy	Compliant
WCSM-56/16-1000/S(S10)	CU7528-000	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	With	50 mm	18 mm	56 mm	16 mm	1000 mm	4.4 mm	Thick/Heavy	Compliant
WCSM-24/6-1200/S	CU9291-000	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	With	22 mm	6.5 mm	24 mm	6 mm	1200 mm	2.7 mm	Thick/Heavy	Compliant
WCSM-250/65-1550/S	E09748-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	225 mm	72 mm	250 mm	65 mm	1550 mm	4.3 mm	Thick/Heavy	Compliant
WCSM-110/30-300-S-(B15)	EE0494-000	Product Drawing	Americas	With	100 mm	33 mm	110 mm	30 mm	300 mm	4.3 mm	Thick/Heavy	Compliant
WCSM-56/16-1200-S-(B10)	EE0477-000	Product Drawing	Americas	With	50 mm	18 mm	56 mm	16 mm	1200 mm	4.4 mm	Thick/Heavy	Compliant
WCSM-250/65-500/S	CB4258-000	Product Drawing	China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas	With	225 mm	72 mm	250 mm	65 mm	500 mm	4.3 mm	Thick/Heavy	Compliant
WCSM-34/8-1000-23/S(S10)	CH5705-000	Product Drawing	China, Asia, Europe, Middle East & Africa, Australia, New Zealand & Pacific Islands, Americas	With	31 mm	9 mm	34 mm	8 mm	1000 mm	4 mm	Thick	Compliant

Overview

Our Raychem WCSM Thick-Wall Heat Shrink Tubing has high electrical characteristics and mechanical strength for low voltage applications

Our Raychem WCSM Thick-Wall Heat Shrink Tubing is made of heat shrink polymer, which is halogen-free and stabilized against UV irradiation. It is field-proven for long-term reliability in harsh climatic conditions and polluted environments, and has a decades-long shelf life when stored under normal conditions.

During heating, the thick-wall tubing shrinks to the original smaller extruded diameter, fitting tightly over a wide range of cable sizes and cable accessories because of its high shrink ratio. At the same time, the tubing’s inner sealant wall gives a reliable moisture seal over even extremely irregular shapes. The mechanical strength of our Raychem Thick-Wall Heat Shrink Tubing enables immediate back-filling of cable trenches after jointing. This tubing offers the electrical and physical properties of cable over sheath and the core insulation of low voltage cables combined with ruggedness and ease of installation. It can be used to seal against moisture of cable splices and for mechanical protection of outer rejacketing in low, medium and high voltage applications.

Key Features

Thick-wall, cross-linked polyolefin, stabilized against UV irradiation and weathering
Halogen and silicone-free material, noncorrosive, non-toxic, free of lead and aluminium
Available inline coated with hot melt adhesive

Compliant to RoHS and REACH regulations
Approved for offshore applications
Color black, >3:1 shrink ratio
Decades-long shelf life under normal storage conditions

Thick-Wall Heat Shrink Tubing

Improving Grid Reliability

Our Raychem Heat Shrink Tubing

Discover our Range of Raychem Heat Shrink Tubing for Power Systems

FAQ

Frequently Asked Questions

Question: With what type of cable can I use the TE’s Raychem WCSM Thick-Wall Heat Shrink Tubing?

Answer: Our Raychem Thick-Wall Heat Shrink Tubing can be used with low, medium, and high voltage electrical joints and splices and terminations of a wide range of cable size diameter. This is thanks to a high shrink ratio.

Question: What is Thick-Wall Heat Shrink Tubing made of?

Answer: Our WCSM uses highly specialized heat shrink materials engineering. It is a cross-linked, thick-wall polyolefin, that will shrink to the original smaller extruded diameter when heat is applied.

The heat shrink material is comprised of polymeric materials exposed to a high-energy electron beam that causes permanent cross-linking, or intermolecular joining, of adjacent molecules. Due to cross-linking, the heat shrink material loses its melting properties allowing it to be heated to temperatures beyond the crystalline melting point without melting. Above this temperature, heat shrink tubing can be expanded and formed in shapes that will remain in position while the temperature decreases below the crystalline melting point again.

When properly installed, TE’s Raychem heat-shrinkable tubes are long-lasting products that will help you improve your grid connectivity and reliability for decades.

Question: Which voltage range does the Thick-Wall Heat Shrink Tubing cover?

Answer: This is suitable for insulation in low voltage cable accessories up to 1 kV, or for sealing and rejacketing on low, medium and high voltage cable accessories.

Features

Please review product documents or contact us for the latest agency approval information.

Usage Conditions

Environmental Resistance Moisture, Weathering, Rain, Salt Water, Contaminated Water
Fluid Resistance Type Transformer Oil, Hydrocarbons
Flammability Performance Non-Flame-Retardant

Operation/Application

Thermal Resistance Applicable for Low Temperatures, Applicable for Low Temperatures, Applicable for High Temperatures, Flame-Retardant
Marine-Offshore-Shipbuilding Certified Yes
UV-Stabilized Yes
Mechanical Resistance Against Mechanical Impact or Damage, Abrasion Resistant

Body Features

Primary Product Material Crosslinked Polyolefin
Primary Product Color Black
Flexibility Semi-Rigid
Shrink Ratio > 3:1

Product Type Features

Coating Style Inline
Installation Technology Heat Shrink
Adhesive Coating Without, With
Wall Style (Excluding Adhesive) Single

Industry Standards

Compatible With Agency/Standards Products UL, CSA
Compatible With Approved Standards Products IEC 60684-3-247, IEC 60684-3-246, IEC 60684-3-214, HD631.2

Packaging Features

Spool Length (m) 250, 150, 350, 300, 100, 80

Product Availability

Product Availability Europe, Middle East & Africa, Asia, Americas, Australia, New Zealand & Pacific Islands, China

Dimensions

Compatible Cable Diameter (Max) (mm) 22, 144, 162, 180, 31, 81, 50, 225, 100, 63, 10, 118, 350, 295, 44, 14
Compatible Cable Diameter (Max) (in) 3.937, 4.645, .393
Compatible Cable Diameter (Min) (mm) 6.5, 13, 17.5, 38, 4.5, 9, 33, 28, 22, 3.5, 125, 18, 72, 105, 55
Compatible Cable Diameter (Min) (in) 1.496, 1.299, .137
Expanded Inside Diameter (Min) (mm) 34, 320, 12, 160, 200, 24, 90, 385, 280, 70, 16, 110, 180, 250, 48, 130, 56
Recovered Inside Diameter (Max) (mm) 6, 20, 3, 95, 16, 70, 25, 35, 12, 50, 110, 4, 8, 65, 30
Product Length (mm) 225, 600, 1200, 125, 150, 300, 250, 220, 280, 170, 1500, 1000, 800, 60, 200, 450, 550, 1550, 1250, 650, 230, 850, 1100, 350, 900, 2000, 700, 750, 500, 100, 1300, 1350, 440, 1400, 75, 80, 400, 175
Recovered Wall Thickness (Max) (mm) 2.7, 4.4, 4.5, 4.3, 4, 2.4, 2
Wall Thickness Thick, Thick/Heavy

Other

EU RoHS Compliance Compliant
EU ELV Compliance Compliant

Reference Number

TE Internal Number CAT-WCSM

Related Materials

Datasheets & Catalog Pages

WCSM HEAT-SHRINK TUBING IEEE pdf English
WCSM HEAT SHRINK TUBING IEC pdf English

Thick-Wall Heat Shrink Tubing

Product Features

Product Availability : Europe, Middle East & Africa, Asia, Americas, Australia, New Zealand & Pacific Islands, China

Flammability Performance : Non-Flame-Retardant

Adhesive Coating : Without, With

Compatible Cable Diameter (Max) (mm): 22, 144, 162, 180, 31, 81, 50, 225, 100, 63, 10, 118, 350, 295, 44, 14

Compatible Cable Diameter (Max) (in): 3.937, 4.645, .393

Compatible Cable Diameter (Min) (mm): 6.5, 13, 17.5, 38, 4.5, 9, 33, 28, 22, 3.5, 125, 18, 72, 105, 55

Compatible Cable Diameter (Min) (in): 1.496, 1.299, .137

Key Features

Thick-Wall Heat Shrink Tubing

Improving Grid Reliability

Our Raychem Heat Shrink Tubing

Frequently Asked Questions

Usage Conditions

Environmental Resistance Moisture, Weathering, Rain, Salt Water, Contaminated Water

Fluid Resistance Type Transformer Oil, Hydrocarbons

Flammability Performance Non-Flame-Retardant

Operation/Application

Thermal Resistance Applicable for Low Temperatures, Applicable for Low Temperatures, Applicable for High Temperatures, Flame-Retardant

Marine-Offshore-Shipbuilding Certified Yes

UV-Stabilized Yes

Mechanical Resistance Against Mechanical Impact or Damage, Abrasion Resistant

Body Features

Primary Product Material Crosslinked Polyolefin

Primary Product Color Black

Flexibility Semi-Rigid

Shrink Ratio > 3:1

Product Type Features

Coating Style Inline

Installation Technology Heat Shrink

Adhesive Coating Without, With

Wall Style (Excluding Adhesive) Single

Industry Standards

Compatible With Agency/Standards Products UL, CSA

Compatible With Approved Standards Products IEC 60684-3-247, IEC 60684-3-246, IEC 60684-3-214, HD631.2

Packaging Features

Spool Length (m) 250, 150, 350, 300, 100, 80

Product Availability

Product Availability Europe, Middle East & Africa, Asia, Americas, Australia, New Zealand & Pacific Islands, China

Dimensions

Compatible Cable Diameter (Max) (mm) 22, 144, 162, 180, 31, 81, 50, 225, 100, 63, 10, 118, 350, 295, 44, 14

Compatible Cable Diameter (Max) (in) 3.937, 4.645, .393

Compatible Cable Diameter (Min) (mm) 6.5, 13, 17.5, 38, 4.5, 9, 33, 28, 22, 3.5, 125, 18, 72, 105, 55

Compatible Cable Diameter (Min) (in) 1.496, 1.299, .137

Expanded Inside Diameter (Min) (mm) 34, 320, 12, 160, 200, 24, 90, 385, 280, 70, 16, 110, 180, 250, 48, 130, 56

Recovered Inside Diameter (Max) (mm) 6, 20, 3, 95, 16, 70, 25, 35, 12, 50, 110, 4, 8, 65, 30

Product Length (mm) 225, 600, 1200, 125, 150, 300, 250, 220, 280, 170, 1500, 1000, 800, 60, 200, 450, 550, 1550, 1250, 650, 230, 850, 1100, 350, 900, 2000, 700, 750, 500, 100, 1300, 1350, 440, 1400, 75, 80, 400, 175

Recovered Wall Thickness (Max) (mm) 2.7, 4.4, 4.5, 4.3, 4, 2.4, 2

Wall Thickness Thick, Thick/Heavy

Other

EU RoHS Compliance Compliant

EU ELV Compliance Compliant

Reference Number

TE Internal Number CAT-WCSM

Datasheets & Catalog Pages
