Bluetooth Wireless Pressure Transducer (65XXN)
Product Features
-
Operating Temperature Range : -30 – 75 °C [ -22 – 167 °F ]
-
Product Height (mm): 83.56, 77.47
-
Product Height (in): 3.29, 3.05
-
Pressure (bar): 350, 200, 35, 2
-
Pressure (psi): 5000, 3000, 500, 30
-
Proof Pressure Range : 3X Rated
-
Pressure Type : Compound, Absolute
The 65XXN series wireless pressure transducer is suitable for liquid or gas pressure measurements, including difficult media such as contaminated water, steam, and mildly corrosive fluids. The wetted material of the pressure port is made of 316L stainless steel and the transducer’s durability is excellent with no O-rings or organics exposed to the pressure media. The 65XXN is weatherproof (IP66/IP67) and approved to the latest FCC, IC, and CE standards.
Product Features
- Universal communications vis Bluetooth
- Lightweight and small form factor
- Programmable thresholds for event detection
- Easy device configuration via TE SensorConnect smartphone application
- Explosive atmosphere certified (some models)
- Programmable and customer configurable
- BSPP / NPT thread options available
- 29 PSI to 5,000 PSI pressure range
Technical Specifications
- 2+ year typical battery life @ 10 second advertisement / measure intervals in temperatures from -20°C to 40°C
- 8+ year typical battery life @ 1 minute advertisement / measure intervals in temperatures from -20°C to 40°C
- Supports pressure ranges from 2 to 350 bar (29 PSI to 5,000 PSI)
- Max weight: 170g (with battery)
- Accuracy as high as ±0.1%FS
- Bluetooth Low Energy 5.0 (BLE-5)
- Weatherproof (IP66/IP67)
- Wide operating temperature range from -30°C to 75°C
- Rugged construction that can withstand up to 50g shock and 8g vibration.
- Battery model SAFT LS17330 included
Hazardous Location Certifications
Intrinsic Safety Models
- IS Class I, Division 1, Groups A, B, C, D, T4
- Class I, Zone 0, AEx ia IIC T4 Ga
- Ex ia IIC T4 Ga; Ta / Process Temp: -30°C to +75°C
Typical Applications
- Oil well and pipeline monitoring
- Corrosive fluids and gas measurement systems
- Industrial process control and monitoring
- Refrigeration systems
- Pumps and compressors
- Hydraulic/pneumatic systems
- Smart logistics
- Agriculture equipment
- Energy generation and management
TE Connectivity's 65xxN & 69xxN series wireless pressure sensors bring practical innovation to industrial monitoring. Engineered with LoRaWAN® and Bluetooth® technology, these compact sensors fit seamlessly into various environments, from tight spaces to remote infrastructures. They offer a wide pressure sensing range, reducing the need for multiple sensors and simplifying system integration, with an impressive battery capacity of 2100 mAh. Watch this product introduction video now, for a more efficient approach to modern industrial monitoring.

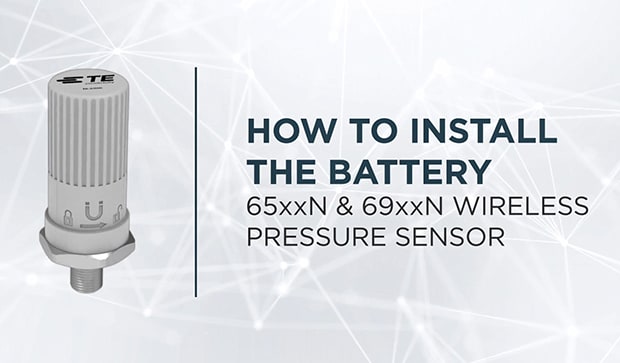

Welcome to our step-by-step guide on installing a battery in your wireless pressure sensor. In this video, we'll walk you through the simple process to ensure your sensor is up and running smoothly.
Please review product documents or contact us for the latest agency approval information.
Product Type Features
-
Pressure Type Compound, Absolute
-
Pressure Sensor Type Wireless Pressure Transducer
Signal Characteristics
-
Frequency Band (MHz) 2400
Body Features
-
Port Material 316L
Dimensions
-
Product Height (mm) 77.47, 83.56
-
Product Height (in) 3.05, 3.29
-
Product Diameter (mm) 39.8, 40.2
-
Product Diameter (in) 1.57, 1.58
Usage Conditions
-
Operating Temperature Range -30 – 75 °C [ -22 – 167 °F ]
Operation/Application
-
Pressure (bar) 2, 35, 200, 350
-
Pressure (psi) 30, 500, 3000, 5000
-
Proof Pressure Range 3X Rated
-
Output Signal Type Bluetooth
-
Pressure Accuracy ±0.25% FSO, ±0.1% FSO
Industry Standards
-
Hazardous Area Approval Intrinsically Safe, No
Other
-
Sensor Options IP67 Protection
-
Port Fitting 1/4-18 NPT, 1/4-19 BSPP
Reference Number
-
TE Internal Number CAT-WPT0002
