CON24001-1

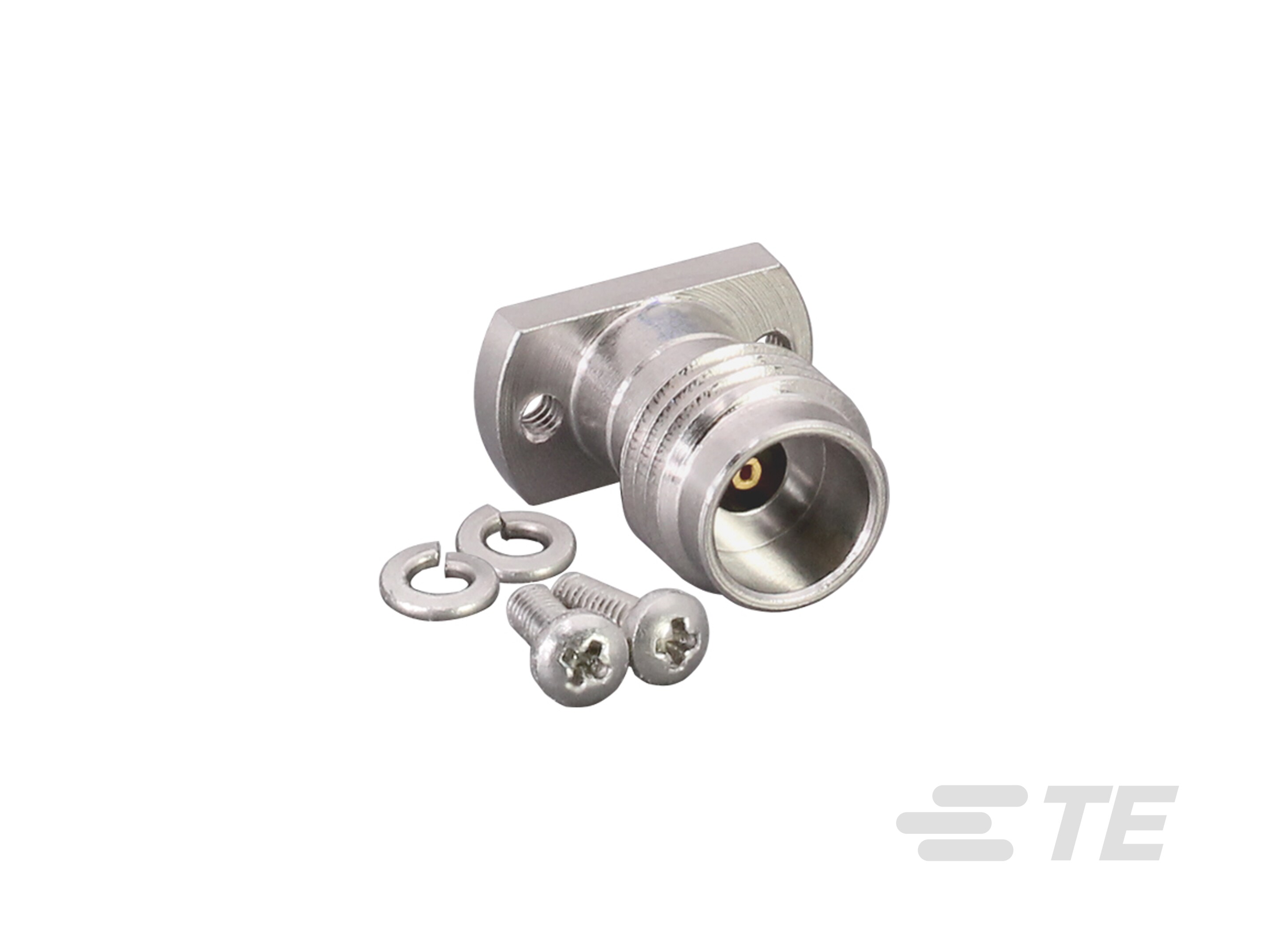

2.4mm Series Connector, Jack, 50 ohm, Threaded, 50 GHz Operating Frequency, Cable-to-Board, 1 Position, Printed Circuit Board, Board Mount
CON24001-1
2.4mm Series Connector, Jack, 50 ohm, Threaded, 50 GHz Operating Frequency, Cable-to-Board, 1 Position, Printed Circuit Board, Board Mount
- TE Internal #: CON24001-1
- TE Internal Description: 2.4 mm Jack 50 Ohm PCB Surface Mount
-
RF Interface : 2.4mm Series
-
RF Connector Style : Jack
-
Impedance (Ω): 50
-
RF Connector Coupling Mechanism : Threaded
-
Operating Frequency (GHz): 50
Documents
Product Drawings
- 2.4mm CONNECTOR JACK, SURFACE MOUNT, 50 OHm ENG_CD_C-CON24001-1_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_CON24001-1_A.pdf 3D
- Customer View Model ENG_CVM_CVM_CON24001-1_A.2d_dxf.zip English
- ENG_CVM_CVM_CON24001-1_A.3d_igs.zip English
- ENG_CVM_CVM_CON24001-1_A.3d_stp.zip English
Datasheets & Catalog Pages
- 2.4 mm Jack PCB Compression Surface-Mount Connector ENG_DS_con24001-1-ds_A.pdf English
