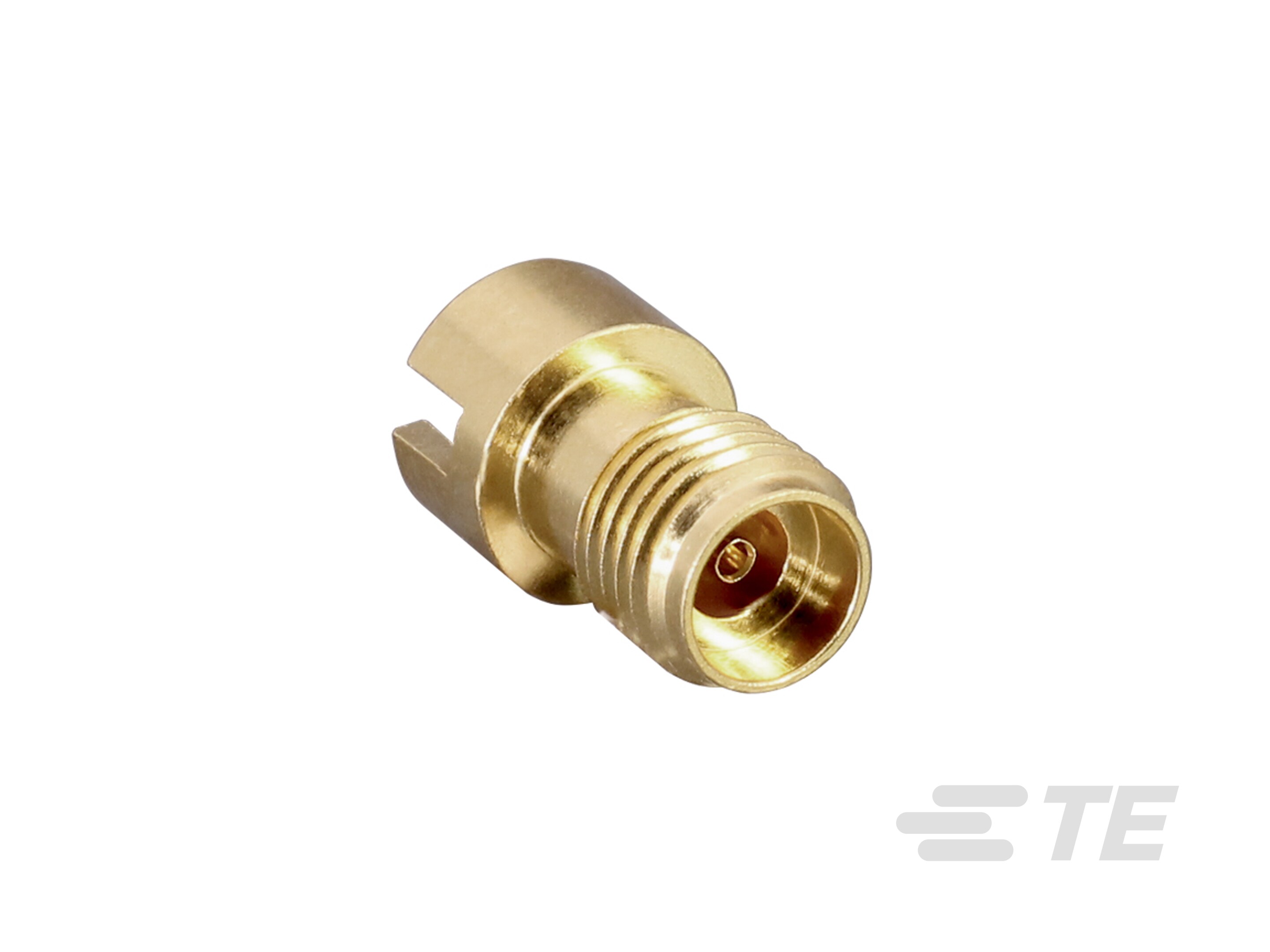

CON292003-2-G
2.92mm Series Connector, Jack, 50 ohm, Threaded, 0 – 40 GHz Operating Frequency, Wire-to-Board, 1 Position, Printed Circuit Board, Board Mount
CON292003-2-G
2.92mm Series Connector, Jack, 50 ohm, Threaded, 0 – 40 GHz Operating Frequency, Wire-to-Board, 1 Position, Printed Circuit Board, Board Mount
- TE Internal #: CON292003-2-G
- TE Internal Description: 2.92 mm Jack 50 Ohm PCB Edge Mount
-
RF Interface : 2.92mm Series
-
RF Connector Style : Jack
-
Impedance (Ω): 50
-
RF Connector Coupling Mechanism : Threaded
-
Operating Frequency (GHz): 0 – 40
Documents
Product Drawings
- CONNECTOR 2.92 END LAUNCH Au/CRES ENG_CD_C-CON292003-2-G_B.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_CON292003-2-G_B.pdf 3D
- Customer View Model ENG_CVM_CVM_CON292003-2-G_B.3d_stp.zip English
- ENG_CVM_CVM_CON292003-2-G_B.2d_dxf.zip English
- ENG_CVM_CVM_CON292003-2-G_B.3d_igs.zip English
Datasheets & Catalog Pages
- 2.92 mm Jack PCB Edge-Mount Connector ENG_DS_con292003-2-g-ds_A.pdf English
