CSJ-RGFB-100-MHF4

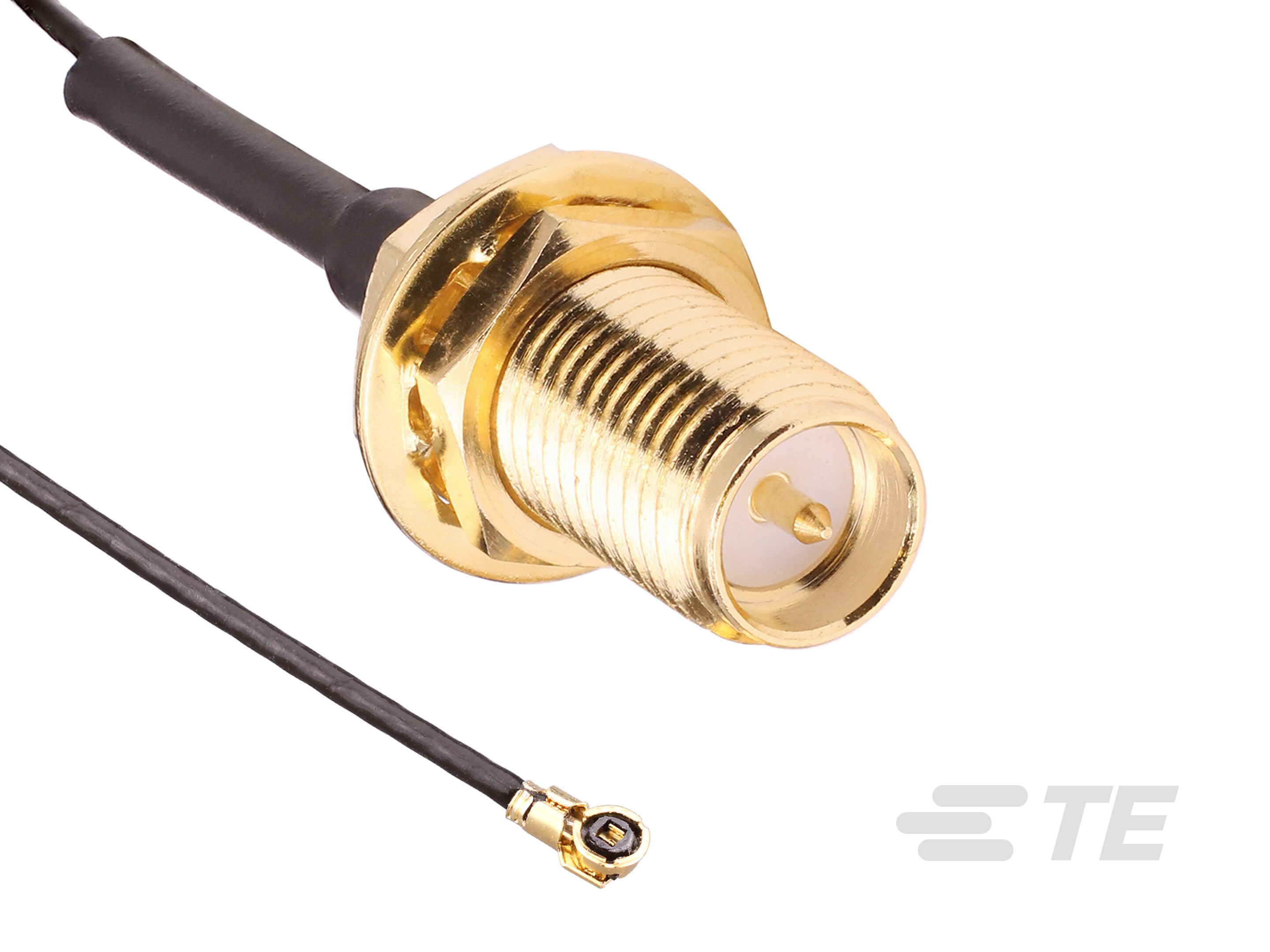

RP-SMA to MHF4 Cable Assembly, .1 – 1 m [.33 ft], Black Cable, 6 GHz, 50 ohm, PFA Jacket, 34 AWG, .81 mm [.031 in] Diameter, RP SMA Jack End A
CSJ-RGFB-100-MHF4
RP-SMA to MHF4 Cable Assembly, .1 – 1 m [.33 ft], Black Cable, 6 GHz, 50 ohm, PFA Jacket, 34 AWG, .81 mm [.031 in] Diameter, RP SMA Jack End A
- TE Internal #: CSJ-RGFB-100-MHF4
- TE Internal Description: RP-SMA to MHF4 100mm 0.81 OD
-
Cable Assembly Type : RP-SMA to MHF4
-
Cable Assembly Length : .1 – 1 m [ .33 ft ]
-
Cable Color : Black
-
Operating Frequency (GHz): 6
-
Impedance (Ω): 50
Documents
Product Drawings
- CBL ASSEMBLY, MHF4 TO FEM. BLKHD RP-SMA, 0.81mm CBL ENG_CD_C-CSJ-RGFB-ccc-MHF4_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_CSJ-RGFB-100-MHF4_A.pdf 3D
- Customer View Model ENG_CVM_CVM_CSJ-RGFB-100-MHF4_A.2d_dxf.zip English
- ENG_CVM_CVM_CSJ-RGFB-100-MHF4_A.3d_igs.zip English
Datasheets & Catalog Pages
- CBL ASSEMBLY, MHF4 TO FEM BLKHD RP-SMA, 0.81mm CBL ENG_DS_CSJ-RGFB-100-MHF4_B.pdf English
