• Fluid Type : Water, VDE 0370 Oil

• Primary Product Color : Black

• Shrink Ratio : 4:1

• Primary Product Material : Irradiated Modified Polyolefin

• Flexibility : Semi-Rigid

• Recovered Wall Thickness (Tolerance) : 2.41 mm [ .095 in ]

• Product Length : 1200 mm [ 47.244 in ]

• Recovered Inside Diameter (Max) : 4 mm [ .158 in ]

• Expanded Inside Diameter (Min) : 16 mm [ .63 in ]

• Shrink Temperature (Min) (°C): 110

• Resistance Properties : Moisture

• Tubing Flammability Type : Non-Flame-Retardant

• Operating Temperature Range (°C): -40 – 110

• Recovery Temperature (°C): 125

• Operating Voltage (Max) (kV): .6

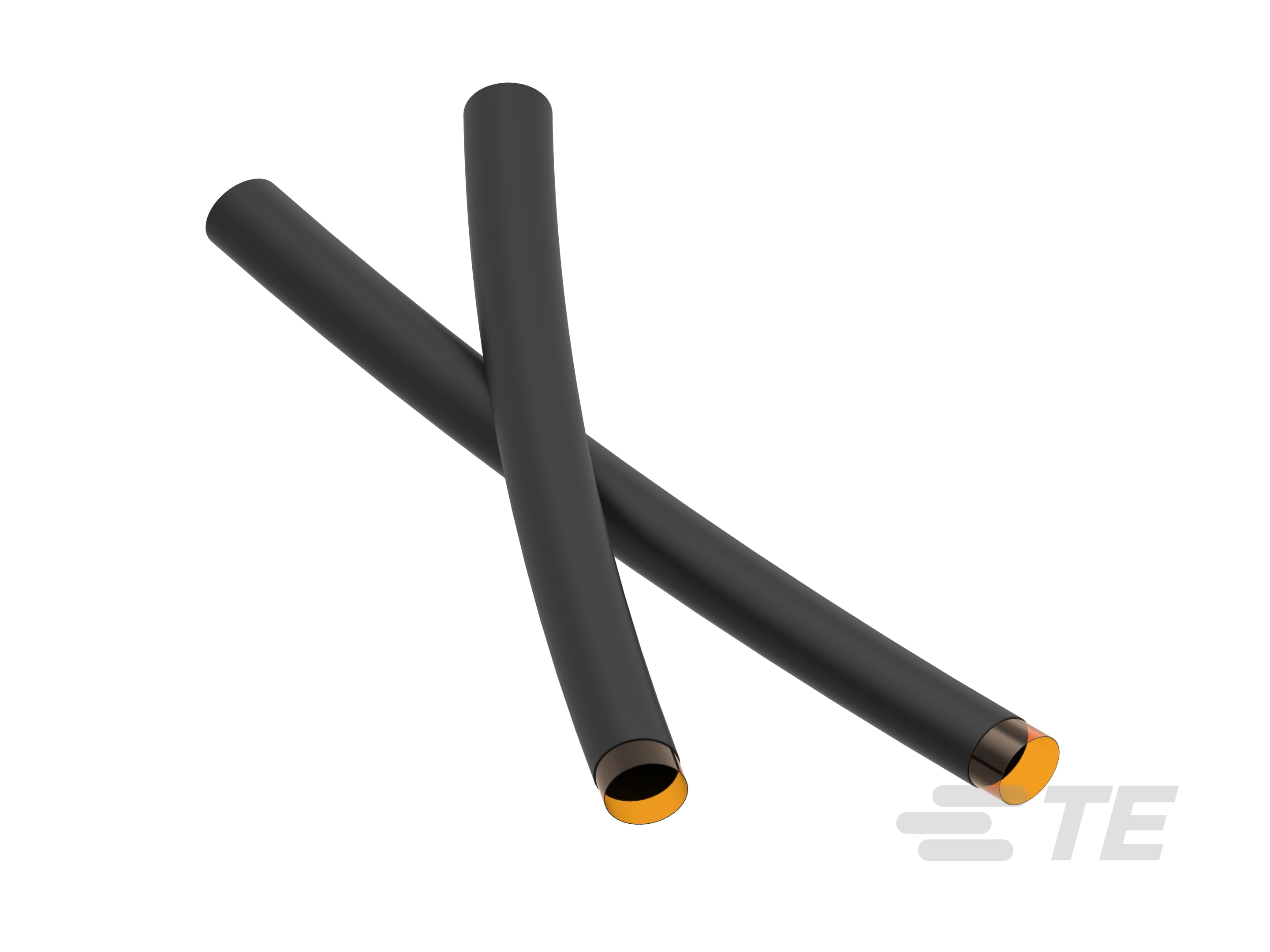

• Tubing Product Type : Heat Shrink Tubing

• Wall Type : Dual Wall

• Packaging Method : Piece

• Mechanical Resistance : Mechanical Damage, Impact, Fluids, Strain Relief, Abrasion

• Applicable Region : Global
