Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

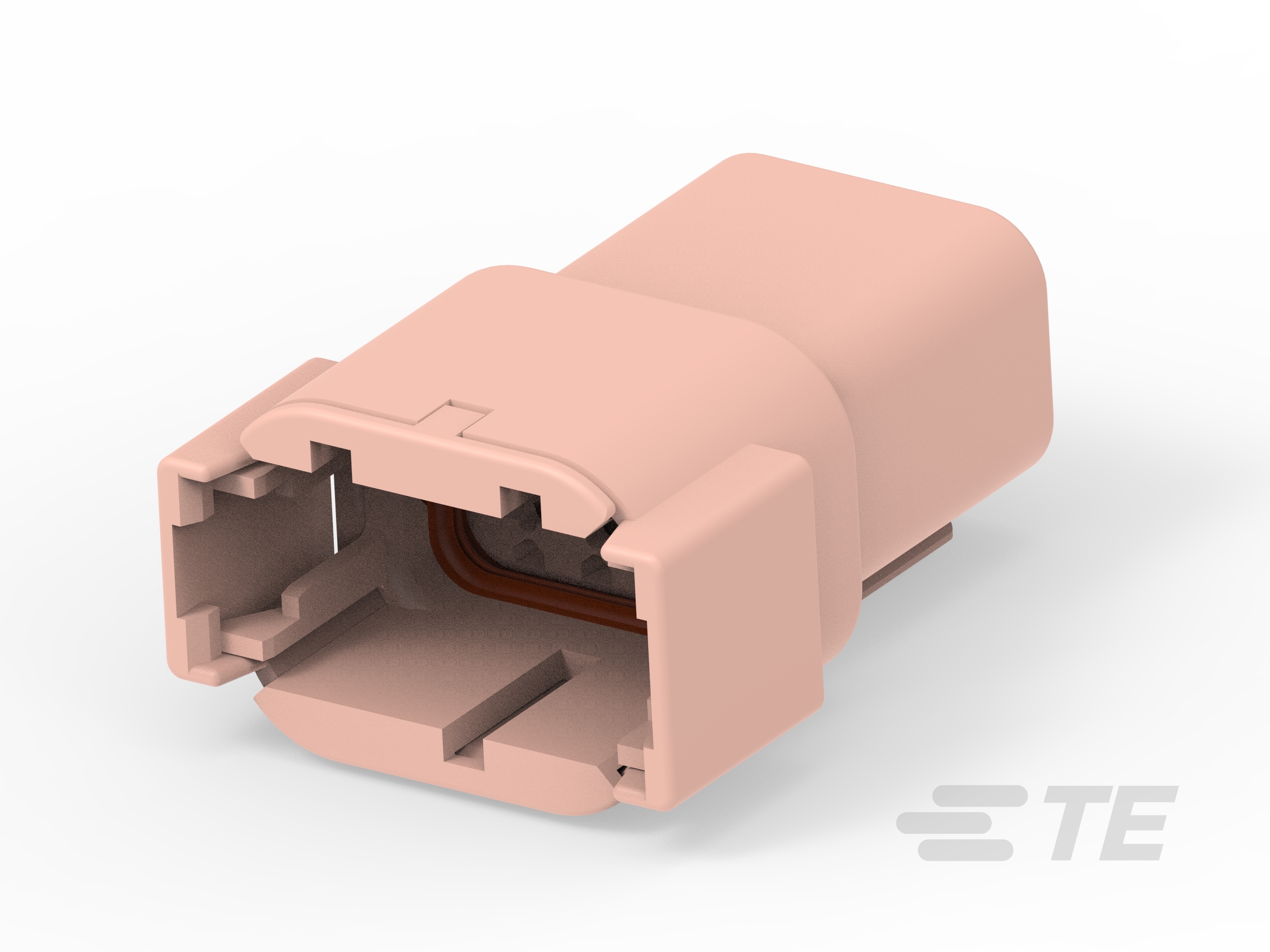

• Blank Cavity Position : 0

• Number of Positions : 8

• Number of Rows : 2

• Connector Shape : Rectangular

• Mixed & Hybrid Connector : No

• Connector & Housing Type : Housing for Male Terminals

• Connector System : Wire-to-Wire

• Sealable : Yes

• Primary Locking Feature : Integrated in Housing

• Connector & Contact Terminates To : Wire & Cable

• Contact Type : Pin

• Contact Size : Size 20

• Mating Pin Diameter : 1.02 mm [ .04 in ]

• Contact Current Rating (Max) (A): 7.5

• Housing Material : PA GF

• Centerline (Pitch) : 4.19 mm [ .165 in ]

• Cable Exit Angle : 180°

• Primary Product Color : Brown

• Connector & Keying Code : D

• Operating Voltage (VDC): 250

• Operating Voltage (VAC): 250

• Nominal Voltage Architecture (V): 24, 48, 12

• Serviceable : Yes

• Connector Position Assurance Capable : No

• EU RoHS Compliance : Compliant

• EU ELV Compliance : Compliant

• Mating Alignment : With

• Mating Alignment Type : Keyed

• Terminal Position Assurance : Yes

• Strain Relief : Add By Accessory

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Wire Size (AWG): 16 – 22

• Connector Height : 31.62 mm [ 1.245 in ]

• Product Length : 43.69 mm [ 1.72 in ]

• Product Width : 20.22 mm [ .796 in ]

• Compatible Insulation Diameter Range : 1.35 – 3.05 mm [ .053 – .12 in ]

• Row-to-Row Spacing : 7.11 mm [ .28 in ]

• Packaging Method : Box

• Packaging Quantity : 500

• UL Flammability Rating : 20mm Flame Test per Standard UL-94

• Compatible With Agency/Standards Products : SAE J2030

• IP Rating : IP6K9K, IP68

• Operating Temperature (Max) : 125 °C [ 257 °F ]

• Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
