Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

• Connector & Contact Terminates To : Wire & Cable

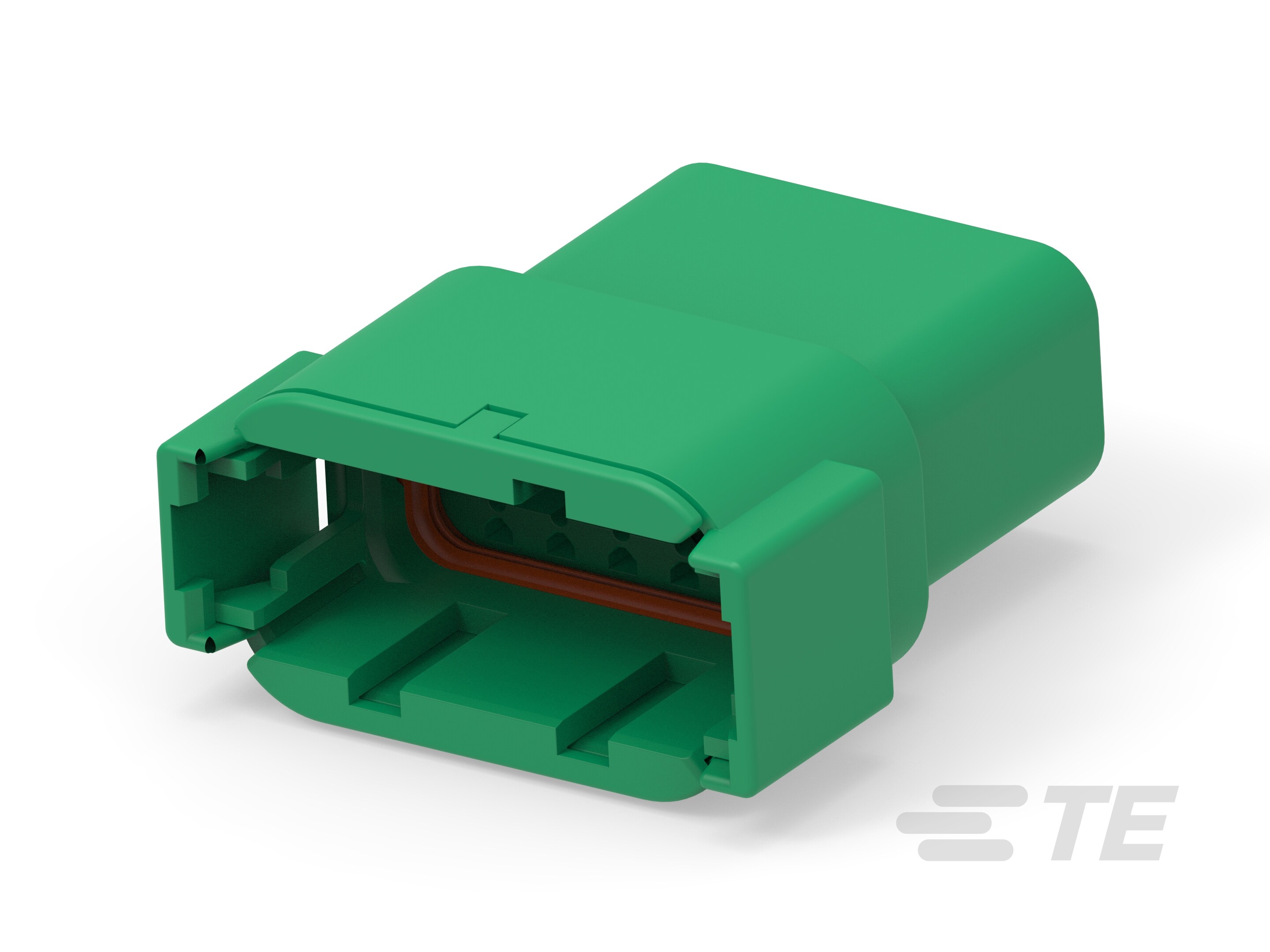

• Connector & Housing Type : Housing for Male Terminals

• Primary Locking Feature : Integrated in Housing

• Sealable : Yes

• Connector Shape : Rectangular

• Connector System : Wire-to-Wire

• Mixed & Hybrid Connector : No

• Number of Rows : 2

• Number of Positions : 12

• Blank Cavity Position : 0

• Operating Voltage (VDC): 250

• Operating Voltage (VAC): 250

• Primary Product Color : Green

• Connector & Keying Code : C

• Cable Exit Angle : 180°

• Mating Pin Diameter : 1 mm [ .04 in ]

• Contact Current Rating (Max) (A): 7.5

• Contact Type : Pin

• Contact Size : Size 20

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Terminal Position Assurance : Yes

• Strain Relief : Without

• Mating Alignment Type : Keyed

• Mating Alignment : With

• Centerline (Pitch) : 4.19 mm [ .165 in ]

• Housing Material : Plastic

• Product Width : 20.2 mm [ .795 in ]

• Connector Height : 43.7 mm [ 1.72 in ]

• Row-to-Row Spacing : 7.11 mm [ .279 in ]

• Compatible Insulation Diameter Range : 1.35 – 3.05 mm [ .053 – .12 in ]

• Product Length : 40 mm [ 1.57 in ]

• Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

• Operating Temperature (Max) : 125 °C [ 257 °F ]

• Circuit Application : Power

• Compatible With Agency/Standards Products : SAE J2030

• UL Flammability Rating : UL 94V-0

• Degree of Protection : IP6K9K, IP68

• Packaging Method : Package

• Packaging Quantity : 1
