Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

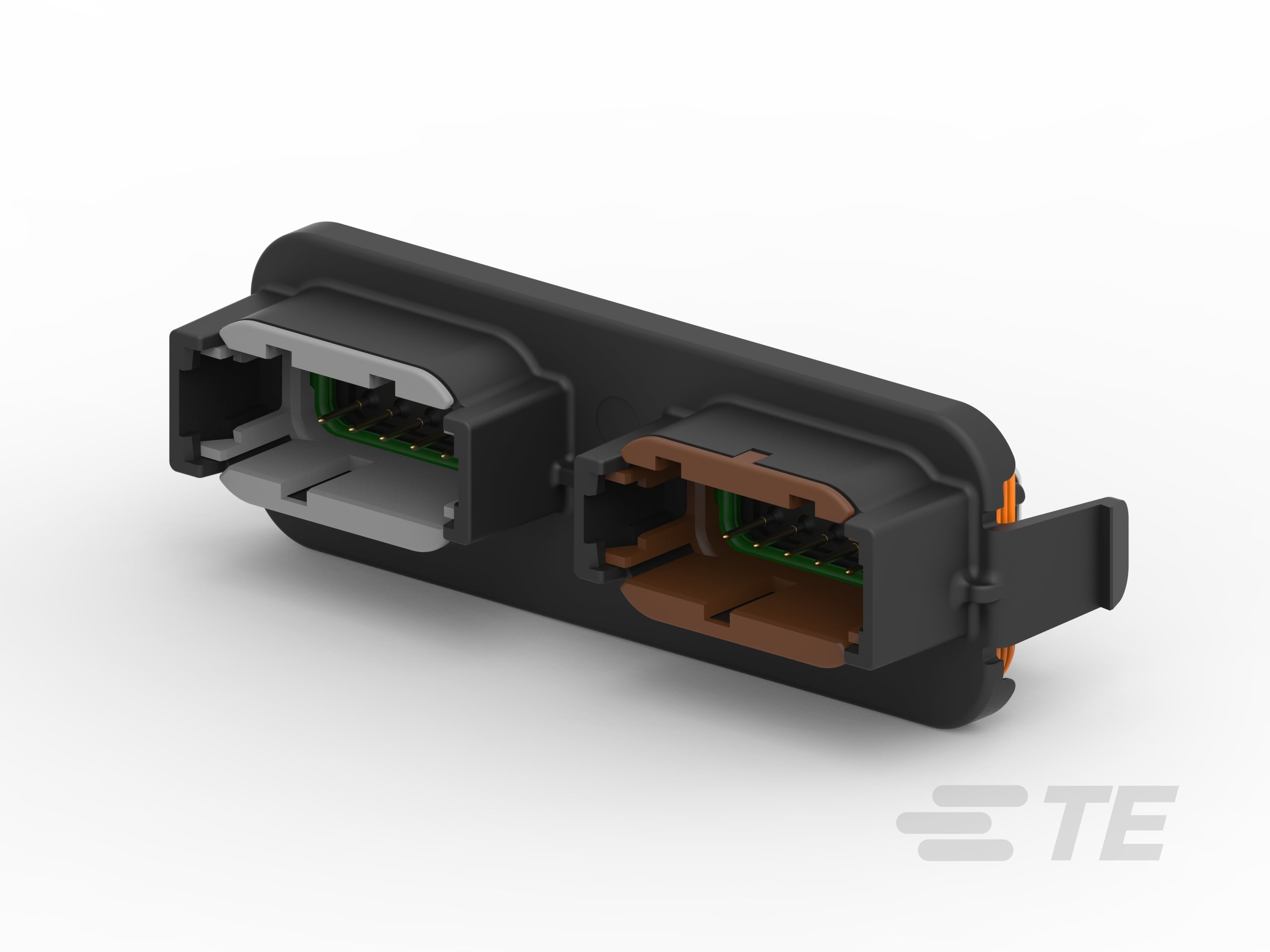

• Connector Shape : Rectangular

• Mixed & Hybrid Header : No

• PCB Connector Assembly Type : PCB Mount Header

• Connector System : Wire-to-Board

• Header Type : Fully Shrouded

• Sealable : Yes

• Connector & Contact Terminates To : Wire & Cable

• Number of Sections : 2

• Number of Signal Positions : 24

• PCB Mount Orientation : Right Angle

• Number of Positions : 24

• Number of Rows : 2

• Contact Size : Size 20

• Mating Pin Diameter : 1.02 mm [ .04 in ]

• Contact Mating Area Plating Material : Gold

• Contact Type : Pin

• Contact Current Rating (Max) (A): 7.5

• PCB Mount Retention Type : Mounting Screw

• Mating Retention : With

• Mounting Holes : With

• Mating Retention Type : Locking Interface

• Panel Mount Feature : Without

• PCB Mount Retention : With

• PCB Mount Alignment : Without

• Connector Mounting Type : Board Mount

• Mating Alignment : With

• Shielded : No

• Circuit Application : Signal

• Connector & Keying Code : CD

• Primary Product Color : Black

• Operating Temperature (Max) : 125 °C [ 257 °F ]

• Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

• UL Rating : None

• IP Rating : IP6K9K, IP67

• UL Flammability Rating : Not tested

• Packaging Quantity : 105

• Packaging Method : Box

• Interface Number : DTM04-12P

• EU RoHS Compliance : Compliant

• EU ELV Compliance : Compliant

• Connector Length : 36.91 mm [ 1.453 in ]

• Profile Height from PCB : 25.71 mm [ 1.012 in ]

• PCB Thickness (Recommended) : .78 – 1.57 mm [ .031 – .062 in ]

• Connector Width : 101 mm [ 3.976 in ]

• Nominal Voltage Architecture (V): 24, 12

• Voltage Rating (Max) (VDC): 250

• Voltage Rating (Max) (VAC): 250

• Operating Voltage (VDC): 250

• Operating Voltage (VAC): 250

• Termination Method to PCB : Through Hole - Solder
