DEUTSCH DTM Headers

DEUTSCH DTM Headers-CAT-D485-H342
  • DEUTSCH
|
  • DEUTSCH DT
    • ,
  • DEUTSCH DTM

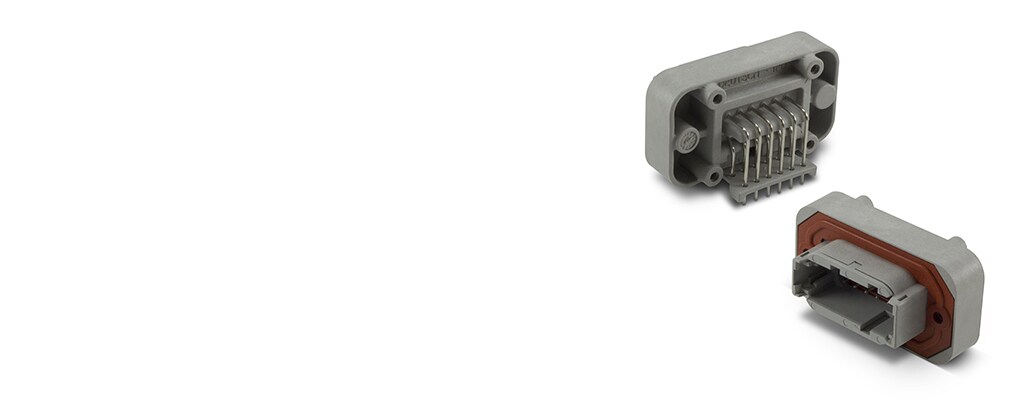

DEUTSCH DTM headers are printed circuit board connectors available with straight or right angle pins. DTM headers are available with 12 or 48 cavities and accommodate size 20 contacts, rated for 7.5 amps.
More Less

Product Features

  • PCB Connector Assembly Type : PCB Mount Header

  • PCB Mount Orientation : Vertical, Right Angle

  • Connector System : Wire-to-Board

  • Number of Positions : 12, 8, 48, 24

  • Number of Rows : 2

Available from

LADD Inc
Overview
DEUTSCH DTM headers provide an environmentally sealed solution for PCB applications.

DEUTSCH DTM Connectors Overview

  • Accepts contact size 20 (7.5 amps)
  • 14-22 AWG (2.50-0.35 mm2)
  • 2, 3, 4, 6, 8, and 12 cavity arrangements
  • In-line, flange, or PCB mount
  • Rectangular, thermoplastic housing
  • Integrated latch for mating
  • Wedgelocks confirm contact alignment and retention
  • Available accessories: boots, mounting clips
  1. DEUTSCH DT Family Connector Overview & Assembly Instructions (English)

Learn about our field proven DEUTSCH DT, DTM, and DTP connectors for harsh environment applications. Watch this video for an overview of the connectors and for step-by-step instructions on inserting and removing contacts, as well as mating and unmating.

How-to instruction video for TE's DEUTSCH DT connector family including DT, DTM, and DTP connectors.

Additional DEUTSCH DTM products

  • VIEW ALL DEUTSCH DTM PRODUCTS

    DEUTSCH DTM connectors fill the need for lower amperage, multi-pin connectors. They are environmentally sealed and stand up to harsh environments.

DEUTSCH Connector Solutions

DEUTSCH Solutions for Trust and Reliability

Our high-quality, easy-to-use DEUTSCH connectors are designed for applications where failure is not an option. These durable connectors provide high-performance and reliability in harsh environments.
FAQ

Frequently Asked Questions

Q:    What is a DTM connector?

A:     DEUTSCH DTM environmentally sealed connectors are designed for cable to cable, cable to board, and cable to device applications. DTM connectors are used in harsh environment applications where even a small degradation in connection may be critical.

Q:    What are the appropriate applications for DTM connectors?

A:     Truck, Bus, Off-highway, Construction, Agriculture, Mining, Emergency Vehicles, Forestry, Recreational, Marine, Motorcycle



READ MORE FAQS ABOUT DEUTSCH DTM CONNECTORS

Features

Please review product documents or contact us for the latest agency approval information.

Electrical Characteristics

  • Operating Voltage (VDC) 250

  • Nominal Voltage Architecture (V) 12, 24

  • Operating Voltage (VAC) 250

  • Voltage Rating (Max) (VDC) 250

  • Voltage Rating (Max) (VAC) 250

Body Features

  • Connector & Keying Code  AD, C, B, AC, CB, D, AB, CD, A, ABCD

  • Primary Product Color  Black, Gray

Industry Standards

  • UL Rating  None, Recognized

  • IP Rating  IP6K9K, IP67, IP68, Not Tested

  • UL Flammability Rating  UL 94V-0, 20mm Flame Test per Standard UL-94, Not tested

Operation/Application

  • Shielded  No

  • Circuit Application  Signal

Contact Features

  • Mating Pin Diameter  1.02 mm [ .04 in ]

  • Contact Size  Size 20

  • Contact Mating Area Plating Material  Gold, Nickel, Tin

  • Contact Type  Pin

  • Contact Current Rating (Max) (A) 7.5

Mechanical Attachment

  • Panel Mount Feature  With, Without

  • Mating Retention Type  Locking Interface

  • Mounting Holes  With

  • Mating Alignment Type  Keyed

  • PCB Mount Retention Type  Mounting Screw

  • Mating Retention  With

  • PCB Mount Retention  With

  • PCB Mount Alignment  Without

  • Connector Mounting Type  Panel Mount, Board Mount

  • Mating Alignment  With

Configuration Features

  • Number of Sections  2, 1, 4

  • Connector Modification  Custom Flange, PCB Enclosure Header

  • Number of Signal Positions  24, 12, 48, 8

  • PCB Mount Orientation  Vertical, Right Angle

  • Number of Positions  12, 8, 48, 24

  • Number of Rows  2

Product Type Features

  • Mixed & Hybrid Header  No

  • Connector Shape  Rectangular

  • PCB Connector Assembly Type  PCB Mount Header

  • Connector System  Wire-to-Board

  • Header Type  Fully Shrouded

  • Sealable  Yes

  • Connector & Contact Terminates To  Wire & Cable

Other

  • Interface Number  DTM04-12P, DTM04-08P

  • EU RoHS Compliance  Compliant, Compliant with Exemptions

  • EU ELV Compliance  Compliant with Exemptions, Compliant

Dimensions

  • Connector Length (mm) 30.23, 38.23, 39.37, 28.37, 36.91, 37.62, 38.1

  • Connector Length (in) 1.481, 1.55, 1.19, 1.453, 1.505, 1.5, 1.117

  • Connector Width (in) 1.851, 1.3, 3.976, 2.7, 3.256, 2.4, 2.476

  • Profile Height from PCB (mm) 35.54, 26.29, 28.37, 23.6, 33.5, 30.23, 25.71

  • Profile Height from PCB (in) 1.117, 1.319, 1.195, 1.36, 1.012, 1.19, 1.035, .929

  • Connector Width (mm) 47.02, 101, 82.7, 62.89, 60.96, 68.58, 33.02, 61

  • Connector Width (in) 1.851, 1.3, 3.976, 2.7, 3.256, 2.4, 2.476

  • PCB Thickness (Recommended) (mm) .78 – 1.57, .78 – 2.36

  • PCB Thickness (Recommended) (in) .031 – .093, .031 – .062

Usage Conditions

  • Operating Temperature (Max)  125 °C [ 257 °F ]

  • Operating Temperature Range  -55 – 125 °C [ -67 – 257 °F ]

Packaging Features

  • Packaging Quantity  63, 105, 125

  • Packaging Method  Box

Termination Features

  • Termination Method to PCB  Through Hole - Solder

Housing Features

  • Centerline (Pitch)  4.19 mm [ .165 in ]

Reference Number

  • TE Internal Number CAT-D485-H342

Related Materials

Flipbook Catalog

Product Specifications

Test Specifications

Connector Selector

  • Connector Selector (English) The Connector Selector is a reference guide to TE Connectivity's (TE) Industrial & Commercial Transportation electrical connectors.
