Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

• Blank Cavity Position : 0

• Number of Positions : 2

• Number of Rows : 1

• Connector Shape : Rectangular

• Mixed & Hybrid Connector : No

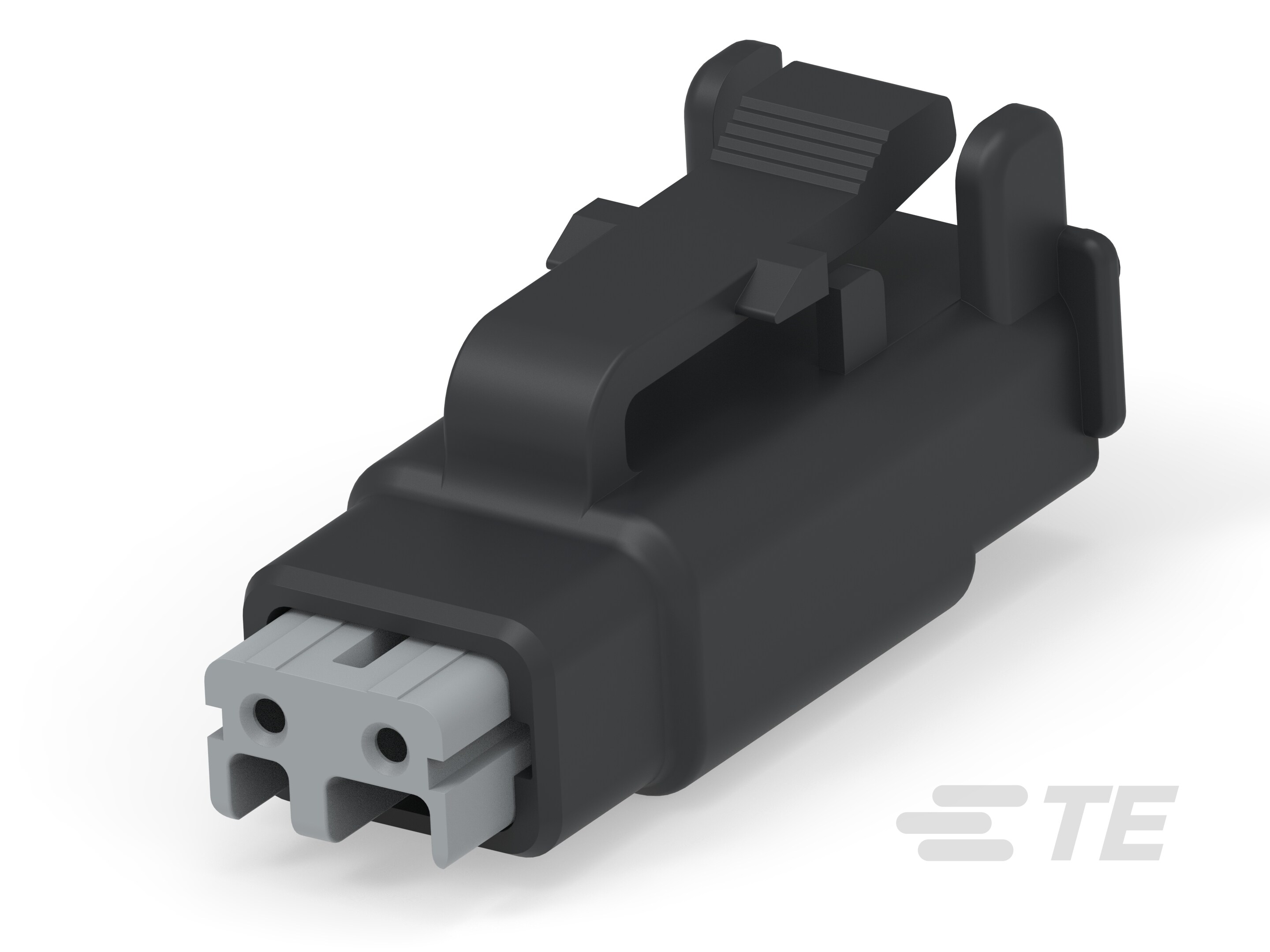

• Connector & Housing Type : Housing for Female Terminals

• Connector System : Wire-to-Wire

• Sealable : Yes

• Primary Locking Feature : Integrated in Housing

• Connector & Contact Terminates To : Wire & Cable

• Contact Type : Socket

• Contact Size : Size 20

• Mating Pin Diameter : 1 mm [ .04 in ]

• Contact Current Rating (Max) (A): 7.5

• Housing Material : PA GF

• Centerline (Pitch) : 4.19 mm [ .165 in ]

• Cable Exit Angle : 180°

• Primary Product Color : Black

• Connector & Keying Code : A

• Operating Voltage (VDC): 250

• Operating Voltage (VAC): 250

• Nominal Voltage Architecture (V): 250

• Serviceable : Yes

• Connector Position Assurance Capable : No

• EU RoHS Compliance : Compliant

• EU ELV Compliance : Compliant

• Mating Alignment : With

• Mating Alignment Type : Keyed

• Terminal Position Assurance : Yes

• Strain Relief : Without

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Packaging Method : Package

• Packaging Quantity : 1

• Connector Height : 27.6 mm [ 1.09 in ]

• Product Length : 14.1 mm [ .555 in ]

• Product Width : 12.9 mm [ .508 in ]

• Compatible Insulation Diameter Range : 1.3 – 3 mm [ .053 – .12 in ]

• UL Flammability Rating : UL 94V-0

• Compatible With Agency/Standards Products : SAE J2030

• IP Rating : IP6K9K, IP68

• Operating Temperature (Max) : 150 °C [ 302 °F ]

• Operating Temperature Range : -55 – 150 °C [ -67 – 302 °F ]
