- TE Internal #: G-NSDOG1-006

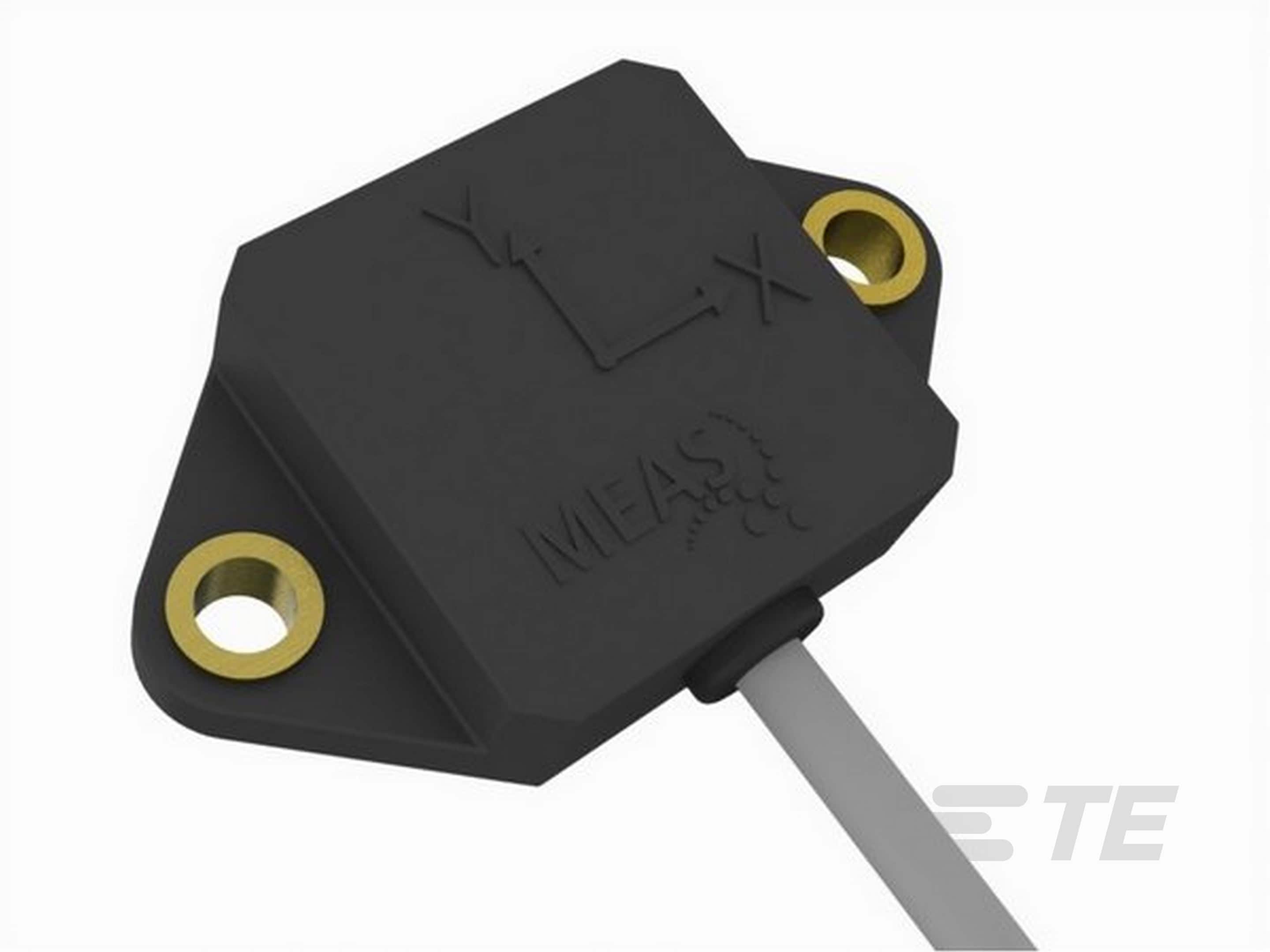

- TE Internal Description: AXISENSE-1 V-OUT-180 TILT SENSOR
- Alias #: NS-180/DOG1-XUZ-I-STD
-
Measurement Principle : MEMS
-
Sensor Package : Plastic Housing
-
Measurement Axes : Single Axis
-
Measurement Ranges (°): up to +/- 180
-
Housing Width (mm): Up to 70
Documents
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_G-NSDOG1-006_A.pdf 3D
- Customer View Model ENG_CVM_CVM_G-NSDOG1-006_A.3d_igs.zip English
- ENG_CVM_CVM_G-NSDOG1-006_A.3d_stp.zip English
- ENG_CVM_CVM_G-NSDOG1-006_A.2d_dxf.zip English
Datasheets & Catalog Pages
- AXISENSE-1 SERIES VOLTAGE TILT SENSOR ENG_DS_TES_DS_AXISENSE-1_VOUT-180_A3.pdf English
Product Specifications
- Application Specification ENG_SS_114-160013_B.pdf English
- Product Specification ENG_SS_108-160045_A1.pdf English
