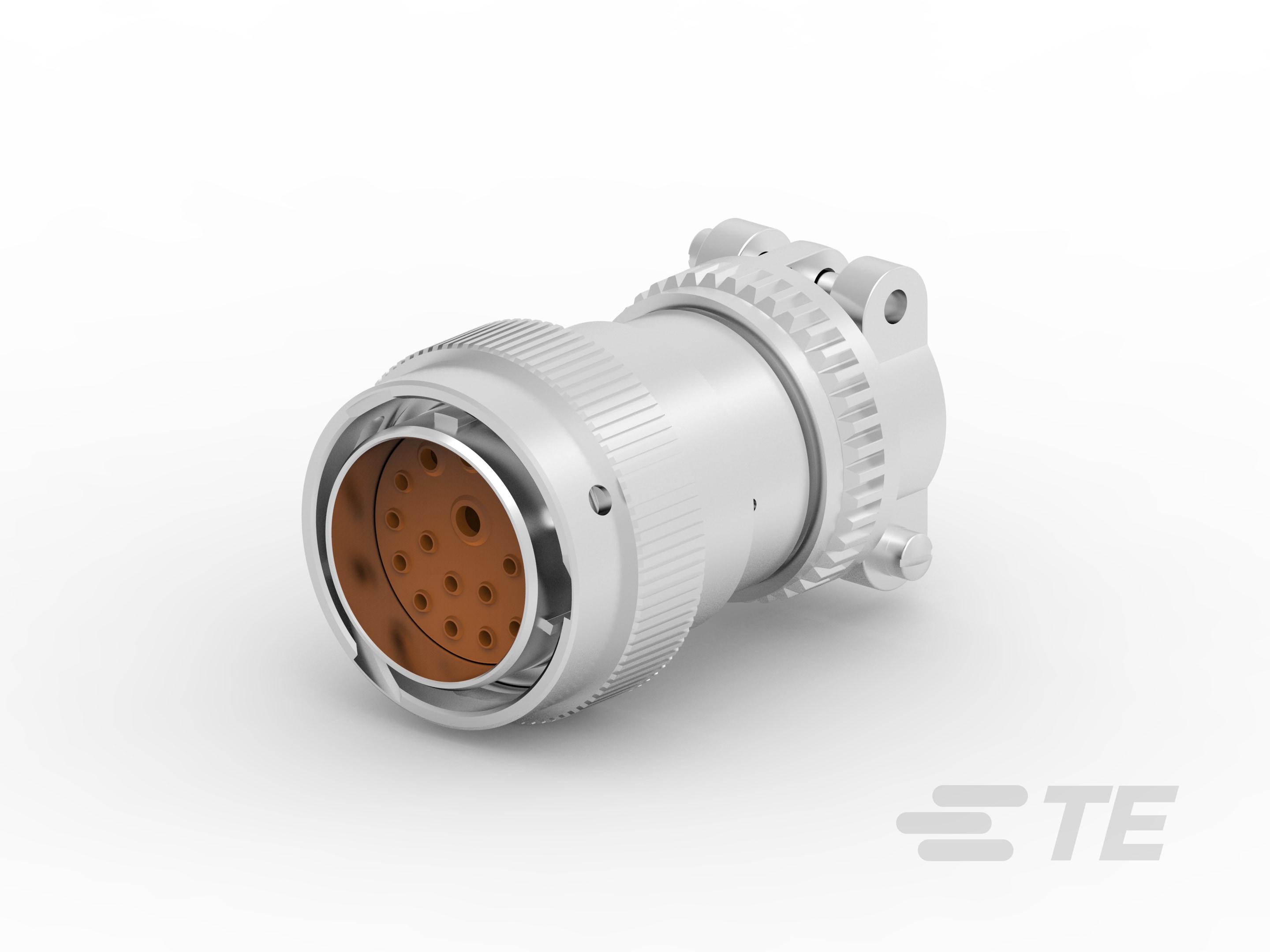

• Connector Shape : Circular

• Connector System : Wire-to-Wire

• Connector & Housing Type : Housing for Male Terminals

• Sealable : Yes

• Connector & Contact Terminates To : Wire & Cable

• Primary Locking Feature : Contact Retainer

• Mixed & Hybrid Connector : Yes

• Connector Seal Code : E Seal

• Connector Modification : Cable Clamp

• Number of Positions : 18

• Blank Cavity Position : 0

• Operating Voltage (VAC): 250

• Operating Voltage (VDC): 250

• Nominal Voltage Architecture (V): 250

• Cable Exit Angle : 180°

• Contact Type : Pin

• Contact Size : Size 12, Size 16, Size 8

• Mating Pin Diameter (mm): 1.6, 2.4, 3.61

• Mating Pin Diameter (in): .063, .095, .142

• Contact Current Rating (Max) (A): 13, 25, 60

• Mating Alignment : With

• Mating Alignment Type : Guide Slot

• Strain Relief : With

• Connector Mounting Type : Panel Mount

• Terminal Position Assurance : No

• Housing Material : Aluminum Alloy

• Compatible Insulation Diameter Range (mm): 1.35 – 3.05, 2.46 – 4.01, 3.43 – 5.59

• Compatible Insulation Diameter Range (in): .053 – .12, .097 – .158, .135 – .22

• Product Length : 49.3 mm [ 1.94 in ]

• Product Width : 49.3 mm [ 1.94 in ]

• Connector Height : 81 mm [ 3.18 in ]

• Operating Temperature (Max) : 125 °C [ 257 °F ]

• Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

• Circuit Application : Power

• IP Rating : IP67

• Packaging Method : Package

• Packaging Quantity : 1
