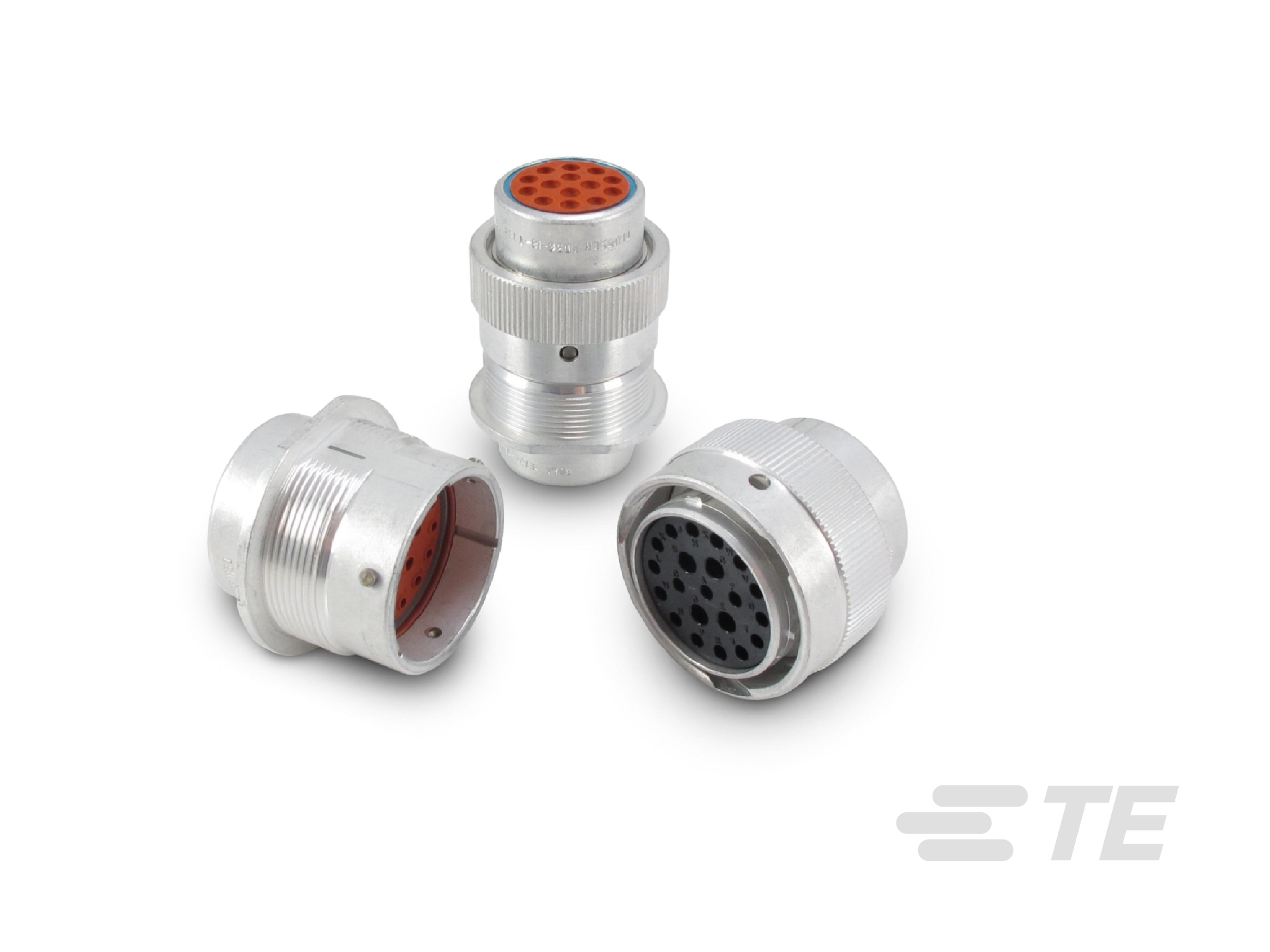

DEUTSCH HD30 Housings

DEUTSCH

DEUTSCH HD30
DEUTSCH HD

DEUTSCH HD30 housings are circular shaped, metal connectors that are offered in multiple pin configurations from 2 to 47 cavities. HD30 housings feature a coupling ring for mating and accept DEUTSCH contact sizes 4 through 20 (100-7.5 amps).

More Less

Product Features

Connector System : Wire-to-Wire, Wire-to-Panel
Number of Positions : 47, 6, 8, 16, 23, 29, 14, 20, 31, 35, 21, 33, 18, 19, 9
Connector & Housing Type : Housing for Female Terminals, Receptacle, Plug, Housing for Male Terminals
Centerline (Pitch) (mm): 12.7, 5.5
Centerline (Pitch) (in): .5, .216
Sealable : Yes

Available from

Product	TE Part #	Documents	Connector System	Number of Positions	Connector & Housing Type	Centerline (Pitch)	Mating Pin Diameter	Contact Current Rating (Max)	Circuit Application	Connector Mounting Type	Nominal Voltage Architecture	Primary Locking Feature	EU RoHS Compliance	EU ELV Compliance
REC, 18P,AL,N,CBLCLMPBT,DR,8/12/16, P,MC Buy on te.com	HD34-24-18PN-059	3D PDF	Wire-to-Panel	18	Housing for Male Terminals	-	1.6 mm, 2.4 mm, 3.6 mm	25 A, 13 A, 60 A	Power	Panel Mount	250 V	Integrated in Housing	Compliant	Compliant
REC, 23P, AL, E, THD ADPT, NODRAIN, 16,S Buy on te.com	HD34-24-23SE-L005	3D PDF	Wire-to-Wire	23	Housing for Female Terminals	-	1.6 mm	13 A	Power	Cable Mount (Free-Hanging)	250 V	Integrated in Housing	Compliant	Compliant
REC, 16P, AL, N, THD ADPT, DRAIN, 12, P Buy on te.com	HD34-24-16PN-072	3D PDF	Wire-to-Wire	16	Housing for Male Terminals	-	2.4 mm	25 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
PLG, 9P, AL, N, THDADPT,NODRAIN,4/8/12,S Buy on te.com	HD36-24-9SN-L005	Product Drawing 3D PDF	Wire-to-Wire	9	Housing for Female Terminals	-	2.4 mm, 3.6 mm, 5.7 mm	100 A, 25 A, 60 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 14P, AL, E, THD ADPT, DRAIN, 16, S Buy on te.com	HD34-18-14SE-072	3D PDF	Wire-to-Wire	14	Housing for Female Terminals	-	1.59 mm	13 A	Power	Panel Mount	250 V	Integrated in Housing	Compliant	Compliant
REC, 19P, AL, N, THD ADPT, DRAIN,12/16,S Buy on te.com	HD34-24-19SN-072	3D PDF	Wire-to-Panel	19	Housing for Female Terminals	-	1.6 mm, 2.4 mm	25 A, 13 A	Power	Panel Mount	250 V	Integrated in Housing	Compliant	Compliant
PLG,8P,AL,N, CBL CLMP BT,NODRAIN,12,S,MC	HD36-18-8SN-L006	Product Drawing 3D PDF	Wire-to-Wire	8	Housing for Female Terminals	-	2.4 mm	25 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
PLG,16P,AL,N,CBL CLMP BT,NODRAIN,12,P,MC Buy on te.com	HD36-24-16PN-L006	Product Drawing 3D PDF	Wire-to-Wire	16	Housing for Male Terminals	-	2.4 mm	25 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 9P, AL, E, THD ADPT DRAIN,8/12/16,P	YHD34-24-91PE-0720	3D PDF	Wire-to-Wire	9	Housing for Male Terminals	-	2.39 mm, 3.61 mm, 1.59 mm	25 A, 13 A, 60 A	Power	Panel Mount	250 V	Integrated in Housing	Compliant	Compliant
PLG, 18P,AL,E,CBLCLMPBT,DR,8/12/16, S,MC	YHD36-24-18SE-0590	3D PDF	Wire-to-Wire	18	Housing for Female Terminals	-	2.39 mm, 3.61 mm, 1.59 mm	25 A, 13 A, 60 A	Power	Cable Mount (Free-Hanging)	250 V	Integrated in Housing	Compliant	Compliant
PLG, 21P, AL, N, THD ADPT DRAIN, 12/16,P Buy on te.com	HD36-24-21PN-072	3D PDF	Wire-to-Wire	21	Housing for Male Terminals	-	1.6 mm, 2.4 mm	25 A, 13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
PLG, 21P, AL, E, THD ADPT DRAIN, 12/16,S	HD36-24-21SE-072	3D PDF	Wire-to-Wire	21	Housing for Female Terminals	-	2.39 mm, 1.59 mm	25 A, 13 A	Power & Signal	Cable Mount (Free-Hanging)	24 V, 12 V	Contact Retainer	Compliant	Compliant
PLG,16P,AL,N,CBL CLMP BT,NODRAIN,12,S,MC	HD36-24-16SN-L006	Product Drawing 3D PDF	Wire-to-Wire	16	Housing for Female Terminals	-	2.4 mm	25 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
PLG, 23P, AL, E, THD ADPT, NODRAIN, 16,P Buy on te.com	HD36-24-23PE-L005	Product Drawing 3D PDF	Wire-to-Panel	23	Plug	-	1.6 mm	13 A	Power	Panel Mount	-	Integrated in Housing	Compliant	Compliant
REC, 19P, AL, N, THD ADPT, DRAIN,12/16,P Buy on te.com	HD34-24-19PN-072	3D PDF	Wire-to-Panel	19	Housing for Male Terminals	-	1.6 mm, 2.4 mm	25 A, 13 A	Power	Panel Mount	250 V	Integrated in Housing	Compliant	Compliant
REC, 16P, AL, E, THD ADPT, DRAIN, 12, P Buy on te.com	HD34-24-16PE-072	3D PDF	Wire-to-Wire	16	Housing for Male Terminals	-	2.4 mm	25 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
PLG,23P,AL, E, CBL CLMP, NODRAIN,16,P,MC	HD36-24-23PE-L006	Product Drawing 3D PDF	Wire-to-Panel	23	Plug	-	1.6 mm	13 A	Power	Panel Mount	-	Integrated in Housing	Compliant	Compliant
PLG, 23P, AL, T, THD ADPT DRAIN, 16, S Buy on te.com	HD36-24-23ST-072	3D PDF	Wire-to-Panel	23	Plug	-	1.6 mm	13 A	Power	Panel Mount	-	Contact Retainer	Compliant	Compliant
PLG, 29P,AL,E,THDADPT,NODRAIN,12/16/20,S	HD36-24-29SE-L005	Product Drawing 3D PDF	Wire-to-Panel	29	Plug	-	1.6 mm, 2.4 mm, 1 mm	25 A, 13 A, 7.5 A	Power	Panel Mount	-	Contact Retainer	Compliant	Compliant
REC, 20P, AL, N, THD ADPT,DRAIN,16/20,S	HD34-18-20SN-072	3D PDF	Wire-to-Wire	20	Receptacle	-	1.6 mm, 1 mm	13 A, 7.5 A	Power	Panel Mount	-	Contact Retainer	Compliant	Compliant
REC,19P,AL,E,CBL CLMPBT,DRAIN,12/16,P,MC Buy on te.com	HD34-24-19PE-059	3D PDF	Wire-to-Wire	19	Housing for Male Terminals	-	1.6 mm, 2.4 mm	25 A, 13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 31P, AL, T, THD ADPT, NO DRAIN,16,S	HD34-24-31ST-L005	3D PDF	Wire-to-Panel	31	Receptacle	-	1.6 mm	13 A	Power	Panel Mount	-	Contact Retainer	Compliant	Compliant
PLG, 8P, AL, E, THD ADPT, DRAIN, 12, S	HD36-18-8SE-072	3D PDF	Wire-to-Wire	8	Housing for Female Terminals	-	2.4 mm	25 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 18P, AL,E,CBLCLMPBT,DR,8/12/16,S,MC	HD34-24-18SE-059	3D PDF	Wire-to-Wire	18	Housing for Female Terminals	-	1.6 mm, 2.4 mm, 3.61 mm	25 A, 13 A, 60 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 31P, AL, T, THD ADPT, DRAIN, 16, P Buy on te.com	HD34-24-31PT-072	3D PDF	Wire-to-Panel	31	Housing for Male Terminals	-	1.6 mm	13 A	Power	Panel Mount	250 V	Integrated in Housing	Compliant	Compliant
PLG,6P,AL,N, CBL CLMP BT,DRAIN,4/16,P,MC	HD36-18-6PN-059	3D PDF	Wire-to-Panel	6	Plug	-	1.6 mm, 5.7 mm	100 A, 13 A	Power	Panel Mount	-	Integrated in Housing	Compliant	Compliant
PLG,14P,AL,E,CBL CLMP BT,NODRAIN,16,S,MC	HD36-18-14SE-L006	Product Drawing 3D PDF	Wire-to-Panel	14	Plug	-	1.6 mm	13 A	Power	Panel Mount	-	Integrated in Housing	Compliant	Compliant
REC, 29P, AL, E, THDADPTDRAIN,12/16/20,S	HD34-24-29SE-072	3D PDF	Wire-to-Wire	29	Housing for Female Terminals	-	2.39 mm, 1.02 mm, 1.59 mm	25 A, 13 A, 7.5 A	Power	Panel Mount	250 V	Integrated in Housing	Compliant	Compliant
PLG, 16P, AL, E, THD ADPT, NODRAIN, 12,S	HD36-24-16SE-L005	Product Drawing 3D PDF	Wire-to-Panel	16	Plug	-	2.4 mm	25 A	Power	Panel Mount	-	Contact Retainer	Compliant	Compliant
PLG, 19P, AL, N, THD ADPT, DRAIN,12/16,S Buy on te.com	HD36-24-19SN-072	3D PDF	Wire-to-Wire	19	Housing for Female Terminals	-	1.6 mm, 2.4 mm	25 A, 13 A	Power	Cable Mount (Free-Hanging)	250 V	Contact Retainer	Compliant	Compliant
REC, 23P, AL, N, THD ADPT, NODRAIN, 16,S Buy on te.com	HD34-24-23SN-L005	3D PDF	Wire-to-Panel	23	Housing for Female Terminals	-	1.6 mm	13 A	Power	Panel Mount	250 V	Integrated in Housing	Compliant	Compliant
REC,16P,AL,N,CBL CLMP BT,NODRAIN,12,S,MC	HD34-24-16SN-L006	Product Drawing 3D PDF	Wire-to-Wire	16	Housing for Female Terminals	-	2.4 mm	25 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 14P, AL, N, THD ADPT, NODRAIN,16,S Buy on te.com	HD34-18-14SN-L005	3D PDF	Wire-to-Panel	14	Housing for Female Terminals	-	1.6 mm	13 A	Power	Panel Mount	250 V	Integrated in Housing	Compliant	Compliant
REC,21P,AL,N, CBL CLMP BT, DRAIN,20,S,MC Buy on te.com	HD34-18-21SN-059	3D PDF	Wire-to-Wire	21	Housing for Female Terminals	-	1 mm	7.5 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC,19P,AL,E,CBLCLMP BT,DRAIN,12/16,S,MC	HD34-24-19SE-059	3D PDF	Wire-to-Wire	19	Housing for Female Terminals	-	1.6 mm, 2.4 mm	25 A, 13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC,14P,AL,N,CBLCLMPBT,NODR,4/12/16,S,MC	HD34-24-14SN-L006	Product Drawing 3D PDF	Wire-to-Wire	14	Housing for Female Terminals	-	2.39 mm, 5.72 mm, 1.59 mm	100 A, 25 A, 13 A	Power & Signal	Panel Mount	24 V, 12 V	Contact Retainer	Compliant	Compliant
PLG, 20P, AL, N, THD ADPT, NODRAIN,16,S	HD36-18-20SN-L005	3D PDF	Wire-to-Wire	20	Plug	-	1 mm, 1.57 mm	13 A, 7.5 A	Power	Panel Mount	-	Contact Retainer	Compliant	Compliant
PLG, 31P, AL, T, THD ADPT, NO DRAIN,16,S Buy on te.com	HD36-24-31ST-L005	Product Drawing 3D PDF	Wire-to-Panel	31	Plug	-	1.6 mm	13 A	Power	Panel Mount	-	Contact Retainer	Compliant	Compliant
REC,14P,AL,N,CBL CLMP BT,NODRAIN,16,S,MC	HD34-18-14SN-L006	Product Drawing 3D PDF	Wire-to-Wire	14	Housing for Female Terminals	-	1.59 mm	13 A	Power	Panel Mount	250 V	Integrated in Housing	Compliant	Compliant
PLG, 47P, AL, E, THDADPT,NODRAIN,16/20,P	HD36-24-47PE-L005	Product Drawing 3D PDF	Wire-to-Panel	47	Plug	-	1.6 mm, 1 mm	13 A, 7.5 A	Power	Panel Mount	-	Integrated in Housing	Compliant	Compliant
REC,23P,AL,T, CBL CLMP BT, DRAIN,16,P,MC	HD34-24-23PT-059	3D PDF	Wire-to-Panel	23	Housing for Male Terminals	-	1.6 mm	13 A	Power	Panel Mount	250 V	Integrated in Housing	Compliant	Compliant
PLG, 29P,AL,E,THDADPT,NODRAIN,12/16/20,P	HD36-24-29PE-L005	Product Drawing 3D PDF	Wire-to-Panel	29	Plug	-	1.6 mm, 2.4 mm, 1 mm	25 A, 13 A, 7.5 A	Power	Panel Mount	-	Contact Retainer	Compliant	Compliant
PLG, 31P, AL, T, THD ADPT, NO DRAIN,16,P	HD36-24-31PT-L005	Product Drawing 3D PDF	Wire-to-Panel	31	Plug	-	1.6 mm	13 A	Power	Panel Mount	-	Integrated in Housing	Compliant	Compliant
REC, 31P, AL, E, THD ADPT, NO DRAIN,16,S	HD34-24-31SE-L005	3D PDF	Wire-to-Panel	31	Housing for Female Terminals	-	1.6 mm	13 A	Power	Panel Mount	250 V	Integrated in Housing	Compliant	Compliant
PLG, 14P, AL, E, THD ADPT, NODRAIN,16,S	HD36-18-14SE-L005	3D PDF	Wire-to-Panel	14	Plug	-	1.6 mm	13 A	Power	Panel Mount	-	Integrated in Housing	Compliant	Compliant
REC, 19P, AL, N THD ADPT NODRAIN,12/16,S	HD34-24-19SN-L005	3D PDF	Wire-to-Panel	19	Housing for Female Terminals	-	1.6 mm, 2.4 mm	25 A, 13 A	Power	Panel Mount	250 V	Integrated in Housing	Compliant	Compliant
PLG,31P,AL,E, CBLCLMPBT, NODRAIN,16,P,MC	HD36-24-31PE-L006	Product Drawing 3D PDF	Wire-to-Wire	31	Housing for Male Terminals	-	1.6 mm	13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC,14P,AL,N,CBL CLMP BT,NODRAIN,16,P,MC Buy on te.com	HD34-18-14PN-L006	Product Drawing 3D PDF	Wire-to-Wire	14	Receptacle	-	1.6 mm	13 A	Power	Panel Mount	-	Contact Retainer	Compliant	Compliant
REC, 9P, AL, N, THD ADPT DRAIN, 4/8/12,S Buy on te.com	HD34-24-9SN-072	3D PDF	Wire-to-Wire	9	Housing for Female Terminals	-	2.4 mm, 3.6 mm, 5.7 mm	100 A, 25 A, 60 A	Power	Cable Mount (Free-Hanging)	250 V	Integrated in Housing	Compliant	Compliant
PLG,9P,AL,N,CBL CLMP,NODRAIN,4/8/12,P,MC	HD36-24-9PN-L006	Product Drawing 3D PDF	Wire-to-Panel	9	Plug	-	2.4 mm, 3.6 mm, 5.7 mm	100 A, 25 A, 60 A	Power	Panel Mount	-	Integrated in Housing	Compliant	Compliant
REC,19P,AL,N,CBLCLMP BT,DRAIN,12/16,S,MC	HD34-24-19SN-059	3D PDF	Wire-to-Wire	19	Housing for Female Terminals	-	1.6 mm, 2.4 mm	25 A, 13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 21P, AL,E,CBLCLMPBT,NODR,12/16,S,MC	HD34-24-21SE-L006	Product Drawing 3D PDF	Wire-to-Wire	21	Housing for Female Terminals	-	2.39 mm, 1.59 mm	25 A, 13 A	Power & Signal	Panel Mount	24 V, 12 V	Contact Retainer	Compliant	Compliant
REC, 29P, AL, E, THDADPTDRAIN,12/16/20,P Buy on te.com	HD34-24-29PE-072	3D PDF	Wire-to-Panel	29	Receptacle	-	1.6 mm, 2.4 mm, 1 mm	25 A, 13 A, 7.5 A	Power	Panel Mount	-	Contact Retainer	Compliant	Compliant
REC,21P,AL,N, CBL CLMP BT, DRAIN,20,P,MC Buy on te.com	HD34-18-21PN-059	3D PDF	Wire-to-Panel	21	Housing for Male Terminals	-	1 mm	7.5 A	Power	Panel Mount	250 V	Integrated in Housing	Compliant	Compliant
PLG, 23P, AL, N, THD ADPT, NODRAIN, 16,S Buy on te.com	HD36-24-23SN-L005	Product Drawing 3D PDF	Wire-to-Wire	23	Housing for Female Terminals	-	1.6 mm	13 A	Power	Cable Mount (Free-Hanging)	250 V	Contact Retainer	Compliant	Compliant
PLG, 14P, AL, N,THD ADPT DRAIN,4/12/16,S	HD36-24-14SN-072	3D PDF	Wire-to-Wire	14	Housing for Female Terminals	-	2.39 mm, 5.72 mm, 1.59 mm	100 A, 25 A, 13 A	Power & Signal	Cable Mount (Free-Hanging)	24 V, 12 V	Contact Retainer	Compliant	Compliant
REC,23P,AL,T, CBL CLMP BT, DRAIN,16,S,MC Buy on te.com	HD34-24-23ST-059	3D PDF	Wire-to-Panel	23	Receptacle	-	1.6 mm	13 A	Power	Panel Mount	-	Contact Retainer	Compliant	Compliant
REC, 31P, AL, T, THD ADPT, NO DRAIN,16,P Buy on te.com	HD34-24-31PT-L005	3D PDF	Wire-to-Panel	31	Housing for Male Terminals	-	1.6 mm	13 A	Power	Panel Mount	-	Integrated in Housing	Compliant	Compliant
REC,6P,AL,N, CBL CLMP BT,DRAIN,4/16,S,MC	HD34-18-6SN-059	3D PDF	Wire-to-Wire	6	Receptacle	12.7 mm, 5.5 mm	1.6 mm, 5.7 mm	100 A, 13 A	Power	Panel Mount	-	Contact Retainer	Compliant	Compliant
REC, 21P, AL, E, THDADPT,NODRAIN,12/16,S	HD34-24-21SE-L005	3D PDF	Wire-to-Wire	21	Housing for Female Terminals	-	2.39 mm, 1.59 mm	25 A, 13 A	Power & Signal	Panel Mount	24 V, 12 V	Contact Retainer	Compliant	Compliant
PLG,18P,AL,N,CBLCLMPBT,NODR,8/12/16,S,MC	HD36-24-18SN-L006	Product Drawing 3D PDF	Wire-to-Panel	18	Plug	-	1.6 mm, 2.4 mm, 3.61 mm	25 A, 13 A, 60 A	Power	Panel Mount	-	Contact Retainer	Compliant	Compliant
PLG, 29P, AL, E, THDADPTDRAIN,12/16/20,S Buy on te.com	HD36-24-29SE-072	3D PDF	Wire-to-Panel	29	Plug	-	1.6 mm, 2.4 mm, 1 mm	25 A, 13 A, 7.5 A	Power	Panel Mount	-	Contact Retainer	Compliant	Compliant
PLG,31P,AL,T, CBLCLMPBT, NODRAIN,16,P,MC	HD36-24-31PT-L006	Product Drawing 3D PDF	Wire-to-Panel	31	Plug	-	1.6 mm	13 A	Power	Panel Mount	-	Integrated in Housing	Compliant	Compliant
PLG, 35P, AL, N, THD ADPT DRAIN, 16/20,S Buy on te.com	HD36-24-35SN-072	3D PDF	Wire-to-Wire	35	Housing for Female Terminals	-	1.6 mm, 1 mm	13 A, 7.5 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 18P, AL, N, THDADPT,DRAIN,8/12/16,S	HD34-24-18SN-072	3D PDF	Wire-to-Panel	18	Receptacle	-	1.6 mm, 2.4 mm, 3.61 mm	25 A, 13 A, 60 A	Power	Panel Mount	-	Contact Retainer	Compliant	Compliant
PLG, 16P, AL, E, 12, P	HD36-24-16PE	3D PDF	Wire-to-Panel	16	Housing for Male Terminals	-	2.4 mm	25 A	Power	Panel Mount	250 V	Integrated in Housing	Compliant	Compliant
BR AWY PL ASM,MC Buy on te.com	HDB36-24-21SN-059	Product Drawing 3D PDF	Wire-to-Wire	21	Housing for Female Terminals	-	1.6 mm, 2.4 mm	25 A, 13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 8P, AL, N, THD ADPT, DRAIN, 12, P	HD34-18-8PN-072	3D PDF	Wire-to-Wire	8	Housing for Male Terminals	-	2.4 mm	25 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 21P, AL, E, CUSTOM, 12/16, P Buy on te.com	HD34-24-21PE-L072	Product Drawing 3D PDF	Wire-to-Panel	21	Receptacle	-	1.6 mm, 2.4 mm	25 A, 13 A	Power	Panel Mount	-	Contact Retainer	Compliant	Compliant
PLG, 16P, AL, N, THD ADPT, DRAIN, 12, P Buy on te.com	HD36-24-16PN-072	3D PDF	Wire-to-Panel	16	Housing for Male Terminals	-	2.4 mm	25 A	Power	Panel Mount	250 V	Integrated in Housing	Compliant	Compliant
PLG, 33P, AL, N, THD ADPT, NO DRAIN,20,S	HD36-24-33SN-L005	Product Drawing 3D PDF	Wire-to-Panel	33	Plug	-	1 mm	7.5 A	Power	Panel Mount	-	Contact Retainer	-	Compliant
PLG, 21P, AL, N, THDADPT,NODRAIN,12/16,S Buy on te.com	HD36-24-21SN-L005	Product Drawing 3D PDF	Wire-to-Wire	21	Housing for Female Terminals	-	1.6 mm, 2.4 mm	25 A, 13 A	Power	Cable Mount (Free-Hanging)	250 V	Contact Retainer	Compliant	Compliant
PLG,16P,AL,E,CBL CLMP BT,NODRAIN,12,P,MC	HD36-24-16PE-L006	Product Drawing 3D PDF	Wire-to-Wire	16	Housing for Male Terminals	-	2.4 mm	25 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 21P, AL,N,CBLCLMPBT,NODR,12/16,S,MC	HD34-24-21SN-L006	Product Drawing 3D PDF	Wire-to-Wire	21	Housing for Female Terminals	-	1.6 mm, 2.4 mm	25 A, 13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
PLG,14P,AL,E,CBL CLMP BT,NODRAIN,16,P,MC	HD36-18-14PE-L006	Product Drawing 3D PDF	Wire-to-Panel	14	Plug	-	1.6 mm	13 A	Power	Panel Mount	-	Integrated in Housing	Compliant	Compliant
REC,14P,AL,N,CBL CLMP BT,DR,4/12/16,P,MC	HD34-24-14PN-059	3D PDF	Wire-to-Panel	14	Receptacle	-	1.6 mm, 2.4 mm, 5.7 mm	100 A, 25 A, 13 A	Power	Panel Mount	-	Contact Retainer	Compliant	Compliant
PLG,14P,AL,T, CBL CLMP BT, DRAIN,16,S,MC Buy on te.com	HD36-18-14ST-059	3D PDF	Wire-to-Wire	14	Housing for Female Terminals	-	1.6 mm	13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 8P, AL, N, THD ADPT, NODRAIN, 12,S Buy on te.com	HD34-18-8SN-L005	3D PDF	Wire-to-Panel	8	Housing for Female Terminals	-	2.4 mm	25 A	Power	Panel Mount	250 V	Integrated in Housing	Compliant	Compliant
REC, 18P, AL, N,THD ADPT DRAIN,8/12/16,P	HD34-24-18PN-072	3D PDF	Wire-to-Wire	18	Housing for Male Terminals	-	1.6 mm, 2.4 mm, 3.61 mm	25 A, 13 A, 60 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 35P, AL, N, THD ADPT DRAIN, 16/20,S Buy on te.com	HD34-24-35SN-072	Product Drawing 3D PDF	Wire-to-Wire	35	Housing for Female Terminals	-	1.6 mm, 1 mm	13 A, 7.5 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
PLG, 31P, AL, T, THD ADPT, DRAIN, 16, S Buy on te.com	HD36-24-31ST-072	3D PDF	Wire-to-Wire	31	Housing for Female Terminals	-	1.6 mm	13 A	Power	Cable Mount (Free-Hanging)	250 V	Contact Retainer	Compliant	Compliant
REC,14P,AL,T, CBL CLMP BT, DRAIN,16,P,MC Buy on te.com	HD34-18-14PT-059	3D PDF	Wire-to-Wire	14	Housing for Male Terminals	-	1.6 mm	13 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
PLG,35P,AL,N, CBLCLMPBT,DRAIN,16/20,P,MC	HD36-24-35PN-059	3D PDF	Wire-to-Wire	35	Housing for Male Terminals	-	1.02 mm, 1.59 mm	13 A, 7.5 A	Power	Cable Mount (Free-Hanging)	24 V, 12 V	Integrated in Housing	Compliant	Compliant
REC,9P,AL,N,CBL CLMP,NODRAIN,4/8/12,S,MC	HD34-24-9SN-L006	Product Drawing 3D PDF	Wire-to-Wire	9	Housing for Female Terminals	-	2.4 mm, 3.6 mm, 5.7 mm	100 A, 25 A, 60 A	Power	Cable Mount (Free-Hanging)	250 V	Integrated in Housing	Compliant	Compliant
PLG,18P,AL,N,CBLCLMPBT,NODR,8/12/16,P,MC	HD36-24-18PN-L006	Product Drawing 3D PDF	Wire-to-Wire	18	Housing for Male Terminals	-	1.6 mm, 2.4 mm, 3.61 mm	25 A, 13 A, 60 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
PLG, 9P, AL, N, THD ADPT DRAIN, 4/8/12,S Buy on te.com	HD36-24-9SN-072	3D PDF	Wire-to-Wire	9	Housing for Female Terminals	-	2.4 mm, 3.6 mm, 5.7 mm	100 A, 25 A, 60 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC, 18P, AL, E, 8/12/16, P Buy on te.com	HD34-24-18PE	3D PDF	Wire-to-Panel	18	Housing for Male Terminals	-	1.6 mm, 2.4 mm, 3.6 mm	25 A, 13 A, 60 A	Power	Panel Mount	250 V	Integrated in Housing	Compliant	Compliant
PLG, 6P, AL, N, THD ADPT, DRAIN, 4/16,S Buy on te.com	HD36-18-6SN-072	3D PDF	Wire-to-Wire	6	Plug	12.7 mm, 5.5 mm	1.6 mm, 5.7 mm	100 A, 13 A	Power	Panel Mount	-	Contact Retainer	Compliant	Compliant
REC, 16P, AL, N, THD ADPT, DRAIN, 12, S	HD34-24-16SN-072	3D PDF	Wire-to-Panel	16	Housing for Female Terminals	-	2.4 mm	25 A	Power	Panel Mount	250 V	Integrated in Housing	Compliant	Compliant
REC,35P,AL,N, CBLCLMPBT,DRAIN,16/20,P,MC Buy on te.com	HD34-24-35PN-059	3D PDF	Wire-to-Wire	35	Housing for Male Terminals	-	1.6 mm, 1 mm	13 A, 7.5 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
REC,9P,AL,N, CBLCLMPBT,DRAIN,4/8/12,P,MC Buy on te.com	HD34-24-9PN-059	3D PDF	Wire-to-Panel	9	Housing for Male Terminals	-	2.4 mm, 3.6 mm, 5.7 mm	100 A, 25 A, 60 A	Power	Panel Mount	250 V	Integrated in Housing	Compliant	Compliant
PLG, 18P, AL, N,THD ADPT DRAIN,8/12/16,P	HD36-24-18PN-072	3D PDF	Wire-to-Panel	18	Housing for Male Terminals	-	1.6 mm, 2.4 mm, 3.6 mm	25 A, 13 A, 60 A	Power	Panel Mount	250 V	Integrated in Housing	Compliant	Compliant
PLG, 19P, AL, E, THD ADPT, DRAIN,12/16,S Buy on te.com	HD36-24-19SE-072	3D PDF	Wire-to-Wire	19	Housing for Female Terminals	-	1.6 mm, 2.4 mm	25 A, 13 A	Power	Cable Mount (Free-Hanging)	250 V	Contact Retainer	Compliant	Compliant
PLG, 14P, AL, E, THD ADPT, DRAIN, 16, P Buy on te.com	HD36-18-14PE-072	3D PDF	Wire-to-Panel	14	Plug	-	1.6 mm	13 A	Power	Panel Mount	-	Integrated in Housing	Compliant	Compliant
PLG,18P,AL,E,CBLCLMPBT,DR,8/12/16, P,MC Buy on te.com	HD36-24-18PE-059	3D PDF	Wire-to-Wire	18	Housing for Male Terminals	-	1.6 mm, 2.4 mm, 3.61 mm	25 A, 13 A, 60 A	Power	Panel Mount	250 V	Contact Retainer	Compliant	Compliant
PLG, 14P, AL, E, 16, P Buy on te.com	HD36-18-14PE	3D PDF	Wire-to-Panel	14	Housing for Male Terminals	-	1.6 mm	13 A	Power	Panel Mount	250 V	Integrated in Housing	Compliant	Compliant
REC, 21P, AL, N, THDADPT,NODRAIN,12/16,S Buy on te.com	HD34-24-21SN-L005	Product Drawing 3D PDF	Wire-to-Panel	21	Housing for Female Terminals	-	1.6 mm, 2.4 mm	25 A, 13 A	Power	Panel Mount	250 V	Integrated in Housing	Compliant	Compliant
REC, 19P, AL, E, THD ADPT, DRAIN,12/16,P	HD34-24-19PE-072	Product Drawing 3D PDF	Wire-to-Wire	19	Housing for Male Terminals	-	2.39 mm, 1.59 mm	25 A, 13 A	Power	Panel Mount	250 V	Integrated in Housing	Compliant	Compliant
REC, 21P, AL, E, THD ADPT DRAIN, 12/16,S Buy on te.com	HD34-24-21SE-072	3D PDF	Wire-to-Wire	21	Housing for Female Terminals	-	2.39 mm, 1.59 mm	25 A, 13 A	Power & Signal	Panel Mount	24 V, 12 V	Contact Retainer	Compliant	Compliant
PLG,14P,AL,N,CBL CLMP BT,NODRAIN,16,S,MC	HD36-18-14SN-L006	Product Drawing 3D PDF	Wire-to-Wire	14	Housing for Female Terminals	-	1.59 mm	13 A	Power & Signal	Cable Mount (Free-Hanging)	24 V, 12 V	Contact Retainer	Compliant	Compliant

Overview

DEUTSCH HD30 housings offer color-coded wire seals in normal and extra thin walls.

Series Overview

Accepts contact sizes 4 (100 amps), 8 (60 amps), 12 (25 amps), 16 (13 amps), and 20 (7.5 amps)
6-22 AWG (13.00-0.35 mm2)
2, 6, 8, 9, 14, 16, 18, 19, 20, 21, 23, 29, 31, 33, 35, and 47 cavity arrangements
In-line or flange mount
Circular, aluminum housing
Coupling ring for mating
Available accessories: Backshells, boots, dust caps, gaskets, mounting hardware, strain relief

VIEW ALL DEUTSCH HD30 PRODUCTS

VIEW ALL DEUTSCH HD30 PRODUCTS
DEUTSCH HD30 connectors are constructed from a metal shell developed to meet the needs of the heavy-duty equipment and transportation industries.

FAQ

Frequently Asked Questions

Q: What is an HD30 connector?

A: DEUTSCH HD30 environmentally sealed connectors are designed for cable to cable applications. The HD30 connectors are used in harsh environment applications where even a small degradation in connection may be critical.

Q: What are the appropriate applications for HD30 connectors?

A: Truck, Bus, Off-highway, Construction, Agriculture, Mining, Emergency Vehicles, Forestry, Recreational, Motorcycle

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Connector System Wire-to-Wire, Wire-to-Panel
Connector & Housing Type Housing for Female Terminals, Receptacle, Plug, Housing for Male Terminals
Sealable Yes
Connector & Contact Terminates To Wire & Cable
Primary Locking Feature Integrated in Housing, Contact Retainer
Connector Shape Circular
Mixed & Hybrid Connector Yes, No

Configuration Features

Number of Positions 47, 6, 8, 16, 23, 29, 14, 20, 31, 35, 21, 33, 18, 19, 9
Connector Seal Code N Seal, T Seal, E Seal
Connector Modification Threaded Adapter, Blocked Cavities, Cable Clamp
Blank Cavity Position 0

Housing Features

Centerline (Pitch) (mm) 12.7, 5.5
Centerline (Pitch) (in) .5, .216
Housing Material Aluminum Alloy, Aluminum

Contact Features

Mating Pin Diameter (mm) 1.02, 5.7, 5.72, 2.39, 2.4, 1.6, 3.6, 1, 3.61, 1.5, 1.59, 1.57
Mating Pin Diameter (in) .04, .095, .225, .063, .06, .062, .094, .142
Contact Current Rating (Max) (A) 60, 13, 25, 7.5, 100
Contact Type Socket, Pin
Contact Size Size 8, Size 16, Size 12, Size 20, Size 4

Operation/Application

Circuit Application Power & Signal, Power

Mechanical Attachment

Connector Mounting Type Cable Mount (Free-Hanging), Panel Mount
Terminal Position Assurance No
Mating Alignment Type Guide Slot, Polarizing Slot, Guide Post, Guide Ribs
Strain Relief With, Without, Add By Accessory
Mating Alignment Without, With

Usage Conditions

Operating Temperature (Max) 125 °C [ 257 °F ]
Operating Temperature Range -55 – 125 °C [ -67 – 257 °F ]

Electrical Characteristics

Nominal Voltage Architecture (V) 24, 12, 250
Operating Voltage (VDC) 250
Operating Voltage (VAC) 250

Other

Connector Position Assurance Capable No
EU RoHS Compliance Compliant, Compliant with Exemptions
EU ELV Compliance Compliant with Exemptions, Compliant
Serviceable Yes

Body Features

Cable Exit Angle 180°

Dimensions

Compatible Insulation Diameter Range (mm) 3.43 – 5.59, 6.6 – 7.4, 2.5 – 3.4, 7.11 – 7.42, 1.35 – 2.62, 3.4 – 4.32, 1.4 – 3.8, 2.9 – 4.5, 1.35 – 3.05, 1.9 – 3.5, 1.3 – 2.2, 3.6 – 5.2, 1.3 – 3.2, 1.02 – 2.41, 4.83 – 6.1, 2.46 – 4.01, 2.54 – 3.4, 1.4 – 2.5, 1.9 – 3.2, 1.02 – 2.1, 6.6 – 7
Compatible Insulation Diameter Range (in) .1 – .134, .051 – .085, .04 – .083, .055 – 15, .053 – .103, .135 – .22, .053 – .12, .26 – .292, .075 – .138, .134 – .17, .14 – .204, .055 – .149, .113 – .176, .05 – .125, .051 – .125, .141 – .204, .114 – .177, .055 – .15, .075 – .14, .114 – .17, .28 – .292, .19 – .24, .097 – .158, .04 – .095, .261 – .292, .075 – .125, .055 – .098
Product Width (mm) 50.8, 47.6, 42.97, 49.32, 41.3, 44.45, 43, 49.3, 40.6
Product Width (in) 1.87, 1.692, 2, 1.6, 1.942, 1.69, 1.75, 1.94, 1.62
Connector Height (mm) 52.1, 68.5, 38.6, 47.53, 66.3, 81, 65.3, 44.2, 38.3, 39.1, 47, 77.7, 81.7, 78.7, 49.32, 41.28, 43.6, 42.97, 41.8, 44.4, 68.2, 84.3
Connector Height (in) 3.2, 1.692, 2.61, 1.64, 2.69, 1.51, 3.05, 1.72, 1.625, 3.1, 1.85, 1.74, 2.7, 1.52, 2.05, 3.18, 3.22, 1.942, 3.32, 2.68, 2.57, 3.19, 1.75, 1.875, 3.06, 1.54, 3.31
Product Length (mm) 43, 44.5, 84.28, 65.28, 66.34, 49.3, 40.6, 68.5, 50.8, 81.05, 81.7, 77.7, 44.4
Product Length (in) 2.697, 3.217, 3.059, .2, 1.6, 3.191, 2.612, 2, 1.69, 2.57, 1.75, 1.94, 3.318

Industry Standards

UL Flammability Rating UL 94V-0
IP Rating IP67

Packaging Features

Packaging Method Package, Pack, Box
Packaging Quantity 100, 120, 80, 1, 40

Reference Number

TE Internal Number CAT-H3930-CH8172

Related Materials

DEUTSCH, TE Connectivity, and TE connectivity (logo) are trademarks.

DEUTSCH HD30 Housings

Product Features

Connector System : Wire-to-Wire, Wire-to-Panel

Number of Positions : 47, 6, 8, 16, 23, 29, 14, 20, 31, 35, 21, 33, 18, 19, 9

Connector & Housing Type : Housing for Female Terminals, Receptacle, Plug, Housing for Male Terminals

Centerline (Pitch) (mm): 12.7, 5.5

Centerline (Pitch) (in): .5, .216

Sealable : Yes

Series Overview

VIEW ALL DEUTSCH HD30 PRODUCTS

Frequently Asked Questions

Product Type Features

Connector System Wire-to-Wire, Wire-to-Panel

Connector & Housing Type Housing for Female Terminals, Receptacle, Plug, Housing for Male Terminals

Sealable Yes

Connector & Contact Terminates To Wire & Cable

Primary Locking Feature Integrated in Housing, Contact Retainer

Connector Shape Circular

Mixed & Hybrid Connector Yes, No

Configuration Features

Number of Positions 47, 6, 8, 16, 23, 29, 14, 20, 31, 35, 21, 33, 18, 19, 9

Connector Seal Code N Seal, T Seal, E Seal

Connector Modification Threaded Adapter, Blocked Cavities, Cable Clamp

Blank Cavity Position 0

Housing Features

Centerline (Pitch) (mm) 12.7, 5.5

Centerline (Pitch) (in) .5, .216

Housing Material Aluminum Alloy, Aluminum

Contact Features

Mating Pin Diameter (mm) 1.02, 5.7, 5.72, 2.39, 2.4, 1.6, 3.6, 1, 3.61, 1.5, 1.59, 1.57

Mating Pin Diameter (in) .04, .095, .225, .063, .06, .062, .094, .142

Contact Current Rating (Max) (A) 60, 13, 25, 7.5, 100

Contact Type Socket, Pin

Contact Size Size 8, Size 16, Size 12, Size 20, Size 4

Operation/Application

Circuit Application Power & Signal, Power

Mechanical Attachment

Connector Mounting Type Cable Mount (Free-Hanging), Panel Mount

Terminal Position Assurance No

Mating Alignment Type Guide Slot, Polarizing Slot, Guide Post, Guide Ribs

Strain Relief With, Without, Add By Accessory

Mating Alignment Without, With

Usage Conditions

Operating Temperature (Max) 125 °C [ 257 °F ]

Operating Temperature Range -55 – 125 °C [ -67 – 257 °F ]

Electrical Characteristics

Nominal Voltage Architecture (V) 24, 12, 250

Operating Voltage (VDC) 250

Operating Voltage (VAC) 250

Other

Connector Position Assurance Capable No

EU RoHS Compliance Compliant, Compliant with Exemptions

EU ELV Compliance Compliant with Exemptions, Compliant

Serviceable Yes

Body Features

Cable Exit Angle 180°

Dimensions

Product Width (mm) 50.8, 47.6, 42.97, 49.32, 41.3, 44.45, 43, 49.3, 40.6

Product Width (in) 1.87, 1.692, 2, 1.6, 1.942, 1.69, 1.75, 1.94, 1.62

Connector Height (mm) 52.1, 68.5, 38.6, 47.53, 66.3, 81, 65.3, 44.2, 38.3, 39.1, 47, 77.7, 81.7, 78.7, 49.32, 41.28, 43.6, 42.97, 41.8, 44.4, 68.2, 84.3

Connector Height (in) 3.2, 1.692, 2.61, 1.64, 2.69, 1.51, 3.05, 1.72, 1.625, 3.1, 1.85, 1.74, 2.7, 1.52, 2.05, 3.18, 3.22, 1.942, 3.32, 2.68, 2.57, 3.19, 1.75, 1.875, 3.06, 1.54, 3.31

Product Length (mm) 43, 44.5, 84.28, 65.28, 66.34, 49.3, 40.6, 68.5, 50.8, 81.05, 81.7, 77.7, 44.4

Product Length (in) 2.697, 3.217, 3.059, .2, 1.6, 3.191, 2.612, 2, 1.69, 2.57, 1.75, 1.94, 3.318

Industry Standards

UL Flammability Rating UL 94V-0

IP Rating IP67

Packaging Features

Packaging Method Package, Pack, Box

Packaging Quantity 100, 120, 80, 1, 40

Reference Number

TE Internal Number CAT-H3930-CH8172

Flipbook Catalog

Connector Selector
