Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

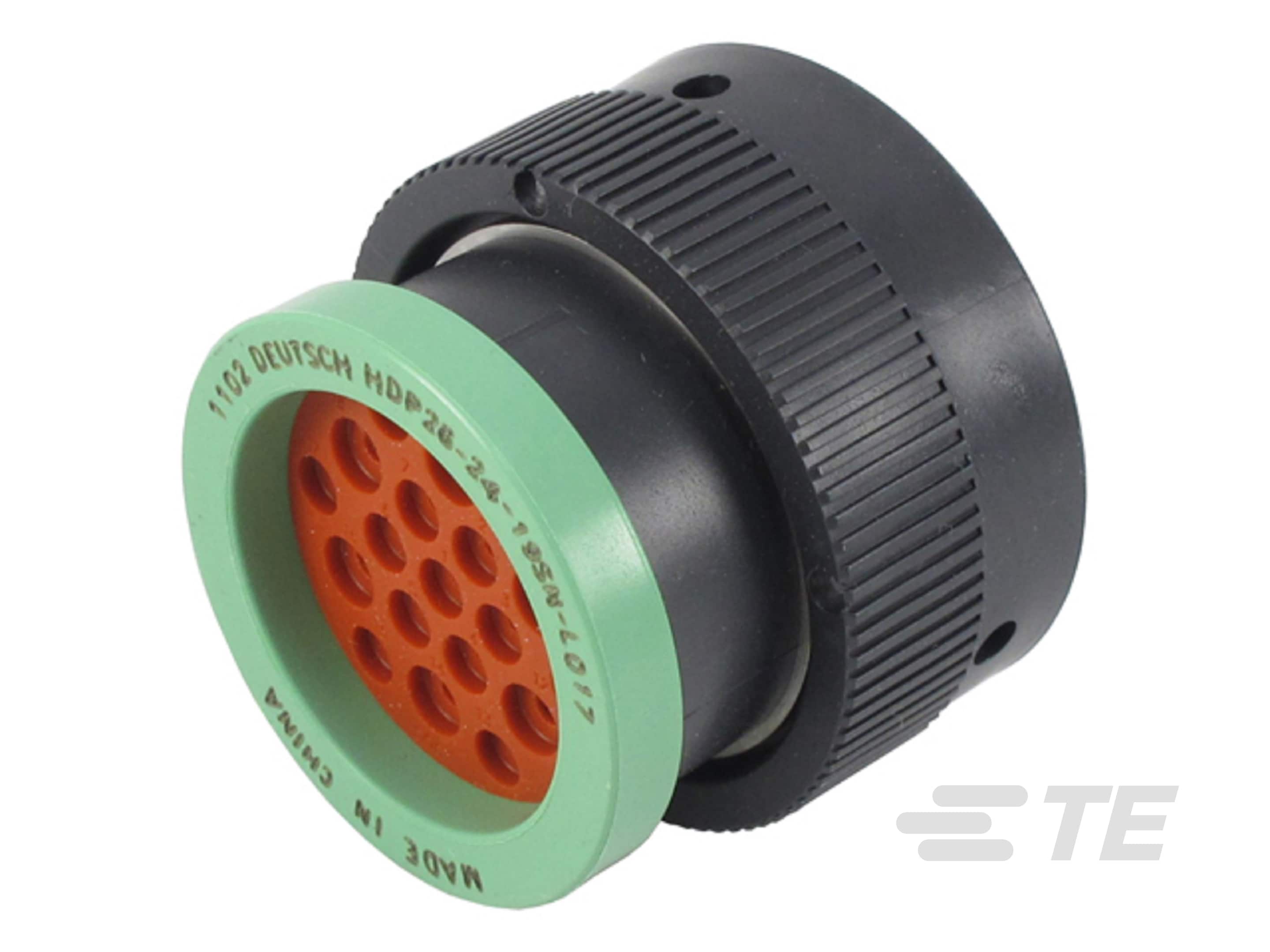

• Connector System : Wire-to-Panel

• Connector & Housing Type : Housing for Female Terminals

• Sealable : Yes

• Connector & Contact Terminates To : Wire & Cable

• Primary Locking Feature : Contact Retainer

• Connector Shape : Circular

• Mixed & Hybrid Connector : Yes

• Number of Positions : 19

• Connector Seal Code : N Seal

• Connector Modification : Ring Adapter

• Blank Cavity Position : 0

• Mating Pin Diameter (mm): 1.6, 2.4

• Mating Pin Diameter (in): .063, .094

• Contact Current Rating (Max) (A): 25, 13

• Contact Type : Socket

• Contact Size : Size 16, Size 12

• Primary Product Color : Black

• Cable Exit Angle : 180°

• Circuit Application : Power

• Connector Mounting Type : Panel Mount

• Mating Alignment : With

• Mating Alignment Type : Polarizing Slot

• Terminal Position Assurance : No

• Strain Relief : Without

• Operating Temperature (Max) : 125 °C [ 257 °F ]

• Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

• Nominal Voltage Architecture (V): 250

• Operating Voltage (VDC): 250

• Operating Voltage (VAC): 250

• Connector Position Assurance Capable : No

• EU RoHS Compliance : Compliant

• EU ELV Compliance : Compliant

• Serviceable : Yes

• Housing Material : PA 66 GF

• Connector Height : 42.5 mm [ 1.67 in ]

• Product Length : 49.5 mm [ 1.95 in ]

• Product Width : 49.5 mm [ 1.95 in ]

• Compatible Insulation Diameter Range (mm): 1.4 – 3.8, 3.6 – 5.2

• Compatible Insulation Diameter Range (in): .055 – .15, .14 – .204

• UL Flammability Rating : UL 94V-0

• IP Rating : IP67
