29-214-11

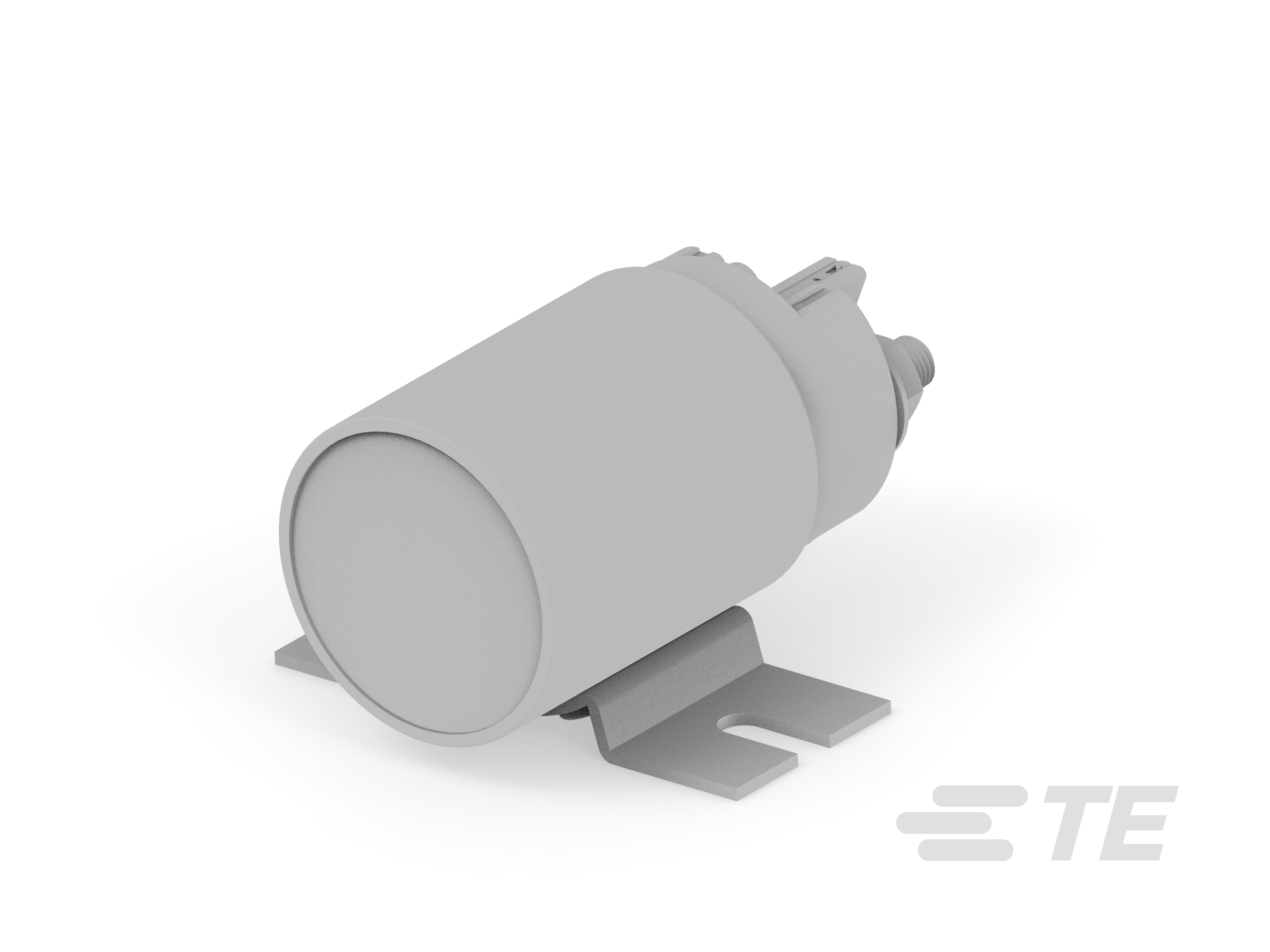

General Purpose Power Relay, DC, Monostable, 1 Form X SPST-NO-DM, 200 A Contact Rating, 16 VDC / 9 VDC Coil Voltage, KISSLING Series 29
29-214-11
General Purpose Power Relay, DC, Monostable, 1 Form X SPST-NO-DM, 200 A Contact Rating, 16 VDC / 9 VDC Coil Voltage, KISSLING Series 29
-
- KISSLING
- KISSLING Series 29
- TE Internal #: K1011766
- TE Internal Description: Relay 29-214-11
- All Power Relay, 200A, Standard, Monostable, DC (22)
-
Relay & Contactor Type : General Purpose Power Relay
-
Current Type : DC
-
Coil Magnetic System : Monostable
-
Contact Arrangement : 1 Form X SPST-NO-DM
-
Contact Current Rating (A): 200
Documents
Product Drawings
- 200AMP POWER RELAY (12VDC) ENG_CD_29-214-11_2.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_29-214-11_1.pdf 3D
- Customer View Model ENG_CVM_CVM_29-214-11_1.2d_dxf.zip English
- ENG_CVM_CVM_29-214-11_1.3d_igs.zip English
- ENG_CVM_CVM_29-214-11_1.3d_stp.zip English
Datasheets & Catalog Pages
- KISSLING SINGLE POLE POWER RELAYS Series 29 / 200A ENG_DS_K1166699_B.pdf English
