29-321-11

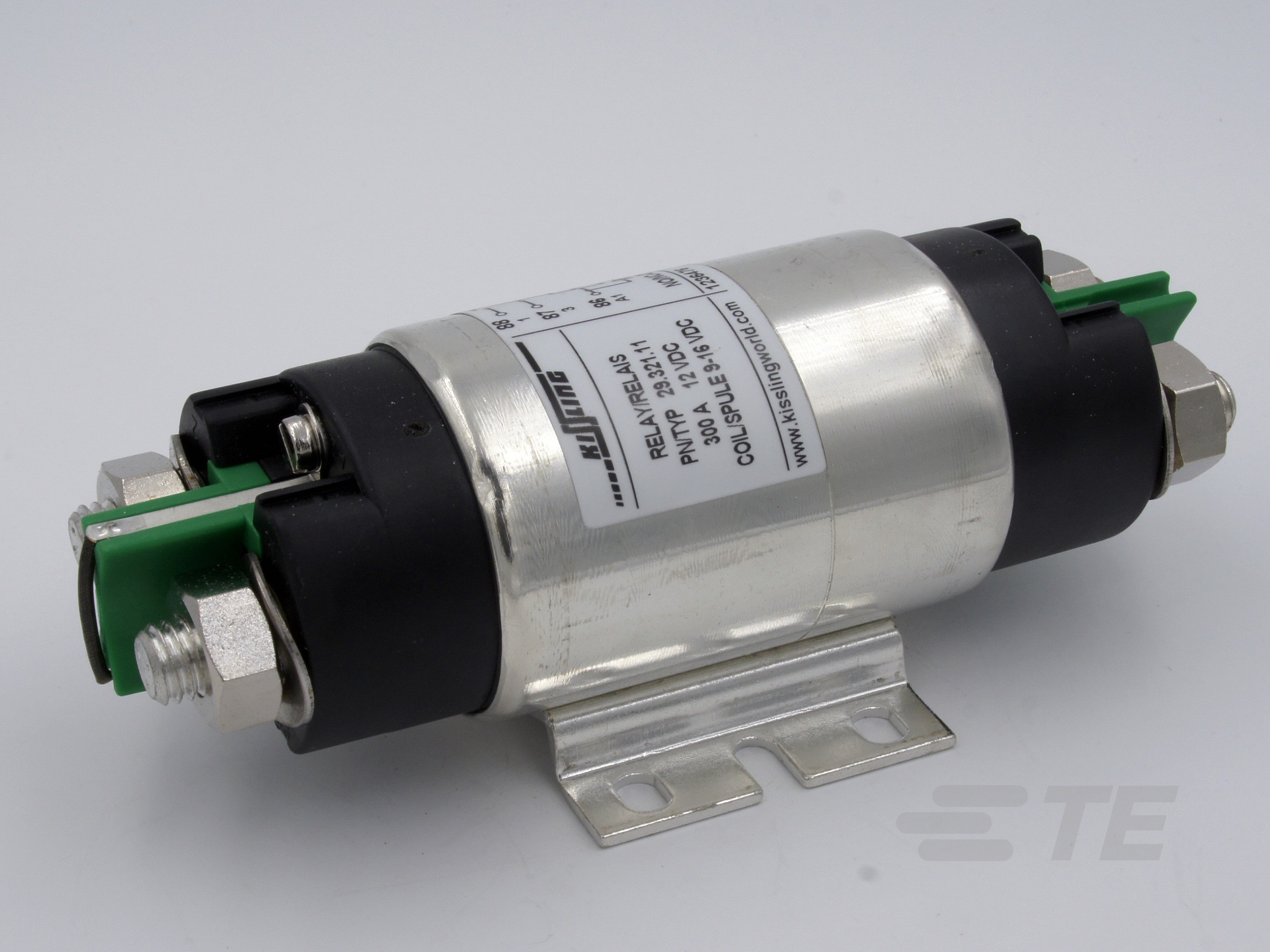

General Purpose Power Relay, DC, Monostable, 1 Form C SPDT-CO, 300 A Contact Rating, 18 VDC / 9 VDC Coil Voltage, KISSLING Series 29
29-321-11
General Purpose Power Relay, DC, Monostable, 1 Form C SPDT-CO, 300 A Contact Rating, 18 VDC / 9 VDC Coil Voltage, KISSLING Series 29
-
- KISSLING
- KISSLING Series 29
- TE Internal #: K1021362
- TE Internal Description: Relay 29-321-11
- All Power Relay, 300A, Standard, Monostable, DC (22)
-
Packaging Method : Carton
-
Product Width : 62 mm [ 2.44 in ]
-
Relay & Contactor Type : General Purpose Power Relay
-
Coil Voltage Rating (VDC): 18, 9
-
Product Mounting Feature Type : Mounting Brackets
Documents
Product Drawings
- 300AMP. POWER RELAY 300AMP. Leistungsrelais ENG_CD_29-321-11_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_29-321-11_A.pdf 3D
- Customer View Model ENG_CVM_CVM_29-321-11_A.2d_dxf.zip English
- ENG_CVM_CVM_29-321-11_A.3d_igs.zip English
- ENG_CVM_CVM_29-321-11_A.3d_stp.zip English
Datasheets & Catalog Pages
- KISSLING SINGLE POLE POWER RELAYS Series 29 / 300A ENG_DS_K1166700_B.pdf English
