08-1-1-13 030

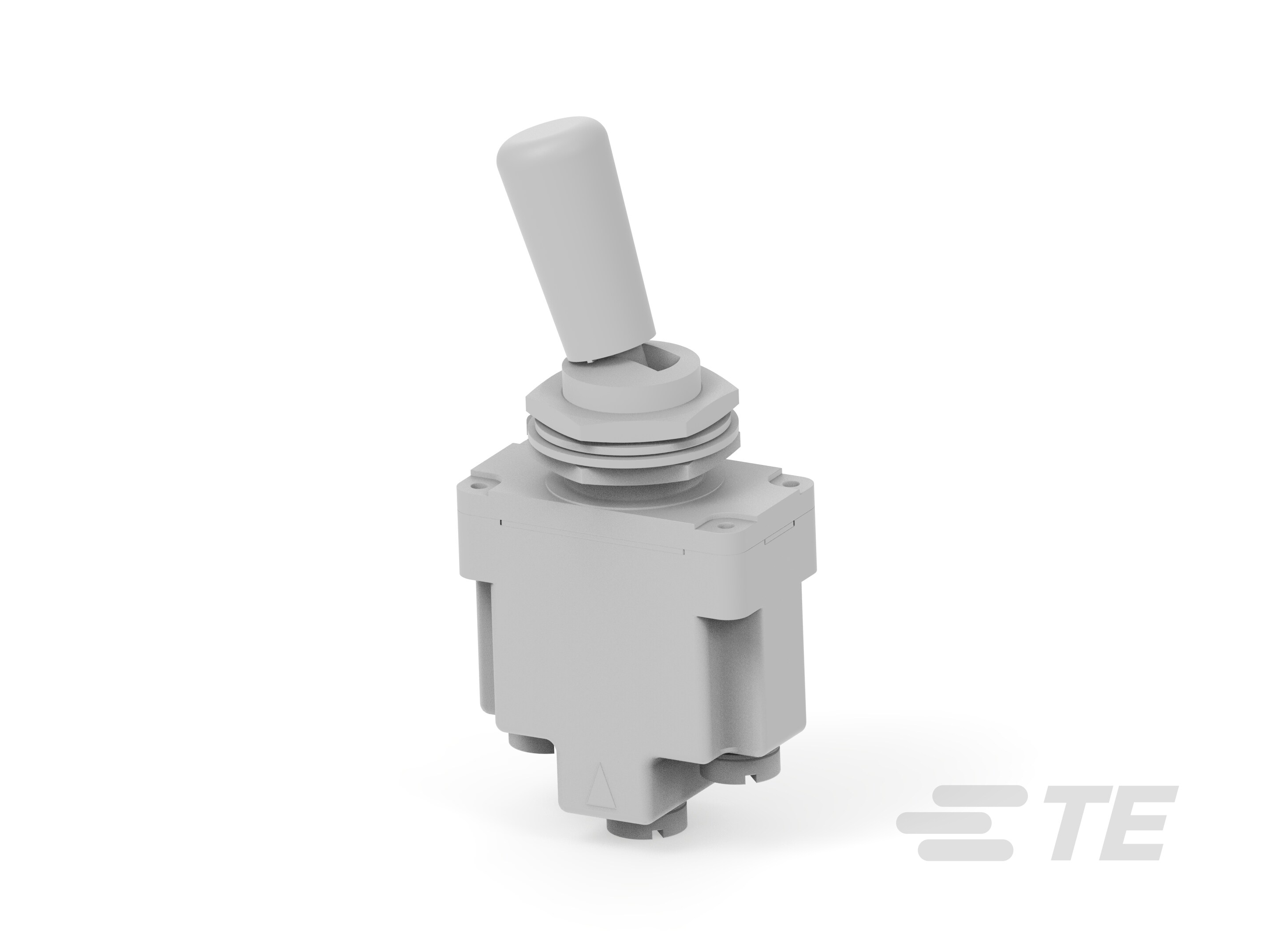

Single Pole - Double Throw Configuration (Pole-Throw), On On, 2 Position, 28 VDC, 115 VAC, Panel Mount, Horizontal, Process Sealed, KISSLING Series 08
08-1-1-13 030
Single Pole - Double Throw Configuration (Pole-Throw), On On, 2 Position, 28 VDC, 115 VAC, Panel Mount, Horizontal, Process Sealed, KISSLING Series 08
-
- KISSLING
- KISSLING Series 08
- TE Internal #: K1121532
- TE Internal Description: Toggle Switch 08-1-1-13 030
-
Configuration (Pole-Throw) : Single Pole - Double Throw
-
Operating Function : On On
-
Number of Positions : 2
-
Operating Voltage (VDC): 28
-
Operating Voltage (VAC): 115
