35-411-180-S

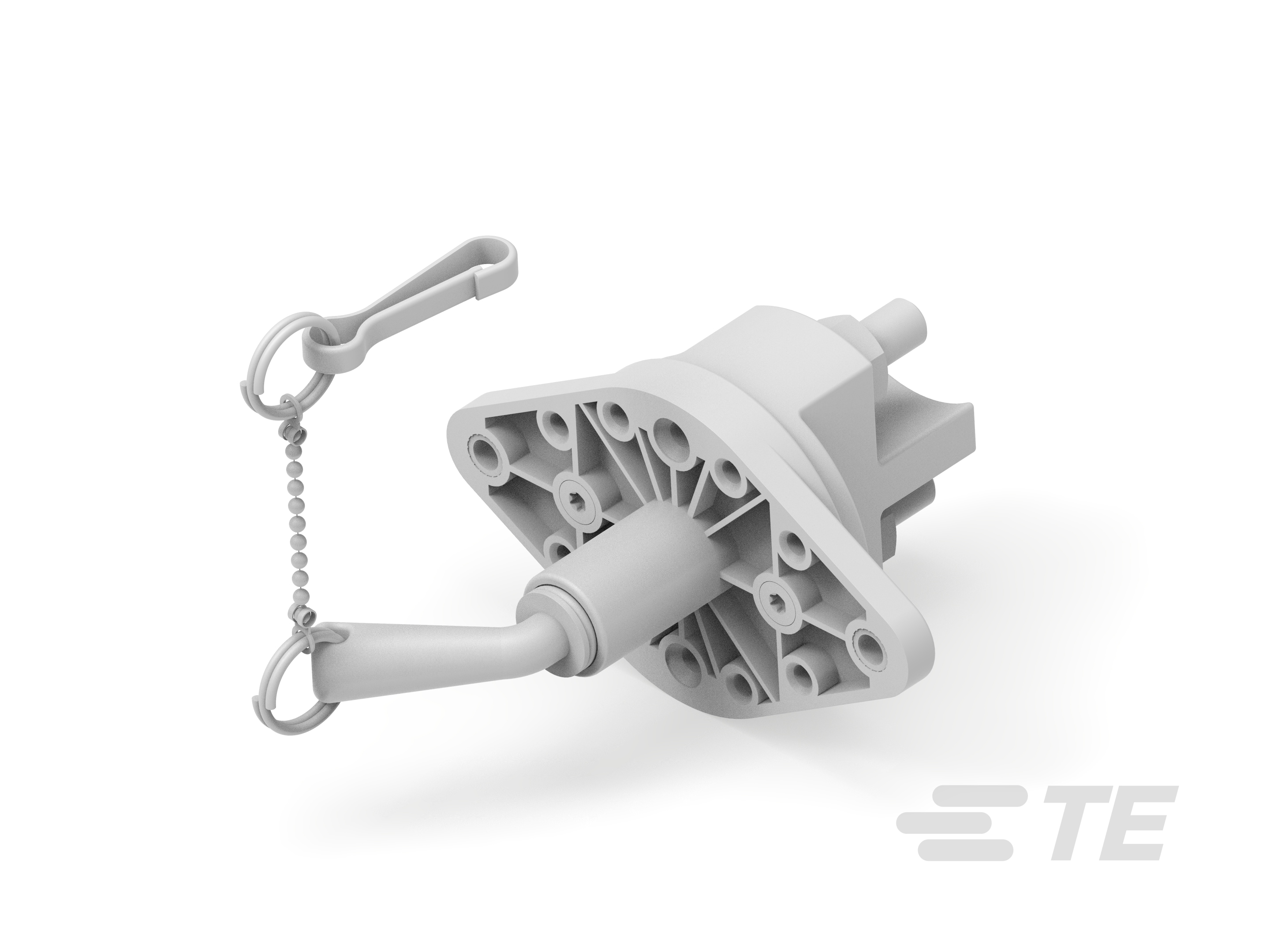

400 A Battery Disconnect Switch, 32 VDC, 1 Pole, M10, 0 Auxillary Positions, Long Flange, 45° Turn Off, Removable With Chain, KISSLING Series 35
35-411-180-S
400 A Battery Disconnect Switch, 32 VDC, 1 Pole, M10, 0 Auxillary Positions, Long Flange, 45° Turn Off, Removable With Chain, KISSLING Series 35
-
- KISSLING
- KISSLING Series 35
- TE Internal #: K1123849
- TE Internal Description: Battery Disconnector 35-411-180-S
- All Battery Disconnector, 400A, 1 Pole (22)
-
Operating Temperature Range : -40 – 85 °C [ -40 – 185 °F ]
-
Termination Thread Size : M10
-
Operating Handle Type : 45° Turn Off
-
Number of Auxiliary Contacts : 0
-
Centerline Between Flange Screw Holes : 100 mm [ 3.937 in ]
Documents
Product Drawings
- BATTERY DISCONNECTOR 400A Batterietrennschalter 400A ENG_CD_35-411-180-S_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_35-411-180-S_1.pdf 3D
- Customer View Model ENG_CVM_CVM_35-411-180-S_1.2d_dxf.zip English
- ENG_CVM_CVM_35-411-180-S_1.3d_igs.zip English
- ENG_CVM_CVM_35-411-180-S_1.3d_stp.zip English
Datasheets & Catalog Pages
- KISSLING BATTERY DISCONNECTOR Series 35 / 400A ENG_DS_K1166708_B.pdf English
